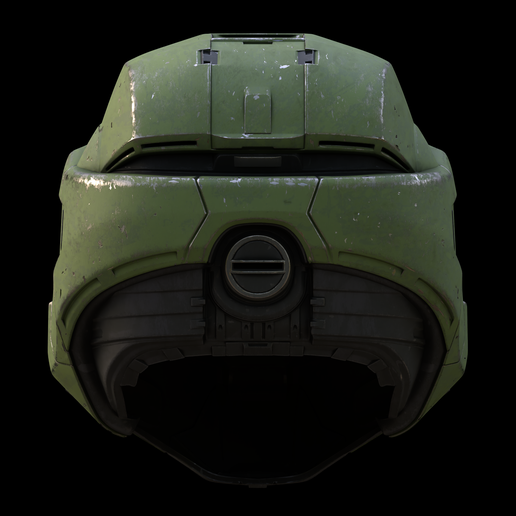

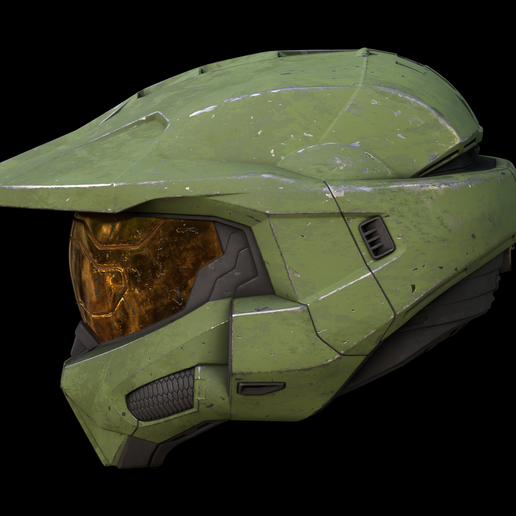

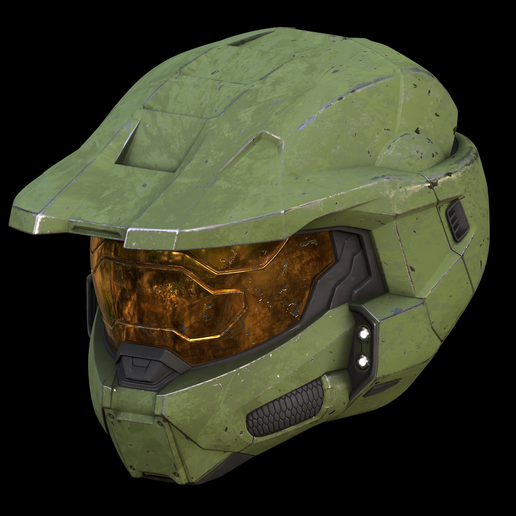

Pro Series MK 6 Helm 3d Druckdatei

Accurately designed helmet as seen in the video game Halo Infinite. This is a fan made replica model, and neither myself nor this product is affiliated with Microsoft or 343 industries.

3d file in .stl format for 3d printing with all added detail from game textures.

Includes a total of 4 zips with helmet shell, helmet front, helmet light covers, helmet cheek hex, brim detail, side vents, visor fog protector, visor, visor mold (visor print sits on mold for vac forming), and sizing cuts of the helmet for scaling.

-Pro Series Features-

This pro series helmet design includes slots for a total of 36 10x3mm magnets, 8 of which are part of the helmet insert. The insert is based on the FAST tactical helmets and is removable, held to the helmet with magnets. It also has holes for FAST helmet chin strap systems to keep the helmet completely in place. This is so can be removed from one pro series helmet, and moved to another of the same scale, no need to do padding and straps for each helmet. The helmet also includes a removable chin assembly, now allowing a much tighter seal around the neck and less of a bucket look.

The visor mold has also been re done where now the printed and sanded, or resin printed visor, sits in the visor mold base for vac forming.

SCALING NOT RECOMMENDED. Pro Series helmet files are pre scaled in three different sizes, a small, medium, and a large. If you alter the scale of the helmet files the magnet slots won't work.

-Helmet Scales-
Small: head circumference 22in, Recommended head height: 8.9in
Medium: head circumference: 23in, Recommended head height: 9.2in
Large: head circumference 24in, Recommended head height: 9.55in

*sizes are just recommendation, helmet will fit smaller and slightly larger

The visor can be either be printed in a see through resin or vacuum formed with the visor mold. Keep in mind the visor files provided are a 1-1 scale, if you are going to do a vacuum form I would shrink the visor mold slightly to allow the molded plastics thickness.

Feel free to message me directly if you have any questions. Printer too small? I would recommend a slicer software for your printer, PrusaSlicer is free and easy to use. It can cut your model into smaller bits as well as any filament or printer tweaks before you print.

Interested in printing and selling my designs for your business?
Please visit: https://www.patreon.com/TitlewaveDesigns
Business use Patreon membership is available, note this only gives access to sell physical prints while the membership is held, no digital file selling is allowed.
