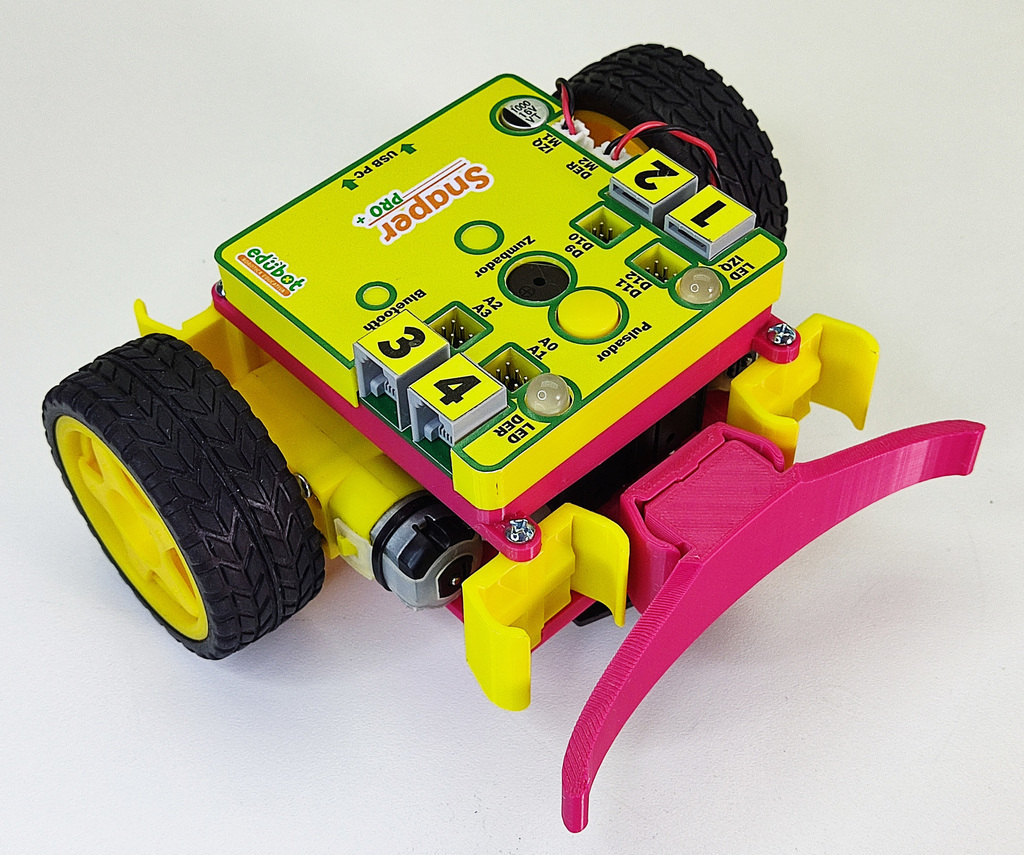

Robot Snaper pro (Gehäuse + Zubehör)

The Snaper Pro robot is an educational robotics kit designed to learn and compete in different categories such as line followers, mini-sumo, robot soccer and home projects.
This package includes the STL files of the official robot chassis and accessories, ready to 3D print and assemble with standard electronic components (Arduino, sensors, motors, servos, etc.).

🛠️ Pack contents

Modular chassis: robust and adaptable base, designed for different types of robots.

DC motor holders: compatible with TT motors.

Interchangeable accessories:

Sensor holders (IR, ultrasound, TCRT5000, etc.)

Front robotic gripper/grapple

Servo motor holder

Arduino / Snaper Pro board housing

Optimized design for FDM printers: light, strong and easy-to-print parts without complicated brackets.

🔧 Hardware requirements

2 DC motors depending on the project.

Arduino (Nano/Uno) or Snaper Pro board.

Line, ultrasound or IR sensors (optional).

Rechargeable battery (18650).

🎯 Benefits

Modular system: one chassis for multiple robots.

Educational: ideal for STEM workshops, competitions and school projects.

Economical and replicable: print your own parts as many times as you want.

Compatible with expansions and new accessories in development.

Difficulty level: Easy-Intermediate.
Printing time: 6-8 hours (depending on printer and configuration).

👉 Turn the Snaper Pro into your favorite educational robotics platform and bring your ideas to life.

Printing technology: FDM/FFF
Recommended material: PLA (sufficient strength and easy to print). Optional: PETG or ABS for durability.
Layer height: 0.2 mm (optimal for balance between detail and speed).
Infill: 20-30% (standard parts) / 40% (motor and gripper supports).
Walls (perimeters): 2-3.
Top/bottom density: 3-4 solid layers.
Print speed: 50-60 mm/s.
Nozzle temperature: 200-210 °C (depending on filament).
Bed temperature: 60 °C (PLA) - 80 °C (PETG/ABS).
Supports: Minimal, only on parts with steep angles (gripper, sensor holder).
Adhesion: Base layer with brim (recommended for long parts).
