Elévateur Anycubic Kobra S1 D3P

NEW: I have added a side mounted build plate holder. It can be downloaded for free on Makeronline: Link: https://www.makeronline.com/en/model/Build%20plate%20holder%20for%20Classic%20single%20and%20dual%20Ace-pro%20Kobra%20S1%20riser/233607.html?trackModuleType=10

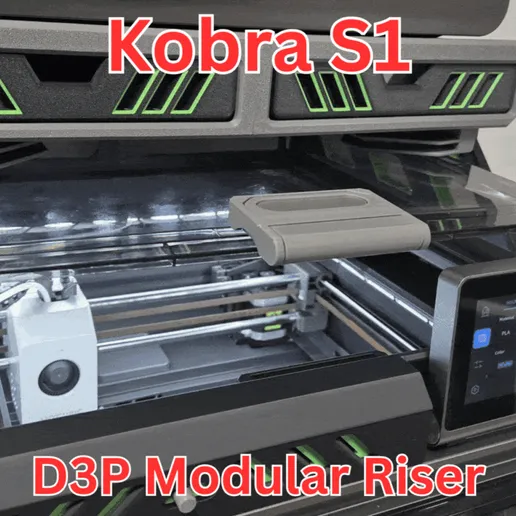

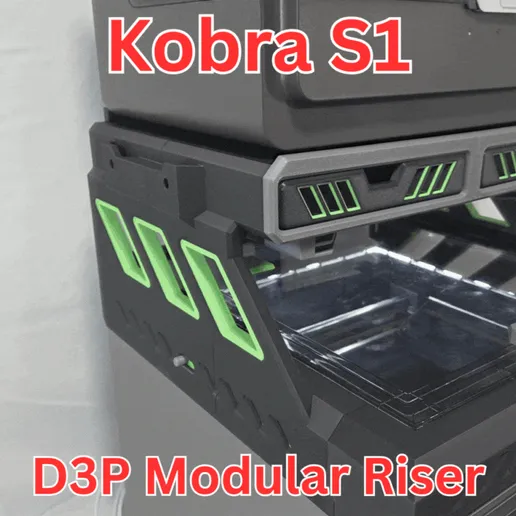

D3P RISER FOR ANYCUBIC KOBRA S1 by Darren 3d Print

Having designed a number of risers, I wanted one that offered it all, was modular for customization and also could be easily upgraded in the future. The result is my D3P riser system.

The D3P riser system is an innovative and modular riser system for your 3d printer. It features numerous free to download add-ons allowing you to customize your printer and riser like you want. The design of the D3P riser system is patent pending.

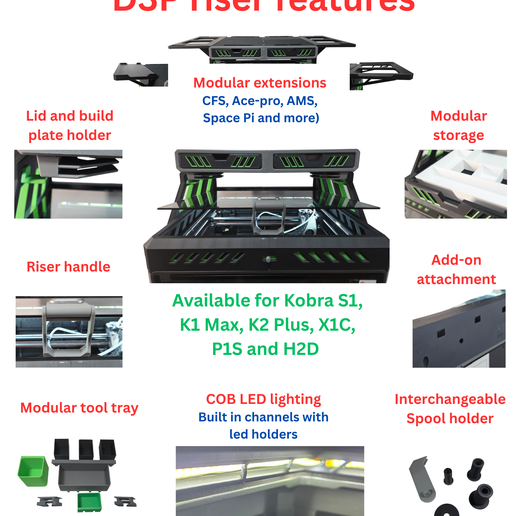

FEATURES

Features of the D3P riser system:

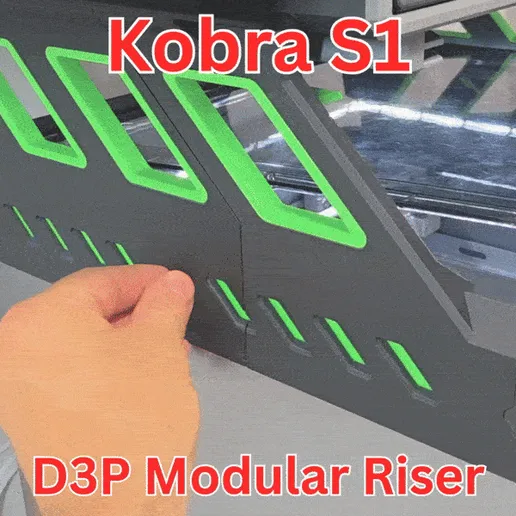

• Front and side adjustable vents;

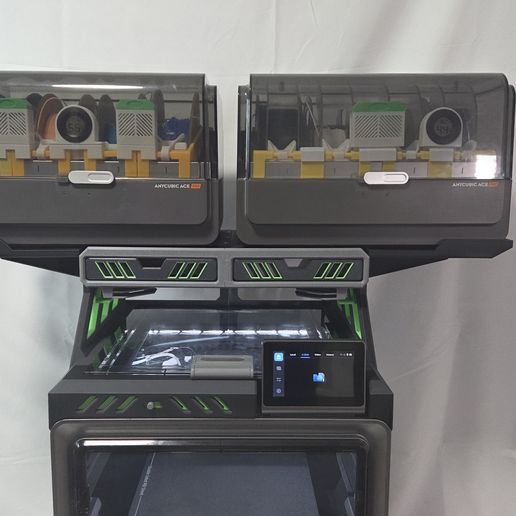

• Add-on extensions for dual Ace-pro units;
• Innovative COB LED channels that feature brackets to secure the LEDS in place;
• Top unit is set back to allow easy access to the printer from the top;
• Sturdy and reinforced construction and design to prevent sagging;
• Foldable add-on lid handle to prop the lid open;

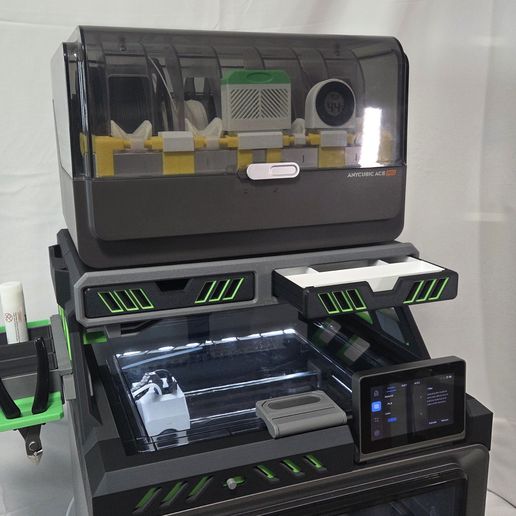

• Two large storage drawers with gridfinity style drawer inserts;
• Integrated build plate holder for two build plates;
• Integrated lid holders;
• Multiple add-ons such as a modular tool tray, interchangeable external spool holder and more to come;
• Detailed pdf instructions with pictures and steps;
• Printing requires little or no support.

INTELLECTUAL PROPERTY

This work is licensed under the standard digital file license. You are prohibited from sharing, sub-licensing, selling, renting, hosting, transferring, reproducing or distributing the digital file or 3d printed versions of this object, as well as any other derivative work in either digital or physical form (including remixes or copying/reproducting the design by any means).you are not allowed to use the objects in any manner that involves charging money or collecting fees without permission.
A patent has been filed for the D3P riser design and it is patent pending. I thank you for your understanding.

ADD-ONS

The model features a number of add-ons that are free to download on Makeronline.

NEW: Side mounted build plate holder: https://www.makeronline.com/en/model/Build%20plate%20holder%20for%20Classic%20single%20and%20dual%20Ace-pro%20Kobra%20S1%20riser/233607.html?trackModuleType=10

Side shelf for single spool dryer: https://www.makeronline.com/en/model/Spool%20dryer%20side%20shelf%20for%20Kobra%20S1%20Classic%20and%20D3P%20riser/221923.html

TPU top mount spool holder`:
https://www.makeronline.com/en/model/TPU%20Top%20mount%20spool%20holder%20-%20Kobra%20S1%20D3P%20riser/216010.html

Corner filament guide:
https://makeronline.com/en/model/Corner%20filament%20guide%20for%20Kobra%20S1%20D3P%20riser/215530.html

Drawer inserts: https://www.makeronline.com/en/model/Drawer%20compartments%20for%20Kobra%20S1%20riser/157319.html

Interchangeable spool holder: https://www.makeronline.com/en/model/Interchangeable%20spool%20handle%20for%20Kobra%20S1%20D3P%20riser/208247.html

Lid handle: https://www.makeronline.com/en/model/Lid%20handle%20for%20Kobra%20S1%20for%20Kobra%20S1%20D3P%20riser/208245.html

Modular tool tray: https://www.makeronline.com/en/model/Modular%20tool%20tray%20for%20Kobra%20S1%20D3P%20riser/208244.html

Ace-pro shelf extensions: https://www.makeronline.com/en/model/Ace-pro%20shelf%20extensions%20for%20Kobra%20S1%20D3P%20riser/208243.html

WLED enclosure
Robert has created some nice add-ons for a WLED enclosure, knomi screen and Fire 8HD bracket. These are available on Printables.

https://www.printables.com/model/1394911-enclosure-for-wled-esp32-psu-iec
https://www.printables.com/model/1394874-fire-8hd-bracket
https://www.printables.com/model/1394887-btt-know-for-d3p-riser

I will be adding to these so be sure to check back from time to time.

TECHNICAL SPECIFICATIONS

For the base riser:
Filament: 2.6 kg
Approximate print time: 3 days 9h
Height with closed Ace-Pro unit: 89 cm (35 inches)
Height with open Ace-Pro unit: 109 cm (43 inches)

PRINT SETTINGS

IMPORTANT I upload a print setting files for all my models. The print settings has the parts positioned for correct printing.

EACH BUILD PLATE HAS THE TYPE OF SUPPORT REQUIRED INDICATED ON THE BUILD PLATE DESCRIPTION (TREE AUTO, TREE MANUAL OR NO SUPPORT).

I strongly recommended you use my print setting file. If not, I will not be able to assist you if there is an issue when printing. From experience, many of the issues with printing my models are on account of users not using my print settings.

CHANGELOG
If there are any changes to the STL files or print settings I will list them here. I recommend looking at this section prior to printing as it is the only way I can inform users of changes.

3D PRINT SETTINGS
I use the following settings and materials to print this model:
Infill % : 15% (no need for more)
Nozzle diameter: 0.4 mm
Layer height: 0.2 mm standard
Material: I am often asked the question about the riser deforming when using PLA when printing ABS or ASA. I prefer PLA since it cheaper to purchase and easier to print. I print all my risers in PLA but I seldom print in ASA or ABS. I have some users that printed in PETG and some in ABS. Both will also work providing your printer can maintain tolerances. PETG may be preferable if you intend on printing higher temp materials on a regular basis. .

ASSEMBLY AND INSTRUCTIONS
A detailed instruction and assembly guide with steps and pictures is available for download with the model files.

The drawers fronts are painted in the slicer. Here is an excellent video on how to do this: https://www.youtube.com/watch?v=6DmwD52SkUU&ab_channel=FRENZi3DPRINTING

TROUBLESHOOTING
All parts and the assembly have been tested multiple times (both printing and assembly).
• Make sure your build properly cleaned and free of grease and oils before printing. This is the cause of adhesion.
• Make sure you use my print profiles/settings (the .3mf file that has multiple plates with all the parts) and that you enable support as indicated for each build plate on the build plate description.
• Filament and printer will affect tolerances however all should fit. If unsure proceed slowly and cautiously.
• If there are any changes I list them in a changelog on the model page. Please have a look at it prior to printing in the event there are any changes.
I am available to assist with any issues with this model.

The best way to reach me is through Facebook messenger – my user name is “Darren 3d print”.

I thank you for your support and hope you like this model.
