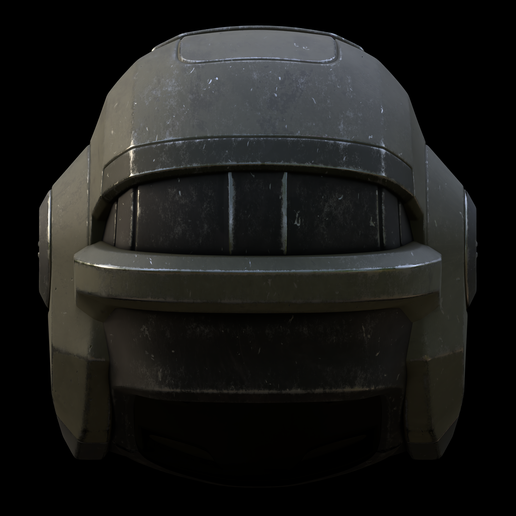

Pro Series Grenadier helmet 3d print file

Accurately designed helmet as seen in the video game Halo Reach. This is a fan made replica model, and neither myself nor this product is affiliated with Microsoft or 343 industries.

3d file in .stl format for 3d printing with all added detail from game textures.

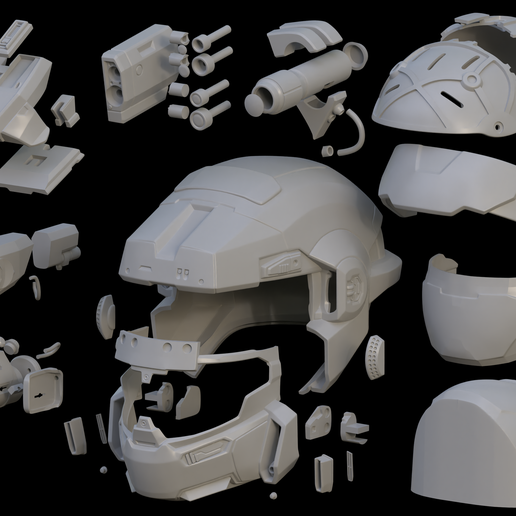

Includes a total of 4 zips with main helmet shell, helmet chin, shell mounts, details, light lens, visor, visor mold (visor print sits on mold for vac forming), and sizing cuts of the helmet for scaling.

There are also attachments including the CNM Farndale, CNM Typhon hollow, CNM Typhon solid, Starlight solid, Starlight hollow, willow solid, willow hollow, UA type c1, and UA type e3.

-Pro Series Features-

This pro series helmet design includes slots for a total of 32 10x3mm magnets, 8 of which are part of the new helmet insert. The insert is based on the FAST tactical helmets and is removable, held to the helmet with magnets. It also has holes for FAST helmet chin strap systems to keep the helmet completely in place. This is so can be removed from one pro series helmet, and moved to another of the same scale, no need to do padding and straps for each helmet. The helmet also includes a removable chin assembly, now allowing a much tighter seal around the neck and less of a bucket look.

SCALING NOT RECOMMENDED. Pro Series helmet files are pre scaled in three different sizes, a small, medium, and a large. If you alter the scale of the helmet files the magnet slots won't work.

-Helmet Scales-
Small: head circumference 23.3in, Recommended head height: 9.17in
Medium: head circumference: 24in, Recommended head height: 9.5in
Large: head circumference 24.75in, Recommended head height: 9.75in

*sizes are just recommendation, helmet will fit smaller and slightly larger

Both visors can be either be printed in a see through resin or vacuum formed with the visor mold. Keep in mind the visor files provided are a 1-1 scale, if you are going to do a vacuum form I would shrink the visor mold slightly to allow the molded plastics thickness.

Feel free to message me directly if you have any questions. Printer too small? I would recommend a slicer software for your printer, PrusaSlicer is free and easy to use. It can cut your model into smaller bits as well as any filament or printer tweaks before you print.
