RC BUGGY CAR 1/8 drive 4x4 ou 2x4 boîte de vitesses à deux rapports FULL 3D PRINTED

3D Wizja Druk has created for you an advanced modular chassis plate for the "RC BUGGY" car with the possibility of various configurations. It consists of modules. A free differential lock package will soon be available on the 3D Wizja Druk channel (two additional mini servos are required). "RC Buggy" is intended for intermediate printers, modelers and hobbyists of RC car models on a scale of 1:8.

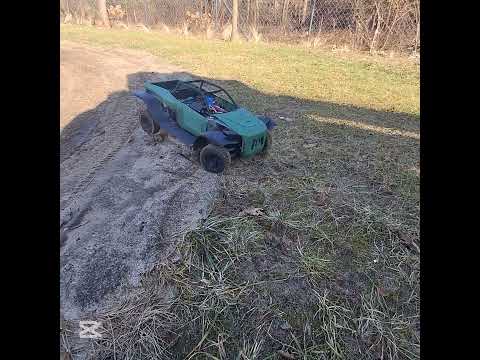

a video showing driving the model:

https://youtube.com/shorts/SFo_VlEXkDQ?is=gQgvLL82t2ito30C

https://www.instagram.com/reel/DUohhRajcLV/?utm_source=ig_web_copy_link&igsh=MzRlODBiNWFlZA==

A video presenting the possibilities of RC:

https://www.instagram.com/reel/DUy22gKDSpl/?igsh=MXY0YjRsaTBqOW9yYg==

The project is the result of two years of work. The structure was designed so that 90% of it could be made using 3D printing technology. It has, among others, multi-link suspension, shock absorbers, differentials (a package for locking the differentials separately on the channel), a steering system that you will not find in any other RC model,
Two-stage gearbox: 1st gear for off-road driving, 2nd gear for fast driving!!!, 4x4 drive activation in the basic version and front and rear differential lock (additional package for free download) and many other mechanisms designed by 3D Wizja Druk.

Assembly instructions included in the set!!!

What makes the model stand out:
Specification of the custom chassis model (possibility of further expansion and modification):
-Dimensions 300mm x 540mm x200mm/ 11.81 x 21.25 x 7.87inch.
-Model weight ~3.3kg/7.35lbs
-Multi-link rear suspension

-Multi wishbone front suspension
-Front drive axle with differential - Differential with locking option after downloading an additional package
- Rear drive axle with differential - Differential with the option of locking after downloading an additional package
-Permanent front-wheel drive (2x4) with the option of engaging the rear axle "4x4" in the basic version
-Advanced 2-speed gearbox!!! In the basic version
- Chassis plate adapted for further modification and various types of realistic "body kit" assemblies available in the 3D Wizja Druk channel.

I am organizing an EVENT for all lucky owners of the model!!!
Upload a video of driving the model and get a speed record documented in the video without destroying the model (it is allowed to unlock the power on the RC panel).
The winner will receive a body kit with their own LOGO OR INSTRUCTION in the place of their choice.
Best regards, have fun!!!

Attention!! model tested on a 2200KV 3-phase motor with electronically limited power
in the RC transmitter to the gas pedal 50% forward and the gas pedal 35% backward. Due to the weight of the model and safety.
To properly assemble the project, you need to purchase parts available in online stores.
For proper operation, the project requires printing mechanical parts from a minimum PETG CF filament, while PA12-CF is recommended.
The bodywork and chassis plate can be printed from PLA or PETG
Attention !!! If you do not have access to purchasing parts, "don't buy the project".
Attention !!! If you don't have basic DIY tools, "don't buy the project."
Attention!!! If you do not have basic knowledge of mechanics and electronics
And also the dangers of this "don't buy the project" thing.
You create the model at your own risk.

All updates and repairs will be available to everyone who purchased the model.

Attention!!! The model may experience various types of damage to elements resulting from:
From printing skills and materials used, model explantation and ability to select printing parameters. You should then print the element again. Please send information in a comment. The most common failures.

Attention!!!! Did you download the model and assemble it?? Write a comment. Rate the project. Share your photo in a comment. Write your observations and comments.

Attention!!! Various modifications that change the driving parameters will be available for those interested in the model!!!

List of components to buy:
- Minimum 6-channel transmitter
-Receiver with at least 6 channels
-ESC 30-40A 2-4s 1 pc
-Brushless motor 2212 - 2200kv 1 pc.
-MG995 servo 1 pc
-Mini servo SG90 9g 2pcs. (additional 2 pieces after installing the differential lock)
-Shaft connector fi 3mm to fi 3.17mm 1 pc
- Stainless steel shaft/rod fi3mm, approximately 300mm - to be cut into smaller elements
-688ZZ 8x16x5 ball bearing or sealed model. 21 pcs.
-20T GT2 Os8mm sprocket pulley
-36T GT2 sprocket pulley, 8mm axle
-Toothed belt closed, GT2 loop 6mm wide* 158mm RepRap
-Compression spring d1x dz13.5 L55 4 pcs
-M3 Allen screw of various lengths (quantities given in the instructions for purchasing parts)
-M3 tapered screw (quantities listed in purchasing parts instructions)
-M4 screw of various lengths (quantities given in the instructions for purchasing parts)

To make a model you will need tools such as:
-3D printer recommended chamber - the model was made on a Bambu Lab P1S printer, dimensions 256x256x256
-4kg of PETG filament - chassis, body and mechanical elements
-200g-500g Nylon PA_CF12 filament for critical elements such as gears, axles, shafts and joints.
-Goggles
-Mini grinder
-Mini drill
-Screwdriver
-Sandpaper
-File
-Hammer
-Pliers
-M3 tap
-M4 tap
-Caliper
- knowledge of modeling and DIY
