Марси

Marcie, from the comic strip Peanuts by Charles Schulz.

Marcie is a studious girl who is sometimes depicted as being terrible at sports. Marcie is best friends with Peppermint Patty, constantly addressing her as "sir". Originally, Peppermint Patty kept telling Marcie to stop calling her that but eventually grows accustomed to it.

Some supports are required on one piece, hair (see notes below). If you have the proper filament colors, no painting is needed.

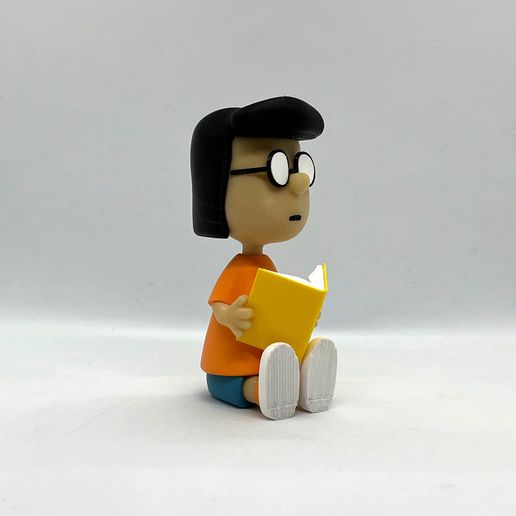

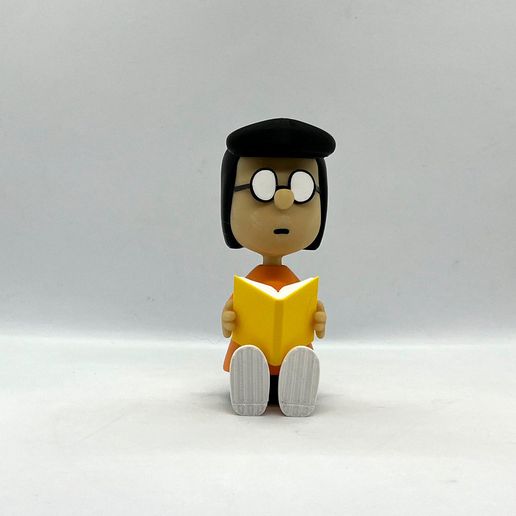

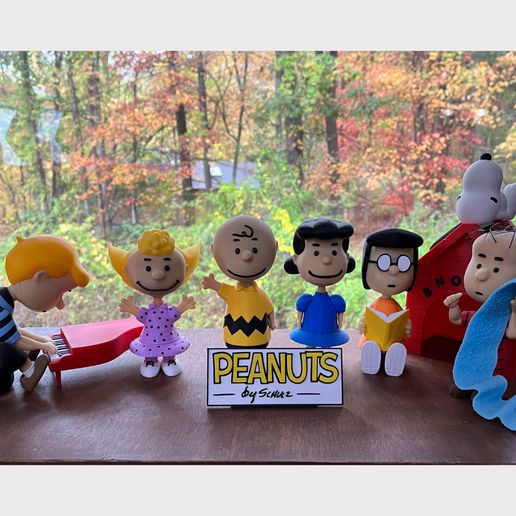

The assembled model is 128mm tall and is in proportion to my other Peanuts models.

Enjoy!

...........................................................................................................

Special shoutout to maker Benoît Lussier for providing QA printing and quality feedback.

...........................................................................................................

Print Instructions:
Supports: hair (see notes for details)
Resolution: .2mm
Infill: 15%

Building the model

Colors

Black: (Devil Designs PLA - Black)
hair
mouth
glasses_rim
glasses_earpiece_left
glasses_earpiece_right
..

Yellow: (Devil Designs PLA - Yellow)
book_outside
..

White: (Devil Designs PLA - White)
shoe_left
shoe_right
book_inside
glasses_lens_left
glasses_lens_right
..

Orange: (Devil Designs PLA - Orange)
shirt
sock_left
sock_right
..

Blue: (Devil Designs PLA - Blue)
book_outside
..

Skin: (Paramount3D PLA - Universal Beige)
head
arm_left
arm_right
leg_left
leg_right
..

Any color (hidden piece)
shirt_pin
..

...........................................................................................................

Printing and assembly tips

Printing tips:

1 - Supports are required on the follow part:
hair (Standard settings for organic/tree supports (with a wider support base if you have adhesion issues)

2 - There are some pieces that may need brims or rafts, use your discretion. When setting up my prints I prefer to be conservative to ensure the least chance of a print failure, especially since the base of many parts are hidden when inserted into another part.

*I used a raft on:
arm_left
arm_right

3 - When removing parts from the printer bed, it's a VERY good idea to place left/right parts into separate containers to help with the assembly process. Sometimes the difference between the left and right parts is very small but it is still worth keeping track of them (especially if you size up the model significantly) and assembling them in their proper place.

..
Assembly tips:

1 - Take your time gluing the model together and enjoy the process. Dry fit all the parts and give some thought into which parts to glue together as groups and then gluing the groups together. Let the glue for each group set completely before combining groups.

2 - I used 3D Gloop (strong fast drying) and E6000 (tacky slow drying) glues to put this model together. For both glues using a smaller amount is usually better than more glue.

3 - Refer to the assembly diagrams in the pictures section as well as the uploaded pictures for putting the model together. The model is meant to be glued.

Do not hesitate to ask questions, feedback is essential to making better models.
