AIRSOFT BREN 2 BODY KIT

PAGE: https://www.facebook.com/3DprintedAirsoft
Discord: https://discord.gg/NKtyGVyWzU
BB MAGAZINE: https://cults3d.com/en/3d-model/various/airsoft-bren-2-magazine-7-62x39

Please read whole description!

INSTRUCTIONS:
Assembly video: https://youtu.be/VRkrJqTg3uE

Print orientation, cable routing and simple assembly guide is on Discord channel

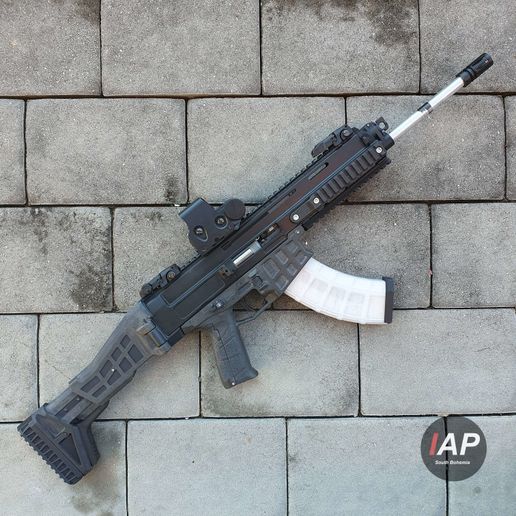

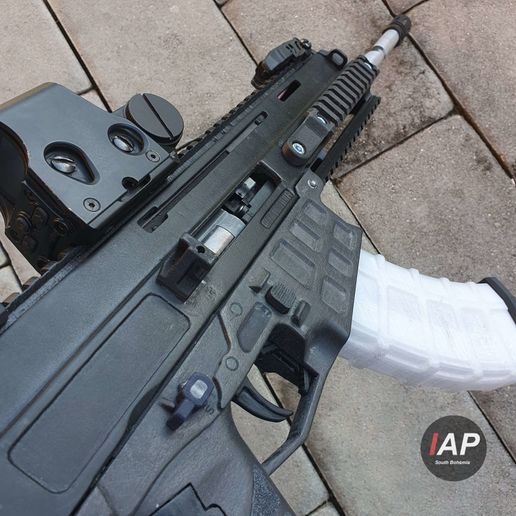

Lets start with what this is and for who it is, this is airsoft BREN 2 inspired body kit for airsoft, this mean you can use this to make your very own airsoft BREN 2
Those files are for users that like airsoft, DIY aspect of 3D printing and have some experience with airsoft and DIY aspect. Will be pritable on 220x220x250 buildplates

SOME MODIFICATIONS ON YOUR GB SHELL MIGHT BE REQUIRED,IF YOU ARE NOT COMFORTABLE WITH MODING YOUR V3 SHELL, THERE ARE SPECIAL FILES MARKED "OEM SHELL", BUT YOU WILL BE LIMITED TO ONLY LEFT SIDE SELECTOR

---

CHANGELOG:
24.10.2024 - Design improvements on grips backstrap

01.04.2024 - Improved "barrel block" and "barrel" assembly, both are now connected by 2x 3mm pins instead of side rails screws.

STEP file of barrel was added to "step_files.zip"

07.02.2024 - "selector_halfgear_left" was updated based on feedback from EVO3+ kit which uses same part was this part made slightly longer.

08.01.2024 - First iteration of AR15 stanag magwell adapter, read manual: https://drive.google.com/file/d/1bHf8ag7Sy-s7mpkdMWOMfpNRLBvGyGVa/view?usp=sharing

To be tested

24.06.2023 - Missinng stock_block_slider added

21.06.2023 - Missing hopup_slider added

04.02.2023 - Muzzle device added ( not tested )

22.01.2023 - Missing receiver pins added

21.12.2022 - Gearbox shim eliminated, backstrap updated, bending in thumb area is fixed (to be tested), trigger shuttle updated, sticker template added

---

COMPATIBILITY:

CYMA V3 shell - IS supported

Shooter microswitch V3 shell - We found out that Shooter gearbox have different angle of motor cage, we managed to somehow make custom lower for it but because of this Shooter microswitch geabox - IS NOT supported

IF you dont have CYMA shell and lower will not fit on your shell, contact me on Discord server, and we will try to make needed changes for your OEM.

---

WHICH BATTERY?

1) Space in stock allows for dimensions 15x27x145, this space is accesible trough buttpad
2) On tester request, you can place lipo of simensions 16x17x120 in place for gaspin, custom files are included
3) Battery box

---

WHAT DO YOU NEED?

V3 geabox shell
AK hopup
Airsoft barrel
G36 disconnector (AK one can be modified

Heat inserts/Nut

• 9x M5 (or low profile nuts)
• 2x M4
• 1x M3 -1x M3 nut - for charging handle to bolt conection

Screws

• 8x M5x10 - for side rails
• 1x M5x6 - for side rails
• 2x M4x countersunk - for sling loops
• 1x M4x5 - for grip to motor cage connection
• 1x M4x10 - to correctly set gearbox height in lower reciever
• 2x M3x10 setcrews
• 2x M3x3 - for gearbox selector plate
• 2x M3x10 - for butstock
• 2x M3x6 - for hopup to barrel conection
• 1x M3x8 - for charging handle to bolt conection
• 1x small self tapping screw - for bolt imitation

Pins

xx cm of 3 mm rod / roll pins
- for brass deflector
- for gasblock lever
- for left side mag release
- for stock block lever

OPTIONAL as reinforcement for main body and stock pins

xx cm of 3,5 mm rod / roll pins
- for stock end positon pin
- for grip backstrap

xx cm of 2,5 mm rod / roll pins
- for bolt catch imittion

xx cm of 4 mm rod / roll pins
- for gasblock

PARTS LIST:

All files are divided into 7 zip packages

A) UPPER

• upper_receiver
• upper_receiver_split_A
• upper_receiver_split_B
• sling_loop_rear
• sling_loop_front
• charging_handle_rod
• charging_handle
• brass_deflector
• bolt_imitation
• bolt_imitation_plate
• bolt imitation_merge

B) LOWER

• lower_receiver
• lower_receiver_backstrap
• lower_reciever_CYMA
• magrelease_button_thread
• magrelease_left_side_norod
• magrelease_left_side_threaded
• trigger_guard_boltrelease
• ambi_left_side_magcatch
• fire_selector_lever
• left_side_boltrelease

C) STOCK

• main_body
• main_body_cableroute
• main_body_pin_insert
• stock_button
• stock_lever
• stock_lever_pin
• stock_mount_cableroute
• stock_mount_lever
• stock_mount_lever_cableroute
• telescopis_part
• buttstuck
• buttstuck__locking_clip
• buttstuck_clip

D) BARREL ASSEMBLY

• barrel_block_insert
• barrel_block_nut
• barrel_long
• barrel_long_square_hopup
• c_clamp_inserts
• c_clamp_nut
• gas_block
• gas_block_lever
• gas_pin
• ris_rail_bottom
• ris_rail_side
• hopup_slider

E) GEARBOX

• selector_gear
• selector_halfgear_left
• selector_halfgear_right
• selector_lever
• selector_plate_left
• selector_plate_right_normal_head
• template
• trigger
• trigger_shuttle

F) MUZZLE DEVICE

• muzzle device
• muzzle nut
• muzzle device merged

G) "NOT SUPPORTED"

• files made during testing, they might be to use for some, but we do not support them

---

THANKS TO:

• Igniz for feedback/testing
• F4zek for feedback/testing

---

ALL FILES ARE ORIGINAL WORK AND ARE MADE BY ME, IF YOU NEED ANY SORT OF PROVE LET ME KNOW.

FOR AIRSOFT USE ONLY

Не менее 4 стенок с соплом 0,4, заполнение около 25-30%, для деталей селектора и коробки передач используйте 100% заполнение. Используйте PLA+, PETG или ABS, если у вас есть возможность их напечатать.
