DWG 10, основание Elegoo Neptune 3 для держателя датчика биения

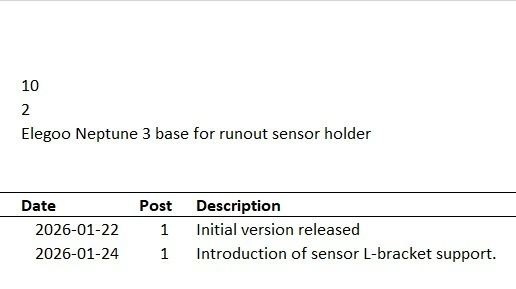

PLEASE NOTE: This model was made for the Elegoo Neptune 3 MAX. I feel confident it fits the other sizes also, but can not guarantee it.

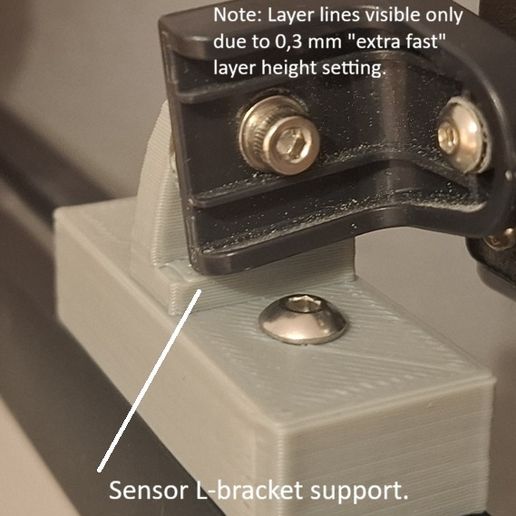

This base is a holder for the filament runout sensor on the Elegoo Neptune 3 (Max). It makes it possible to detached and not use the original filament spool holder, to make the printer much lower. This is especially good when wanting to re-route the filament to e.g. and external heater, i.e. the filament spool does not sit on the included holder.

The original filament spool holder can simply be detached and stored away by losening 2 screws, BUT keep the 2 pcs screws and 2 pcs square nuts inside the rail for the new base.

The screw, nut and washers below are required since we will not reuse the screw that held the runout sensor bracket to the original filament spool arm, since that has an inserted metallic thread that can not be detached and reused in a simple and meaningful way.

Shortly, I will release a special filament tube holder and a special guiding mount to complete this unit. These are NOT required for this base to work, this unit can be used stand alone.

REUSE:

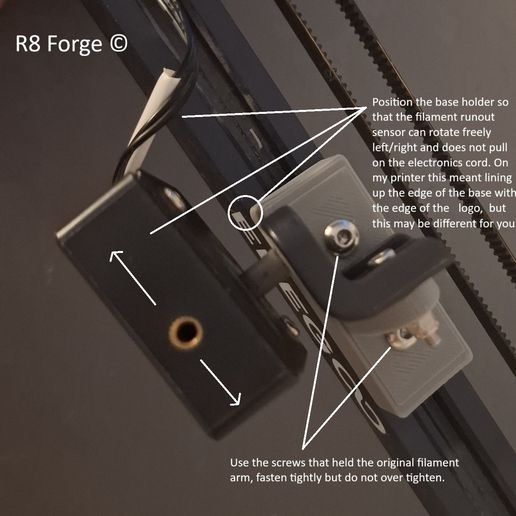

- The 2 screws that hold the original spoolholder and the 2 square nuts that sit losely inside the top rail.

REQUIRED PARTS:
- 1 pcs M3 screw 15-20 mm.
- 1 pc M3 Lock nut.
- 4 pcs M3 washers.

This is an original R8 Forge © design.

This can very easily printed and used in PLA, and 15% infill is sufficient. Due to the protruding guide rails on the base underside, print using support and possibly brim/skirt.
