In honor of the release of Avengers Infinity War, here is a special Avengers Logo where the letters are mounted on a gear train. The gear train allows the letters to spin in a synchronized manner, allowing for a dramatic reveal of the logo.

Here is a video with more details and some humor about Hawkeye, if you are interested:
https://youtu.be/2P8kA0pKA5E

Please note that the best way to show your appreciation and keep up to date on my latest 3D printing projects is to head over to my YouTube channel and subscribe!
https://www.youtube.com/channel/UCeQR9E-MPwBqEpuaIJiE4CQ

STL quantities to print:

A, Avengers Logo {QTY 1x}
V, Avengers Logo {QTY 1x}
E1, Avengers Logo {QTY 1x}
N, Avengers Logo {QTY 1x}
G, Avengers Logo {QTY 1x}
E2, Avengers Logo {QTY 1x}
R, Avengers Logo {QTY 1x}
S, Avengers Logo {QTY 1x}

Base-left, Avengers Logo {QTY 1x}
Base-middle, Avengers Logo {QTY 1x}
Base-right, Avengers Logo {QTY 1x}
Mounting Shaft, Avengers Logo {QTY 8x}

Printing:
I printed the gears/letters upright, so there is support material to remove. Be careful when removing support, as the section connecting the gear to the letter can be delicate.

I stiffened up the “A” and the “G” with a support rib in the back because I had issues with the connecting section breaking during support removal. So be especially careful with those letters!

Post-Printing:
Carefully remove support material as discussed above.

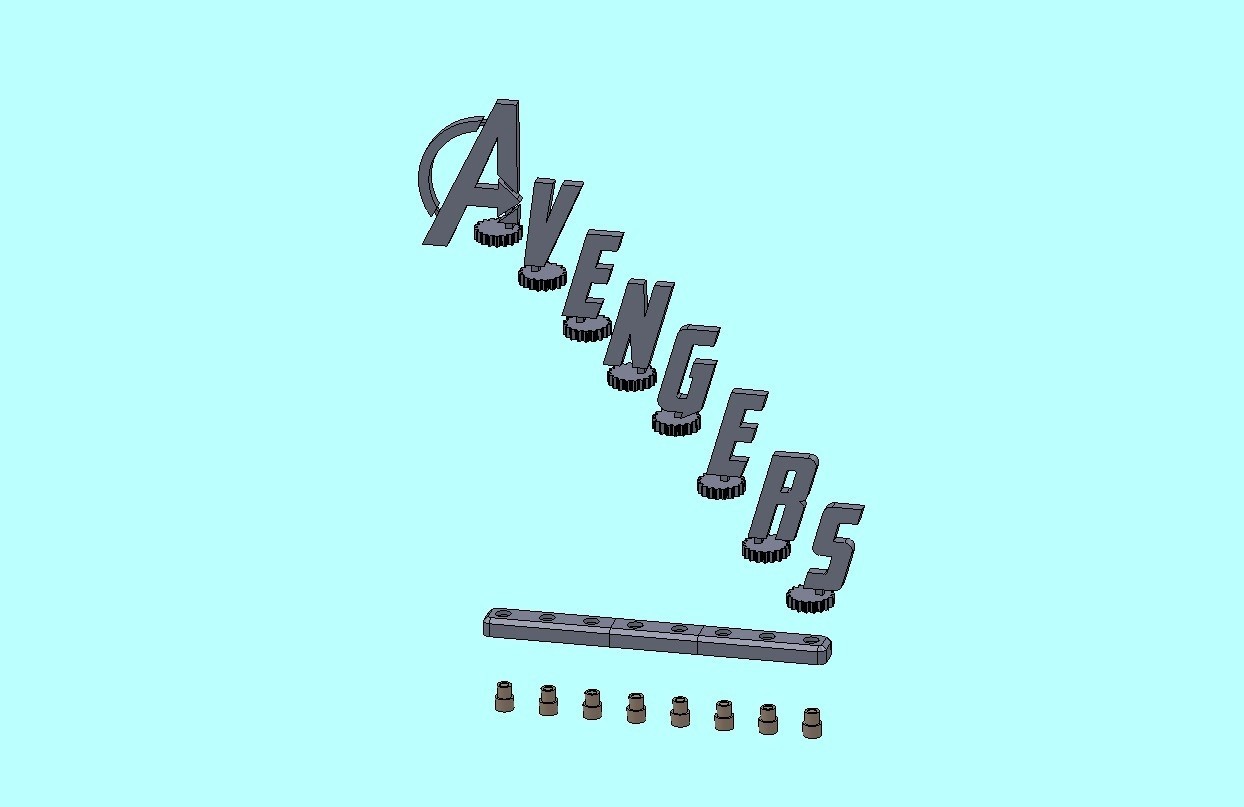

The video (and exploded view) show how to assemble this. Be sure to get the positioning of the gears/letters correct, with respect to each other, so they are synchronized when turning. I find it helps to press each gear/letter on in order, from “A” to “S”, with the logo facing front (revealed).

You can put a little super glue or epoxy on the top of the "Mounting Shaft, Avengers Logo" shafts before pressing the gears/letters in place, if you want to ensure the gears/letters can’t pop off.

The base is printed in 3 parts for those with small build envelops and just needs to be pressed together.
