Zenless Zone Zero - Anby Demara Blade

This model is designed for Anbi cosplay from Zenless Zone Zero.

It comes in two main parts, the blade and the sheath. Please check and understand the guide and design in the preview section before downloading. The sheath is quite difficult to craft

Each part is cut in pieces to fit in a printer with a platform size of 200mm x 200mm x 200mm.

There are pictures with parts and pieces labeled to their file names in the preview section which you can refer to.

I also include the combined version of the blade, sheath, and both combined.

The blade is quite straightforward to print and craft. A tunnel with a diameter of 5mm is punched on the model for alignment and bone installation purposes. Since the overall length of the blade is quite short and thin, you can skip installing bone if you are good at gluing and PLA welding.

The most difficult part to craft is the sheath. Due to the fact that there is a large cavity made in the model, it comes with quite a thin wall which makes removing support from the cavity a challenging task. Furthermore, there are some sacrifices that need to be made in order to put the blade into the sword. For a better view, please refer to the pictures in the preview section.

Due to the shape of parts 2 and 4, please be extra careful when removing them from the build plate to prevent any breakage on the parts.

The 5mm tunnels on parts 5, 6, and 7 are used as a guide for you to drill your own tunnel to insert bone and alignment. However, it is not really necessary if your PLA welding skill is good enough to join them together.

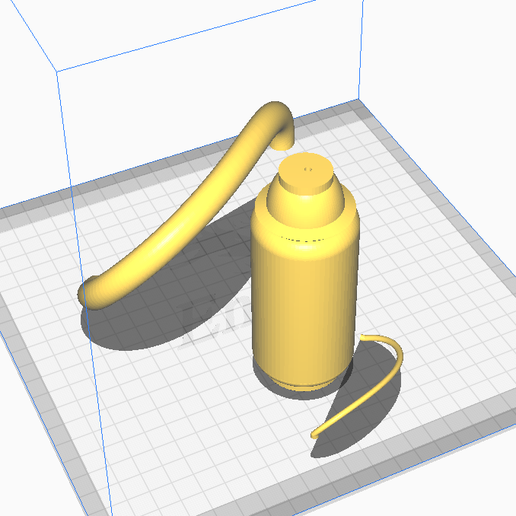

The tube is quite thin and small for an FDM printer to print. I will suggest replacing it with wire for Tube S and a garden hose for Tube L.

For scaling, please use the same scale for all the parts.

Cheers and Happy Printing!

====UPDATE====
25th July 2024
1. Patching pieces 6a and 6b.

Anby Demara related:
Zenless Zone Zero - Anby Demara Battery Pack
https://cults3d.com/en/3d-model/fashion/zenless-zone-zero-anby-demara-battery-pack

Zenless Zone Zero - Anby Demara Clothing Accessories
https://cults3d.com/en/3d-model/fashion/zenless-zone-zero-anby-demara-clothing-accessories

Размеры:

Лезвие: 846,52 мм x 65,92 мм x 20 мм

Двигатель: 760,72 мм x 202,58 мм x 98,52 мм
