Грузовой контейнер для торпеды "Протон

As seen on Yavin 4 during Rogue One Movie and Andor Series. These were stacked, grouped, and strapped together to haul around to each area. They would then remove the Proton Torpedo Missiles from the cargo containers and load the X-Wings with the powerful ordinance. These files were put together to be able to print most of it on a smaller printer while using a Schedule 40 PVC pipe to make up most of the length. See the video.

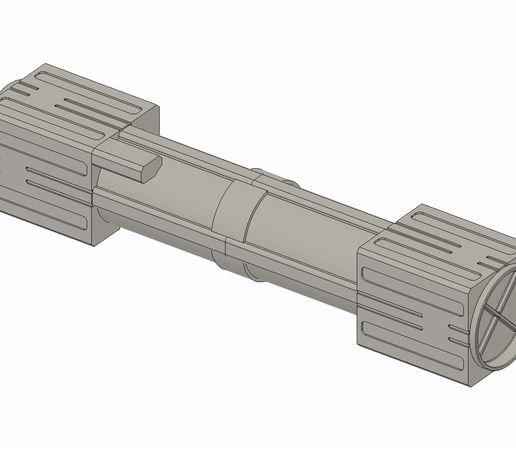

Proton Torpedo Cargo Container 3D Print STL File:

This listing includes digital files only; no physical items will be shipped.
Ensure you have access to a 3D printer or 3D printing service.
Due to the digital nature of the product, refunds or exchanges are not available.

Dimensions (see pics):
Fully Assembled - approx. 708mm long x 130mm wide x 130mm deep
But you can scale it to your desires!

10 files included
8 separate files needed for use with PVC pipe
1 PVC File just as a visual
1 file to be used for dioramas or print out as one with larger printer

Items Needed (some are affiliate links):

QTY 1 - Bob Smith Superglue or equivalent: https://amzn.to/49vsGru
QTY 1 - 18" x 4" I.D. Schedule40 PVC Pipe: https://amzn.to/48CCTnG

Assembly:
- Print out all parts.
- Do a Dry Run / Test Fit before doing anything.
- Cut the PVC to 18"
- Slip the MiddleRound piece into the middle of the PVC
- Start on the left end and push the pvc pipe into the EndCapLeft
- Add the 4mm pins to the holes located on EndCapLeft
- Add the Straight pieces - insert the pins into the holes. The Straight piece should lay nicely on the Middle Piece
- Add the 5mm pins (qty3) to the top left hand side of EndCapLeft
- Add the EndCapLeftStraight piece to connect with the pins - It should lay onto the PVC pipe
- Now just do the same thing with the EndCapRight
- Glue when ready.

PROTIP's:
1. Paint and let dry before handling.
2. Do a Dry Run / Test Fit before doing anything.

Enjoy!

Please let me know of any issues.

Whitey!
