Atualização do Black Evo para Dagoma Ultimate e Discoeasy 200

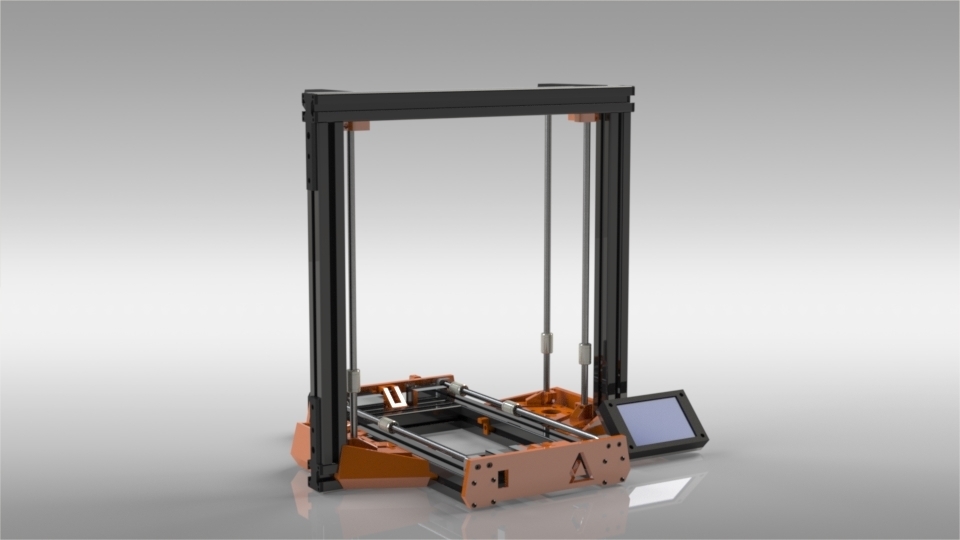

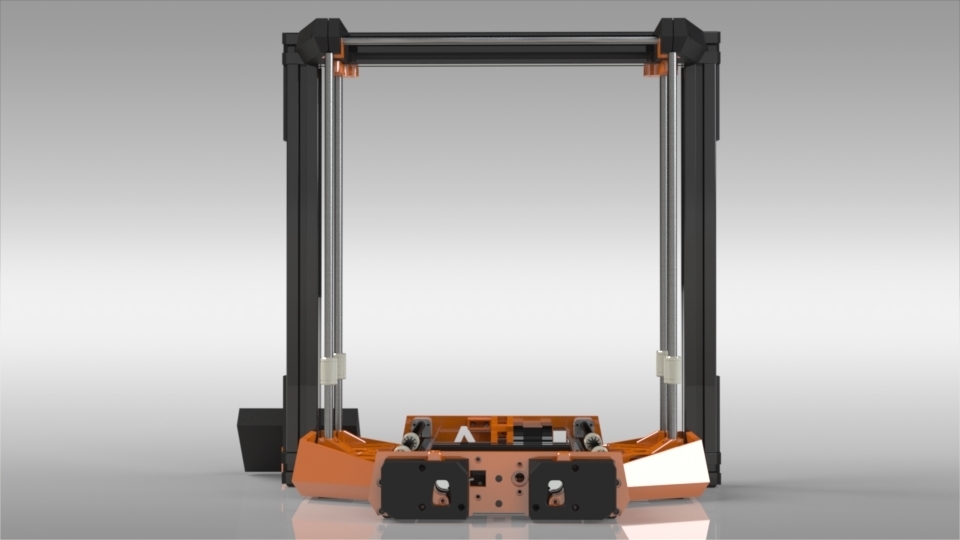

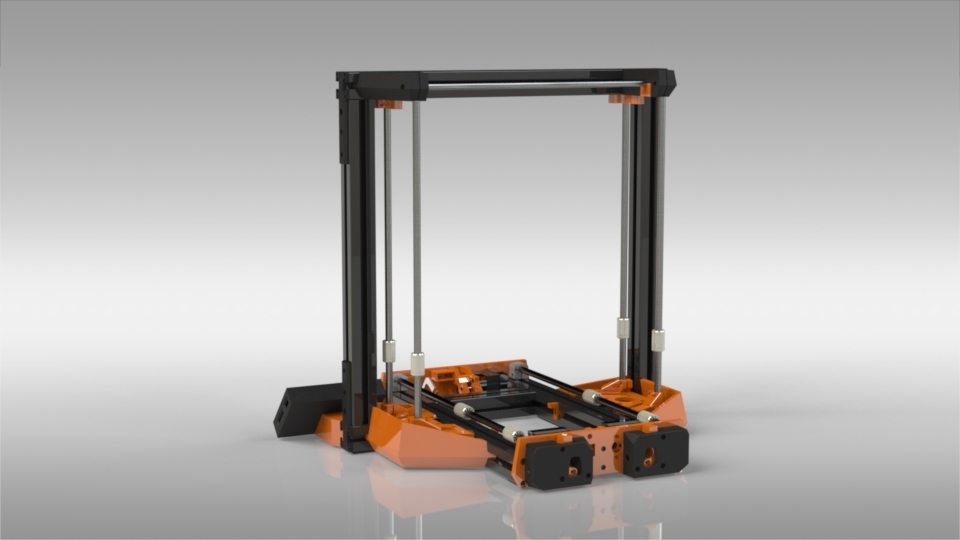

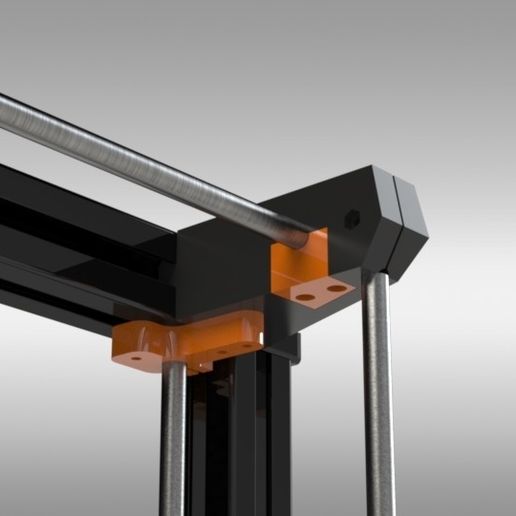

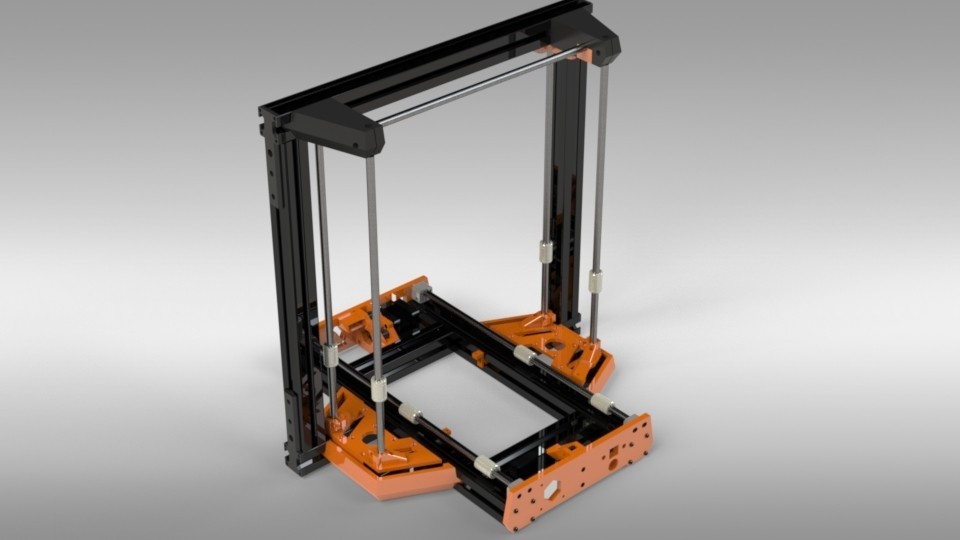

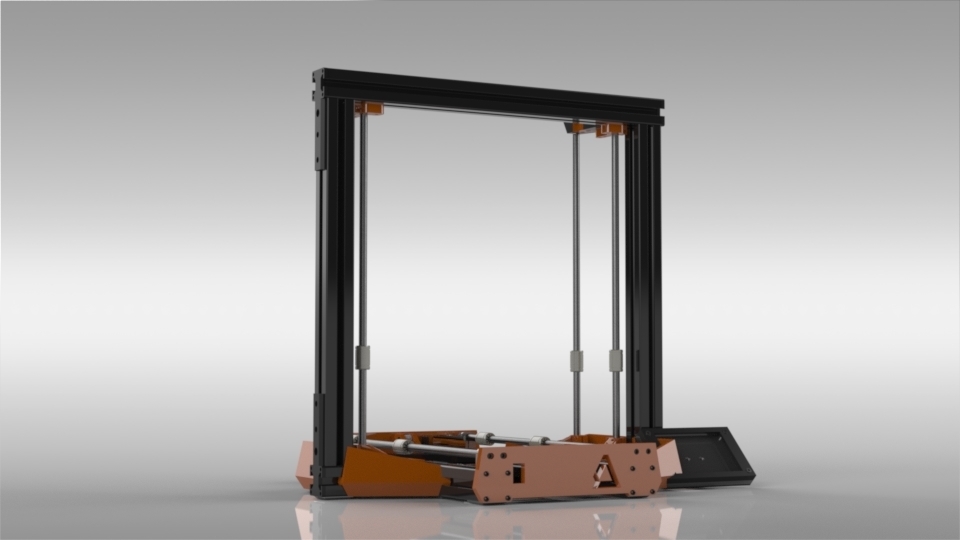

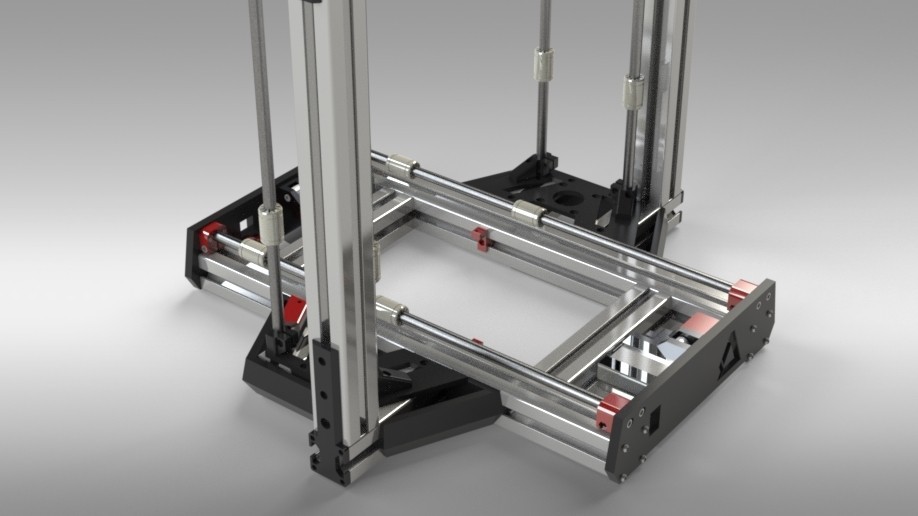

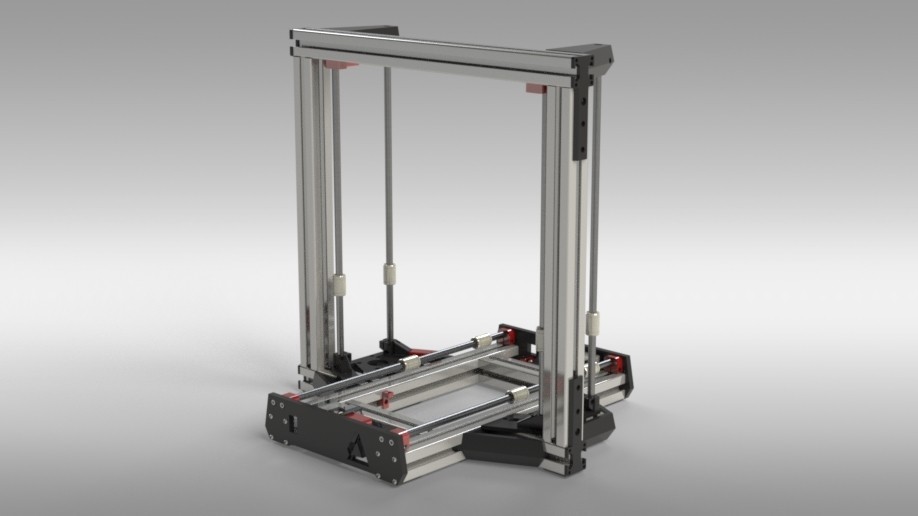

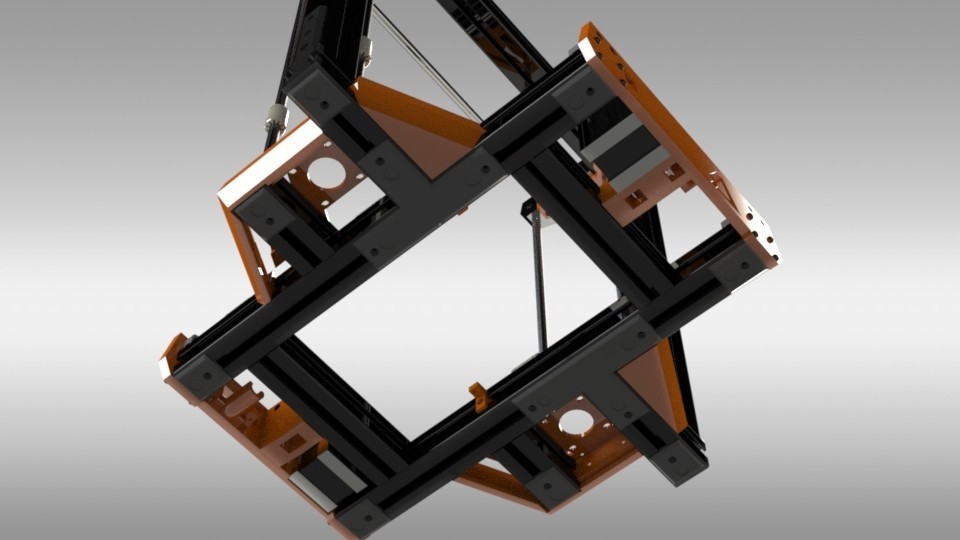

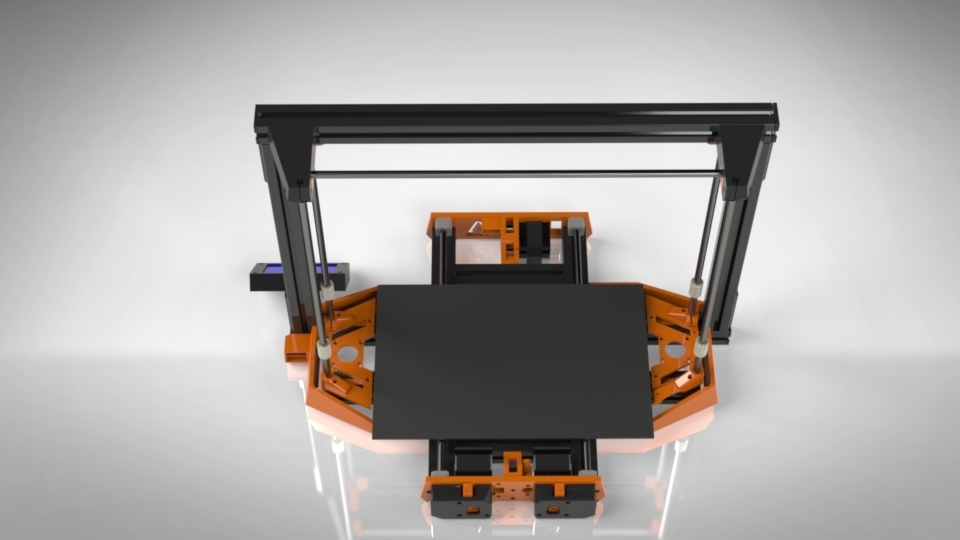

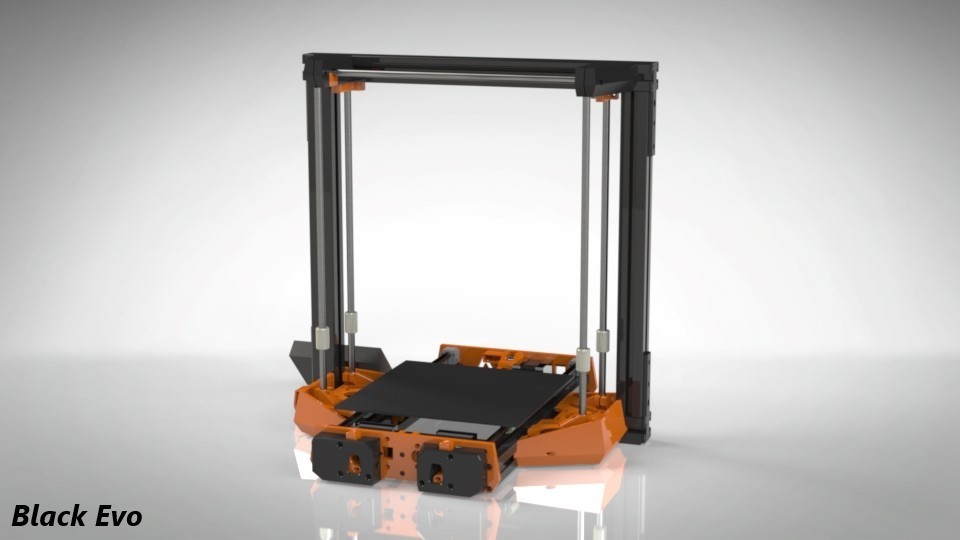

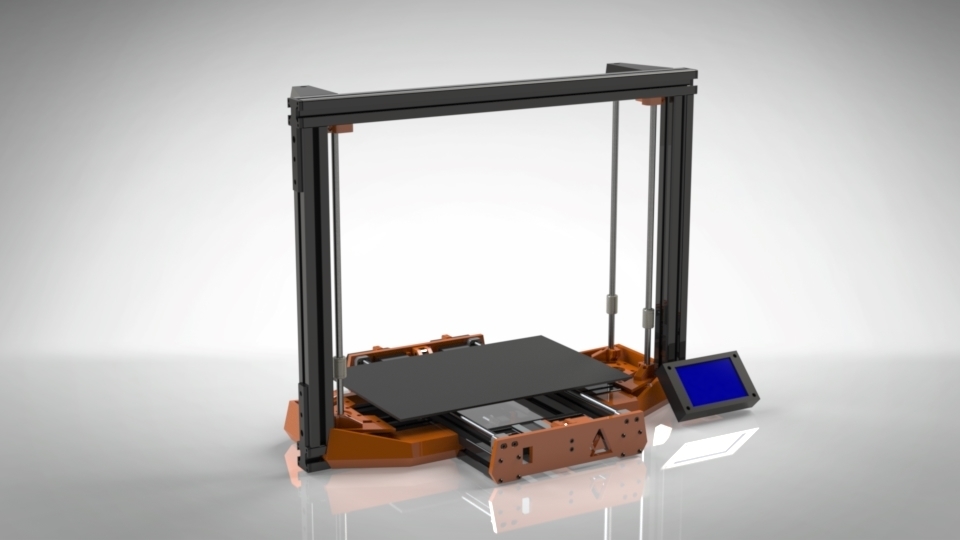

New black aluminium chassis for our Discoeasy 200. Robust chassis, elegant design true to the curve of our Easy.

Attention all STL we were studied and adapted for the alu black profile from systeal and motedis link below in the description.

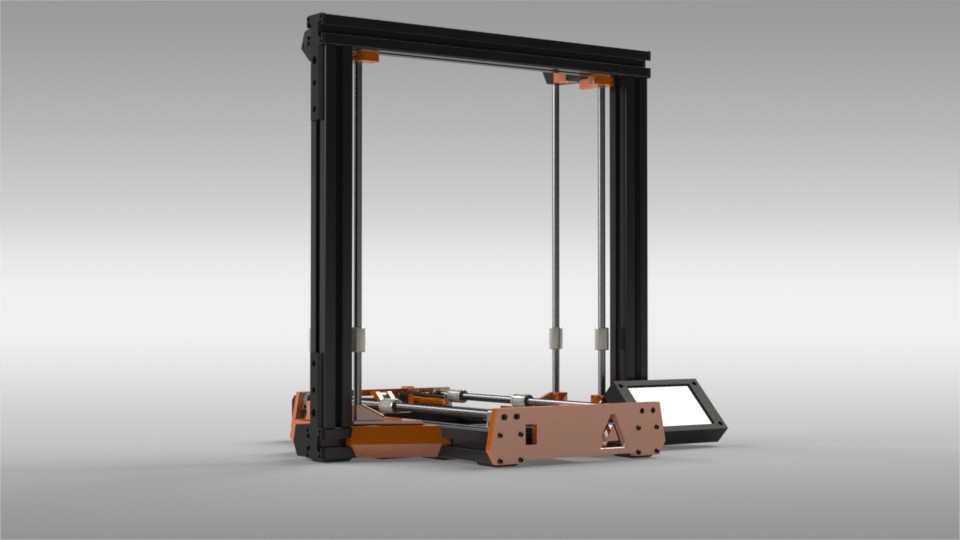

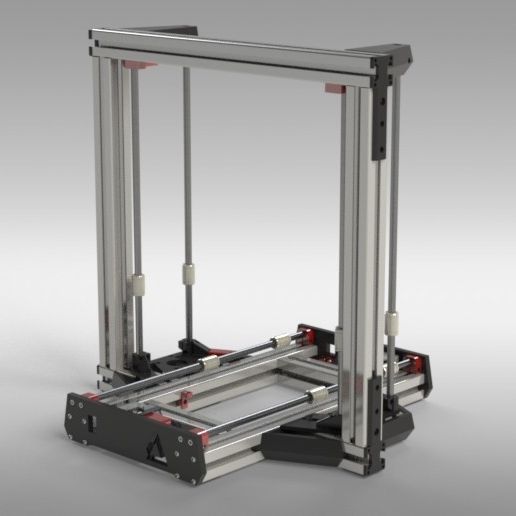

The assembled disco, was assembled with black profiles from systeal.

Caution: You will need to lengthen some of the original electrical wires.

New supplier www.ratrig.com contact Miguel, he had made a quotation for a black profile kit for the standard version (not xl) including: black aluminium profiles + fixing bracket + shipping costs for a sum of 56 euro including postage, after other parts can be taken at home like rubber stamps for example.

Update of 29/04/2020

-Addition of the front and rear angles type Disco Ultimate for XL tray. For motedis and systeal profile

-Detail of the profile lengths(detail below)

Update of 26/04/2020

-Adding pdf file assembly Disco Ultimate Black Evo

Update of 24/04/2020

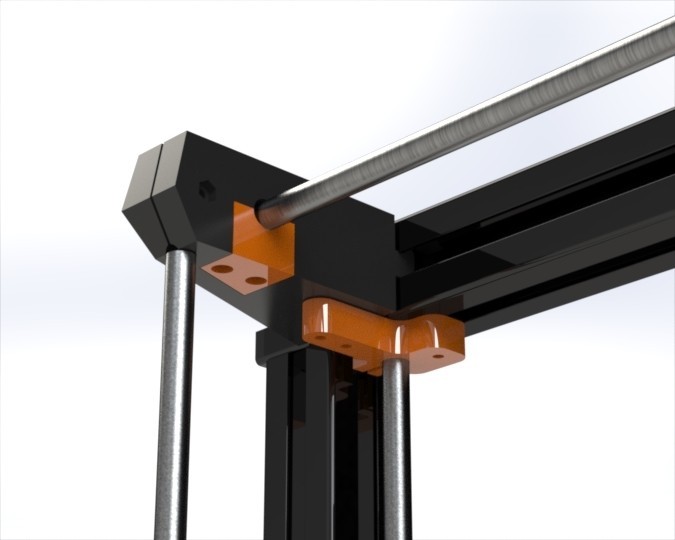

-Addition of the front and rear corners type Disco Ultimate

Improvement:

         -Now the rear angle can be removed without dropping the rear face and will allow the 65mm profile clamping to be adjusted more easily.


         - For the assembly of the rear corners, you will need 2 screws m3 of 10 and assemble them with 2 foot locks.


         - Stiffer front corner

Coming up:

           -Electronic card cover

Finally available on 08 12 2018, all files named v2 for the new improvements:

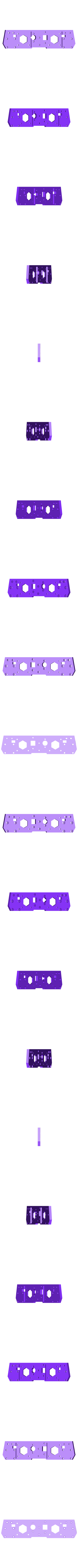

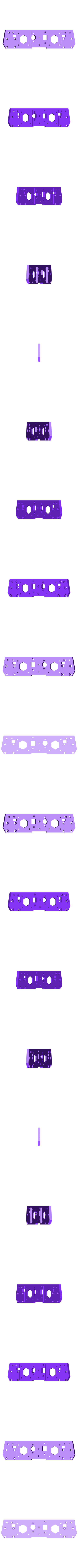

Rear panel v2 to have the two extruders for the two-colour kit

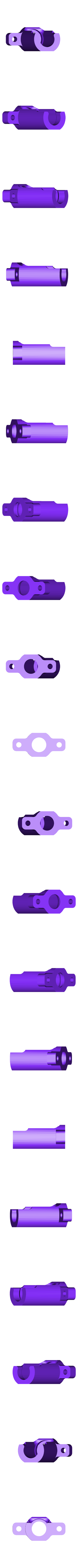

-v2 power connector to fit the new rear panel

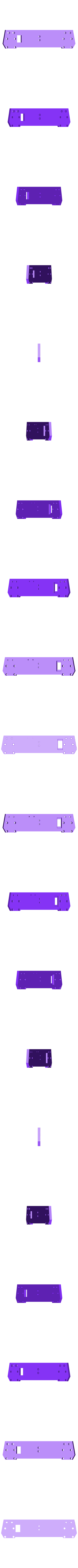

-Front panel v2 so that it can be removed without dropping the front tensioner and minor dimension correction (provide 2 screws m3x10 and 2 additional nuts)

-Front tensioner v2 to adapt to the front panel v2

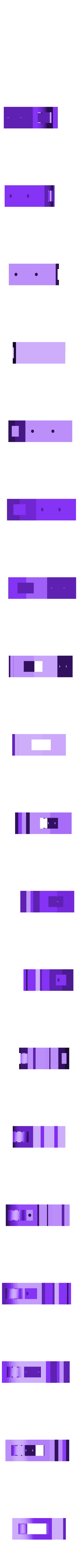

-Rear tensioner v2 top material removal

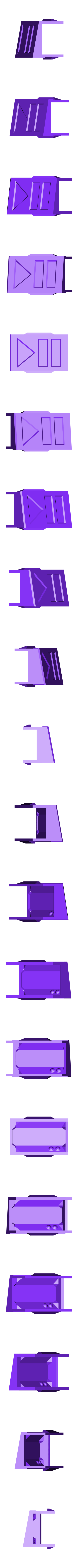

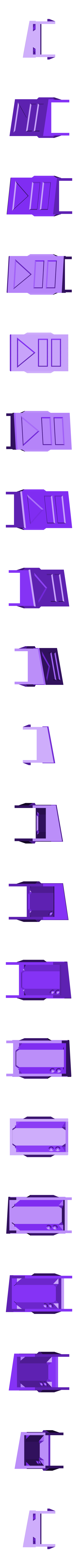

-Right and left button support for inter extruder+.

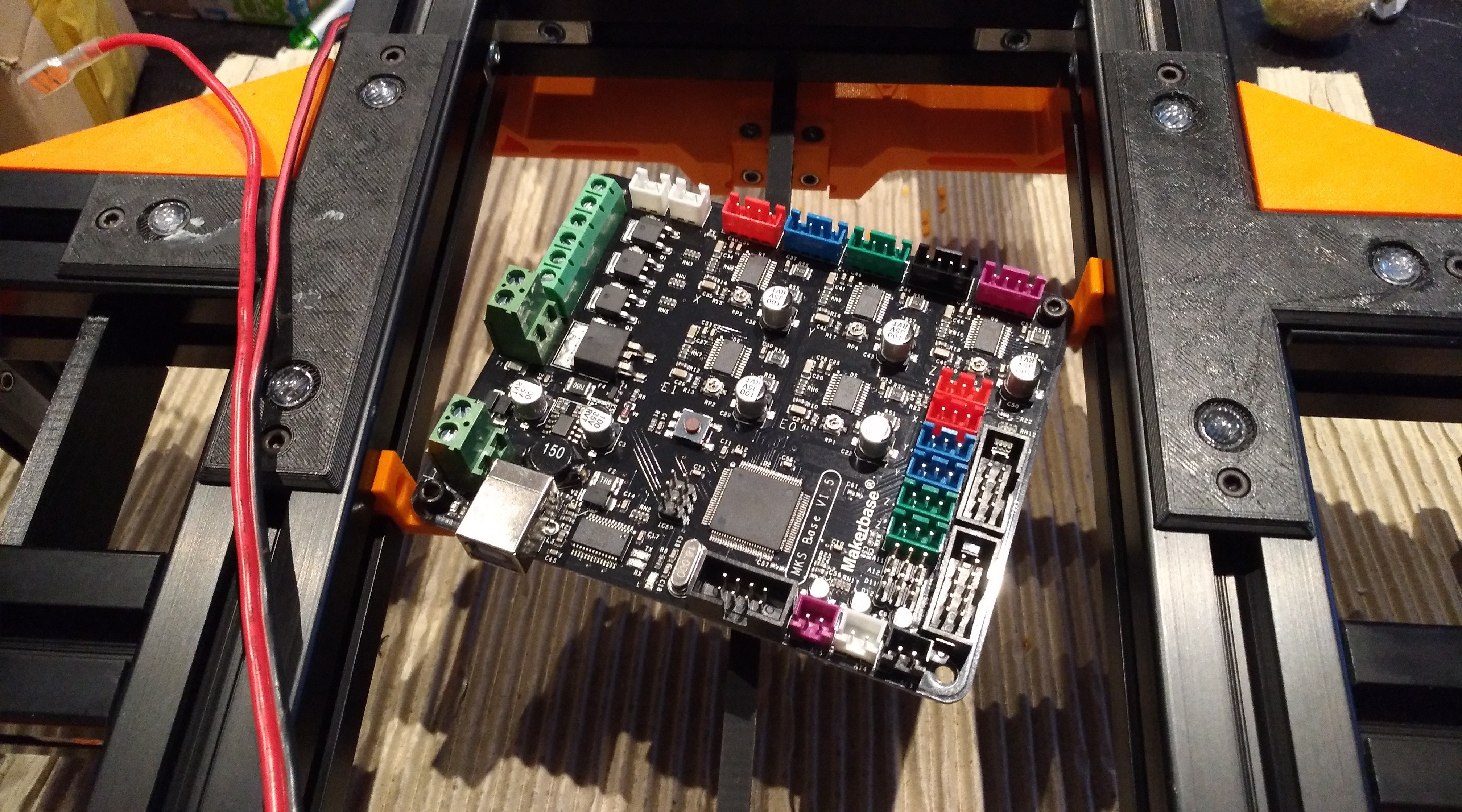

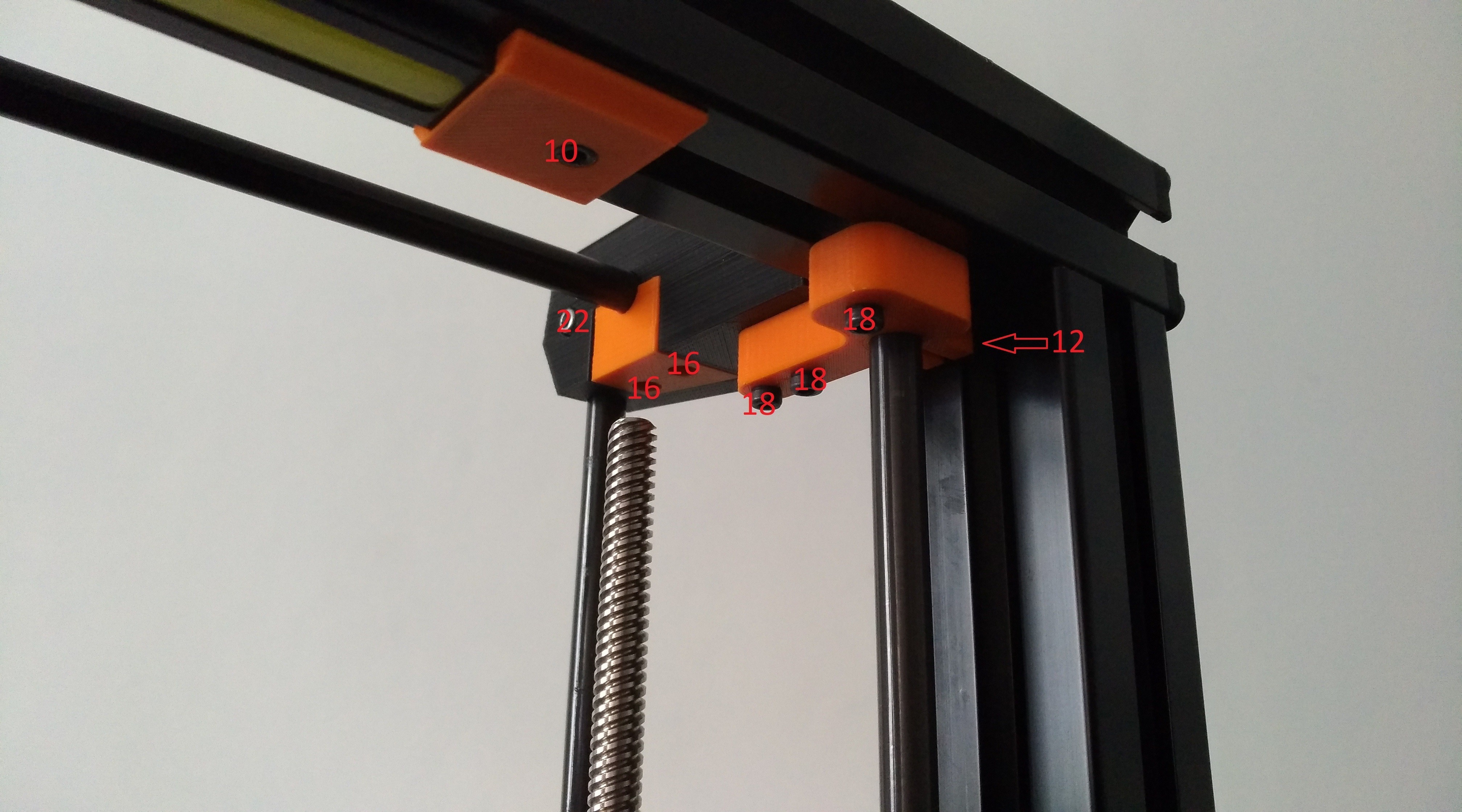

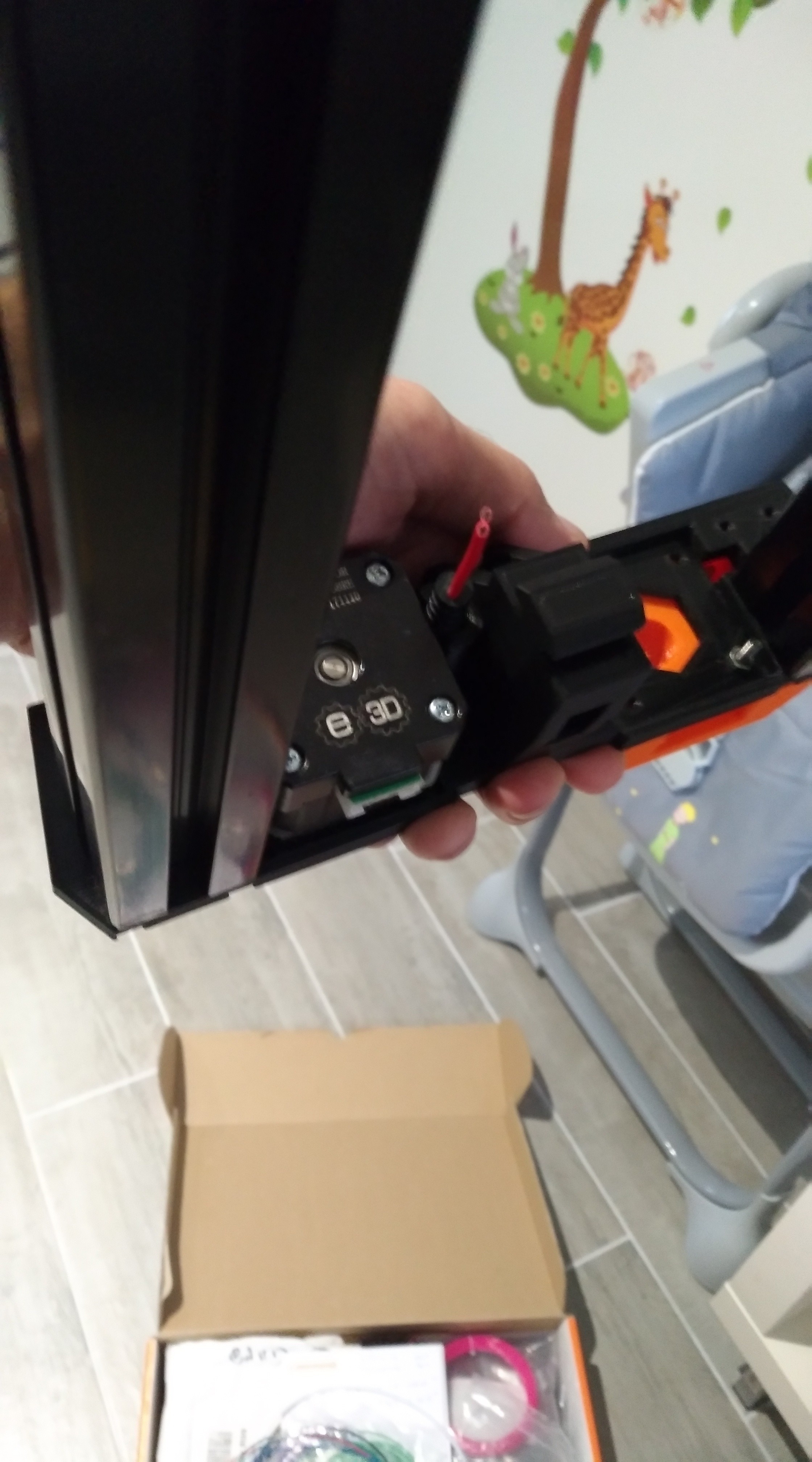

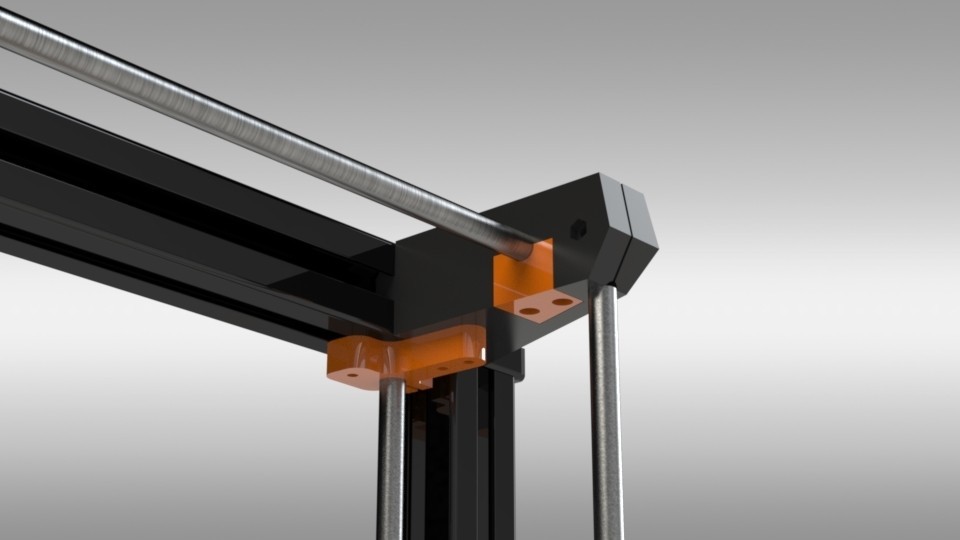

-You will not need any additional screws except the two screws and nuts mentioned above, on the other hand it is absolutely necessary to use the m4 or m5 screws (for motedis profile) located below because the screws go into the face and do not protrude to be able to install the extruder+ (see photo).

-You will also need to replace the right feet with anti-vibration rubber pads. The goal is to raise the chassis to put the nema 17 connector down (see picture) and at the same time make the printer quieter. You can leave the triangle feet on to strengthen the angle. You will need 12 pads available there:

https://fr.aliexpress.com/item/4-pcs-Nouveau-Anti-vibrations-En-Caoutchouc-Tapis-De-R-ception-Pieds-Antivibratoires-Pieds-Pour-2020/32870389415.html?spm=a2g0s.9042311.0.0.27426c37xnIZub

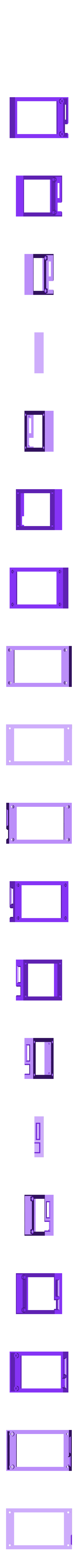

New as of 26.09.2018: MKS TFT 35 display case

NEW: STL for MOTEDIS aluminium profile available since 31.03.2018.

New as of 13 04 2018: detail of the screws per element and detail of the profile measurement

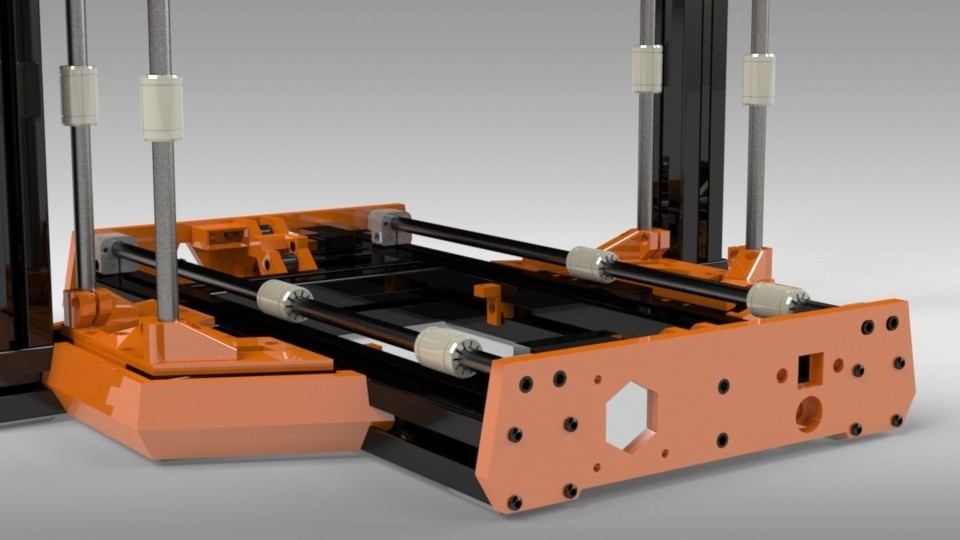

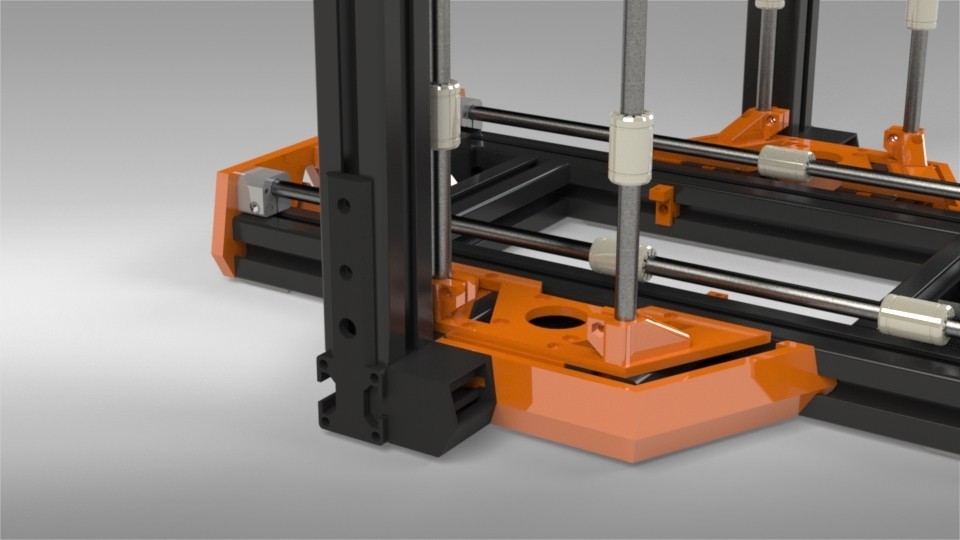

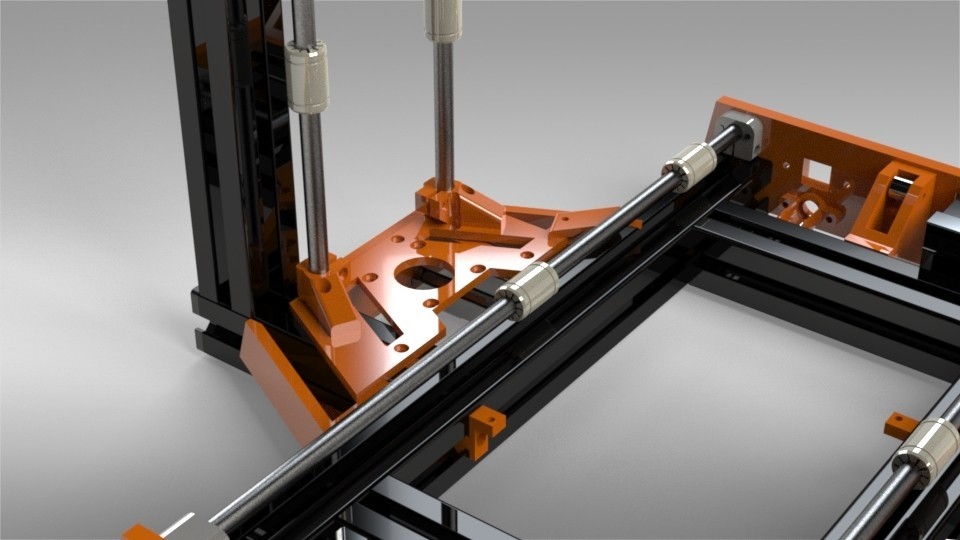

Detail of the evolution.

-Same centre distance in X and Y, therefore compatible with all original or upgraded table tops and carriages.

Adjustable Y-spacing thanks to the micro oval, you can switch to IGUS without any constraint.

-Front and back side no longer participate in tightening the belt thanks to the aluminium bar in the centre which are there for its.

-Adjustable gantry position to be compatible with the original head or Z122 head

-Printing capacity for the z122 head: 196 in X, 203 in Y and 210 in Z

-Print capacity for the original head: 210 in X, 210 in Y and 210 in Z

Good impression to all

Detail of the attached documents

Detail of the screws:

M3 screw

length M3x 6: quantity 18

length M3x 8: quantity 37

length M3x 10: quantity 14

length M3x 12: quantity 14

length M3x 14: quantity 2

length M3x 16: quantity 10

length M3x 18: quantity 13

length M3x 22: quantity 2

M3 nylstop nut: quantity 30

you'll find it all here:

https://www.visseriefixations.fr/vis-a-six-pans-creux/tete-cylindrique-hexagonale-creuse/acier-8-8-noir/tchc-acier-8-8-noir-filetage-total-din-912.html

Screw M4 length 20 for system profile: quantity32

M5 screw length 20 for motedis profile: quantity32 (a small hole at 4.5 may be necessary for motedis aluminium profiles, otherwise the thread will be tapped by inserting the screw).

you'll find it all here:

https://www.visseriefixations.fr/vis-a-six-pans-creux/tete-bombee-hexagonale-creuse/tbhc-acier-10-9-noir-iso-7380.html

Detail of the aluminium profile in the classic version (210x210 top):

2 bar of 104

2 bar of 65

2 bar of 360

2 bar of 133

2 bar of 340

1 bar of 400

Detail of the aluminium profiles for XL tray (we add 6cm more on each side than the classic version)

2 bar of 164

2 bars of 125

2 bar of 360

2 bar of 133

2 bar of 340

1 bar of 520

You'll find it all here in black at systeal:

https://www.systeal.com/fr/profiles-aluminium-8-mm/1467-profile-aluminium-30x30-fente-8-mm-anodise-noir.html

or in grey:

https://www.systeal.com/fr/profiles-aluminium-8-mm/1036-profile-aluminium-30x30-fente-8-mm.html

or here at Motedis in grey:

https://www.motedis.fr/shop/Profile-a-rainures/Profile-30-B-Type-rainure-8/Profile-aluminium-30x30-B-Typ-rainure-8::99999432.html

12 brackets

you'll find it all here:

http://www.systeal.com/fr/assemblage-fixation-8mm-profile-aluminium/920-equerre-de-fixation-interne-profiles-8-mm.html

or here: on the other hand you'll need 4 like this one

https://www.motedis.fr/shop/Profile-accessoires/Accessoires-30-B-Type-rainure-8/Equerre-interne-30-zamak-B-Type-rainure-8-90G::99999859.html

Plus 10 more like this one:

https://www.motedis.fr/shop/Profile-accessoires/Accessoires-30-B-Type-rainure-8/Equerre-interne-30-zamak-B-Type-rainure-8-90G-R::99999860.html

For a shot at the 15 04 2020 in a classic version of:

-96.32 euros including shipping for a black chassis at systeal

-88 euros including shipping at systeal for a grey chassis

-61 euros including shipping at motedis for a grey chassis

New supplier under negotiation on 29 04 2020, for a black profile kit around 56 euro including port.

All other parts are available at dagoma.

Example:

inductive sensor, 24mm motor, extruder spring, plate, gear wheel, switch, buildgrip, pneumatic connector, mks.......ect.... card here:

https://dagoma.fr/boutique/accessoires.html

assembly videos

https://www.youtube.com/watch?v=DMj0l0eccYU

https://www.youtube.com/watch?v=C0HMLBC6ijY

https://www.youtube.com/watch?v=_PG2a75Nr7g

https://www.youtube.com/watch?v=6TPyJJJV50U

The adjustable tray here:

https://www.thingiverse.com/thing:2760991

The USB adapter:

https://fr.aliexpress.com/item/30cm-USB-Print-Cable-USB-B-Male-to-B-Female-Wire-Socket-Printer-Panel-Mount-Extension/32809932065.html?spm=a2g0s.9042311.0.0.lPGRFY

-Think about changing your bearings with shoulder bearings to guide your belt. Put F623ZZ

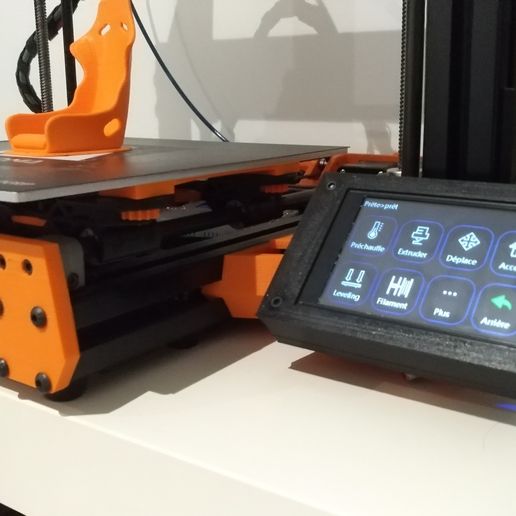

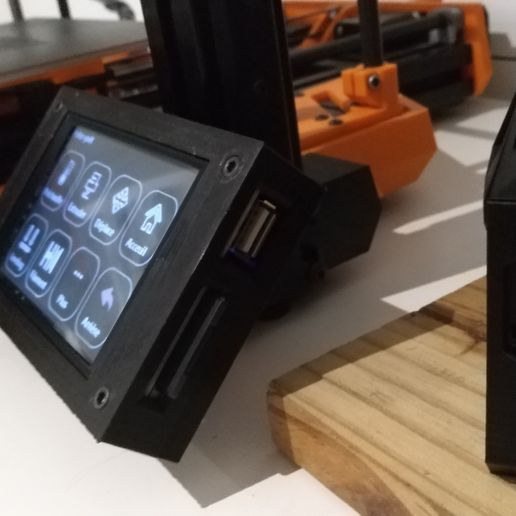

-Case for mks tft 35 screen with support for installation on the Black Evo evolution. Two versions of brackets are available, for system and motedis profiles.

-At the firmware level, I had no programming to do, the screen is plug and play, plugged on a mks base v1.5 with the firmware of jjj for head z122

Links below

-Firmware head z122

https://www.thingiverse.com/thing:2577212

Screen:

https://fr.aliexpress.com/item/Makerbase-3d-imprimante-affichage-MKS-TFT35-V1-0-tactile-cran-avec-3-5-pouce-plein-cran/32891320510.html?spm=a2g0w.12010608.0.0.40cb81a6AdkJ1L

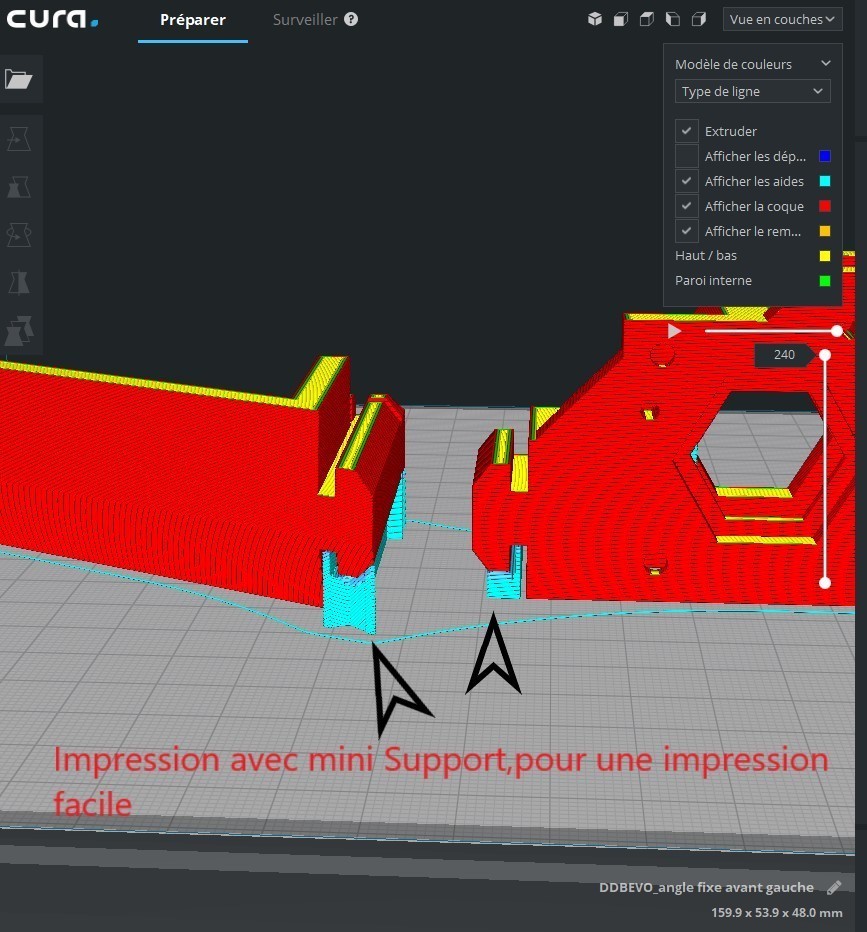

-Mínimo ou nenhum suporte para uma impressªo fÆcil

-Camada de 0,2 ou menos

-33% de enchimento

-Peças em posição de impressão

-Haste original compatível mas a ser recortada no eixo Z.

Haste original do eixo X compatível no caso de montagem de um cabeçote original, e no caso de se querer aumentar a área de impressão, como por exemplo um cabeçote z122, será necessário hastes do eixo X maiores, aproximadamente 275mm.

-Haste do eixo Y original compatível com 360 mm

Detalhes STL

Encontra a marca stl motedis porque essas serão especialmente para perfis de alumínio da sua marca, caso contrário as outras são comuns ou para systeal.

-Exemplo 1: o pé direito do ficheiro e comum ao perfil de alumínio da systeal e da motedis.

-Exemplo 2: o ficheiro "tensor traseiro" é para os perfis de alumínio systeal e o ficheiro "perfil tensor traseiro motedis" é para os perfis de alumínio motedis.

Todos os stl devem ser impressos uma vez, exceto:

-Pé triangular x2

-Pé direito x8

Junta do pilar Z x4

-Fixação obrigatória de mks x2 (veja mais para prender os fios, fica a seu critério)

-Fechadura de suporte x 23 (14 para os suportes, 6 para fixar os LEDs, 1 para fixar o ecrã e 2 para fixar os cantos traseiros)

-Fechadura de 45mm x4 (esta é a parte que segura o suporte do motor)

Fecho interior em Z x4 (pé que segura o fecho em Z)

-Trava Z x4

-Lock x2 (peça que segura o suporte superior direito e esquerdo da barra)

-0.8mm suporte de barra x4

-Reforço e fixação para o suporte do motor direito e esquerdo x2

-Suporte da barra superior esquerda e direita x2

-Suporte de LED superior x2

-Suporte de LED horizontal x2

Para ferramentas

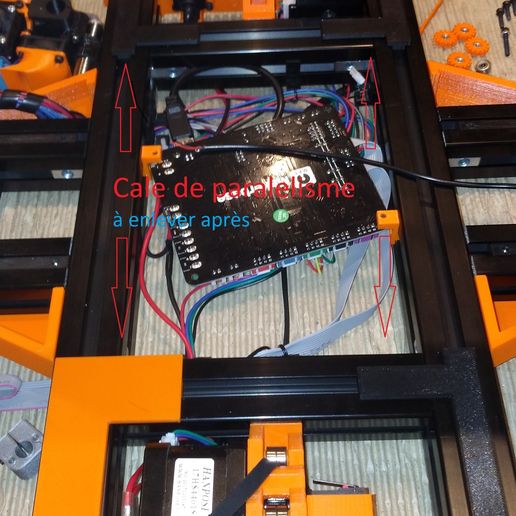

-Calço de paralelismo do carro para a cabeça original x2

-Calço de paralelismo do carro para a cabeça z122 x2

-Para os calços de paralelismo dianteiro e traseiro serÆ necessÆrio fazer x2, mas o segundo deverÆ ser feito em efeito espelho sob cura, para que fique invertido.

Os calços de paralelismo z de 89mm e 120mm precisam de dois de cada e sªo simplesmente usados para calçar as barras x, de modo que as barras fiquem paralelas à placa.

-Dica de montagem:

Terá de montar e encaixar primeiro os lados inferiores mas sem os apertar, depois as faces frontal e traseira. De seguida, utilize os calços para montar os painéis dianteiro e traseiro com os perfis 360 que já contêm os painéis laterais. Em seguida, terá de calçar os lados à distância correta, por isso use a cunha (certifique-se de que usa a correta, dependendo da configuração original da cabeça ou do z122) e aperte tudo. Depois coloque as barras de 340 e monte o tampo.

-Para o diÆmetro da barra 8mm do tampo, serÆ necessÆrio recuperar uma das duas barras de 360 mm que terÆ em excesso no eixo Y (no seu disco precisa de 4 barras de 360 mm no eixo Y e assim com a evoluçªo precisa apenas de 2) e recortÆ-la para 320 mm.

-Para a barra superior na vers?o XL, precisar?o de uma barra de 400 mm de comprimento com um di?metro de 8. N?o precisam de usar uma barra de suporte especial, podem usar uma barra de alum?nio ou sucata com um di?metro de 8 mm em qualquer loja de ferragens como a leroy merlin.

Também vai precisar de comprar 12 almofadas anti-vibração. Elas ajudarão a levantar para passar os fios por baixo.

https://fr.aliexpress.com/item/4-pcs-Nouveau-Anti-vibrations-En-Caoutchouc-Tapis-De-R-ception-Pieds-Antivibratoires-Pieds-Pour-2020/32870389415.html?spm=a2g0s.9042311.0.0.27426c37xnIZub
