BATJET V2 Twin 40 (new version) and the old single 50mm

Update Nov 1st 2024!

Important setup before flight on V2-
Please see the two photos I’ve marked up showing the proper up trim for the elevons. This eliminates porpoising.
Right elevon 58mm
Left elevon 62mm

I went back to the drawing board and totally redesigned the Batwing 100%. My goal was to make a batwing that could hand launch easier and fly like a normal EDF. Its perfect now! the key to easier hand launches was the twin 40mm fans and the thrust angle. I also changed the airfoil, this provided better low speed flight performance. I also changed the fuselage so you can run a 1300-2200 4s and have it balance. The new design

Part List for V2 twin 40:
Twin Xfly 40mm edf https://amzn.to/4fyOndM
20 amp esc https://amzn.to/3UD4W01
2x 9g servos https://amzn.to/40vQwlW
2x 10mm magnets for the canopy
Battery y adapter https://amzn.to/48BoQOG
Hot glue to attach the motors and servos
medium CA glue for the airframe
Velcro for the battery.

Ive been on the Batw#ng journey for about 20 years. Started as a foam board flying version, moved to a carved foam EDF version and a few others that were unsuccessful along the way. I'm so happy to say i've fulfilled my dream of making a semi scale version finally fly! and FLY WELL! this model does NOT need a gyro or flight controller. If you decide to use one thats awesome.

The model flies very well. its fairly easy to hand throw and it lands with a flare at the end. If you watch my videos, the "plop" landing is the way.

Parts needed:
1. Amazon Powerfun/ hobbyfun 50mm (4s) with lip. its designed to fit this. Xfly 50mm 4s.
2. 40-50 amp ESC
3. 2 metal gear 9g servos
4. velcro
5. 10-12mm magnets
6. any 4s 330g or heavier battery! you must have enough weight to balance.

Center of Gravity is located right where the front of the wing meets the intake body. See photos for a visual.

Flight Videos
https://youtu.be/35iYGIzH608?si=aLLwlGd8fdtRN5Z6

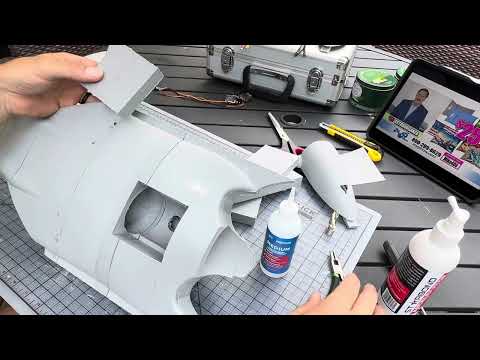

Assembly Video:
https://youtu.be/AGT9sRHL2VA?si=uk65-AoYJvUuTo5l
Pre Flight Video (MUST WATCH):
uploading now, will have a link

The whole plane can be built in less than 1.5 hours

NOTHING will be a cooler plane at your flying field. To my knowledge nobody has successfully flown a true airfoil 3d semi scale batw$ng successfully. There was a guy that made a large turbine version and I never saw it actually fly. Either way, it blows your mind seeing it float by. I hope you enjoy this. I really want to see your versions flying. Please tag me in any videos you post!

Anyone, who posts a video of my batwing flying around successfully gets one free file from my designs. you pick!

like all my designs, LW active foaming pla

Batwing V2 printing instructions!
Fuse1: 10% gyroid
fuse2: 8% gyroid
fuse3: 5% gyroid
fuse4: 3% gyroid
fuse5: 2% gyroid
Elevons: 2% gyroid
wing rear, wing middle, vertical tails; 3% grid
wing front 5% gyroid
canopy parts 10% gyroid

I fit mine on a 250/250/250 bed but if you have a 220/220/220 it should fit fine, just angle the wide parts.

1 wall
2 top 2 bottom layers
3% grid infill works for me

You need to dial your printer for LW pla, once you do this will be easy
