Mike Tyson Masters of the universe vintage style action figure for 3D printing

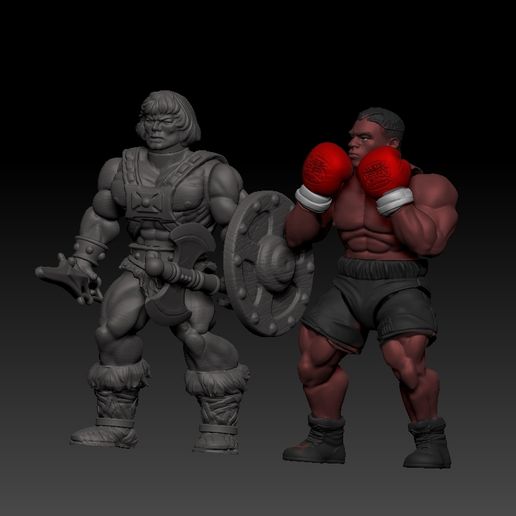

MOTU-Style Action Figure – Mike Tyson (For 3D Printing)

Relive the nostalgia of the '80s with this amazing Mike Tyson action figure, inspired by classic MOTU-style toys! This retro-styled collectible blends vintage aesthetics with unique details, perfect for boxing and fantasy fans alike.

🔹 Retro design – Inspired by the iconic '80s figures, featuring a powerful, muscular look.
🔹 Classic articulation – Movable arms, legs, neck, and waist for dynamic poses and playability.
🔹 Interchangeable arms – Swap out Tyson’s steel fists for different combat styles!
🔹 3D print-ready format – Optimized files for high-quality printing.

Perfect for display, customization, or recreating epic battles in Eternia and beyond!

Assembly Instructions & Printing Guidelines
This figure features a press-fit articulation system, meaning the joints snap into place with slight pressure—no glue or screws required.

💡 Tip: If a joint feels too loose, wrap a small piece of tape around the ball joint before inserting it. This trick also helps restore tightness if the joints become loose due to friction over time.

Recommended 3D Printing Settings
For FDM Printing (Filament – PLA, PETG, ABS)
🖨 Layer Height: 0.08 - 0.12mm (for best detail)
⚙ Nozzle Size: 0.4mm (recommended)
🏗 Infill: 20-30% (higher for added durability)
🌡 Print Temperature:

PLA: 200-215°C

PETG: 220-240°C

ABS: 230-250°C (use an enclosed printer)
🔥 Bed Temperature:

PLA: 50-60°C

PETG: 70-85°C

ABS: 90-110°C
📌 Supports: Recommended for overhangs (tree supports work best)
🛠 Wall Thickness: 3-4 perimeters (1.2-1.6mm) for added strength
🔄 Orientation: Print limbs at an angle to reduce layer lines on rounded areas

For SLA/MSLA/DLP Printing (Resin – Standard, ABS-like, Tough)
🖨 Layer Height: 0.02 - 0.05mm (for fine details)
💡 Exposure Time:

Standard Resin: 1.5-3s per layer

ABS-like/Tough Resin: 2-4s per layer
🏗 Supports: Heavy supports for small articulated parts
🌡 Curing: 2-3 min UV curing per side
🔄 Orientation: Angle parts at 30-45° for better surface finish and fewer failures

With these settings, you'll get a sturdy and detailed figure, whether you're printing in filament for durability or resin for high detail.

Perfect for display, customization, or recreating epic battles in Eternia and beyond!
