摆动式蒸汽（空气）发动机 - 1941 年《大众机械》杂志

🔫 枪支或武器的 3D 模型为虚拟物体或道具玩具，没有武器的任何实际功能，仅供娱乐或装饰目的。若任何设计违反我们的条款与条件，请 向我们报告。

广告
分享
添加到
Make
许可证
三维设计格式
16 文件 关闭

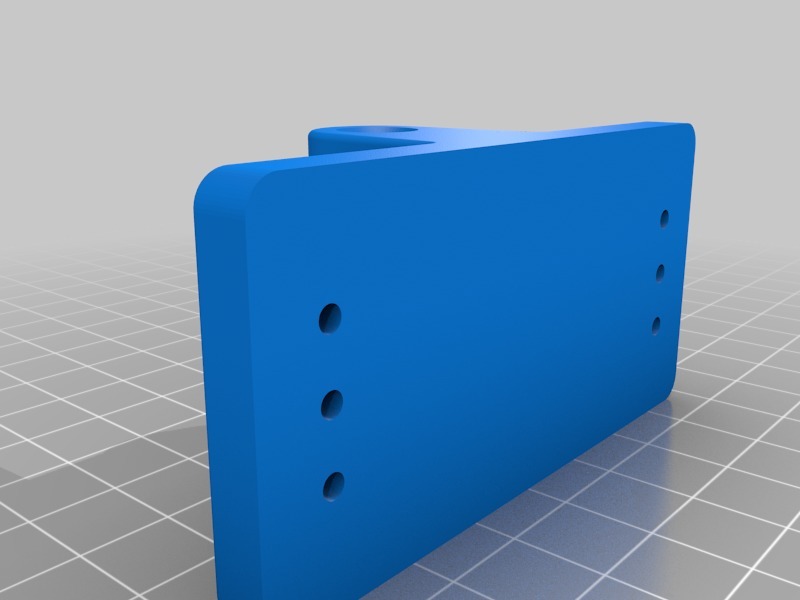

  • base.stl 76.199996 × 30.216917 × 38.099998 mm
  • crank_shaft_one_piece.stl 24.707866 × 24.606249 × 80.1125 mm

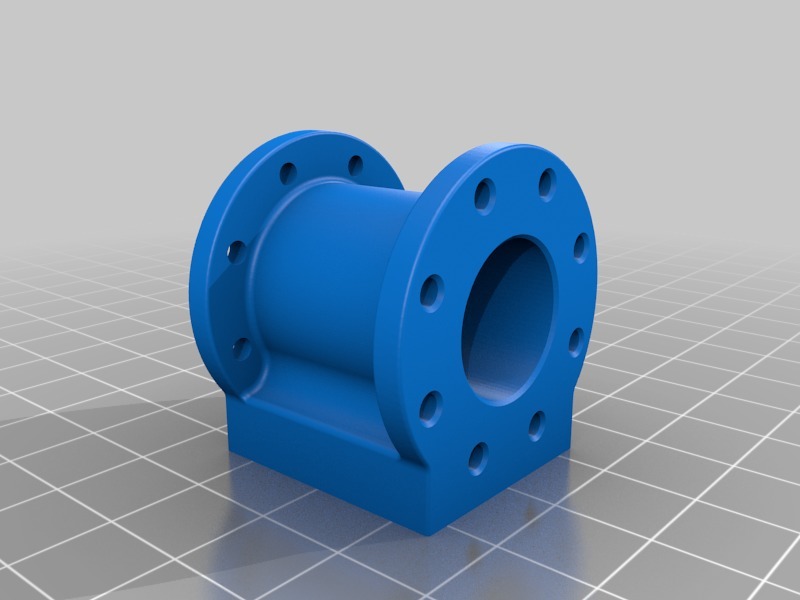

  • cylinder.stl 33.336052 × 28.575001 × 34.131251 mm

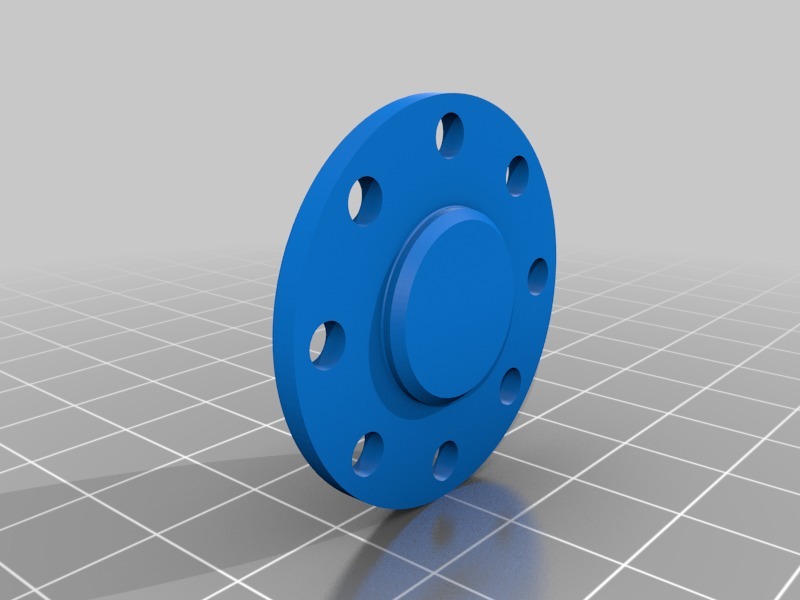

  • cylinder_head.stl 33.337502 × 9.525 × 33.328338 mm
  • engine_assembly.pdf

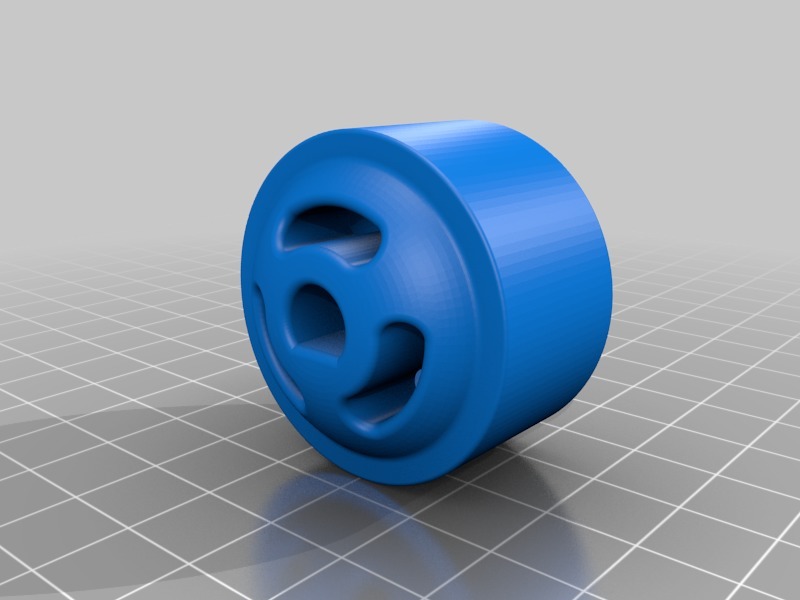

  • fly_wheel.stl 26.987492 × 38.099998 × 38.088158 mm

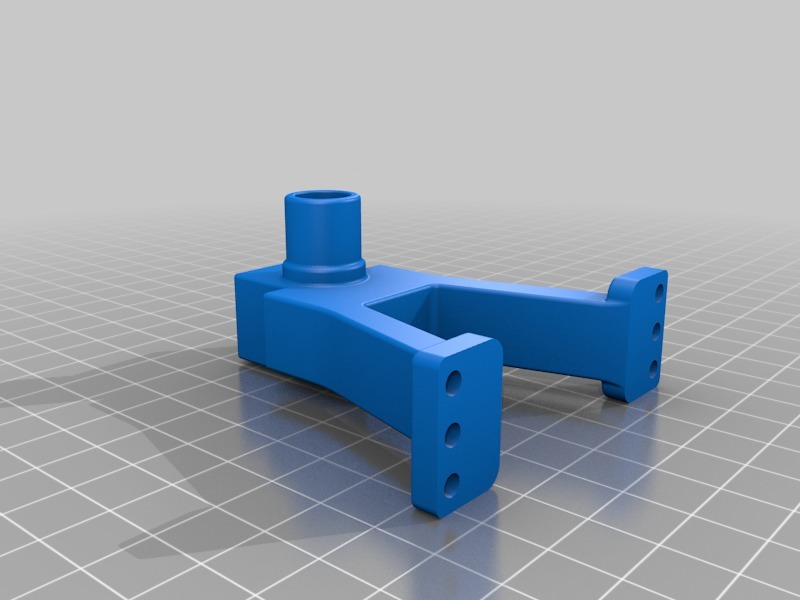

  • frame.stl 66.675004 × 69.849998 × 34.131252 mm

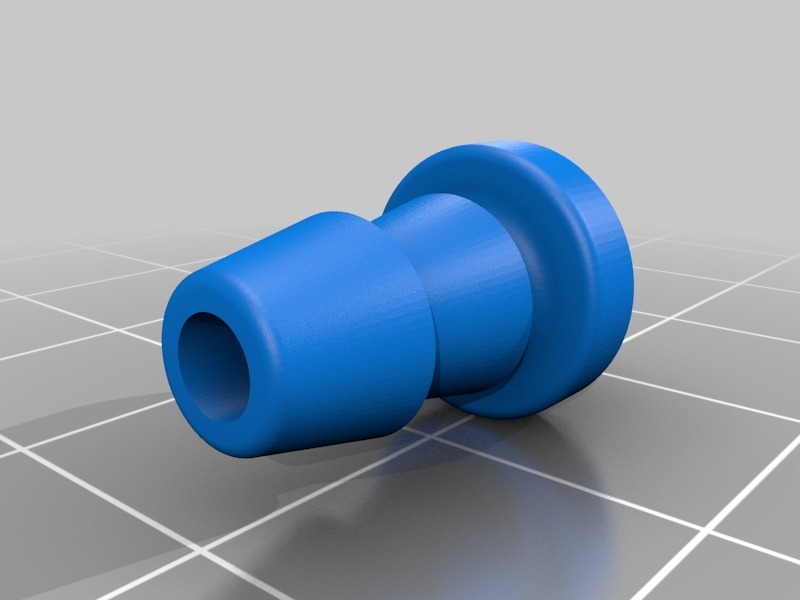

  • hose_barb.stl 18.3776 × 10.0 × 10.0 mm

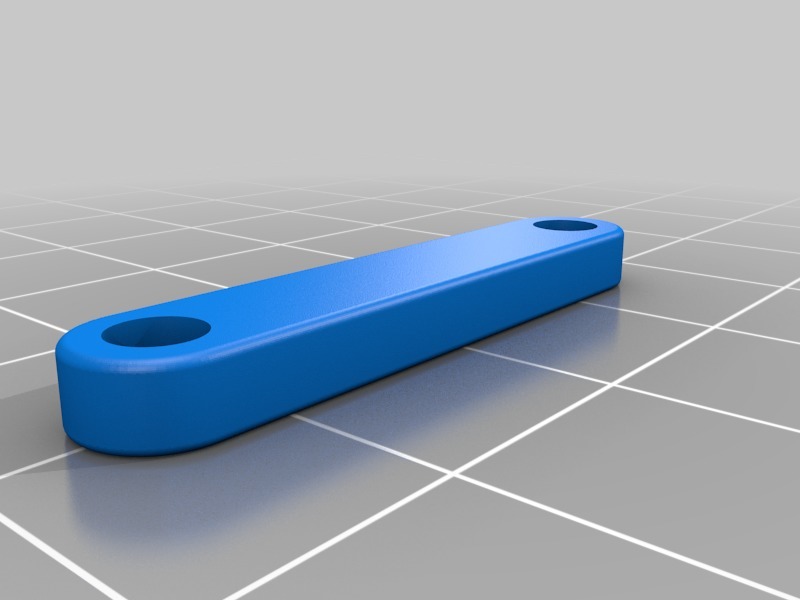

  • link.stl 32.537355999999996 × 6.35 × 3.175 mm
  • lower_cover.stl 33.337502 × 13.49502 × 33.327766 mm
  • piston_crank.stl 12.7 × 7.9375 × 11.110757 mm

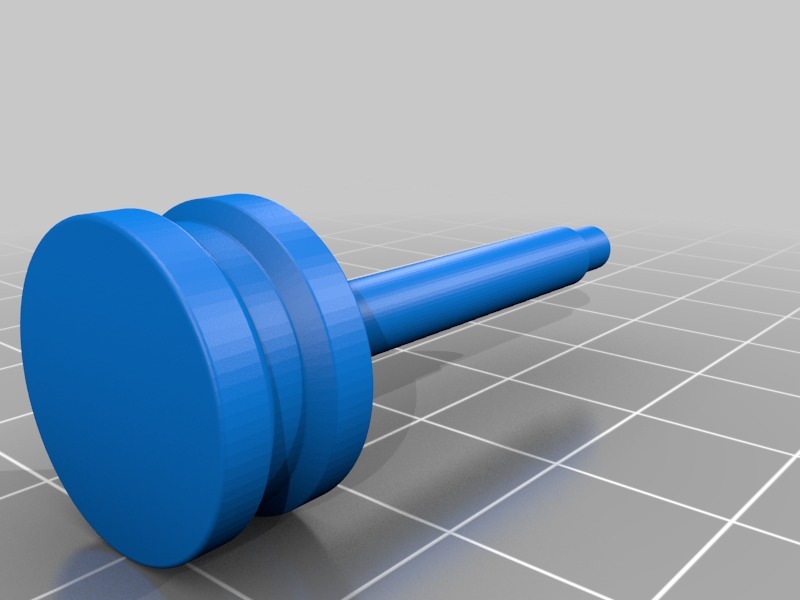

  • piston_one_piece_3.stl 42.862499 × 15.75 × 15.75 mm

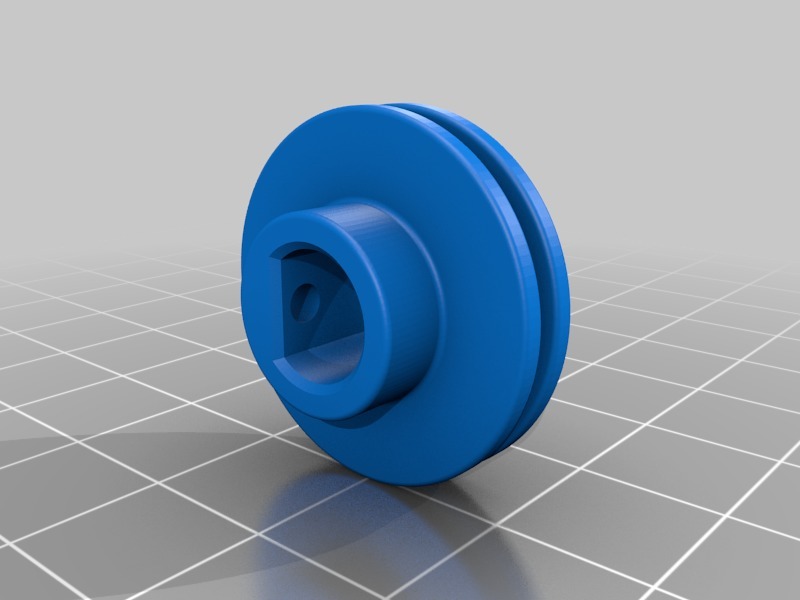

  • pulley.stl 11.1125 × 24.0 × 24.0 mm
  • reverse_lever.stl 6.349654 × 107.743648 × 3.175 mm
  • reverser_plate.stl 25.4 × 44.648121 × 3.175 mm

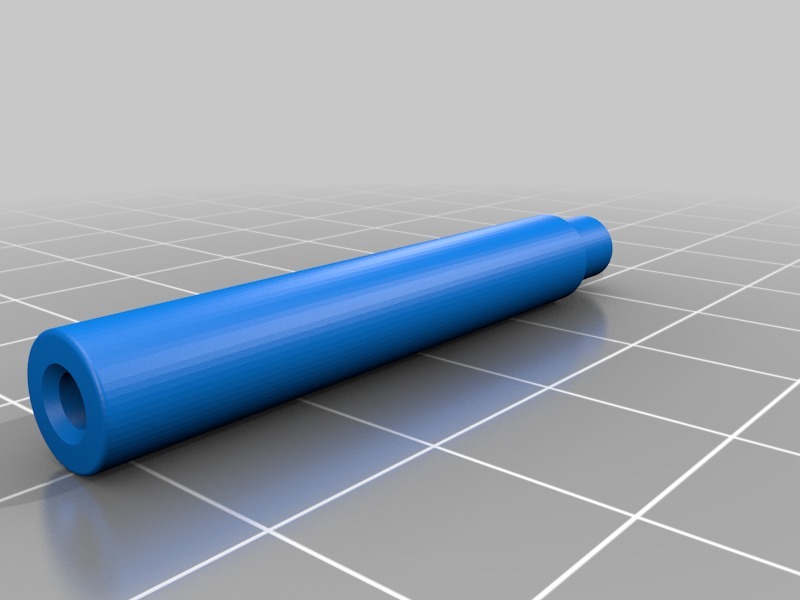

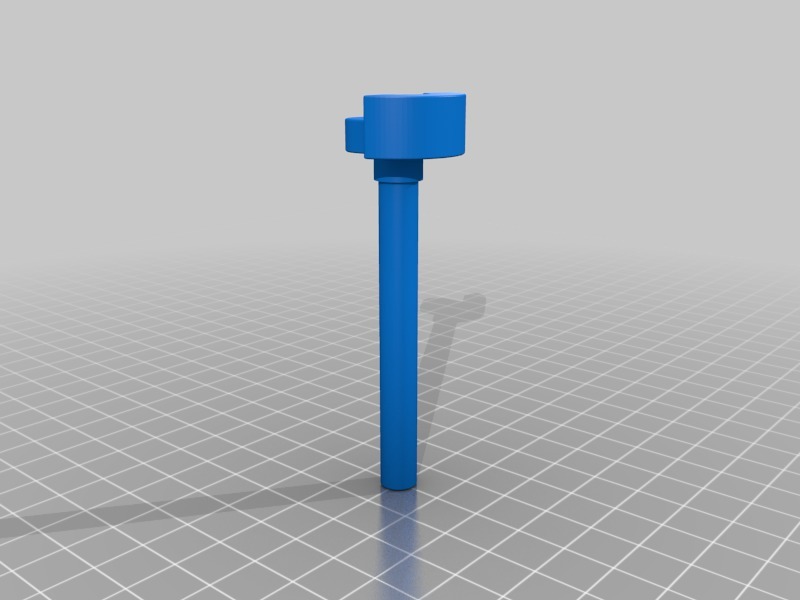

  • rocker_shaft.stl 44.349998 × 6.35 × 6.35 mm

了解关于格式的更多信息
出版日期
?
在 Thingiverse 上发布：
设计编号 944466
设计者 kmccon
kmccon

kmccon

这个设计有问题吗? 报告问题

3D 打印机文件信息

3D 模型描述

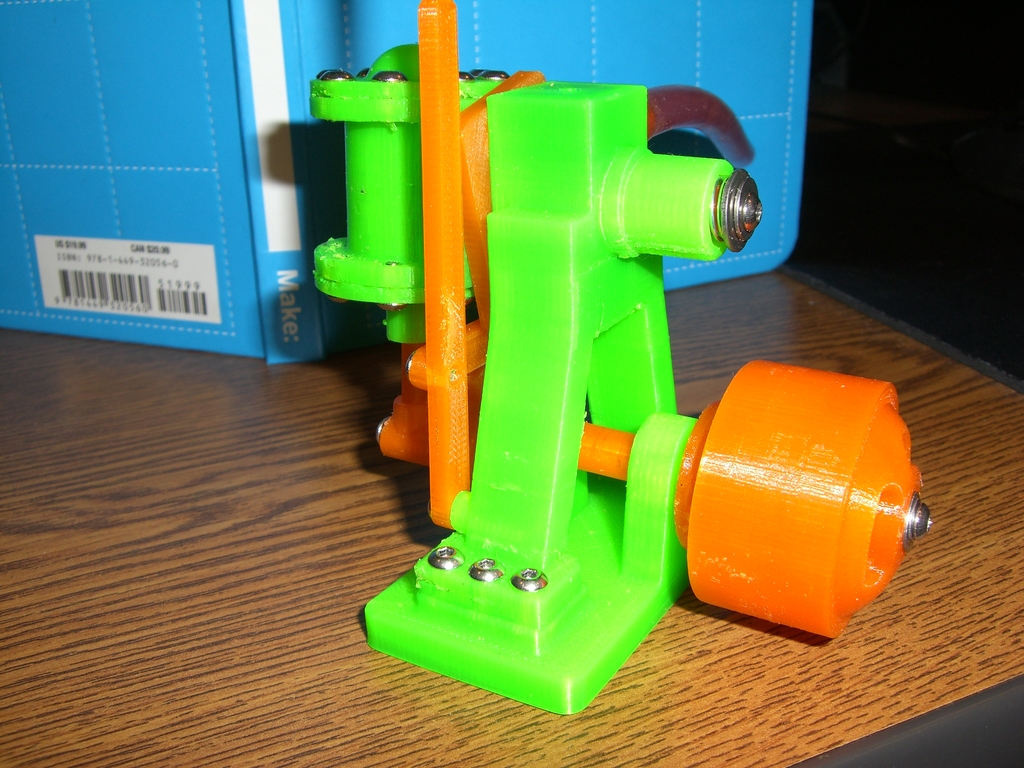

In April of 1941 Popular Science Magazine had an article on how to build an oscillating steam engine. This model is a reproduction of that engine using the part details in the article. I tried to stay true to the parts in almost all aspects. Some things were altered to allow 3D printing.

This model has a reversing lever that redirects the air flow to enable CW and CCW rotation.

While originally designed out of metal for use with steam, this engine runs on compressed air. Please don't try steam. It is a very leaky design.

This engine is running around 1500-1600 RPM.

Build Details:
1. While the Assembly list calls out 8 mm screws. 6 mm should work in most places, especially the cylinder heads. Item 3 12 mm screw can be shorter.
2. Spring is 23/64 Dia x 1 3/8 Long
3. IMPORTANT: Make sure you assemble the lower cylinder cover (12) to the Piston before assembling the piston crank. Attach with Super Glue.
4. Assemble the Rocker Shaft (20) to the Cylinder(6) with Super Glue.
5. The mating surfaces of the Cylinder(6), Reverser Plate(19) and Frame(9) need to be smooth.
6. Parts 4 and 5 have been combined.

Please let me know if you need more details or find any issues.

Enjoy

UPDATE: Added .step file of the assembly - 18 FEB 18

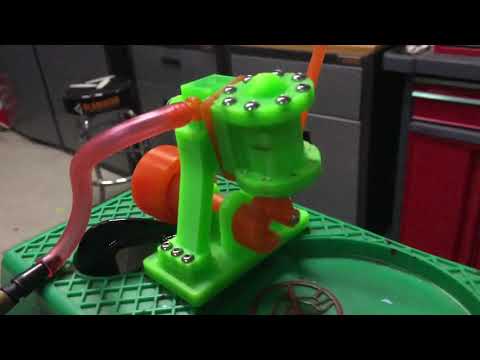

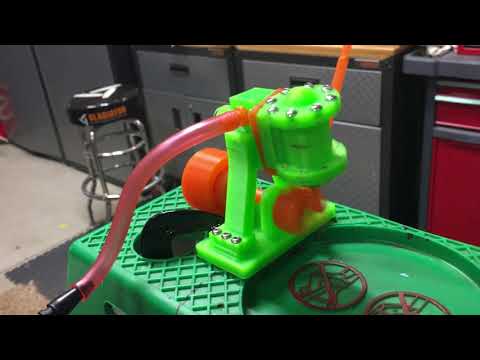

Video of engine in motion
https://www.youtube.com/watch?v=K9ak1Hcorfg
Video of engine in slow motion.
https://www.youtube.com/watch?v=iP8OPRIgomE

Link to Original Article
https://books.google.com/books?id=iycDAAAAMBAJ&lpg=PP1&dq=april+1941+popular+science&pg=PA188&hl=en#v=twopage&q&f=false

http://www.jefferyjensen.com/dw/engineer-mechanical/steamengines - About 1/2 way down the page.
