香料旋转木马

Here is a way to recycle its filament reels (brand Dailyfil - 1 Kg) to make a nice carrousel spice.

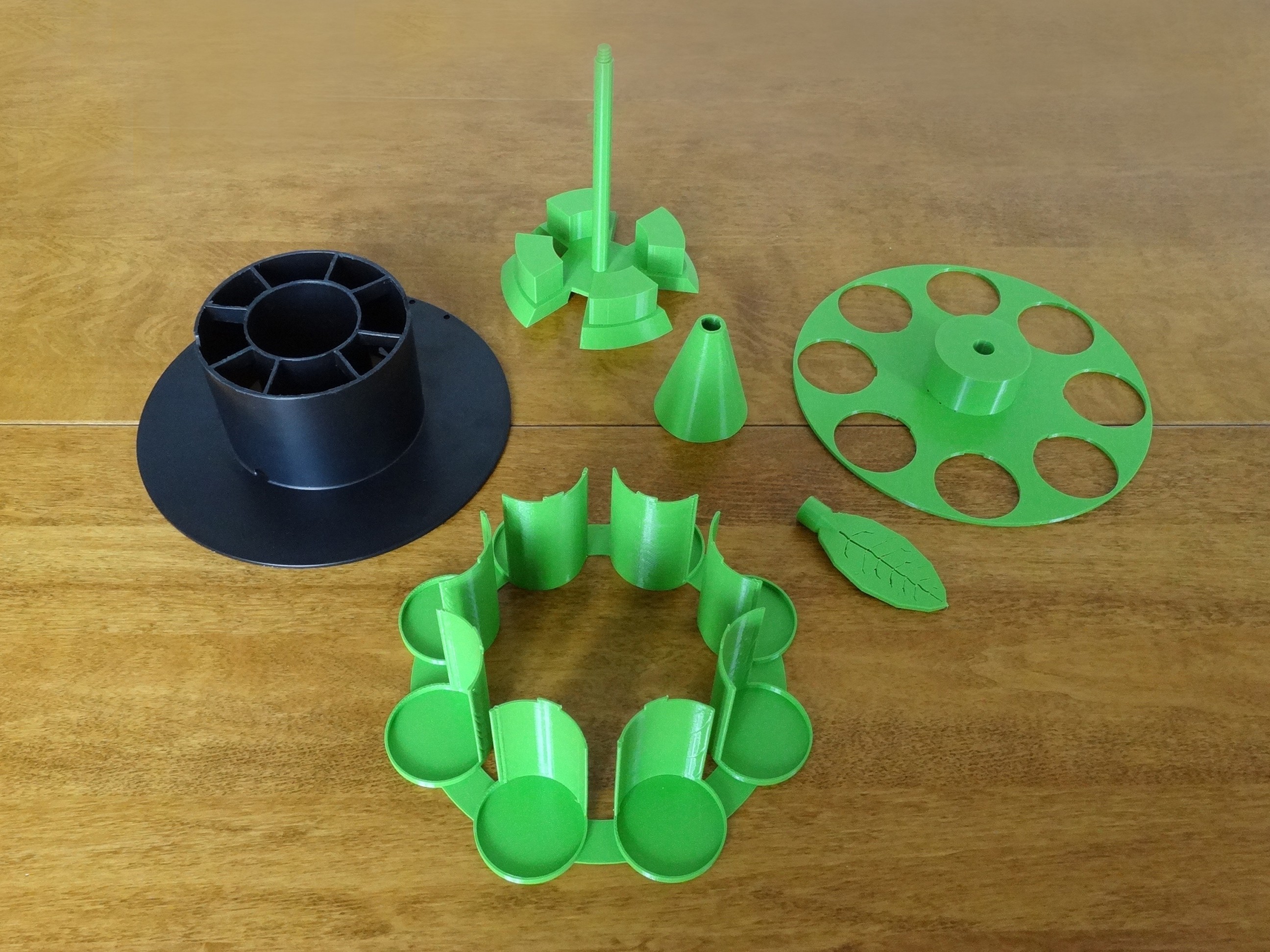

It will be enough to cut a part of the empty coil to preserve the principal one which will serve as support to our object. Do not worry if you do not have a reel at home. I planned to integrate a .STL file corresponding to this part under the name "carousel_ep_plateau_axe". The only part you have to stick is the upper part to house your spice flasks on the bottle support part to contain them.

Dimension of the coil used: D 198 x Width. 75 x 53 mm shaft hole.

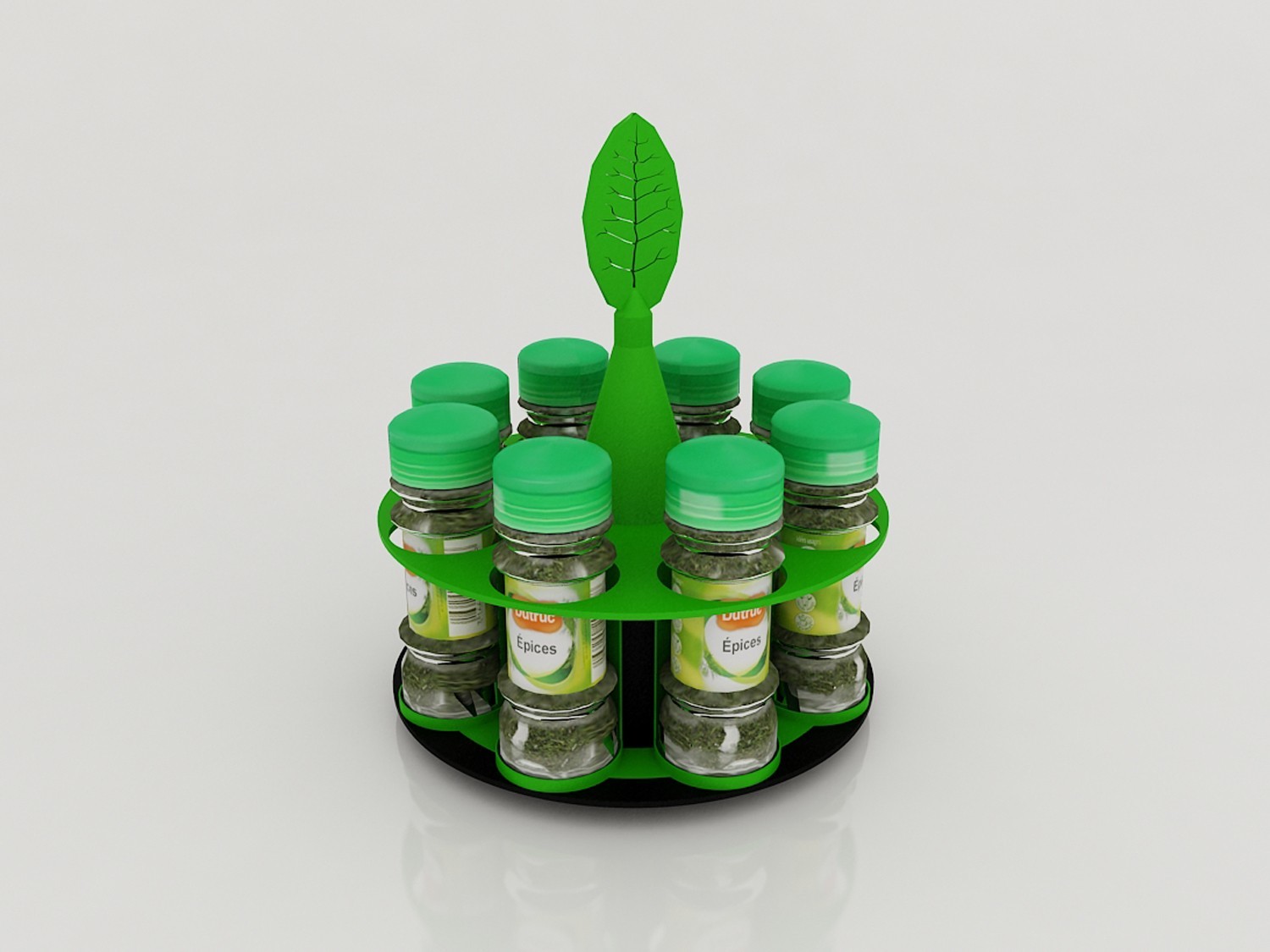

Total size of the carousel with spices: Long. 202 x Width 202, x High. 233.52 mm.

• carousel_ep_cloche01: Layer 0.2, fill rate. 100%, nozzle 0.6 mm with support plate contact.

• carousel_ep_feuille_vis01: Layer 0.2, fill rate. 20%, nozzle 0.8 mm.

• carousel_ep_part_h01: Layer 0.2, fill rate. 20%, nozzle 0.8 mm.

• carousel_ep_pied01: Layer 0.2, filled rate. 20%, 0.8 mm nozzle, with contact plate contact.

• carousel_ep_sup_flacon_b01: Layer 0.2, fill rate. 20%, 0.6 mm nozzle.

Option if you do not have an empty spool of corresponding filament:

• carousel_ep_plateau_axe01: Layer 0.2, filled rate. 20%, nozzle 0.8 mm.
