Recycling your empty spool and remainder filament: make organizer, box for screw.
You need a standard Ø32mm pvc sewage pipe to center axle, 5pc 3x20-25mm screw nail and little glue

Spool description:
- inner diament: 54mm
- outer diameter: 200mm
- width: 54mm

TEST SHAPES!!! YOU CAN TESTING YOUR SPOOL:
https://cults3d.com/en/3d-model/tool/test-shapes-for-recycling-empty-spool-for-organizer-box

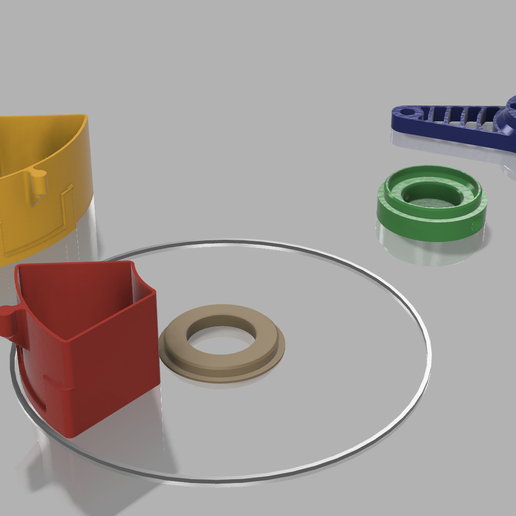

You choose whether you want it 1-2-3 storeys high. Print accordingly: large rings, center rings and one piece: base and closing cap.
The boxes are two size: 1/8 and 1/4 of circle. Choose as you like!
Glue the large ring to the edge of the spool.
The center axle high is +10mm from top of last spool.
The bottom foot and top cap for sure stays in place if you secure it with screws (3x20-25mm) or using glue.
Can you put 50x20mm thicker of paper to the front of boxes and write its contents.

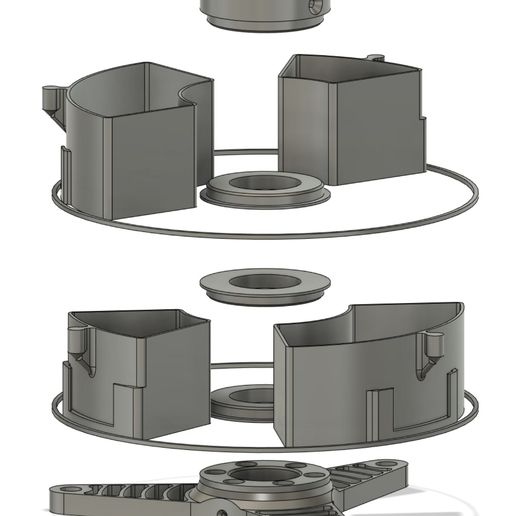

Print the parts and put them together based on the photos.
The levels are rotatable!

Amounts of material required (1,75mm filament):

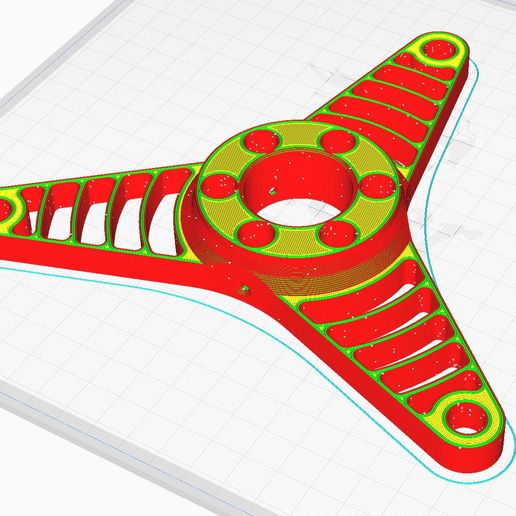

spool_foot.stl: 69g, 23,2m
spool_ring.stl: 3g, 1m
spool_center.stl: 10g, 3,5m

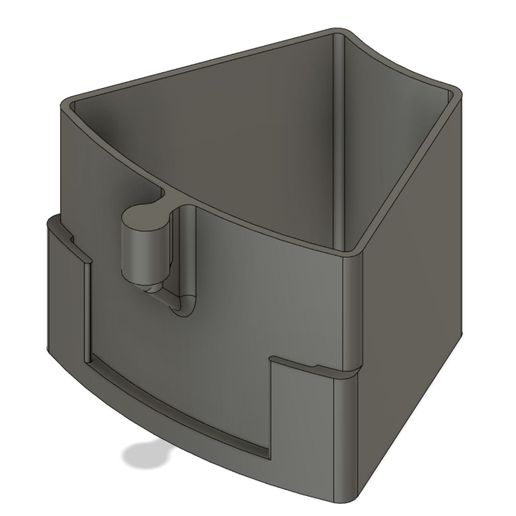

spool_box_1.stl: 27g, 9m

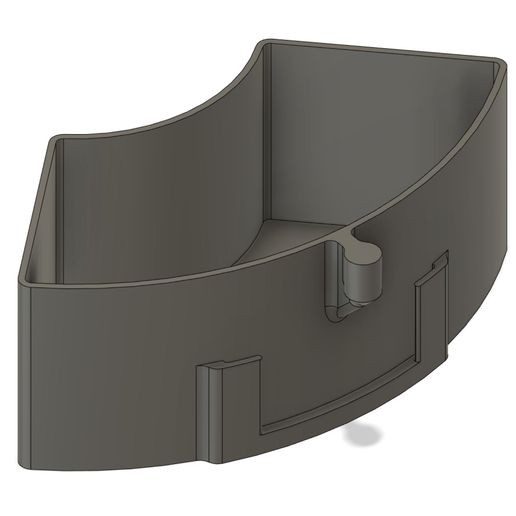

spool_box_2: 41g, 13,7m

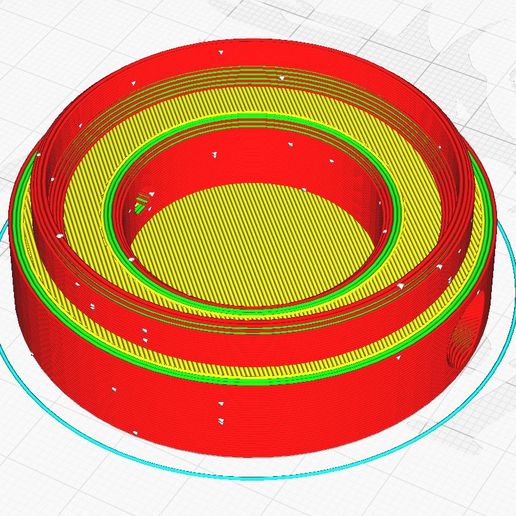

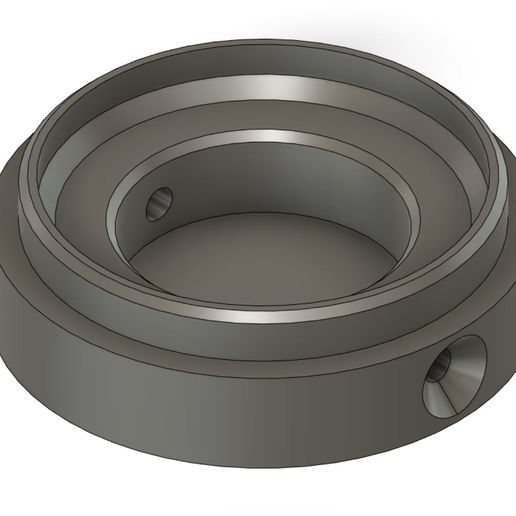

spool_top.stl: 26g, 8,9m

3 walls, 3 top/bottom layer, 30-50% infill, no support.
