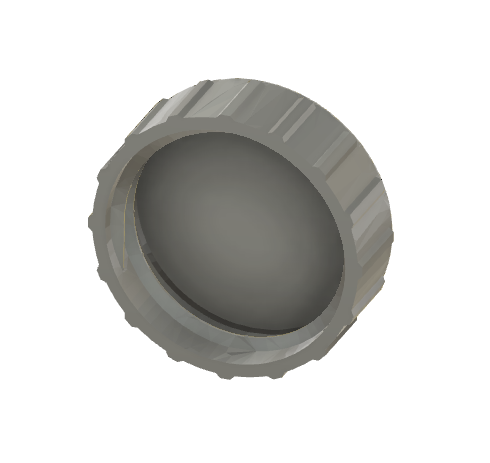

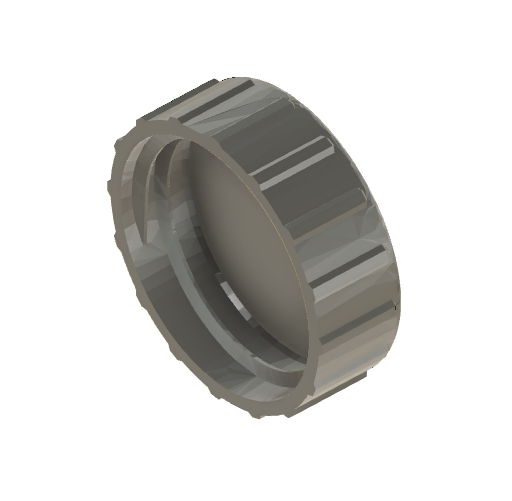

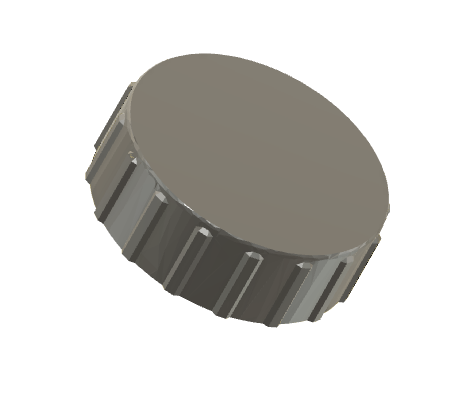

This design made in Autodesk Fusion 360 is a 1.9 liter beer growler cap (I don't know if the word "growler" is used in the English language; a "growler" is just a large, 1.9 liter bottle capacity in this case, which is normally used to store beer) (the object of the fourth photo of the carousel is this "growler" of 1.9 liters of capacity that I am saying). The bottle spout for which the cap was designed has an external diameter of 33.6 cm and an internal diameter of 28.1 cm (1.9 liter capacity growler). Likewise, if the bottle to be used does not have these measurements, the cap can easily be rescaled until it is adjusted to the desired optimal size.

The design has very good strength and the internal thread works perfectly. In addition, the built-in pleats on the outside of the cap make it easy to open / close the bottle. To improve the gas retention of the beer, it is recommended to incorporate an internal eva rubber disk.

It is easy to incorporate a brand logo on the flat top of the cup. In case of incorporating a logo, make the color change at the height of 14.50 mm (Z axis).

Completely own design. Product already printed, tested and marketed. It works perfectly.

www.fus3d.com.ar

*English

This design made in Autodesk Fusion 360 is a 1,9 liter beer growler cap (like the one in the 4th picture of the carousel). The bottle spout for which the cap was designed is 33.6 cm in external diameter and 28.1 cm in internal diameter (1.9 liter growler). Also, in case the bottle to be used does not have these measures, the cap can easily be resized to fit the optimal size desired.

The design has very good strength and the internal thread works perfectly. In addition, the built-in folds on the outside of the cap make it easy to open/close the bottle. To improve the gas retention of the beer, it is recommended to incorporate an internal eva rubber disc.

It is easy to incorporate a brand logo on the flat top of the cap. In case of incorporating a logo, make the color change at the height of 14.50 mm (Z-axis).

Completely own design. Product already printed, tested and marketed. Works perfectly.

www.fus3d.com.ar

*English

Layer height: 0.2mm

2 contour layers

A 20% fill already works perfectly.

Print speed: 50mm / s (varies by printer).

*English

Layer height: 0.2 mm

2 contour layers

A 20% infill already works perfectly.

Print speed: 50 mm/s (varies according to the printer).

.

www.fus3d.com.ar
