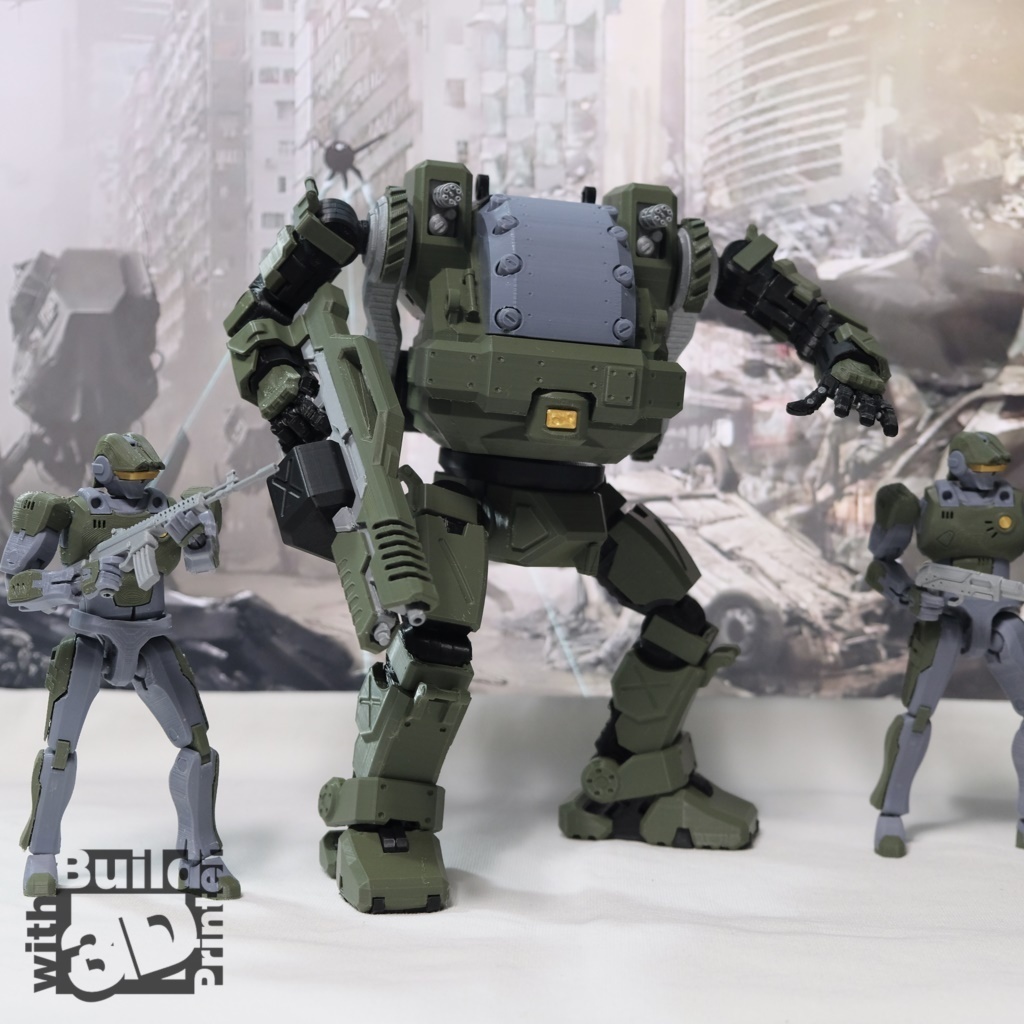

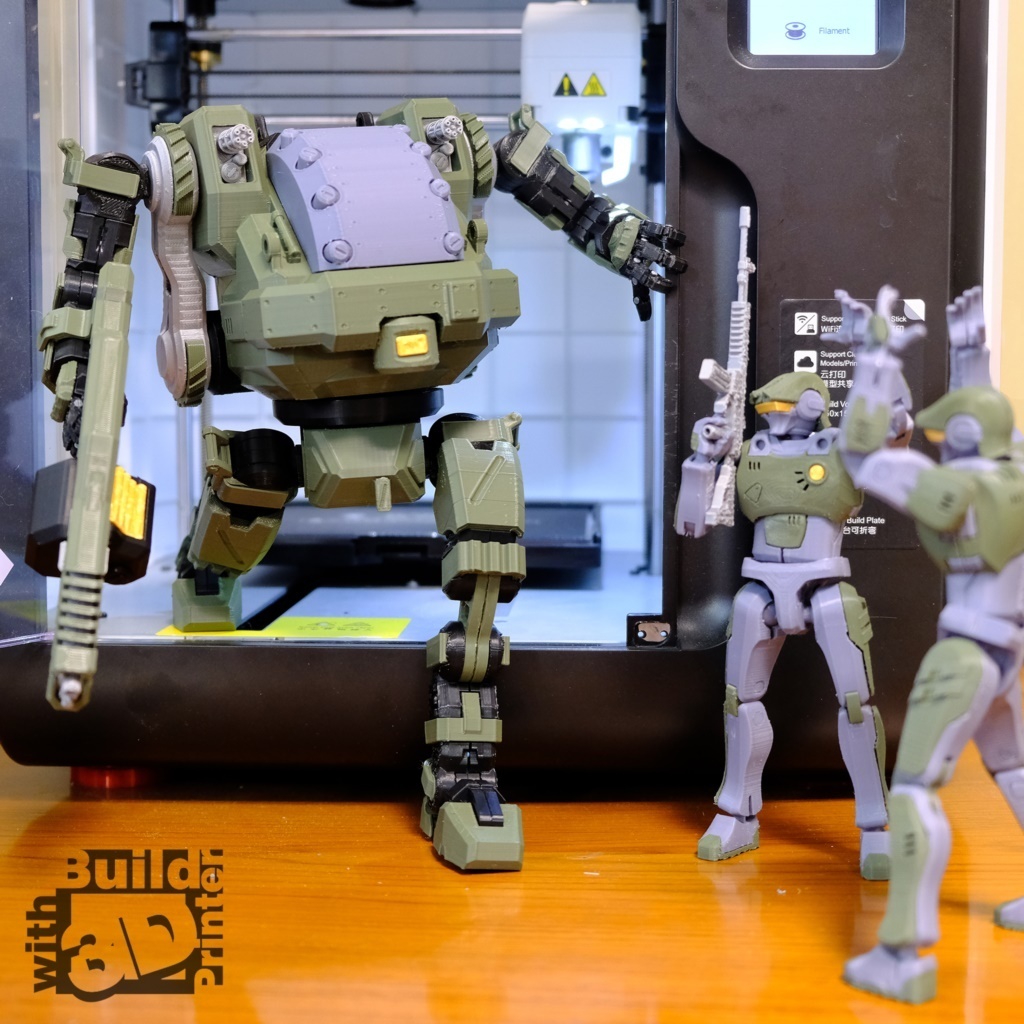

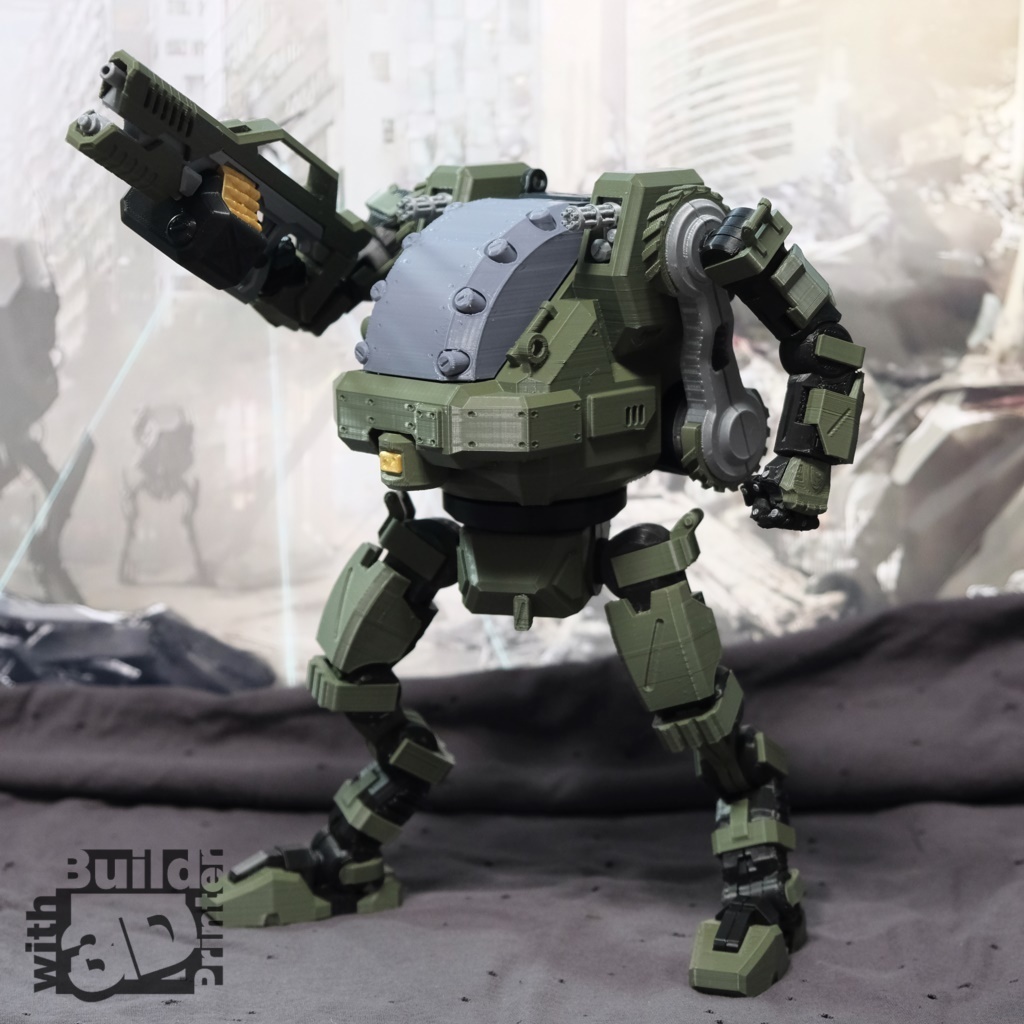

重炮步行者

[Printable Action Figure]

Assembly Required:
Instructions are available on my YouTube channel:

Video #1: https://www.youtube.com/watch?v=AIsVlgopqJc
Video #2: https://www.youtube.com/watch?v=fZDzAasKl4M

Torso Option Parts:
Download here: https://cults3d.com/en/tags/robot (Heavy Gun Walker Option Parts)

[For Ver2 Arms and Legs Files]

Armor Files:
Start with filenames like "LegT*_*_Olivegreen.stl"

Inner Frame Files:
Use filenames formatted like "LegT*_Left(Right)_Black_Ver2.stl"

Arm Files:
Follow the same format as inner frame files (e.g., Arm_Left_Black_Ver2.stl, Arm_Right_Black_Ver2.stl)
Assembly Instructions:

For detailed assembly steps, refer to the downloadable PDF: "Assembly Instructions_for_Ver2.pdf"

Note: Ver 1 versions of the files have been removed.

No Additional Hardware Needed:
This design requires no extra parts like metallic springs or bolts that wouldn't be printable on a 3D printer.

Assembly Tips:
The parts are designed for a snug fit, but the tolerance depends on your 3D printer's calibration.
Completely remove all support structures before assembly.
You might need sandpaper or a hobby knife for minor adjustments during assembly.
Use standard 1.75mm filament and super glue for assembly.
Cockpit Compatibility:

Cockpit Type-1 may fit with 2-inch action figures and L.E.G.O figures.
Cockpit Type-2 is specifically designed for the Android MP-1 action figure.
*Android MP-1 (3D Model Link): https://cults3d.com/en/tags/robot

Tested Filaments:
PLA and ABS filaments have been successfully tested with FDM 3D printers.

Disassembly:

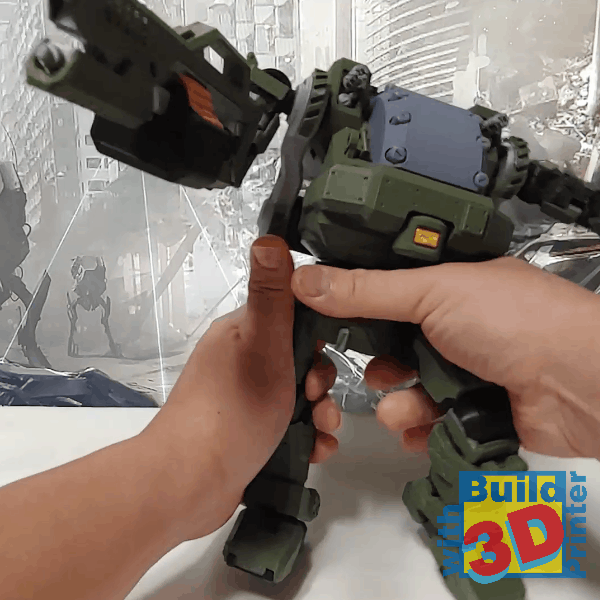

Most parts can be disassembled for easy maintenance.

Layer height:
0.2mm

0.10mm (Fingers_Left_Black, Fingers_Right_Black.stl)

Shell count: 3

Fill density: 15~20%

Time to do: about 8000 - 8900 minutes

Technology: FDM

Material: PLA or ABS

Dimensions: about 190mm x 125mm x 260mm

Material Quantity: about 1000g
