BK NUC5PPYH Vertical Stand

This is a couple designs for an intel NUC5PPYH that I am using for Octoprint. This should fit other NUC5's in the same series, but can be made to fit others as well. There are two different designs amongst the files. One hangs the NUC vertically, the other is simply a base you place the NUC onto vertically.

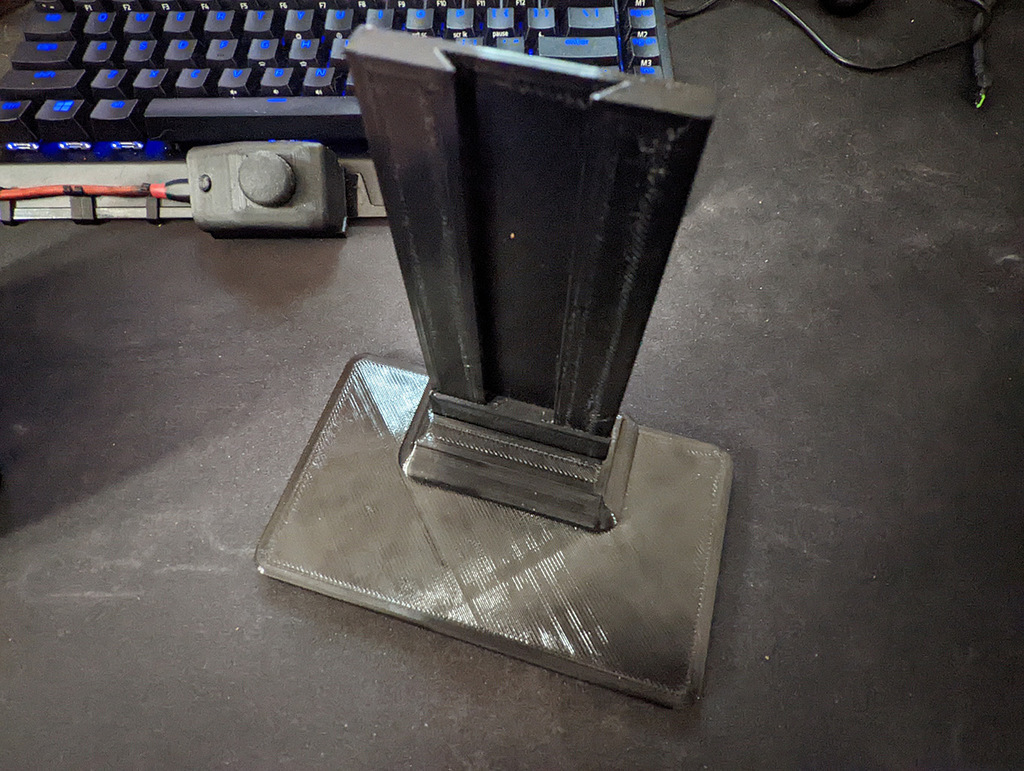

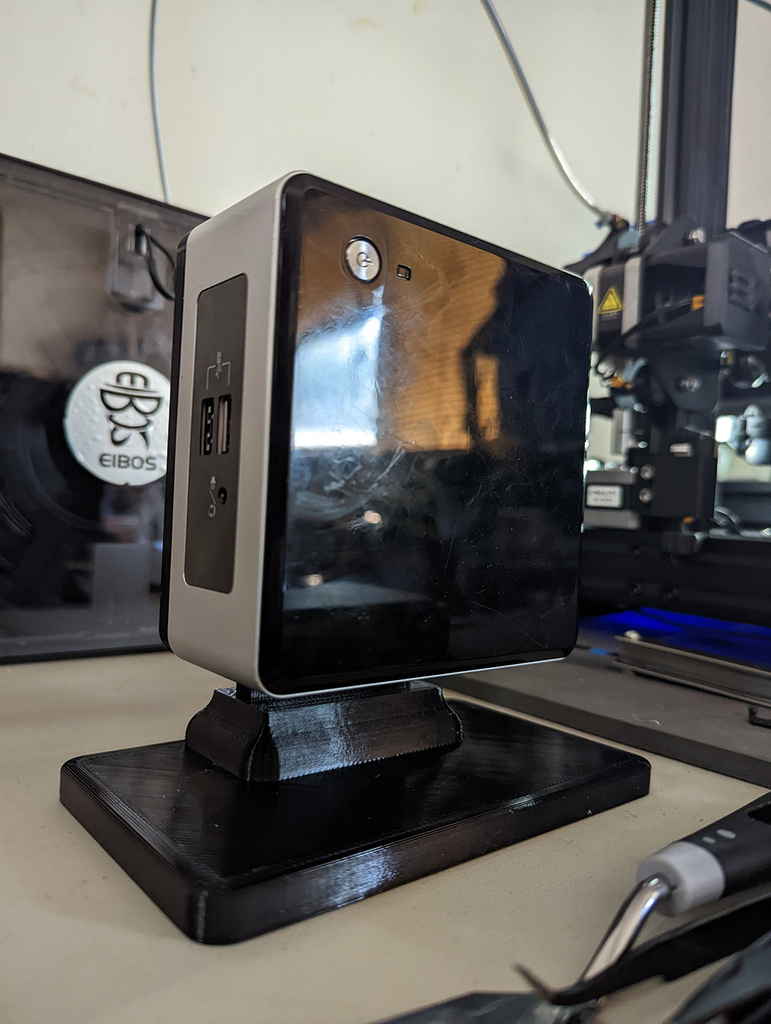

1. Hanging NUC.

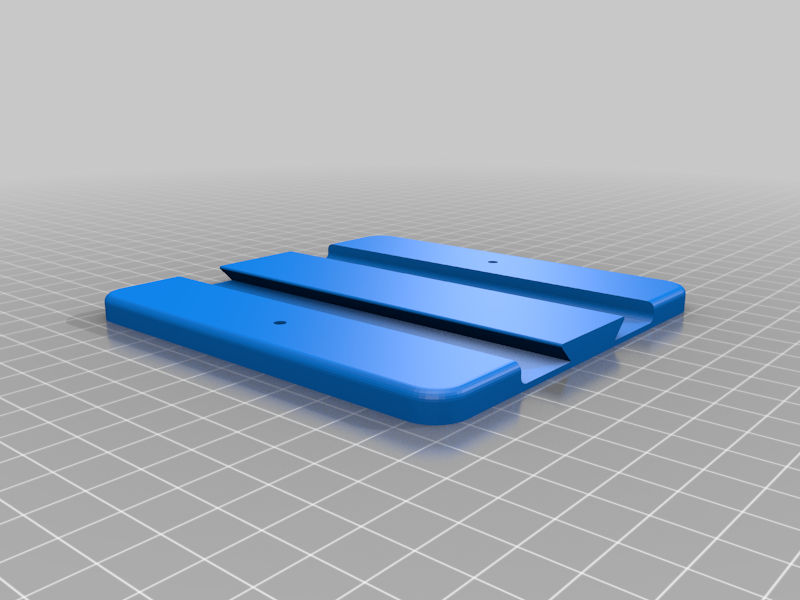

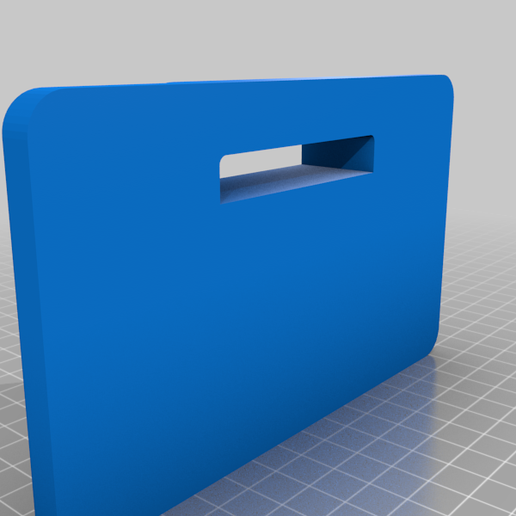

   • Minimum pieces needed (Base and Top)

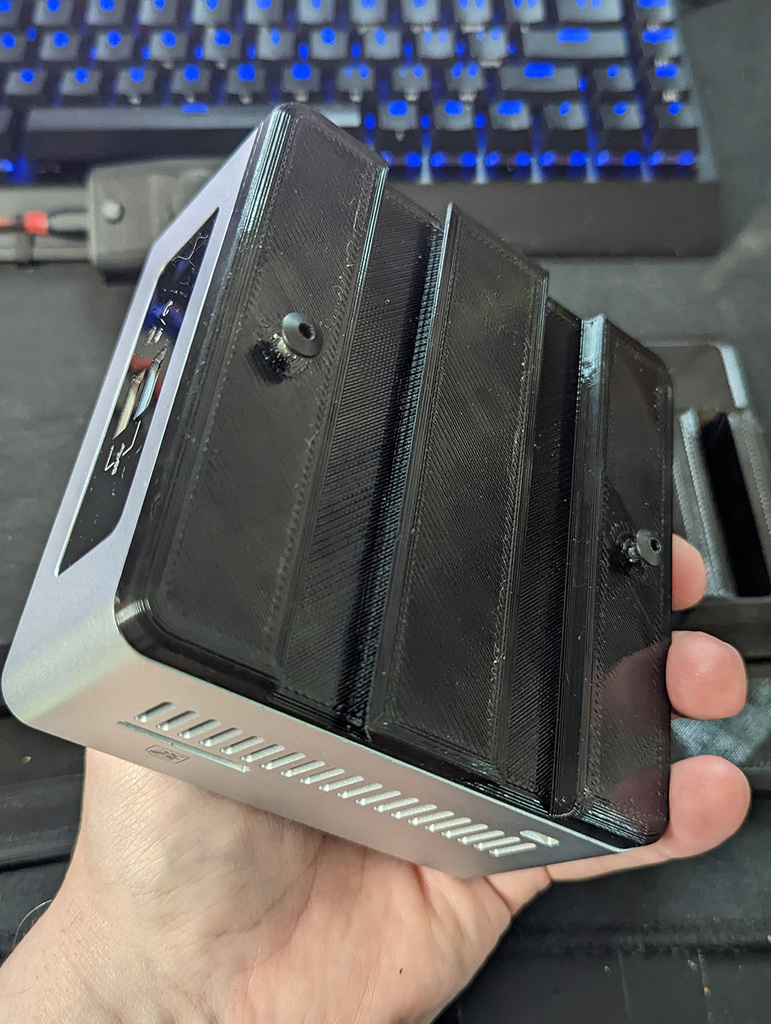

   • This version has also been designed with a slotted NUC attachment to the arm which allows the base and arm to be used for other projects, although you will need to integrate the cleat into whatever you would like to slide onto the base. Files for this variant (Arm, Base, NUC)

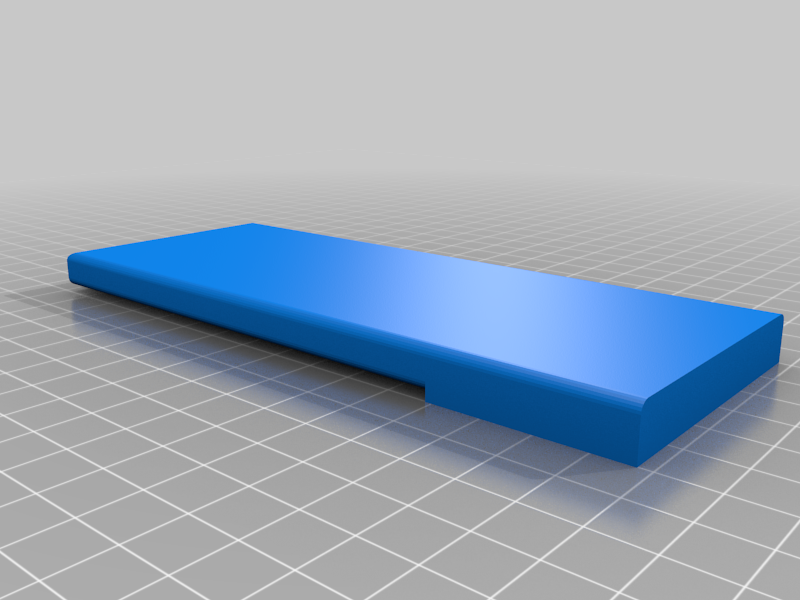

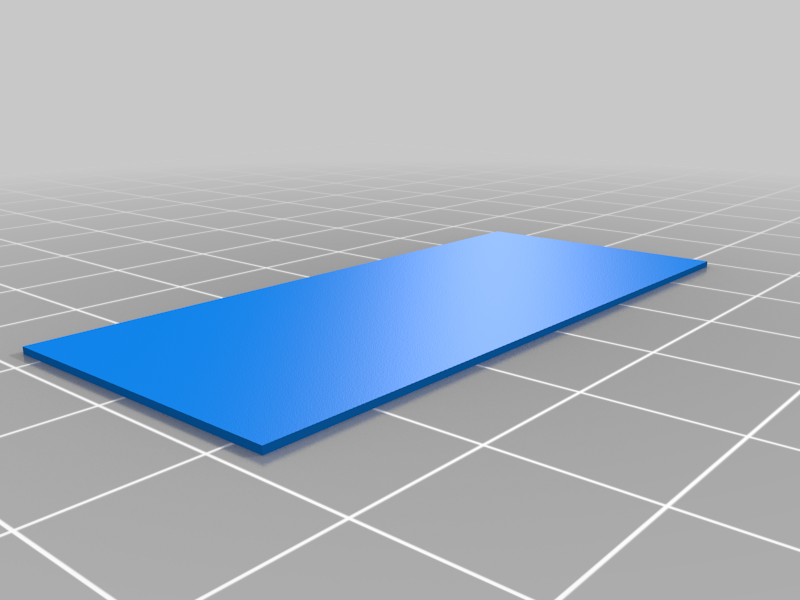

   • There is also a shim for the arm into the base... print if necessary (loose connection)

2. Sitting NUC.

   • Only file needed for this one is the: BK NUC5PPYH Vertical Stand.stl
   • print it, set the NUC on it... done.

All of the parts were printed without supports... if you use supports, make sure to remove support from the cleat section on the vertical stand. Those print fine with no support even though the slicer will complain about it.
