INJECTION CONVERSION KIT for Chrysler Slant Six engines

Electronic fuel injection conversion kit for Chrysler/Mopar Slant Six engines.
The kit includes a new intake and exhaust manifold with 6 injectors, a throttle body, lines, and a cone-shaped air filter (straight and 90°). The project is completely modular for easy printing and modification.
The project is detailed and easily installable on our Slant Six engines.
The engine is not included, it is available separately.

• CHRYSLER SLANT SIX - ENGINE

Disclaimer:
- The resale of my files is NOT allowed
- Printing for commercial use is NOT allowed
- File modification is not allowed
- Claim authorship of the design
For authorizations and concessions please contact me here on Cults.

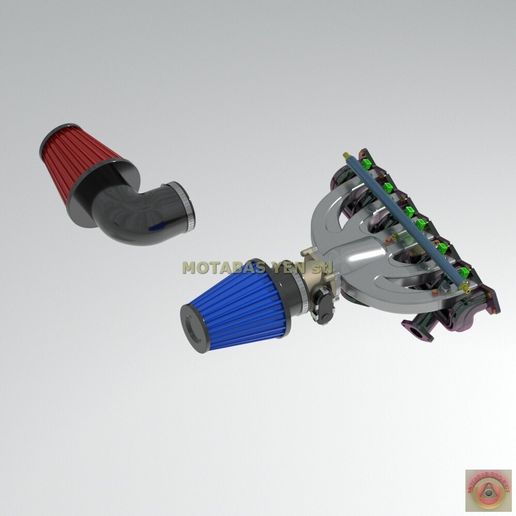

The photos represent the engine made with a resin printer, some photos are renderings of the project I made.
It is possible to print with FDM printer at moderate speed but obviously the level of detail will be lower and in some cases the supports will be necessary.
These are my printing parameters using Elegoo printers and YAJO standard resin.

PRINTER............BASE EXPO....NORMAL EXPO....RES

JUPITER............37sec.............2,0sec.................0,050mm

MARS 2 PRO.......45sec.............4,5sec.................0,050mm

SATURN.............35sec.............3,5sec.................0,050mm

Change scale:

1/10 > 1/25 -40,00 %

1/10 > 1/24 -41,66 %

1/10 > 1/18 -55,55 %

1/10 > 1/12 -83,33 %

1/10 > 1/8 -125 %
