Hello everyone

Step into the flames of style in these fiery shoes that will light up your look! 🔥 Make a bold statement and set the trend on fire.
I present to you the latest collections. "Wave", "Pump" and "Amor". Each shoe model from the latest collection is different. What is the difference between the third collection and the previous ones? The fact that you can print the sole and upper of the shoe separately or from one filament!!! What opportunity does this offer? Huge two different colors. Two different filaments, for example the shoe sole is made of 92A TPU filament and the shoe upper is made of 40D filament.
By way of introduction, I would like to thank everyone who appreciated my projects by buying, liking, commenting or writing me messages. All this is very important to me because three new soles and a new upper were created based on your suggestions.
I tried to ensure that the latest models and all future shoe models are:
- Fully 3D printed
- They printed perfectly and without any problems on EVERY printer
- Comfort and freedom of walking
- Not a trivial look
- Minimize the weight of the model without losing its strength parameters

A detailed description of each model can be found below.

Let's move on to a detailed description of the "Pump" shoe model. The "Pump" shoe model was designed for you and everyone who likes to have an even, flat shoe profile. "Pump" shoes have been widened in the midfoot and a little in front. "Pump" shoes have been designed so that you have full satisfaction with walking and the appearance of the shoe. When purchasing the "Pump" model, you get a closed and open "Voronoi" shoe upper.

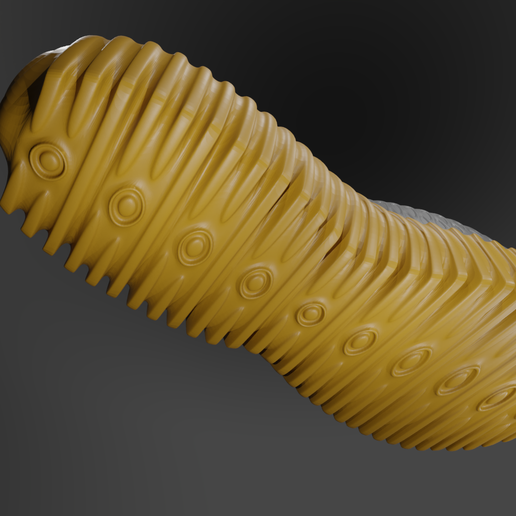

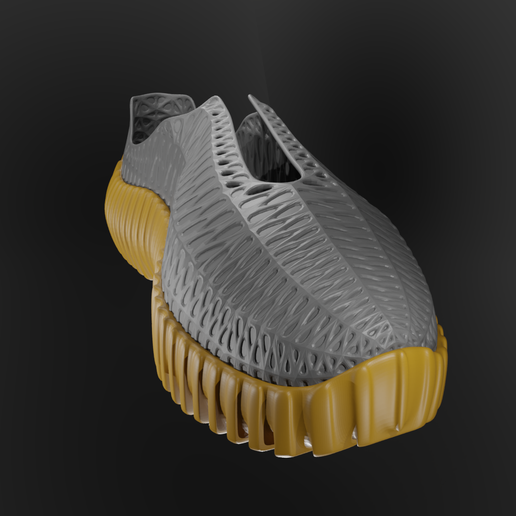

A little about the look of the entire shoe. The appearance of the "Pump" shoe imitates a pumped shoe through the shape of pumped circles. As you can see, the shape of the sole overlaps the upper of the shoe. As a result, it covers a large part of the shoe upper. The high sole stiffens the entire foot, resulting in foot stabilization. Does such a high sole make it difficult to walk? No, because it is specially widened in places where you could feel pain caused by too tight shoes. There is a bubble circle graphic on the bottom of the sole, just like on the heel. You can see it in the photos and renderings. The upper and the sole of the shoe match perfectly. Each pair of shoes I create undergoes a durability, comfort and printability test. Thanks to the tests, you can be sure that you get a product without defects, which prints and will give you pleasure. Will you shine in my shoes? Of course you can imagine yourself wearing such shoes. Have you seen such shoes anywhere? Certainly not. Personally, I will tell you that the number of questions asked and the level of surprise of people passing by me are indescribable. Therefore, I would like to thank everyone for their support and the opportunity to develop. I hope that soon I will be able to present you many more shoes, so you will have a greater choice.

You're probably wondering what about a model consisting of two parts? The "Pump" model, as I mentioned earlier, can be printed in one part or in two parts. Sole and upper of the shoe separately. The shoe model in one part is described as "1 filament size XX" and the model consisting of two parts is described as "upper/sole open/closed voronoi size XX". Ok, so what next? Next, we need to print the given parts. So we choose a model, for example: "upper open voronoi size XX" and "sole open voronoi size XX". Then we print the shoe upper and shoe sole separately. How to print the right shoe? In your slice, use the mirror option. Then we glue them together and enjoy. A detailed description of how to connect shoes can be found in the ODT file, where I described the steps of joining step by step. If you have another better idea for connecting parts, write a message, I am open to suggestions.

The material from which I print my shoes for Bioflex, Fiberlogy 40D and TPU 93A:
Bioflex: https://f3dfilament.com/product-category/elastyczne/bioflex
Fiberlogy 40 D: https://fiberlogy.com/pl/filamenty/elastyczny-filament-fiberflex-40d/
TPU 93A: https://f3dfilament.com/product-category/elastyczne/tpu

Size 33 - 21 cm
Size 34 - 21.5 cm
Size 35 - 22.5 cm
Size 36 - 23 cm
Size 37 - 24 cm
Size 38 - 24.5 cm
Size 39 - 25.5 cm
Size 40 - 26 cm
Size 41 - 26.5 cm
Size 42 - 27 cm
Size 43 - 28 cm
Size 44 - 28.5 cm

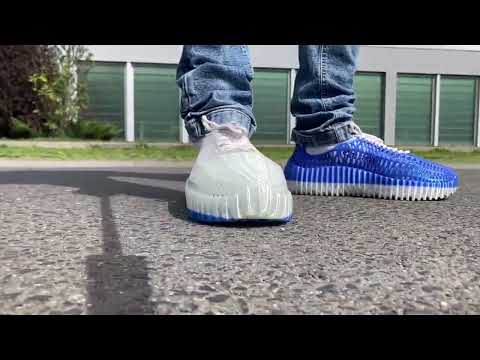

Link to ad: https://youtu.be/eHSgpdlsFb0

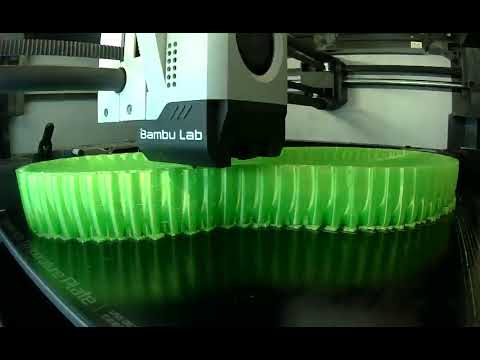

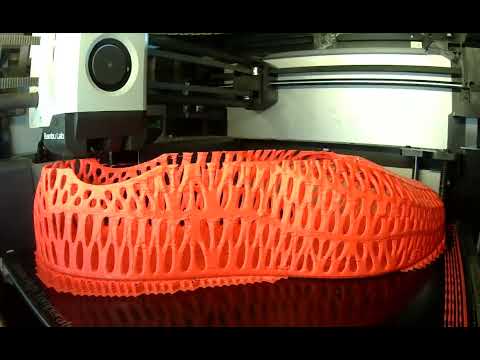

link to recordings from the printer: https://youtu.be/nEZNQ_rcKTg
https://youtu.be/ZotGlwMWZnY
Links to social media accounts:
Cults3D : https://cults3d.com/en/users/ION3D/3d-models
CrealityCloud : https://www.crealitycloud.com/user/3063118249
Instagram : https://www.instagram.com/ion3d_modelowanie_wydruki3d/
TikTok : https://www.tiktok.com/@ion3d
YouTube : http://www.youtube.com/@ion7173

Configurações de impressão 3D

Material: TPU

Altura de línea: 0,2 mm

Temperatura de la cabeza: 235 C

Temperatura de la mesa: 35 C

Relleno : 10% (Dependiendo de su peso, recomiendo aumentar el nivel de relleno)

Bucles de pared: 3

Capa inferior superior: 4

Solapamiento relleno/pared: 65%

Velocidad: Adaptada a la impresora
