Modular RC Shock Stand

The modular RC Shock Stand!

Highlights:

• Designed for 1/10 and 1/8 RC shock absorbers

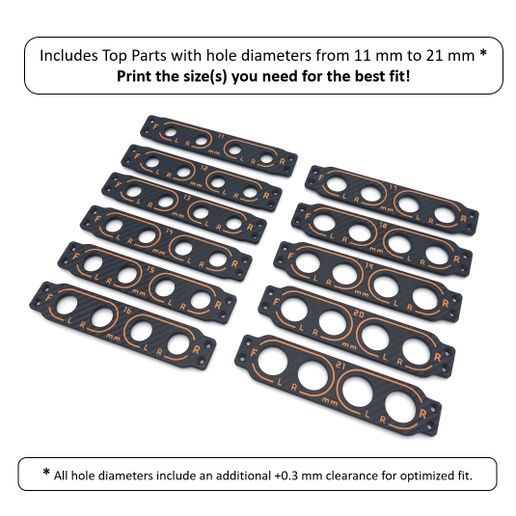

• Includes interchangeable Top Parts with hole diameters from 11 mm to 21 mm
• Print the diameter(s) you need for the best fit!
• All Top Parts include hole diameter labels and shock position indicators
• Integrated Parts Tray for springs, screws and other small components
• TPU Leg Pads for better grip and surface protection
• Easily disassembled for compact transport and storage
• No printing supports needed

See image for exact stand dimensions.

Intended for use with RC car shocks only.

Not a toy. Not intended for children.
Printed parts may include small or sharp components.

Check out all my other RC accessories here:
https://cults3d.com/de/drucklisten/dreamformdesign/rc-accessories

Disclaimer
Downloading, slicing, printing, and any use of the file(s) or printed object(s) are entirely at the user’s own risk.
No warranty is given for accuracy, safety, durability or suitability for any specific purpose. The provider (creator of this design) accepts no liability for any damage, malfunction, or injury resulting from the use, modification, or printing of this/these file(s) and any printed object(s). Do not use for load-bearing, structural, or safety-critical applications. For private use only (as defined by the CULTS PU License). By downloading this file, you agree to these terms. See the included PDF disclaimer in the download files for full details.

Recommended FDM Printing Settings (for guidance only)

Hard Parts:
Material: PLA, PETG
Nozzle diameter: 0.4mm
Layer height: 0.2 mm
Wall thickness (top, bottom, sides): min. 1.2mm
Infill: min. 15%

TPU Pads:
Material: TPU 95A or TPU 90A
Nozzle diameter: 0.4mm
Layer height: 0.2 mm
Wall thickness (top, bottom, sides): min. 1.2mm
Infill: 100%

No supports required!

See the image for the recommended printing orientation of each individual part.

Assembly requires:
8x M3x8mm countersunk screws
Glue

Assembly Instructions:
Glue the TPU Leg Pads firmly to the underside of the Base Part, using the grooves for alignment.
(Pre-fit the pads before bonding to ensure proper positioning and even alignment.)
Slide the Side Parts into the pockets of the Base Part and secure them using 4x M3x8mm countersunk screws (2 per side).
Secure the Top Part to the Side Parts using 4x M3x8 mm countersunk screws.
Do not over-tighten the screws!

These settings, recommendations and instructions are provided for guidance purposes only. Actual parameters may vary depending on your 3D printer, filament type, environmental conditions, and other factors. The provider (creator of this design) makes no warranties, express or implied, regarding the suitability or accuracy of these settings, recommendations and instructions and assumes no liability for any damages, malfunctions, or unsatisfactory print results arising from their use. The user is solely responsible for inspecting and verifying the functionality and safety of the printed object(s) before use.
This also applies to any instructions in the images.
