Fidget Bolt & Capsule - Versão comercial

Todos os ficheiros STL do Buckle N' Shackle estão protegidos pela lei dos direitos de autor. A compra desta versão comercial no Cults3D concede-lhe uma licença comercial vitalícia apenas para este modelo.

Para vender legalmente impressões físicas deste e de todos os outros designs sem pagar taxas de licenciamento individuais, é necessária uma assinatura mensal ativa do Patreon. BNS3d Patreon!

---

🎉🔩 Aniversário de 3 anos do Fidget Bolt! 🔩🎉

Em 18 de setembro de 2022, lancei o Fidget Bolt no Cults3D.

Difícil de acreditar que já se passaram três anos desde então!

Nesse tempo, foi descarregado mais de 2.500 vezes 🤯 em todas as minhas plataformas - algo que nunca esperei quando o carreguei pela primeira vez. O Fidget Bolt foi um dos meus primeiros designs, e ainda hoje é um dos mais populares.

Para celebrar este marco, estou a lançar a V3 do Fidget Bolt!

Agora imprimível com parafusos separados em quatro tamanhos: 75mm, 85mm, 115mm, e 125mm

Inclui tampas a condizer

Além disso, uma nova porca de torção serrilhada para acompanhar o conjunto original!

Você pode pegar a V3 do Fidget Bolt agora mesmo - está disponível para download no Patreon e no Cults3D.

E para aqueles que compraram a Versão Comercial Original no Cults3D, podem voltar a descarregar a nova V3 sem custos adicionais.

Obrigado 🙏 a todos os que descarregaram, imprimiram, partilharam e apoiaram os meus desenhos ao longo dos anos. Quer estejam aqui no Patreon, pegando arquivos no Cults ou parando no meu estande em shows, vocês me ajudaram a continuar criando e melhorando a cada dia.

Um brinde a muitos mais designs e marcos pela frente! 🥂

• James

---

**Antes mesmo de comprar minha primeira impressora 3d, o Fidget Bolt foi originalmente projetado por mim em 2020 durante o bloqueio como uma criação única com o objetivo de vender em futuras feiras de artesanato. Quando a vida voltou ao normal e depois de o mostrar aos meus amigos e familiares, eles ficaram impressionados e encorajaram-me a disponibilizar o ficheiro a outros.

Este brinquedo encantador tem um grande apelo, agradando a todas as idades e personalidades, e é particularmente popular entre os indivíduos neurodivergentes que podem brincar com ele durante horas a fio.**

---

O parafuso e a cápsula Fidget foi o ficheiro de design para o 7º dia das Olimpíadas de Impressão 3d de Make It Michael 2023

Uma versão gratuita deste modelo, Cápsula não incluída, está disponível para impressão em My Makerworld Page

---

Se estiver interessado em adquirir a Versão de Uso Pessoal deste ficheiro, que inclui a marca da Buckle N' Shackle, por favor clique no seguinte link:

[criação fidget-screw-bolt-with-keychain-hole]

➡️ Recommended Print Settings

I recommend printing this with a 0.4 Nozzle (0.2 Layer Height, 0.4 Width) 3 walls and 10% Gyroid Infill Minimum. I like to print at 15-25%. For an extra oomph raise the Infill percent to make different clanking noises.

Bambu Printers/MMU Printers, works great as a Purged Object! When purging to object, I recommend turning on purge to infill as well. Print with a 0.4 Nozzle (0.2 Layer Height, 0.4 Width) 3 walls and 25% Gyroid Infill or more for extra filament savings and a nice clanking noise when playing with it!

---

➡️Notes:

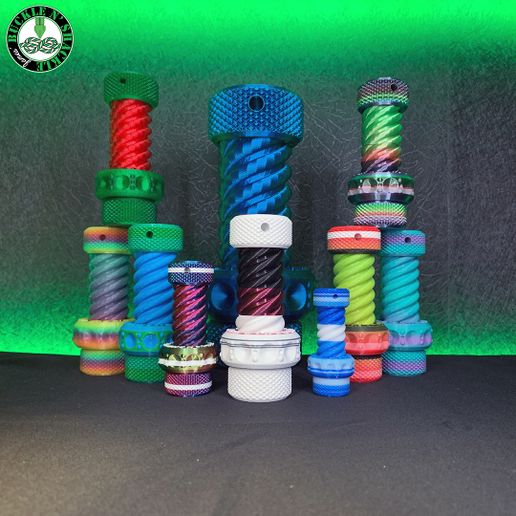

The Original Fidget Bolt has been test printed at 60%, 75%, 100% and 200% (See Group Photo). The tolerances (0.6mm) between 75-200% make this operate fine. However if it is not spinning, I suggest twisting it manually until it has sanded itself down. You can also add some Skateboard Bearing Oil or other lubricants to the tread. (Tip try water too!)

If you print the Capsule file at 85% size, you can roll up some American and Canadian bills to fit inside!

V.1 of The capsule has been test printed down to 70% but please note it may not work for some printers below 80%.

V.2 of the bolt bottoms capsule threads are now stronger! It has been test printed down to 60% successfully!

The Version 1 of this file prints in three pieces and requires glue to assemble. However, it prints with no supports. Version 2, on the other hand, can be printed in 2 pieces, but you will need to pause the print to slide on the nut before resuming the print. Like Version 1, it prints with no supports. This file is also perfect for use as a Purged Object.

UPDATES:

• V.1 Sep 20, 2022 - Original File: ( All Three Pieces)

• V.1.1 Sep 28, 2022 - No changes to Original File: Added 'Fidget Bolt Bottom', 'Hexnut Top' and 'Nut' as separate files

• V.2 Nov 15, 2022 - No changes to Original V1 Files: Renamed Hexnut Top to 'Bolt Top' added a new file 'Bolt One Piece'

September 20, 2022 V.1

• Prints in three pieces (one file). The middle Nut has to be placed on the threads before gluing on the top Knurled End. I suggest using E6000 or Gorilla Glue.

September 28, 2022 V.1 .1

• No changes to Original V1 File: Prints in three pieces (can print separately). The middle Nut can now be printed separately so you can add extra infill to make it heavier or lighter at your pleasing.

November 15, 2022 V.2

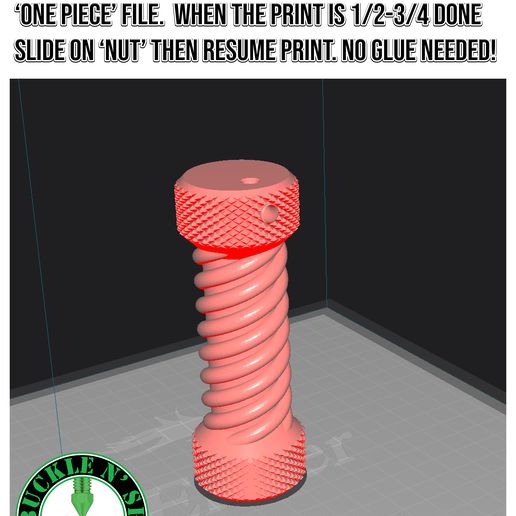

• No changes to Original File: Renamed 'Hexnut Top' to 'Bolt Top'. You can now print the Bolt in One Piece! Print 'Nut' (V1 File) first then print 'Bolt One Piece' and slide 'Nut' on after One Piece is 1/2 to 3/4 finished. Printing this way means NO GLUE! (Only print One Piece if you are confident in your printers pause and resume button)

April 25, 2023

• No changes to Original File: Renamed 'BNS Fidget Bolt Bottom' to 'BNS Fidget Bolt 100mm (Original) Bottom'. By popular demand, you can now print in Additional sizes! I've modified the original Bolt Bottom and added 3 additional lengths! Now includes 75mm, 125mm and 150mm. All sizes plus the 100mm Original work with the Nut and Bolt Top.

June 1, 2023

• Fidget Bolt Capsule Version! Print at 85% to fill American and Canadian Bills inside. 100mm Size only.

June 28, 2023

• Keyhole-Less Top for both Original and Capsule Versions. New Blank Nut!

• The Zip File has been reorganized into separate folders for ease of use. (Individual Pieces have been added!) I have renamed some files but the files themselves have not changed.

August 12, 2023

• V.2 of Fidget Bolt Capsule Versions added with stronger threads (capsule hole is now 17mm x 95mm)

Coming Soon

• V.3 - 3 Year Anniversary Update

---

➡️ License and Modifying:

• You are authorized to: Sell this Printed item Commercially

• What is not allowed: No sharing of files, No Adapting or remixing of my file (This includes the tread and the overall design itself.)

• However You are allowed to modify this file with any of your own Holes, Text & Logo (for example: A business logo or name on the bottom) As long as you Credit me appropriately.

---

➡️ Credits: Adding Attributions:

Printing my item? I would really appreciate it, if you tag me and credit me @bucklenshackle on Socials.

Please do one or all of the following: Add "Buckle N' Shackle", add a link to this cults3d page or my website and use my Seller Badge when selling online, tag my socials @bucklenshackle when you post, Use my Seller Badge at Craft Shows/or Add my Name and link on any Stickers/Price Tags *

---

➡️ Authorized Sellers For a list of all their socials and links
Click Here: Authorized Sellers List

• Authorized Sellers will be listed on my website when you purchase the commercial license. Please fill out the Google Form in linked in the .txt in the zip file or contact me via Discord/Instagram/Tiktok/Facebook DM to get your details added.

---

➡️ Available now to all active Patrons of Buckle N’ Shackle 3d Shop or for customers who purchase outright here on Cults3d or on the BNS3d Patreon!

---

➡️Videos:

• How to Lubricate the Fidget Bolt so it spins freely: https://www.youtube.com/watch?v=IEezpgakHRM
  https://www.tiktok.com/@bucklenshackle/video/7228973204612697349

• Assembly Instructional Video: https://www.tiktok.com/@bucklenshackle/video/7147856438537276677

• 200% Fidget Bolt Video:
  https://www.tiktok.com/@bucklenshackle/video/7148499896897785093

• 60% Fidget Bolt Video:
  https://www.tiktok.com/@bucklenshackle/video/7166017695752768773

• Use it as a Purge Object!
  https://www.tiktok.com/@bucklenshackle/video/7197575327978163462
  https://www.youtube.com/shorts/bFZZP5zS8CY
  https://www.youtube.com/shorts/pRF53HvNfqk

• Video Demo of the New Sizes!
  https://www.tiktok.com/@bucklenshackle/video/7226013168823291142
