U1JO - Anycubic Mono Fume Extractor / Heater

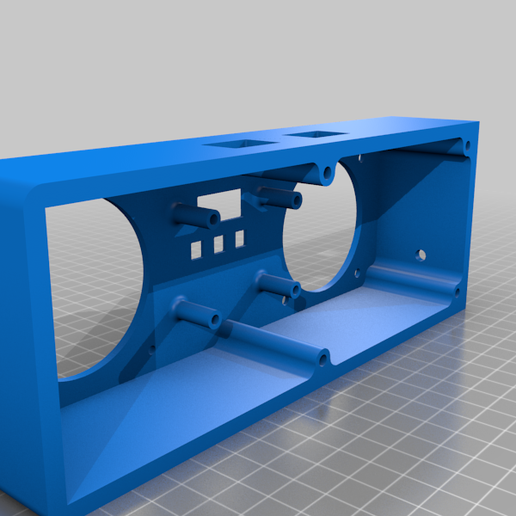

Here is the extractor/heater I have made for the Anycubic MONO.
I wanted a design with a slim profile that can provide options to extract fume and heat resin caver for the best work temperature.

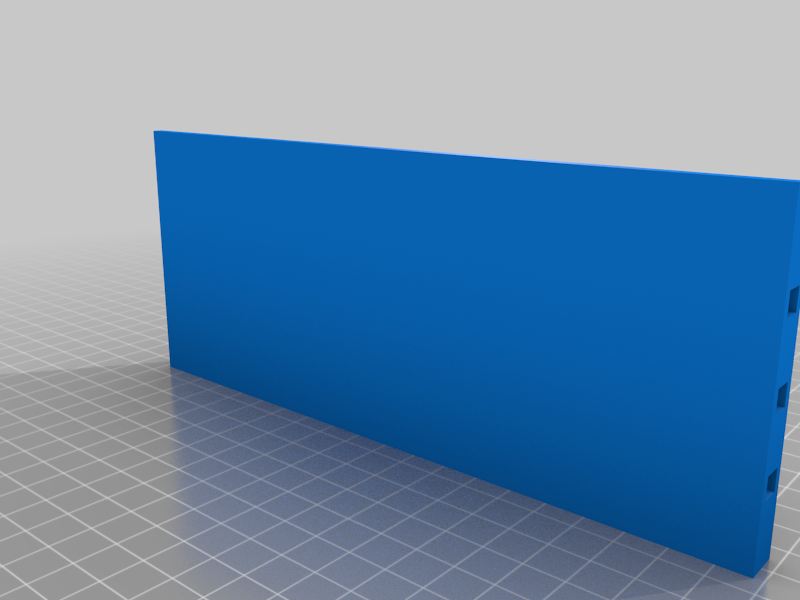

All the plastic parts, should be printed using PLA+/SPLA/PETG dark color will be better, the images were made white to show better the design.

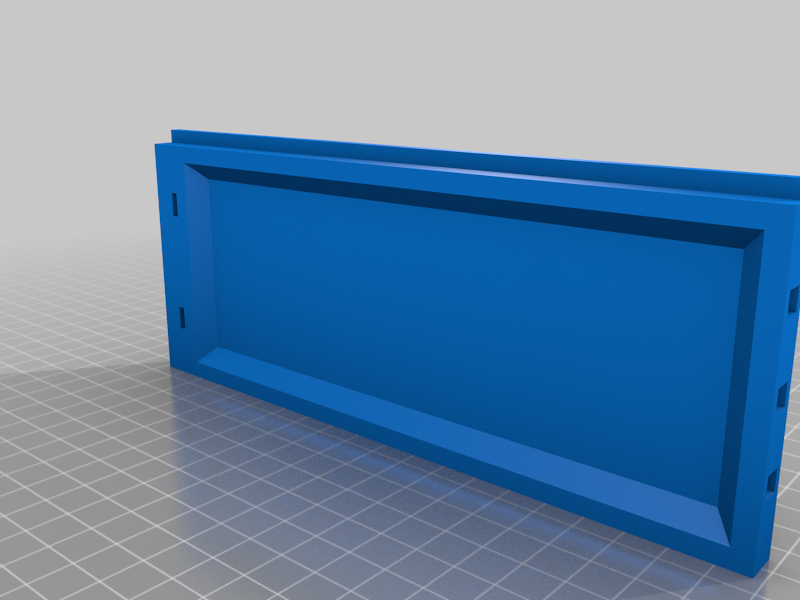

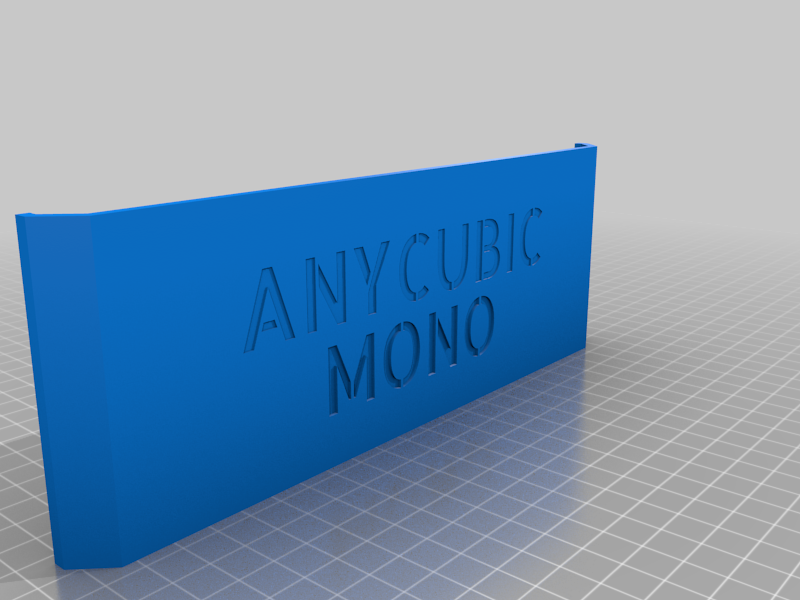

The front part uses 12 5x5x5 neodymium magnetics (https://www.amazon.es/gp/product/B078YB3Q33/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1) to allow us to manage easily the VAT from the printer without unmounting all the system.

Should be interesting to add to the base and top some EVA scripts to improve the closer performance.

The fume extractor part uses NoiseBlocker 60mm 12v vent and extractor tube like this https://www.amazon.es/gp/product/B07XBSDC4Z/ref=ppx_yo_dt_b_asin_title_o00_s00?ie=UTF8&psc=1.

The heater part use temperature control W1209 12v (https://www.amazon.es/gp/product/B07CH7W3XP/ref=ppx_yo_dt_b_asin_title_o01_s00?ie=UTF8&psc=1) and 100W 12v PTC heater (https://www.amazon.es/gp/product/B07YTMBHNC/ref=ppx_yo_dt_b_asin_title_o00_s01?ie=UTF8&psc=1). The temperature control was configured to maintain temperature between 25-30 celsius.

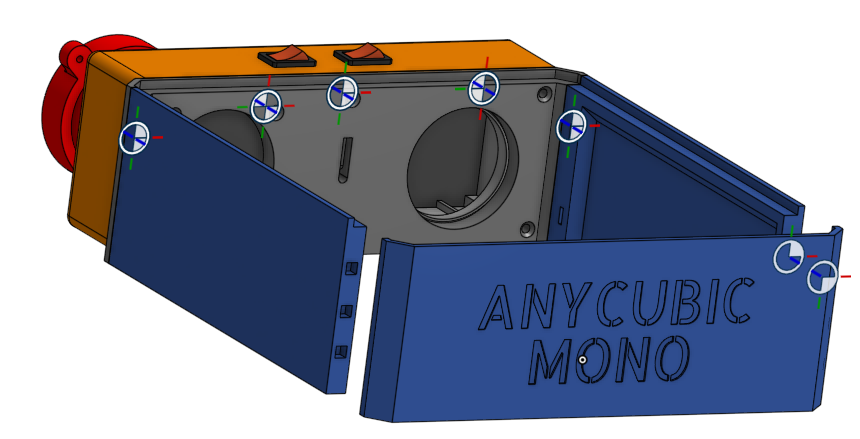

This was made with Onshate, you can found the whole design here:
https://cad.onshape.com/documents/b14423cfc4bb74b3f2f10ed8/w/2316b52be0e43fca28640611/e/446c7662b15f36c0f3f38e42

-
