Tevo Tarantula Pro Radial Fan Fang

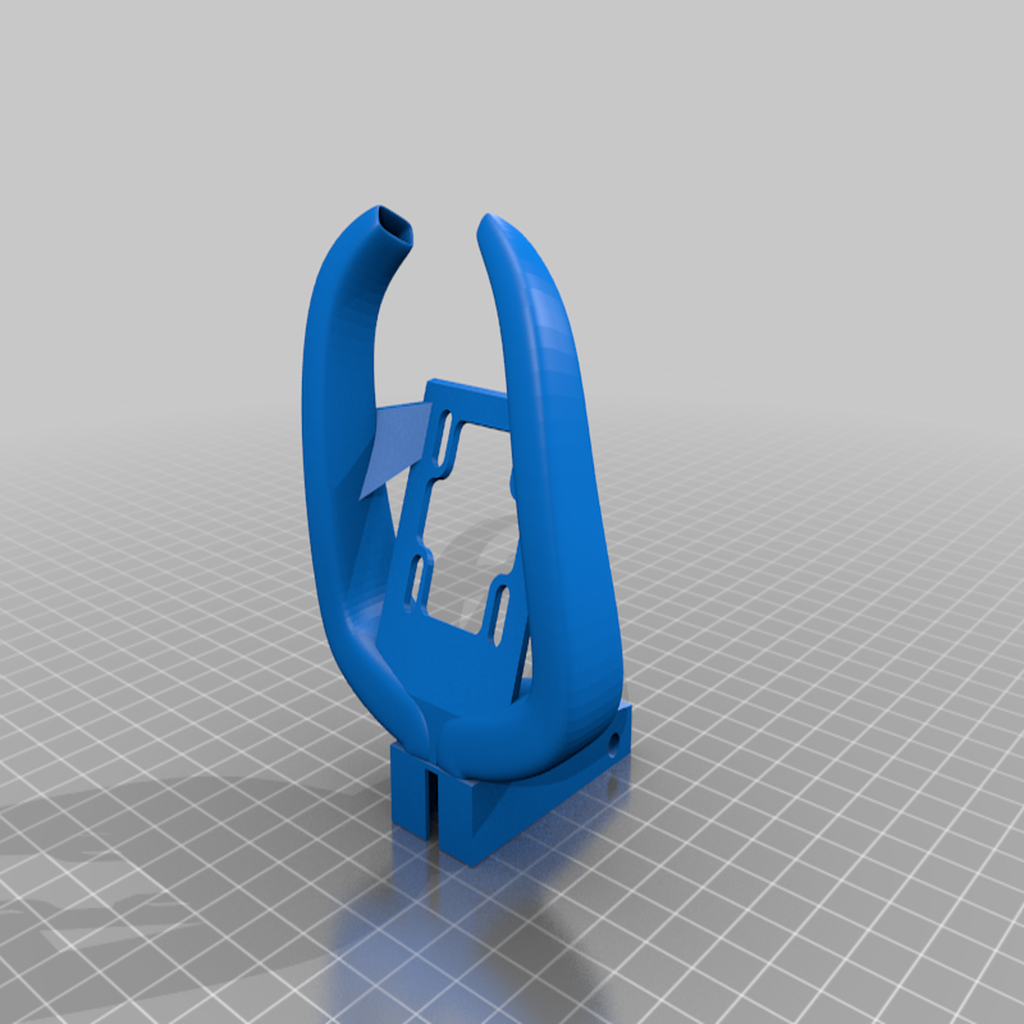

UPDATE! Please use v2 model for the latest update. Also, new 40-30mm fan adapter.

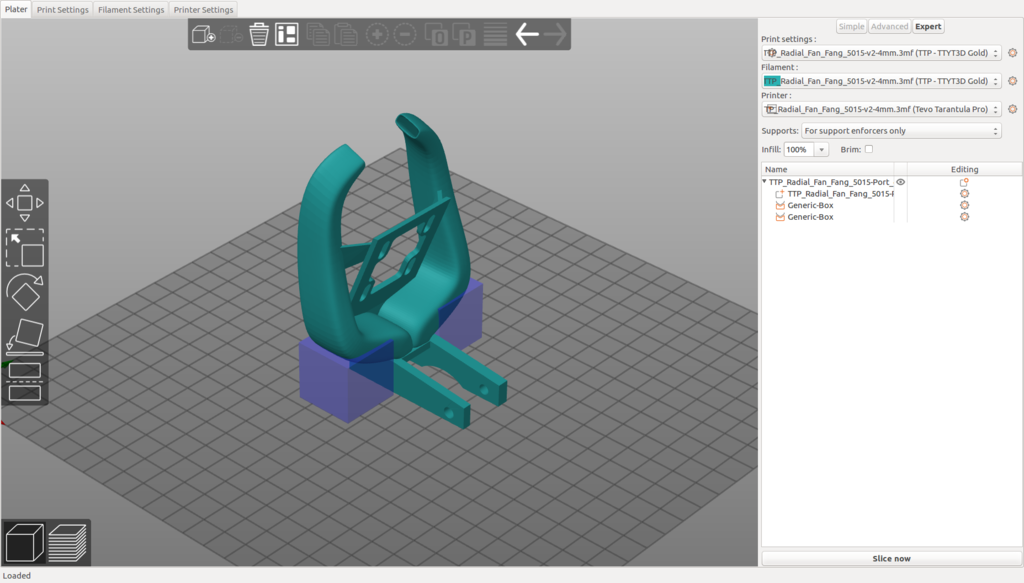

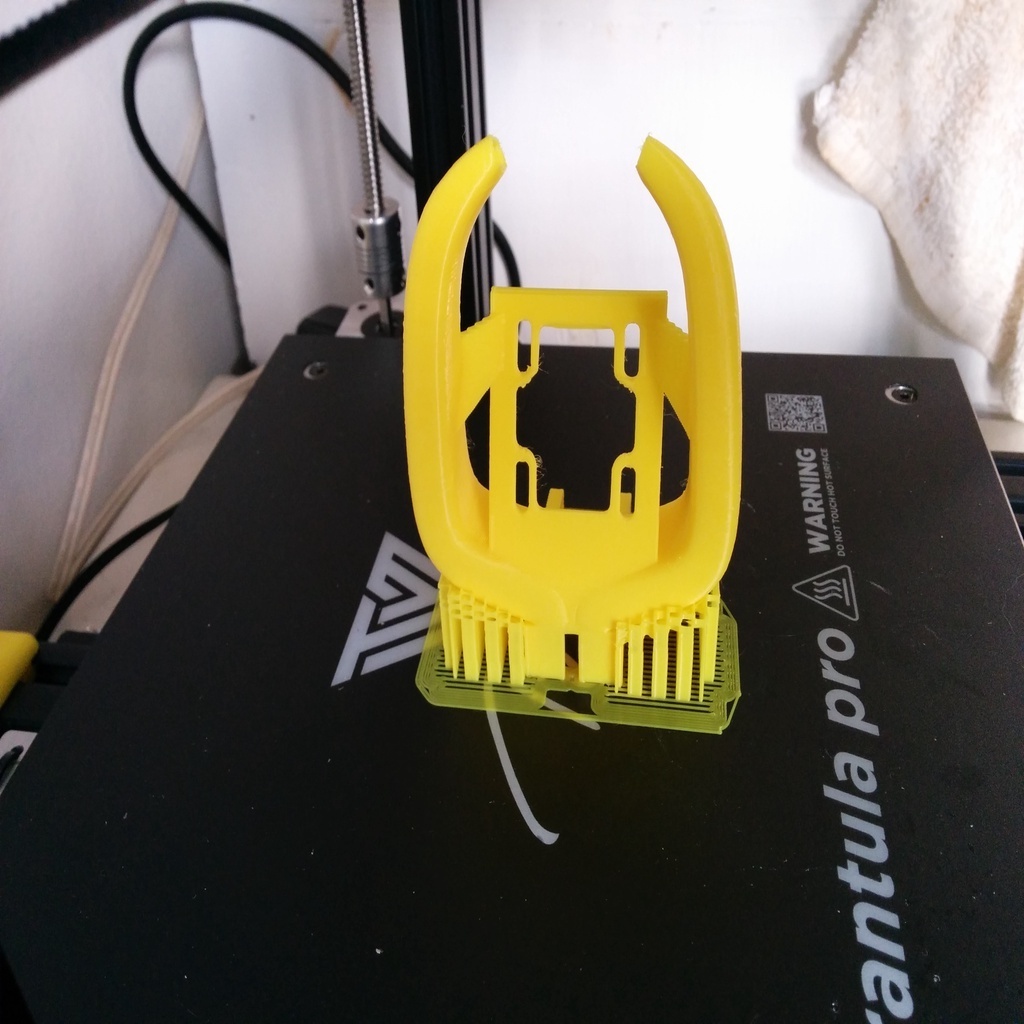

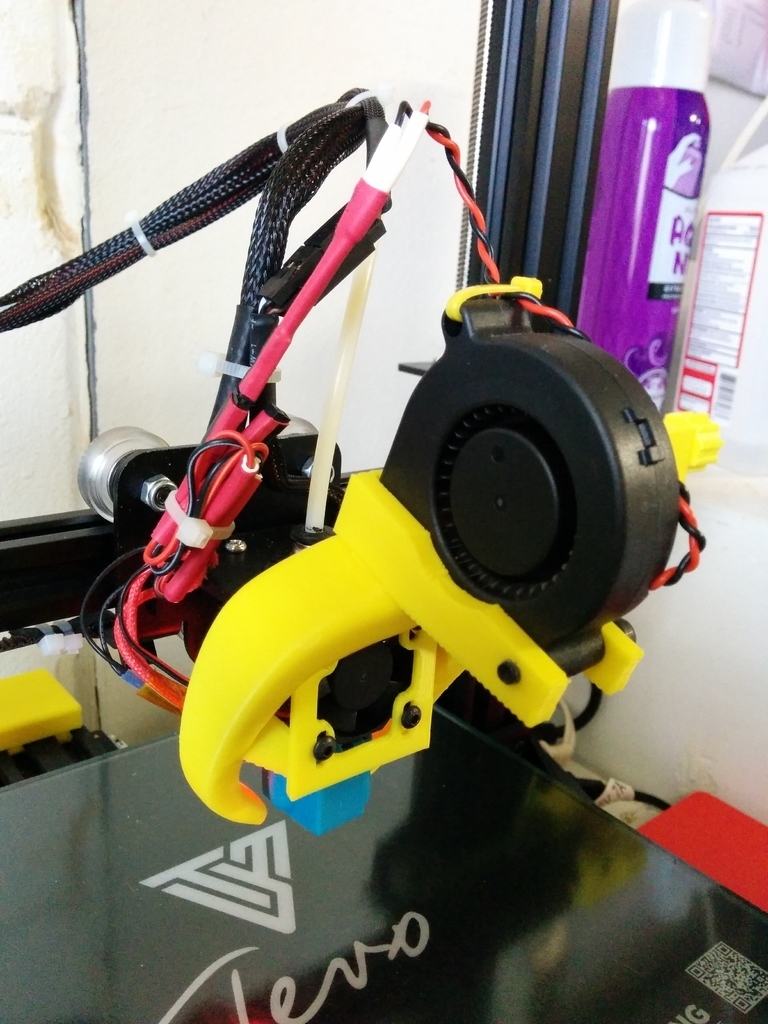

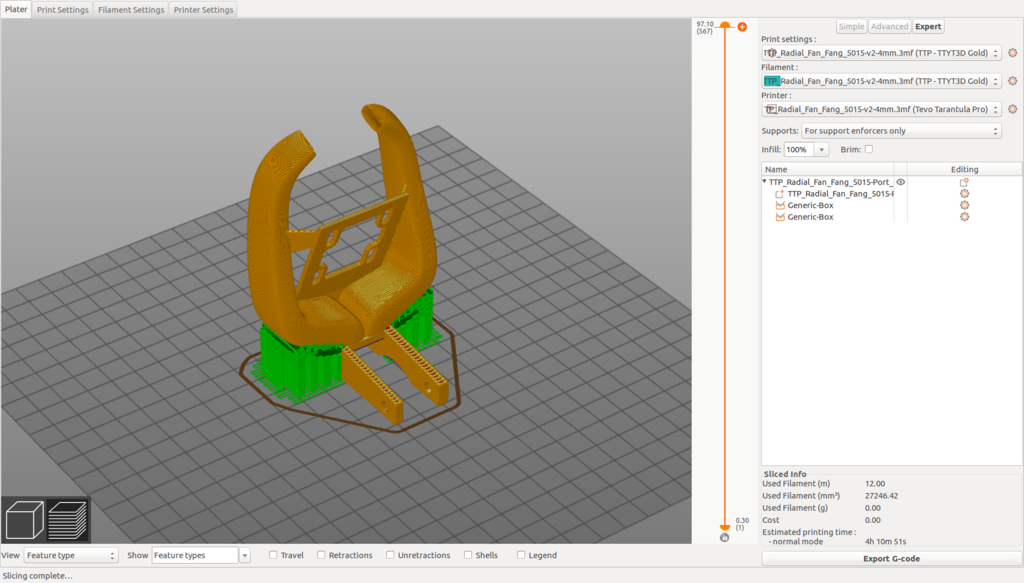

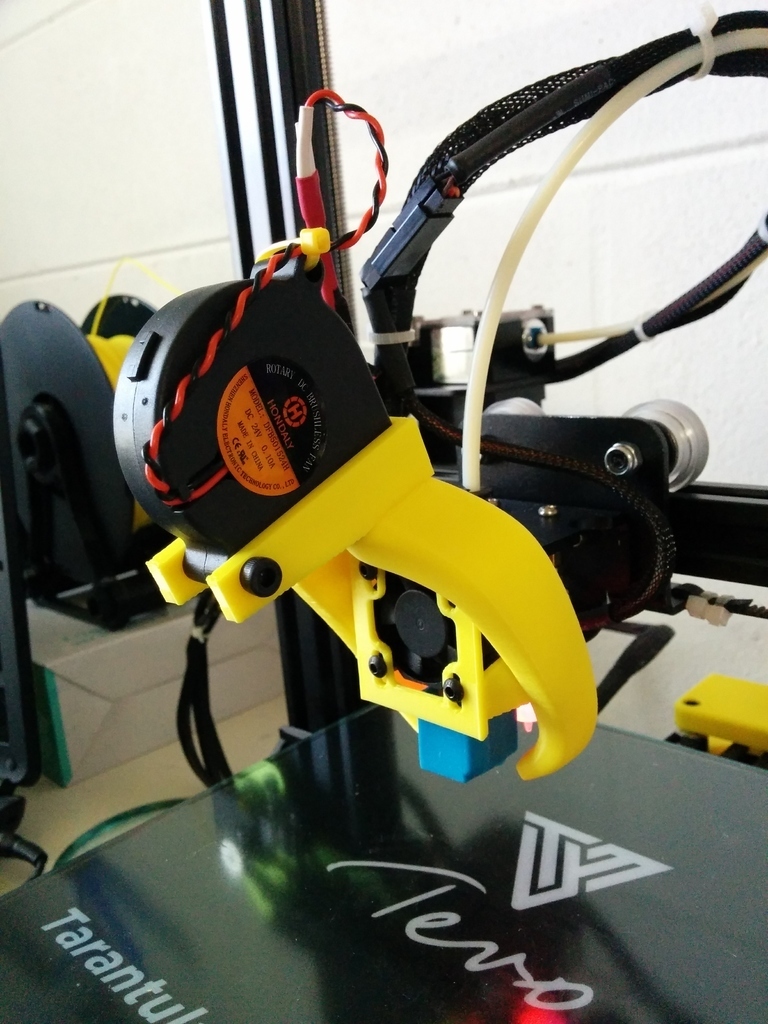

This is a remix of the Radial Fan Fang by Lion4H. This design is for the Tevo Tarantula Pro, and uses a 5015 radial blower fan. There is an overhang on the fang arms and it should be printed with supports for the best results. I have attached a screen shot of PrusaSlicer showing where I placed minimal supports. I did print one with no support (%100 fans), and It worked, but looks ugly which is why I recommend using supports. I made the the fan mount a little wider so that it is more sturdy. I accidentally broke one of the earlier test prints.

This configuration is quieter than the stock fans and weighs the same as stock.

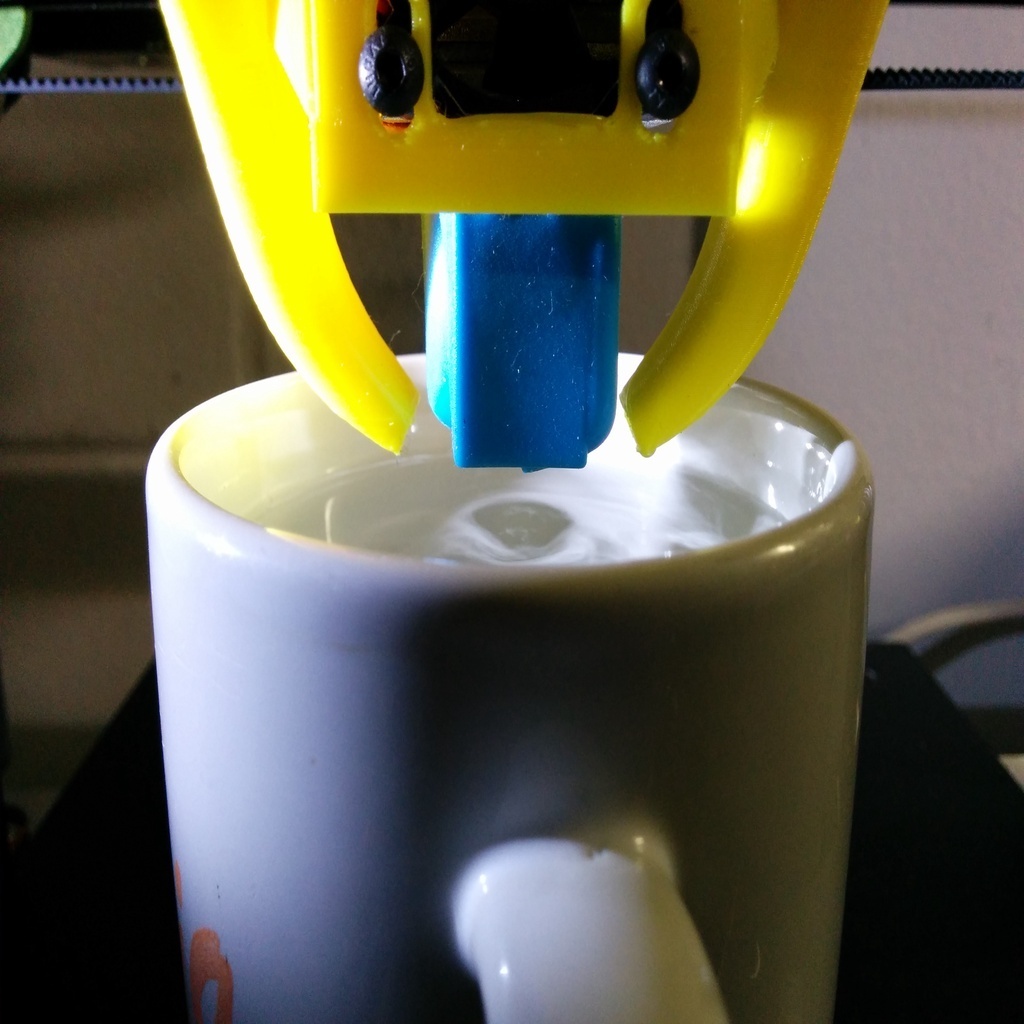

Testing shows a good sphere of air around the nozzle. Bridging test prints look really good.

UPDATE!
I have updated the fan port on this so that a 5015 fan fits better into the port. I also made the legs of the port thicker so that they do not crack when installing the M4 x 25 bolt to hold the fan. and cleaned up part of the mount so that it doesn't protrude into the ports.

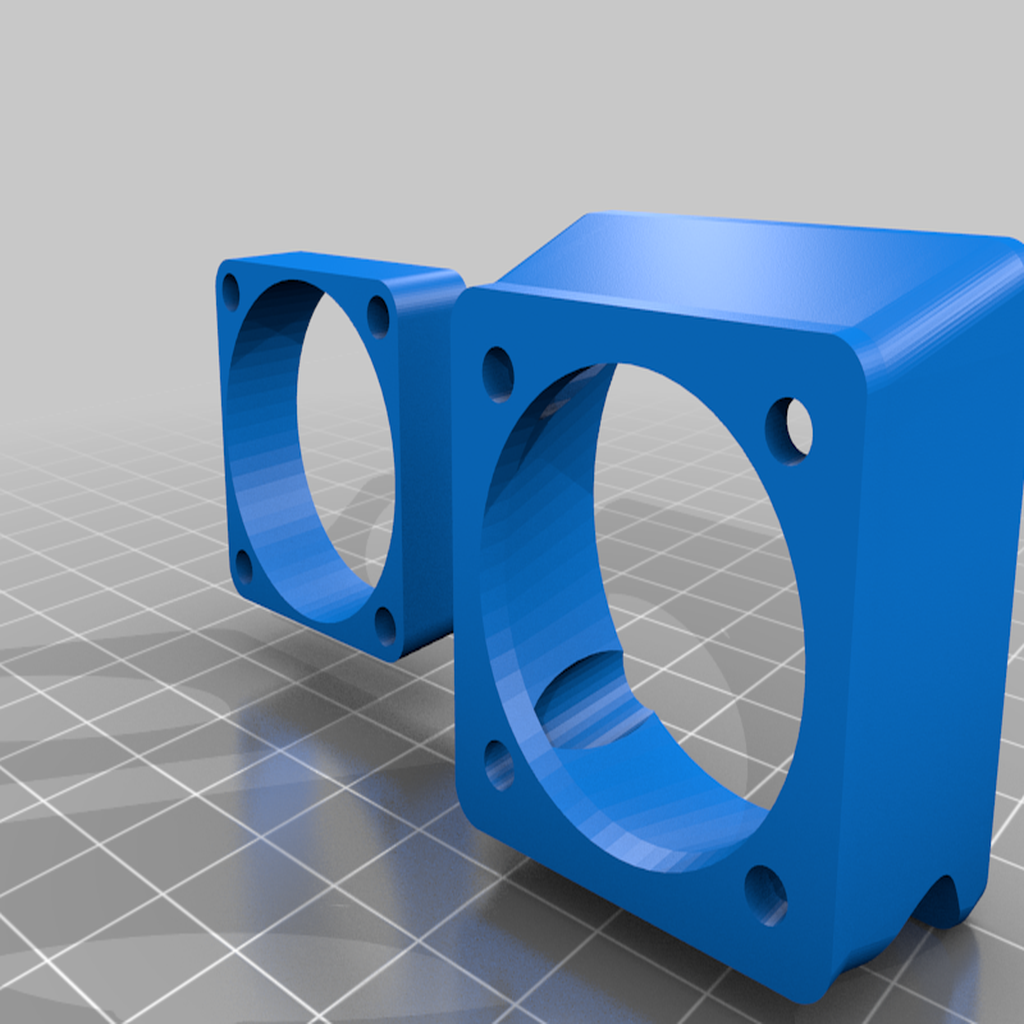

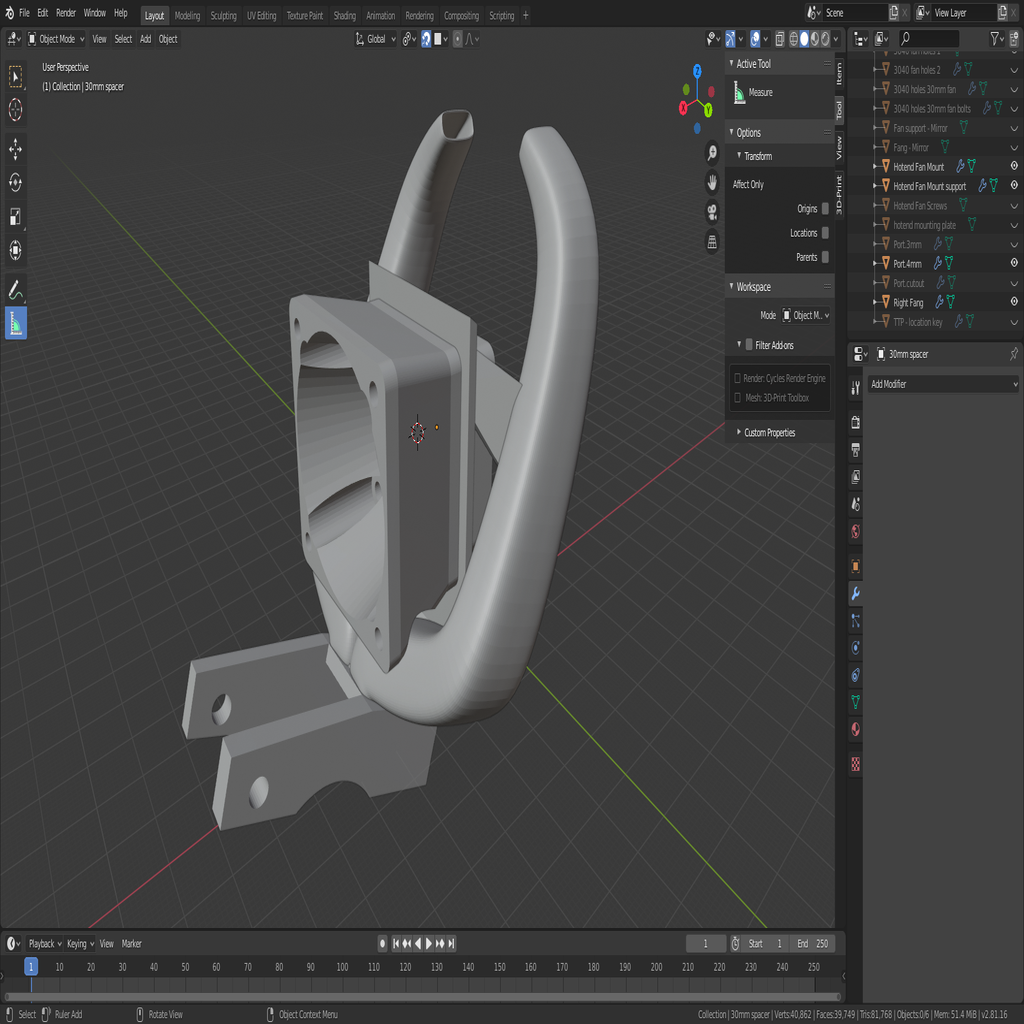

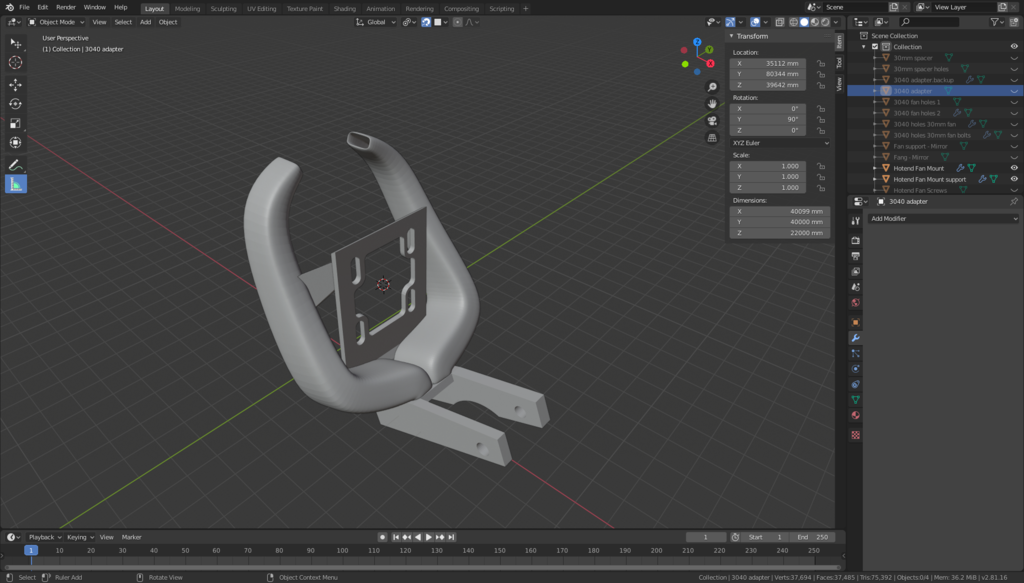

Additionally, I created a 40mm to 30mm fan adapter and a so that you can install a 40mm fan on this. You will need to print both the 30mm spacer that takes the place of the existing fan and the 30-40 adapter. The 30-40 adapter has overhangs in either direction and you will need to use supports for good results. You will need 4 - m3 x 25 bolts for mounting the fang to the hot end because the stock bolts are not long enough. You will also need 4 - m3 x 12 for mounting the 40mm fan to the adapter.
