This is a simple linear rail upgrade for the K40 laser cutter.

I was tired of the wheels giving wavy lines and none smooth movement. I came up with this.

The linear rail i choice sits about 5mm higher then the stock k40 metal head holder.
This setup adds the linear rail and drops the lens back down. So the focus length should be unchanged.
Mirror 3 will be a tad higher tho, about 3mm.

Part list:

MGH9 H Linear rail 400mm long
3mm acrylic sheet
3d printed files (petg, abs or asa)
m3 screws (3x 6mm, 5x12mm (12 to 16mm)
m3 washer 5x
m3 drill bit and a good drill.
m3 nut 2x
super glue (not 100% needed)

Files :
Laser head holder - acrylic

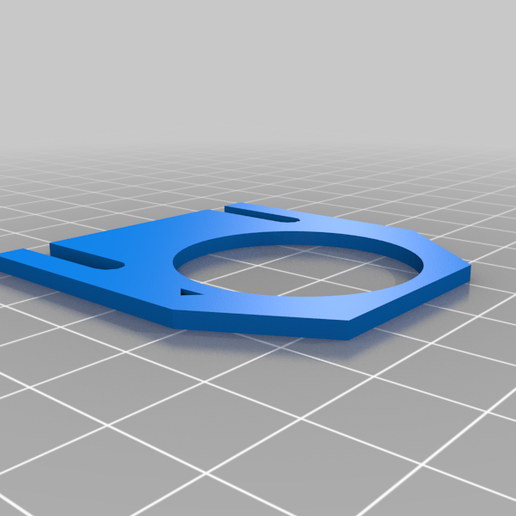

2mm spacer - 3d printed
Carriage - acrylic
5mm spacer - 3d printed
Linear rail center tool - 3d print
Rail center tool 2x - 3d printed
One piece - untested all 3d printed.

Start by downloading and cutting/printing all the files.

Glue the 3d printed 2mm spacer to the acrylic lase head holder. Clamp down and let dry. (not 100% needed but helps keep it in place)

Time to disassemble your laser head.

This step is only needed to align mirror 3 faster if your already aligned.
Put tape over your mirror 3.
Move the laser to the bottom right of the machine.
Do a light test fire so it will mark the center.
Remove the laser head and set it aside. Keep the tape on it.
You will be left with just the metal lens holder bolted to the wheel carriage.

Center it. Then remove the 3 screws holding it.

Put the linear rail on the stock k40 railing.
Use the 3d printed tool to center the linear rail. Once your happy with the placement drill a hole throw one of the linear holes. Normally just 1 on each end will do.

Put a m3 screw in the holes and then put a nut on the bottom. Tighten down the screws. MAKE sure the linear rail still moves smoothly. IF not its possible your k40 rail isnt 100% flat and you’re bending your smooth rail. Your either need a shim or to loosen the screw to make the rail flat.

Get the glued together laser head holder and 2mm spacer.
Place the "carriage" on top of this. Hold it together or use tape.
Place it on top of the linear rail and screw in the 3 screws (6mm with washer)
Then lightly screw in the front 2 screw on the wheel carriage.
Add the 5mm spacer between the two carriages and tighten it with a m3 screw.

It should all be together and move as one piece.
Loosen the wheel carriage's wheels and pull them out.

Now you’re ready to line your laser back up.

Slide the laser head back/forward to line it up with mirror 2.
Do a light test fire and adjust it back/forward until your dot is line up horizontally.
Its fine if its lower your need to adjust your mirror 2 higher.

IF you want the red dot or drag chain, check my other files.
