Toyota 1L 2L Diesel Exhaust Manifold Header Flange DXF – L-Series Engine CNC Cutting File

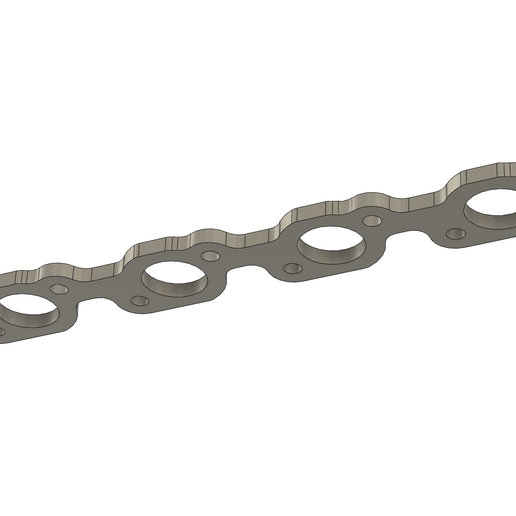

Digital DXF cutting profile for manufacturing an exhaust manifold / header flange for selected Toyota 1L and 2L diesel engine applications.

Engine applications:

• Toyota 1L
• Toyota 2L
• Toyota L-Series diesel engines
• Custom exhaust manifold fabrication
• Replacement exhaust manifolds
• Diesel engine swap projects
• Off-road and utility builds
• Stainless steel manifold fabrication
• Mild-steel manifold fabrication

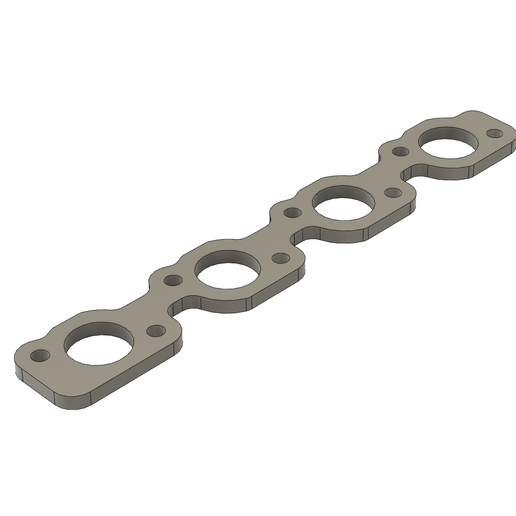

The flange is intended to mount directly to the cylinder-head exhaust side and provides the base for building a custom tubular exhaust manifold.

After CNC cutting, the exhaust runners can be fitted and welded directly to the flange according to the required runner routing and collector configuration.

This listing contains ONE digital DXF cutting file only.

No physical flange, cylinder head, gasket, tubing, exhaust manifold or mounting hardware is included.

IMPORTANT:
Toyota 1L and 2L engines were produced in different versions and vehicle applications. Always compare the DXF profile with your actual cylinder head or exhaust manifold gasket before manufacturing. Verify all exhaust ports, mounting-hole positions, port spacing and overall flange geometry before cutting metal.

Applications:
Toyota 1L / Toyota 2L

Engine family:
Toyota L-Series Diesel

Component:
Cylinder head to exhaust manifold / header flange

File format:
DXF digital cutting file

Suitable manufacturing processes:

• CNC laser cutting
• Abrasive waterjet cutting
• CNC plasma cutting
• CNC milling

Production workflow:

1. Import the DXF in millimetres at 1:1 scale.
2. Compare the complete profile with the original exhaust gasket or cylinder head.
3. Verify every exhaust-port opening.
4. Check all mounting-hole positions.
5. Confirm port spacing and overall flange dimensions.
6. Check compatibility with the intended exhaust runner dimensions.
7. Select suitable stainless steel or mild/carbon steel plate.
8. Configure machine-specific toolpaths and kerf compensation.

During manifold fabrication, fixture the flange securely and use controlled heat input to minimise distortion.

Pierce points, lead-ins, lead-outs, contour sequence, cutting speed and kerf compensation must be adjusted according to the CNC machine, material and plate thickness.

A full-size test profile or test cut is recommended before final production.
