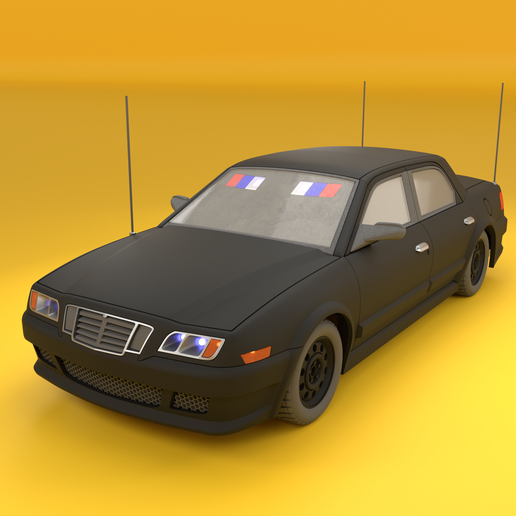

RC 1/10 Police Civic Cruiser Undercover

Body based on the Police Civic Cruiser RC 1/10 Heat Level 2 Undercover from Need For Speed ​​​​​​​​Most Wanted

67 pieces

Functional headlights, taillights and blinker: LEDs 5mm/3mm

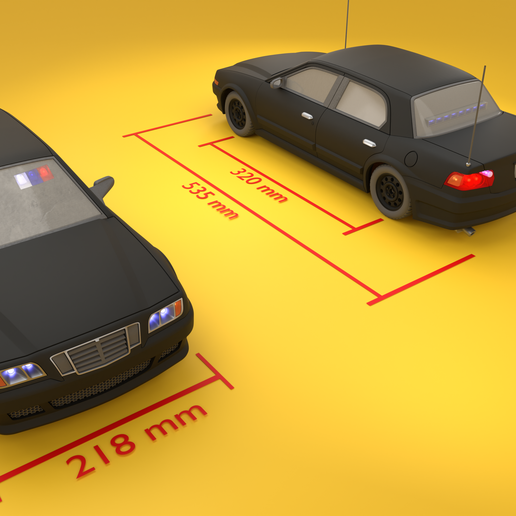

Assembled Size:
Length: 535 mm
Width: 218 mm
Height: 150 mm

Wheelbase: 320 mm

Check the Assembly Manual Here

Optional Tires: HPI Kyosho
Optional Tires: On-Road Racing

The use of adhesive can be helpful with small parts.

Chassis modification required Included in the files

This bodywork is compatible with Chassis 1/10 Adaptable - DKS-Basic

dukedoks

Chassis 1/10 Adaptable - DKS-Basic

• 310k visualizzazioni
• 1,6k Mi piace
• 12,7k download
• 13 raccolte
• 59 commenti
• 18 Makes

Scarica Gratis

This body is NOT compatible with the Dks-Pro chassis

Visit other designs by designer dukedoks

RC 1/10 Dodge Challenger: HERE

Back to the Future DMC Delorean: HERE

DMC Delorean: HERE

Many thanks to @dukedoks for letting me use his Chassis.
Use authorized by dukedoks

The design only includes the RC body 1/10 Police Civic Cruiser - Heat Level 2 Undercover and tires

Includes: Wall support

CarPrint

Wall support - RC bodyworks

• 2,7k visualizzazioni
• 14 Mi piace
• 23 download
• 1 raccolta
• 1 commento
• 1 Make

Scarica Prezzo aperto

Use Translucent filament for window glass.

Minimum print area tested, 220 x 220 x 250 mm / 8,6" x 8,6" x 10,6" inches

Resolution: 0.2mm

Perimeters: 3
Bottom layers: 3
Top layers: 4

Infill: 10%
Supports: Organic or Tree
Requires you to have the supports properly tamed in your printer

Adhesion: Use raft or additional supports if you have adhesion issues.

Using low speeds reduces printing defects, it is recommended to use less than 50% of the total speed of your machine.

If you plan to do post-processing of the paint, use 4 or more perimeters

Flexible Tires:
TPU

Low speed: approximately 20mm/s
Perimeters: 3
Lower layers: 3
Upper layers: 5
Filling: 0%
Adhesion: No
