Panther Ausf. G Rear Details [Modular Master Set] FM25-038

FM25-038 Panther Ausf. G – Rear Details Modular Master Set
Scale: 1/35

High-quality digital scale model detail set.
3D printable STL files for SLA printers.

BASED ON 3D SCANS AND ORIGINAL TECHNICAL REFERENCES

---

► THE ULTIMATE PANTHER AUSF. G REAR DETAILS – MODULAR MASTER SET

If you want the best possible Panther Ausf. G rear, this is it.
No compromises. No guesswork. No wasted hours.

This Modular Master Set replaces dozens of weak kit parts with high-fidelity, scan-based,
print-ready details – engineered to fit, engineered to work.
Instead of hunting references, mixing aftermarket brands, adjusting tolerances, and fixing
misaligned parts, you get one complete system that simply fits together.

Print. Clean. Install. Done.

► WHY THIS SET EXISTS

Most rear-detail upgrades fail in three ways:

• poor fit
• inconsistent quality
• massive time loss

This set was designed to eliminate all three.
Every part is:

b• ased on real 3D scans and original technical references
• dimensionally tuned for 1/35
• tested on real SLA printers
• organized as a modular system, not a random part dump

You’re not buying files.
You’re buying certainty.

► WHAT YOU ACTUALLY SAVE

• Hours of research
• Multiple aftermarket purchases
• Trial-and-error fitting
• Support setup frustration

► Everything is already:

• logically grouped
• variant-correct
• print-optimized

This is as close to plug-and-play as SLA printing gets.

► BUILT FOR SERIOUS MODELERS

This set is for builders who:

• value accuracy
• want clean assembly
• care about rear-end correctness
• don’t want to fight their printer

Supported files are ready to go.
Unsupported files give full control.

You decide.
The quality stays the same.

► ONE SET. ALL OPTIONS.

• Standard exhausts.
• Flammenvernichter variants.
• Cast, welded, and rare armored covers.
• Early & late details.
• MNH bins. Standard bins.
• Correct jacks, holders, lights, fittings.

Instead of choosing one configuration, you get all of them.

► BOTTOM LINE

If you’re building a Panther Ausf. G and you want:
• maximum realism
• minimum frustration
• professional-level results

This is the Master Set.

Not cheaper.
Not simpler.
Just better.

---

SHORT DESCRIPTION:

This set provides a comprehensive, modular rear-detail upgrade for the Panther Ausf. G
in 1/35 scale.
All parts are designed for maximum accuracy, clean assembly, and compatibility with
common Panther kits.

The Modular Master Set allows multiple historical configurations and variants to be
built from one unified system, including different exhaust systems, storage box types,
rear plate details, and auxiliary equipment.

Designed for experienced modelers and properly calibrated SLA printers.

---

INCLUDED CONTENT:

► Supported Files
• Pre-supported, print-ready assemblies for reliable SLA printing
• Optimized support layout for minimal cleanup and dimensional accuracy

Included part categories:
• Exhaust systems (Standard / Flammenvernichter variants)
• Armored exhaust covers (cast & welded types)
• Rear stowage boxes (open & closed)
• Column lights (early & late types)
• Rear plate details and fittings
• Jack holders, starting bar guides, towing equipment
• Small rear details and revision flaps

► Unsupported Files
• Individual parts for custom orientation and user-defined support setups
• Modular components grouped by function and variant

► INCLUDED PARTS – DETAILED PART LIST

• Exhaust Systems & Covers
A1 Armored Exhaust Cover – Cast Type (Left)
A2 Armored Exhaust Cover – Cast Type (Right)
A3 Armored Exhaust Cover – Welded Type (Left)
A4 Armored Exhaust Cover – Welded Type (Right)
A5 Armored Exhaust Cover – Rare Type (Left)
A6 Armored Exhaust Cover – Rare Type (Right)

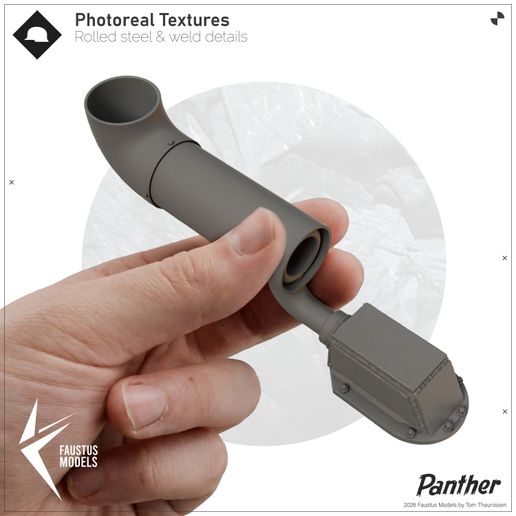

D1 Exhaust Pipe
D2 Flammenvernichter
E1 Exhaust Guard (Early–Mid)
E2 Flammenvernichter Cap
F1 Upper Exhaust & Jack Holder
F2 Exhaust Bracket

• Column Lights
C1 Column Light Holder
C2 Column Light A (Early)
C3 Column Light B
C4 Column Light C
C5 Column Light D

• Rear Storage Boxes
J1 Panther G Storage Box – Left (Open)
J2 Panther G Storage Box – Right (Closed)
J3 MNH Storage Box – Left (Open)
J4 MNH Storage Box – Right (Closed)
J5 Storage Box Support Plate

• Jack & Tool Mounts
F3 Jack Holder Bracelet
F4 Tank Jack Upper Holder (Flammenvernichter)
F5 Tank Jack Holder Plate
G1 15t Tank Jack
G2 20t Tank Jack

• Starting Bar & Towing Equipment
B1 Starting Bar Guide – Early Type
B2 Starting Bar Guide – Late Type
H2 Panther G Towing Pin

• Rear Plate Details
H1 Panther G Engine Rear Hatch
H3 Reflector
H4 Small Revision Flap
H5 Track Tension & Revision Flap

► Supported Assemblies (Print-Ready)

A Exhaust Bases – Supported
B Column Lights & Details – Supported
E Flammenvernichter Exhaust System – Supported
F Standard Exhaust System – Supported
G Tank Jacks & Additional Pieces – Supported
H Rear Details – Supported
J Standard Rear Bins – Supported
K MNH Rear Bins – Supported

(All supported files are optimized for SLA printing and grouped as complete assemblies.)
All parts are organized in clearly labeled folders.

---

COMPATIBILITY:

Fits all common Panther Ausf. G kits, including:
• Das Werk
• Takom
• Border Model
• Other compatible Panther Ausf. G kits

Minor adaptation may be required depending on manufacturer tolerances.

---

3D PRINT INFORMATION:

► Baseline Printing Specs (reference values)

Layer Height: 0.02–0.04 mm

Normal Exposure: ~2.2–2.8 s

Bottom Exposure: ~30–40 s

Anti-Aliasing: Off

Resin: Standard grey or similar opaque resin recommended

(Reference printer: MSLA class – results may vary depending on printer, resin,
and calibration)

► Important Printing Notes

• SLA printing is not plug-and-play.
• Dimensional accuracy depends heavily on:
– Printer calibration
– Resin shrinkage
– Exposure tuning
• Transparent / clear resins require significantly lower exposure times.
Using standard exposure settings with clear resin may cause:
– Closed pin holes
– Oversized snap features
– Loss of functional tolerances

Unsupported files are recommended for advanced users who want full control over
orientation and supports.

---

POST-PROCESSING & HANDLING:

• Remove supports carefully using flush cutters or a sharp hobby knife
• Gently heat supports if required (warm water or hairdryer – low heat)
• Clean parts thoroughly and post-cure properly
• Light sanding or minor cleanup may be required
• Prime with standard modeling primers before painting

---

LICENSE INFORMATION:

These files are licensed for personal, non-commercial use only.

NOT PERMITTED:
• Sharing or redistribution of the files
• Reselling or gifting of digital files
• Selling physical prints
• Resin casting or any form of reproduction

These files may be used for personal, non-commercial projects only.
Sharing, distributing, or reselling the files is not permitted in any form (digital or physical).
This also includes distribution/sale of 3D prints and any reproduction methods such as resin casting.

For commercial licensing options, please contact me.

Copyright Faustus Models
by Tom Theunissen
© Faustus Models 2026

---

Copyright © Faustus Models 2026
by Tom Theunissen
All rights reserved

► Printing Specs

Layer Height: 0,040 (0,02-0,04)
Exposure Time: 2,6 sec
Bottom Exposure Time: 37 sec
Rest Time After Release: 1 sec
Rest Time After Retract: 1 sec
Anti-Aliasing: None

(for Mars 4 Ultra - results may varry on different printers)
