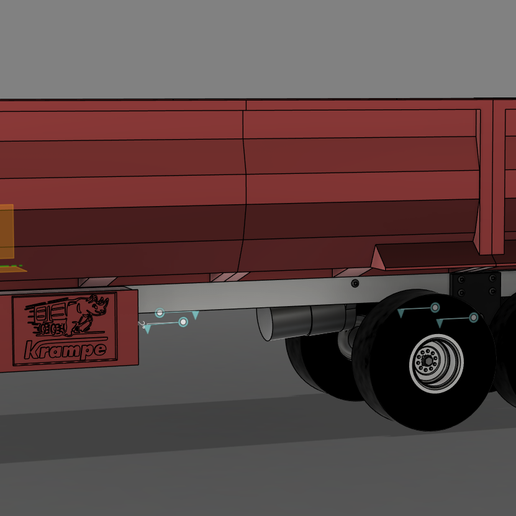

Zrzut-ekranu-2025-04-09-120511.png Krampe BigBody 790 2 axle
Zrzut-ekranu-2025-04-09-120525.png Krampe BigBody 790 2 axle
Zrzut-ekranu-2025-04-09-120536.png Krampe BigBody 790 2 axle
Zrzut-ekranu-2025-04-09-120947.png Krampe BigBody 790 2 axle
FB_IMG_1749031532649.jpg Krampe BigBody 790 2 axle
Zrzut-ekranu-2025-04-09-120511.png Krampe BigBody 790 2 axle
Zrzut-ekranu-2025-04-09-120525.png Krampe BigBody 790 2 axle
Zrzut-ekranu-2025-04-09-120536.png Krampe BigBody 790 2 axle
Zrzut-ekranu-2025-04-09-120947.png Krampe BigBody 790 2 axle
Fai un'offerta
Condividi
Aggiungi a
Make
?
Qualità della creazione: 5/5 (1 voto)
Valutazione dei membri su stampabilità, utilità, livello di dettaglio, ecc.
Licenza
Utilizzi
Formato del progetto 3D
1 file (ZIP) Chiudi
  • Krampe BigBody 790 2 axle.zip
    • 2.1 Manual Tailgate/Left mudguard.stl
    • 2.1 Manual Tailgate/Left template.stl
    • 2.1 Manual Tailgate/Manual Tailgate.stl
    • 2.1 Manual Tailgate/Right mudguard.stl
    • 2.1 Manual Tailgate/Right template.stl
    • 2.1 Manual Tailgate/Tailgate Mount Left.stl
    • 2.1 Manual Tailgate/Tailgate Mount Right.stl
    • 8. Rear fenders and light mounts/Attaching to the lights and connecting the end of the trailer.stl
    • 8. Rear fenders and light mounts/Attachment to beam pcs. 2 I recommend TPU.stl
    • 8. Rear fenders and light mounts/Attachment to beam pcs. 2 New I recommend TPU!!!.stl
    • 8. Rear fenders and light mounts/Bar.stl
    • 8. Rear fenders and light mounts/Cable mount beam.stl
    • 8. Rear fenders and light mounts/Cable mount Top.stl
    • 8. Rear fenders and light mounts/Cable mount.stl
    • 8. Rear fenders and light mounts/Left mudguard.stl
    • 8. Rear fenders and light mounts/Light mount.stl
    • 8. Rear fenders and light mounts/Mudguard mounts- 2pcs.stl
    • 8. Rear fenders and light mounts/Right mudguard.stl
    • 10. Limit switch/Limit switch.stl
    • 0.Assembly/Assembly.pdf
    • 1.Body 790/1.stl
    • 1.Body 790/2.stl
    • 1.Body 790/3.stl
    • 1.Body 790/4.stl
    • 1.Body 790/Engine mount.stl
    • 1.Body 790/Screw cover Together.stl
    • 1.Body 790/Screw cover.stl
    • 1.Body 790/Screw cover2.stl
    • 1.Body 790/Tip System.stl
    • 2.Tailgate/1.3mf
    • 2.Tailgate/1.stl
    • 2.Tailgate/2mm cylinder washer. 4 Pcs.stl
    • 2.Tailgate/Cylinder sleeve 2 pcs.stl
    • 2.Tailgate/Cylinder sleeve.stl
    • 2.Tailgate/Krampe cylinder mount 2 pcs.stl
    • 2.Tailgate/Krampe cylinder mount.stl
    • 3.Wheels/Rim- 4 pieces.stl
    • 3.Wheels/Rim-Cap 4 pieces.stl
    • 4.Swingarm and frame mount/Outer Rear 3mm-pcs, 2.stl
    • 4.Swingarm and frame mount/Rear left 4mm insert nut with end switch.stl
    • 4.Swingarm and frame mount/Rear Right 4mm insert nut.stl
    • 4.Swingarm and frame mount/Swingarm Rear Left.stl
    • 4.Swingarm and frame mount/Swingarm Rear Right.stl
    • 5.Lifting system/Attachment to TR8+ Insert nut.stl
    • 5.Lifting system/Cut out a connector of this length pcs. 2.stl
    • 5.Lifting system/Engine mount.stl
    • 5.Lifting system/Leftt Lift Mechanism+ 3mm long sleeve 5x1mm.stl
    • 5.Lifting system/Leftt Lift Mechanism.stl
    • 5.Lifting system/Middle connector.stl
    • 5.Lifting system/Right Lift Mechanism+ 3mm long sleeve 5x1mm.stl
    • 5.Lifting system/Right Lift Mechanism.stl
    • 6. Hitch beam/Bar-3mm pre-threaded.stl
    • 6. Hitch beam/Bar-4mm pre-threaded.stl
    • 6. Hitch beam/Bar-5mm pre-threaded hitch ball.stl
    • 6. Hitch beam/Bar-5mm pre-threaded.stl
    • 6. Hitch beam/Bar-6mm pre-threaded.stl
    • 6. Hitch beam/Foot.stl
    • 6. Hitch beam/Hitch cushioning.stl
    • 6. Hitch beam/Hitch mount.stl
    • 6. Hitch beam/Hook.stl
    • 6. Hitch beam/Ladder.stl
    • 6. Hitch beam/Rear tow hook attachment 4mm + Insert nut.stl
    • 6. Hitch beam/Support leg.stl
    • 6. Hitch beam/Support mount with magnet 6x2.stl
    • 6. Hitch beam/Support mount.stl
    • 7. Box/Air tank cap pcs. 2.stl
    • 7. Box/Air tank.stl
    • 7. Box/Big Box.stl
    • 7. Box/Big Cover.stl
    • 7. Box/Small BOx.stl
    • 7. Box/Small Cover.stl
    • 9. Template for holes and for rounding the frame at the back/Back template- Miror.stl
    • 9. Template for holes and for rounding the frame at the back/Back template.stl
    • 9. Template for holes and for rounding the frame at the back/Front Template-Mirror.stl
    • 9. Template for holes and for rounding the frame at the back/Front Template.stl
    • 9. Template for holes and for rounding the frame at the back/Template Rear plus engine hole-mirror.stl
    • 9. Template for holes and for rounding the frame at the back/Template Rear plus engine hole.stl
    • Assembly.pdf
    • Krampe 790 Necessary things.pdf

Scopri di più sui formati
Ultimo aggiornamento
Data di pubblicazione
Numero del progetto 2889177
Autore del progetto RC-Fun
RC-Fun

RC-Fun

Problemi con questo progetto? Segnala un problema.

Informazioni sul file della stampante 3D

Descrizione del modello 3D

🚚 Krampe BigBody 790 V2 – 1:14 Scale RC 2-Axle Trailer

Manual or electric tailgate

A heavy-duty and highly detailed 2-axle RC trailer modeled after the real Krampe BigBody 790. Designed for 1:14 scale RC tractors and construction vehicles, ready to handle serious loads with full tipping function.
📏 Dimensions:

Total length (with drawbar): 750 mm

Box length: 571 mm

Width: 215 mm

Height: 240 mm

Box height: 164 mm

Axle spacing: 110 mm

🧱 Model Features:

Strong frame construction based on a 20×10×1.5 mm aluminum profile

Most components are mounted outside the frame for easier assembly

Realistic tipping bed powered by electric motor drive (e.g. spindle or worm gear) – no servo required

Functional rear tailgate with locking arms

Toolbox, fenders, step plate, and Krampe side logo details included 🧰

Load-tested to up to 30 kg – motor strength dependent

🖨️ Recommended Print Settings:

Infill: ≥ 50% for main structural parts

Supports: required for curved or internal structures

Material: PETG recommended for strength (PLA also possible)

Wall lines: 3 or more

📦 Included Files:

Full STL set for the Krampe BigBody 790 trailer

Assembly instructions (PDF) with detailed views

Parts list (PDF) including screws, profiles, motor types, etc.

Drilling/mounting templates for the aluminum chassis

⚙️ Hardware Requirements:

Aluminum profile 20×10×1.5 mm

1:14 scale-compatible wheels and axles

Electric motor + tipping mechanism (e.g. spindle drive)

M3 and M4 screws, optional magnets for tailgate, LEDs for lights

This trailer is designed for full functionality and realism in RC farming setups. Strong, practical, and detailed – a great addition to any 1:14 scale collection!

Impostazioni di stampa 3D

I recommend using more layers, and at least 50% infill for most files. Only the standard settings can be used for decorative elements.
