Pinch weld protector for Civic 10th gen

This is an open priced item. You can download it for free.
If you like it and think worth it, please consider to download it again with paying.

The jack stand point of Civic is a "pinch weld" design.
This item is to protect the pinch weld and stabilizing lifting the car on jack stands.

It's fixed by a pair of "wedges" to clamp it on the original pinch weld. The rubber pad snaps into the groove of the main body.

Disclaimer
The user has to be fully responsible for the use. Please pay maximum attention for your safety and be aware of any risk for yourself as well as your car.

Assembling
You well need (per piece, if you make 4 sets, then x4);
- 2x M6 hex socket bolts, length 25-30mm
- 2x M6 thread insert, length 12.7mm

Printing Recommendation
- Layer height: 0.2-0.3 mm
- Nozzle: 0.4 or0.6 mm
- Perimeter: 100 (make it solid)
- Infill: - (100% by perimeter)
- Material: PETG/CF PA/CF, ASA-CF etc, TPU(for Rubber pad)
- Orientation and Support: please see pictures

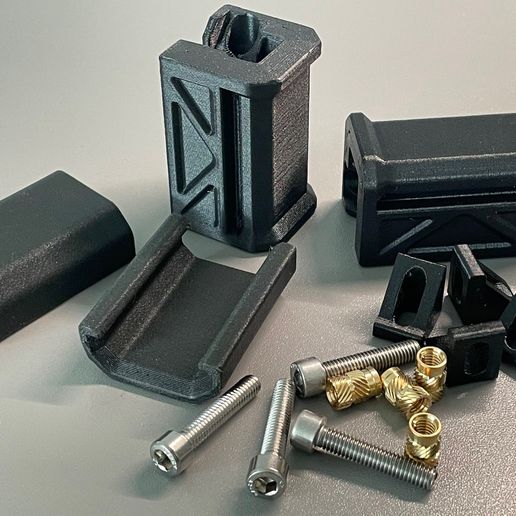

The example in the picture are printed in
- Extrudr XPETG-CF
- Fiberlogy Mattflex 40D (Rubber pad)
