Pokemon Hoenn Zigzagoon #263 LED Lightbox / Night Light

Zigzagoon #263 LED Lightbox / Night Light

Thank you for checking out my design.
If it helps you, please Follow and Like so you don't miss future uploads.

What this is

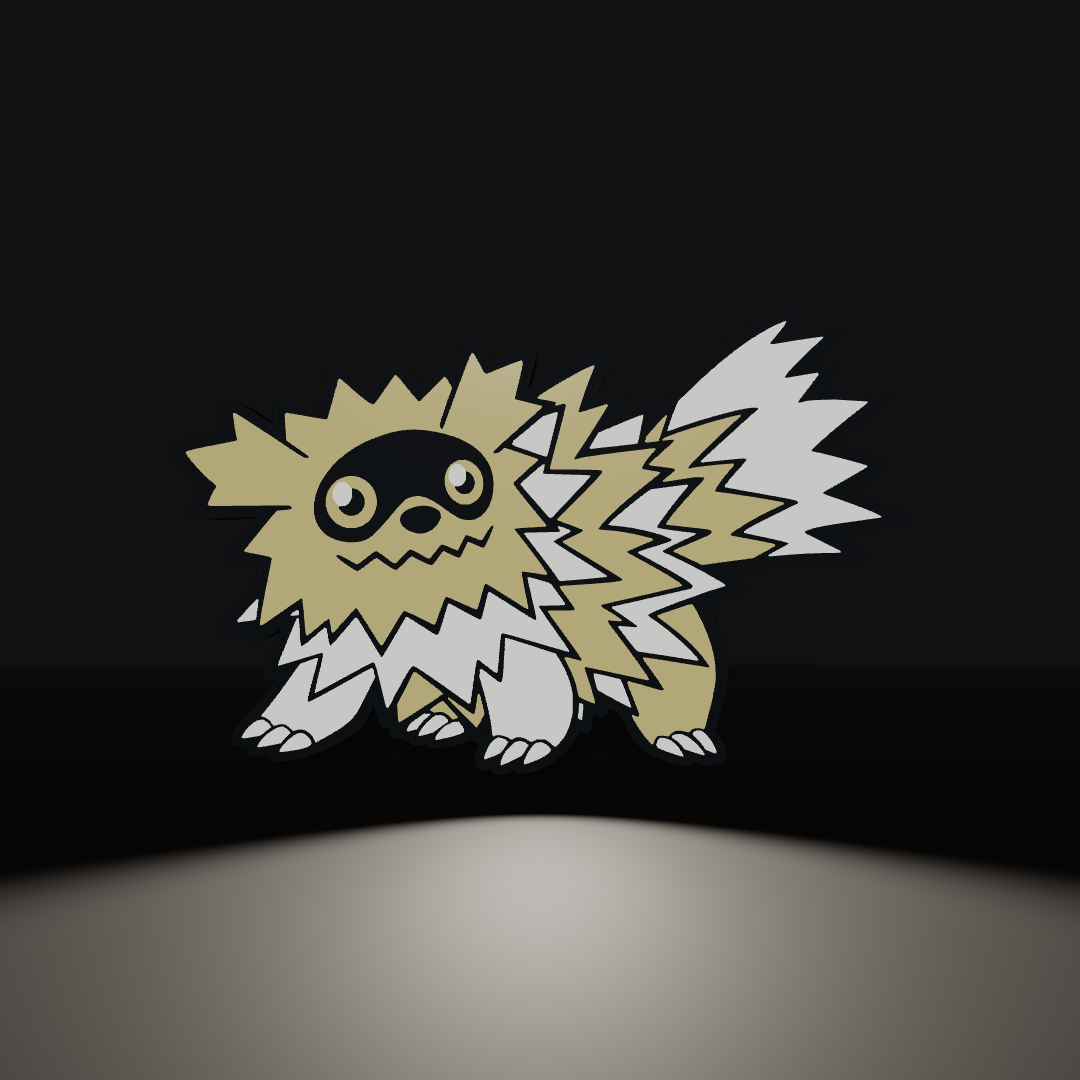

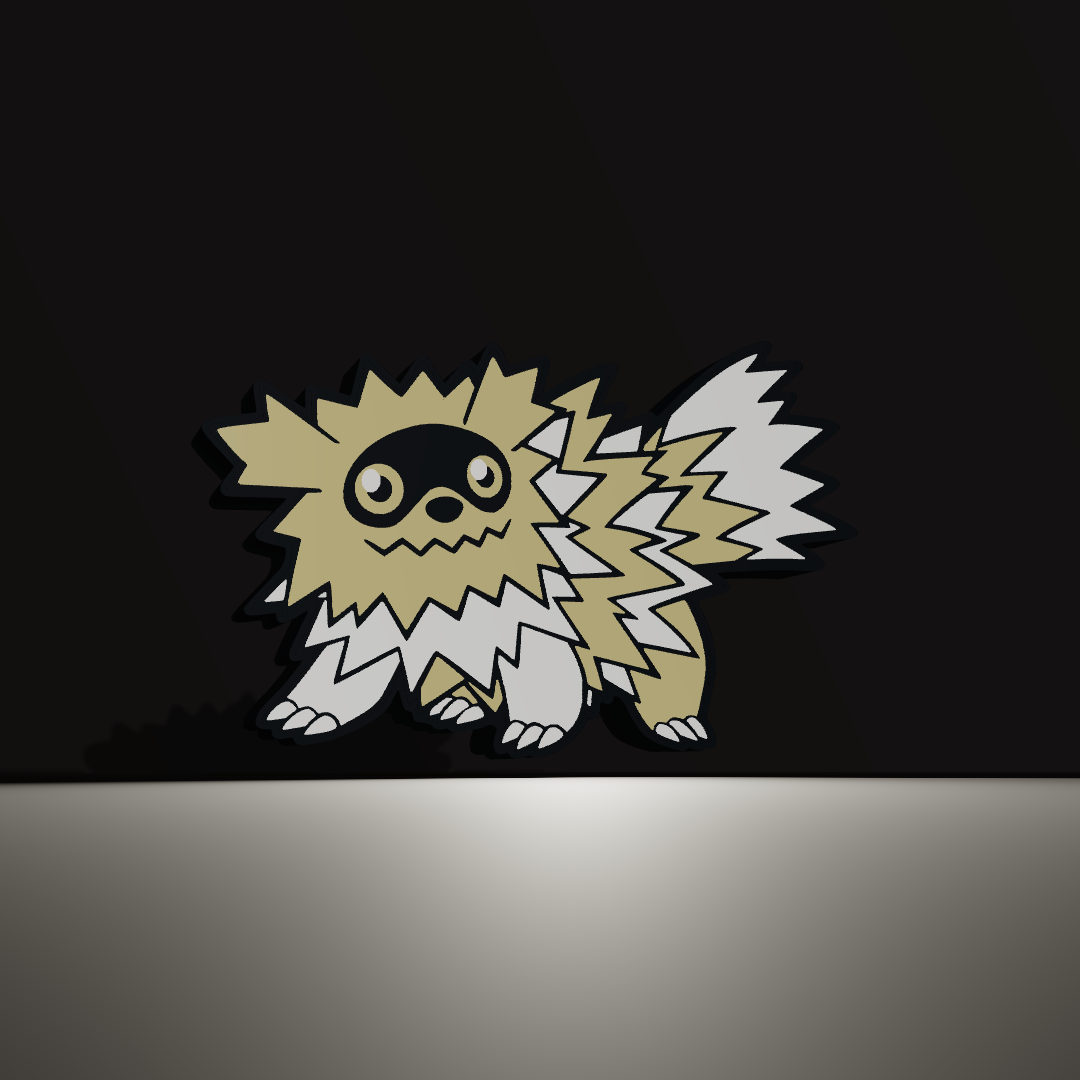

A backlit LED lightbox / night-light sign. The front piece is a hollow
frame with the design's colours forming a shallow tray inside it. The
back piece is a flat lid with a raised boss that press-fits into the
frame's opening, centring the two halves before you glue them.

Filament colours used in this design:
- Slot 1: #0e141b (black)
- Slot 2: #60522e (brown)
- Slot 3: #eeede0 (white)

What's included

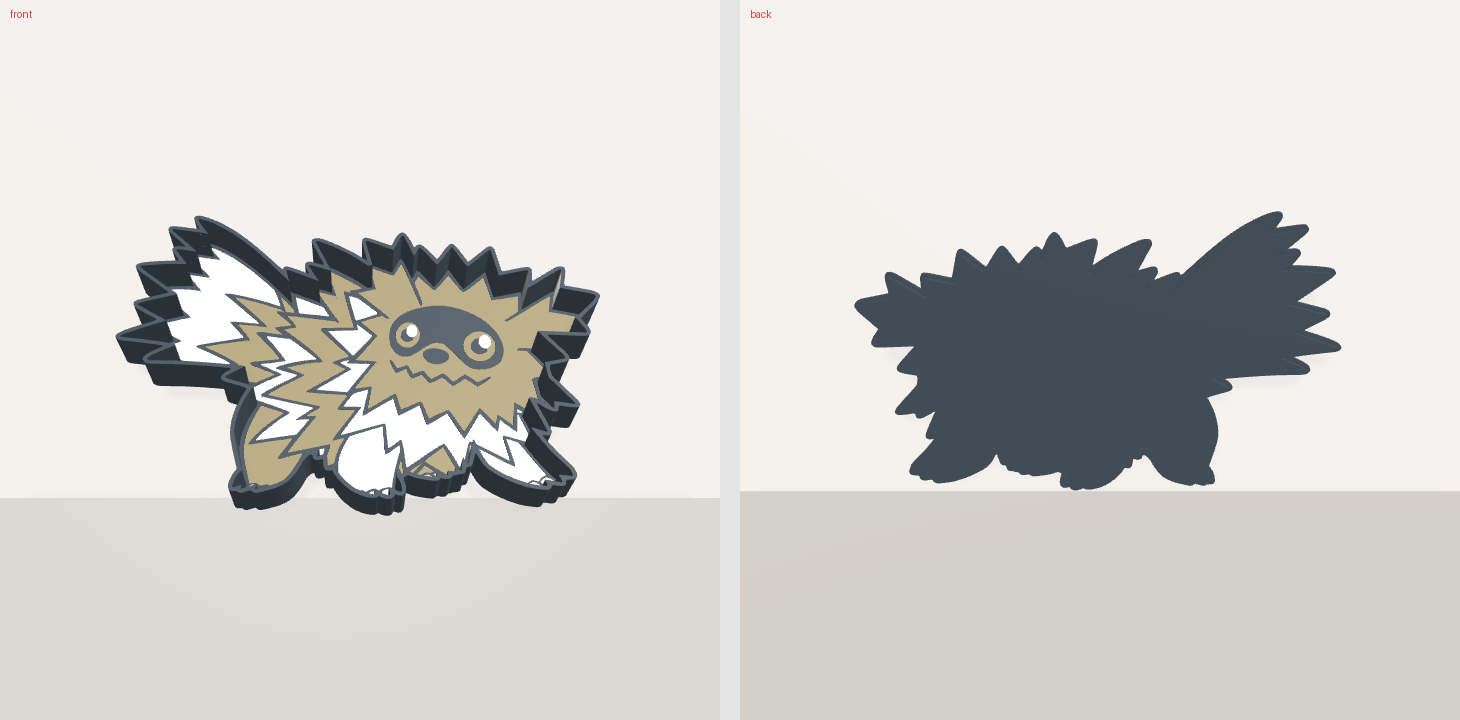

• lightbox.3mf — the design pre-arranged as two plates, ready to slice
• stls.zip — the individual STLs:
  • front.stl — frame wall + colour 1 (base layer of the design)
  • color_XX_*.stl — the remaining colours, same Z alignment as front.stl
  • back.stl — the lid that closes the box

About the .3mf file

It's set up in OrcaSlicer / Bambu Studio, with each part already assigned
to its own colour/AMS slot — just open it and slice. It should open fine in
other slicers too (PrusaSlicer, Cura, etc.) since .3mf is a standard format;
you'll just need to re-assign each part's filament colour by hand there,
since the automatic per-part colour assignment is an OrcaSlicer/Bambu feature.

If you'd rather not deal with multi-part colours at all, the separate STLs
work too — just print each one in the matching filament.

Assembly

1. Print all front pieces in their respective colours/AMS slots (or hand-swap filament) and the back lid separately.
2. Feed an LED strip inside the frame once the front is done.
3. See the included guide gif for exactly where/how to drill it — it walks through picking a spot in the design's negative space (an empty/background area, away from raised detail) before drilling.
4. Glue the back lid onto the front frame — the boss centres it automatically.
5. Plug in and enjoy.

Printing tips

• 0.2 mm layer height, 2–4 walls, 10–20% infill.
• No supports needed — the frame wall is solid from the bed up.
• Scales freely; sized here for roughly 245 mm on the longest side.

Want your own design?

Send me a picture of your own character, logo, pet, whatever — I'll turn it
into a matching lightbox (front + back + 3mf) for you. Message me here on
Cults3D with the image and roughly what size you're after.

License

This listing is personal use only. If you want a commercial license
(to sell prints made from these files), that's available separately through
my Thangs store: https://thangs.com/designer/StrataStudio
