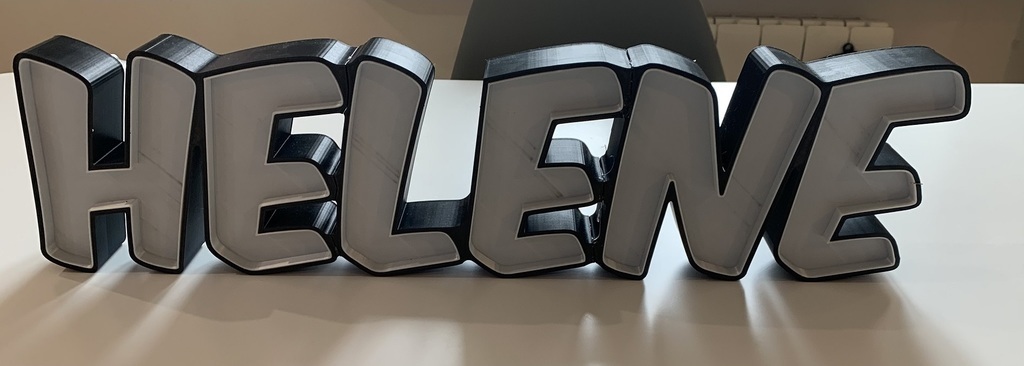

Helene Helen Helena Nome LED letras iluminadas 3 nomes

LED illuminated bush letters Helene, Helen, Helena

The files are available for download here:

https://cults3d.com/en/3d-model/home/helene-led-namen-leuchtbuchstaben

Dimensions complete :

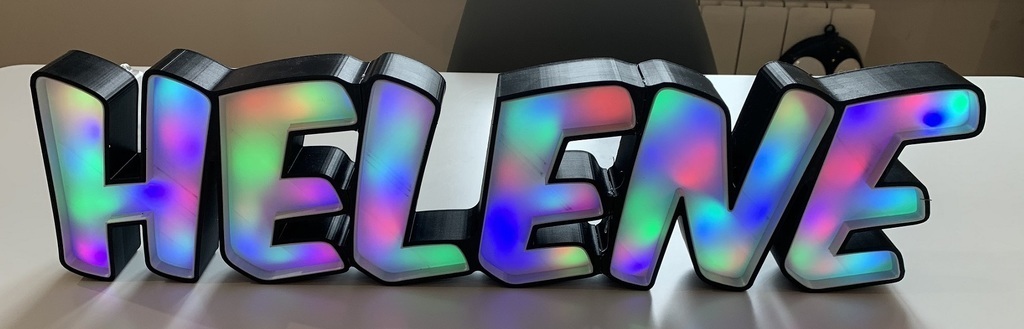

Helene about 540mm wide ,138mm high and 40mm deep.

Helena approx 538mm wide ,138mm high and 40mm deep.

Helen approx 460mm wide ,138mm high and 40mm deep.

Printed from PLA black for the case and white for the inlay.

Put support material only in the feedthroughs.

If the print bed is large, it can be printed in one piece.

However, it is also split for smaller print bed sizes.

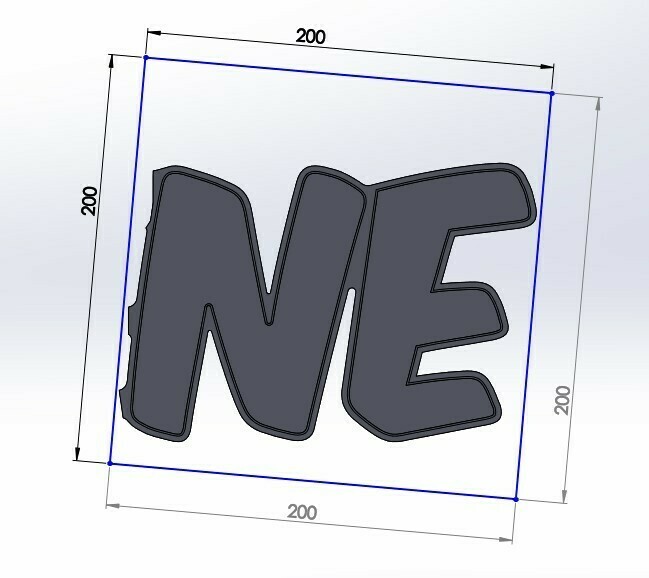

Minimum size of the print bed 200mmx200mm.

These are screwed together.

To do this, you need the following screws:

2 X M3X16mm DIN912

2 X M3X10mm DIN912

Square nuts M3 4 pieces DIN562

Washers 4 pieces

If you do not want to use screws you can use the sections

can also be glued together.

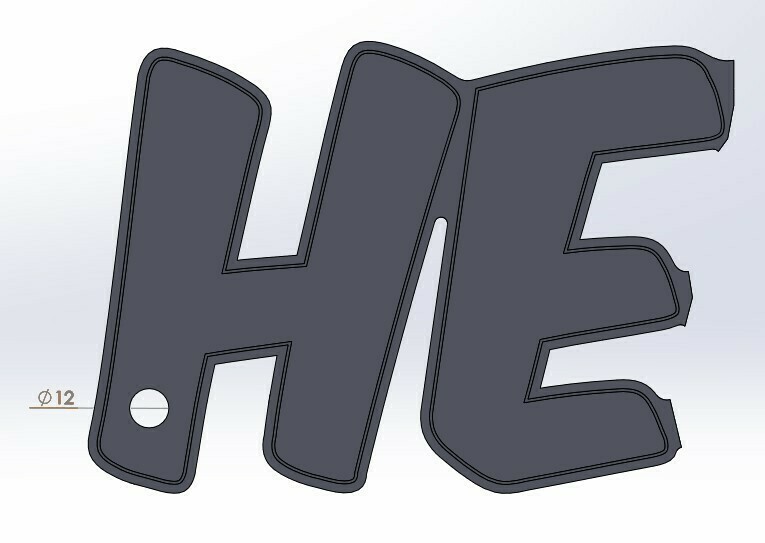

DC socket 12V TYPE A

https://de.aliexpress.com/item/1005001599977955.html?spm=a2g0s.9042311.0.0.31aa4c4dR3ZrLf

It can be operated with normal RGB led tapes, or to have more effects with WS2812,WS2815 etc.

There are cheap small controllers to buy for this.

SP002E Controller

https://de.aliexpress.com/item/4001192801361.html?spm=a2g0o.productlist.main.27.22ef7580bJXjnr&algo_pvid=1a4e46db-103e-4c00-9934-0b44b7b53848&algo_exp_id=1a4e46db-103e-4c00-9934-0b44b7b53848-13&pdp_npi=4%40dis%21EUR%214.39%213.51%21%21%214.70%21%21%4021038ed816911662439901091e24f9%2110000015258285106%21sea%21DE%21169903809%21&curPageLogUid=quawmY0NMa59

The also works with the WS2815 LED tape.

Für RGB https://de.aliexpress.com/item/4000109763386.html?spm=a2g0s.9042311.0.0.31aa4c4dR3ZrLf

Alternatively also with ESP32 or ESP8266 and WLED

The following lengths of LED tape are required.

Helene approx. 3m

Helena approx. 3m

Helen approx. 2.5m

Plug-in power supply 12V e.g.

https://de.aliexpress.com/item/32963514618.html?spm=a2g0o.productlist.0.0.819b72efC9Hy4z&algo_pvid=1c4935af-ae5b-483f-ba87-9b66a5d9c86f&algo_exp_id=1c4935af-ae5b-483f-ba87-9b66a5d9c86f-1&pdp_ext_f=%7B%22sku_id%22%3A%2266521421921%22%7D&pdp_pi=-1%3B2.12%3B-1%3B-1%40salePrice%3BEUR%3Bsearch-mainSearch

min. 3A

Mount DC socket and fix everything best with hot glue, as the LED tape does like to come loose.

Who wants can of course also use other controllers with remote control, there are the files without holes and holder for the controller.
