YAFS yet another spoolholder

Publicité
?
Qualité de la création : 5,0/5 (1 vote)
Évaluation des membres sur l’imprimabilité, l’utilité, les détails, etc.

  • 1,8k vues
  • 3 j’aimes
  • 73 téléchargements
  • 1 collection

Licence CC BY-NC-SA
Publication date 2019-07-25 à 14h21
Design number 65613
3D design format
STL Détails du dossier Fermer

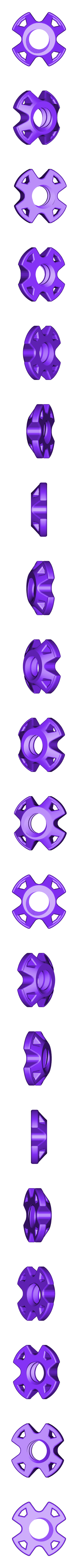

  • spulenhalter.stl

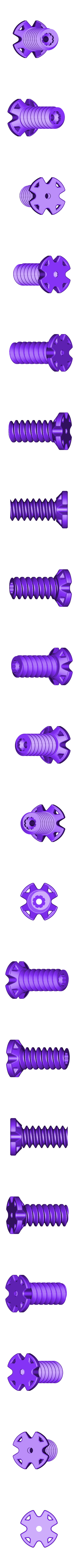

  • spulenhalterschraube.stl
  • zenbu_fixed_2019_07_23_08_54.stl

En savoir plus sur les formats

Info sur le fichier 3D

Description du modèle 3D

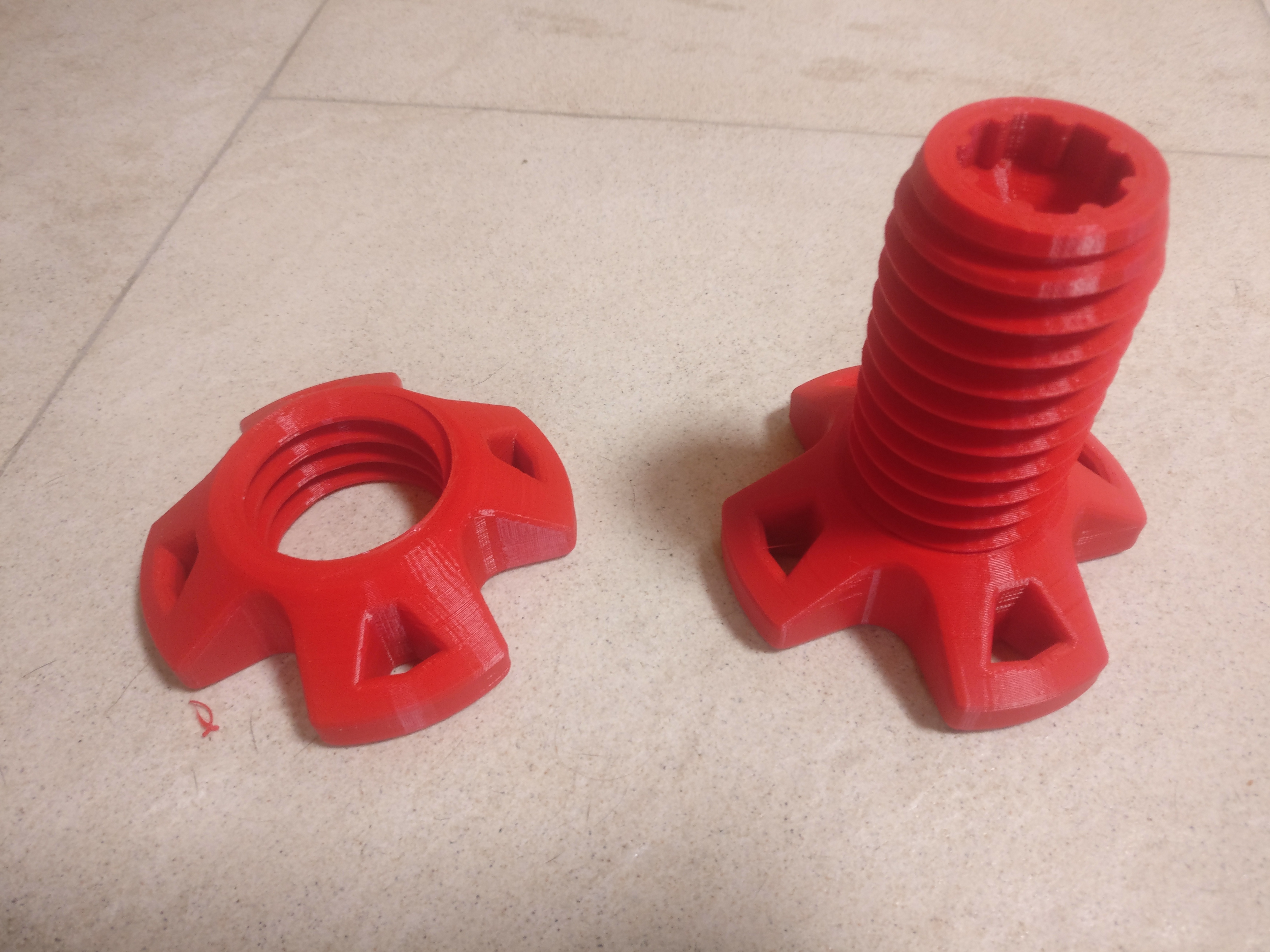

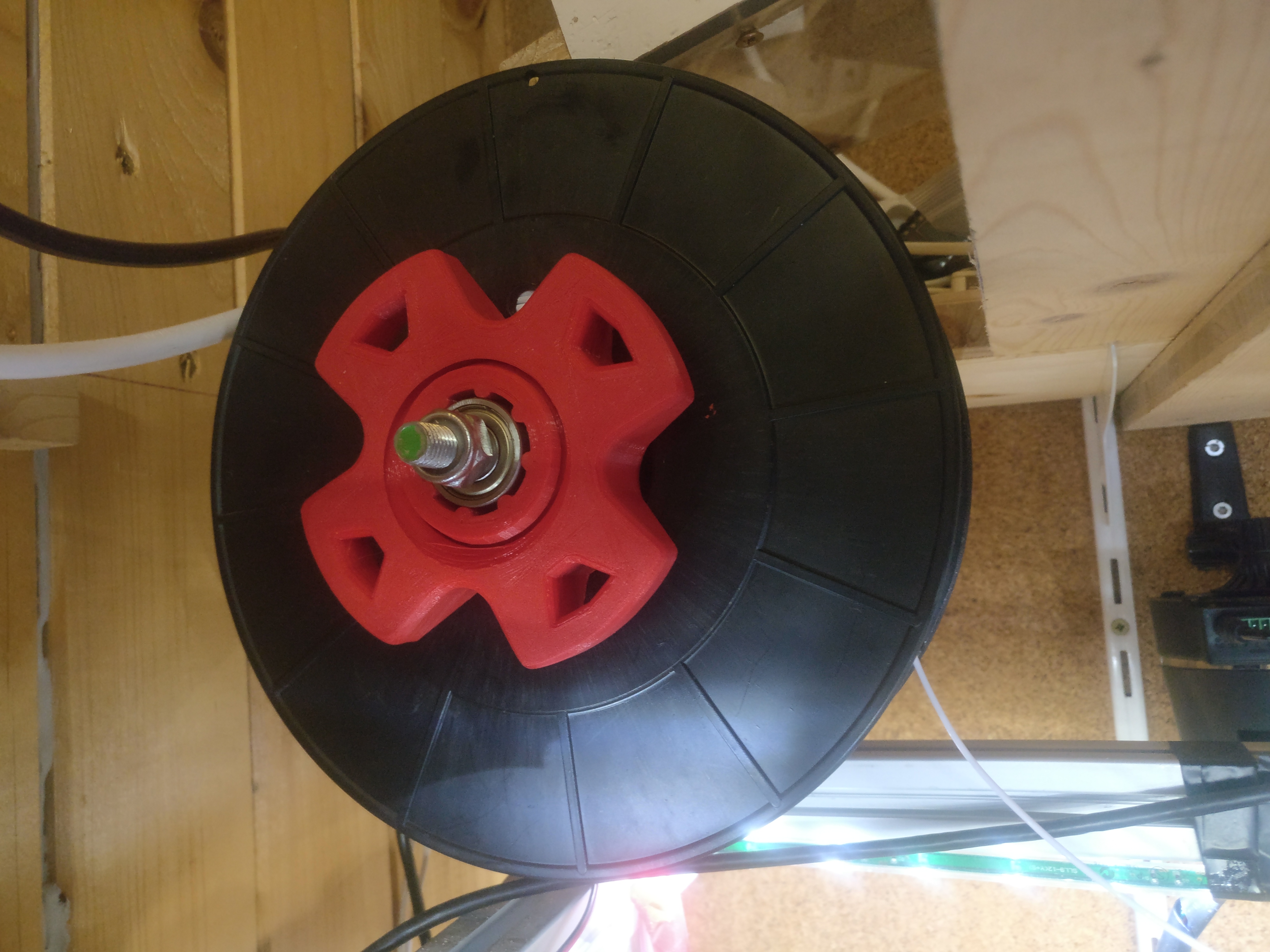

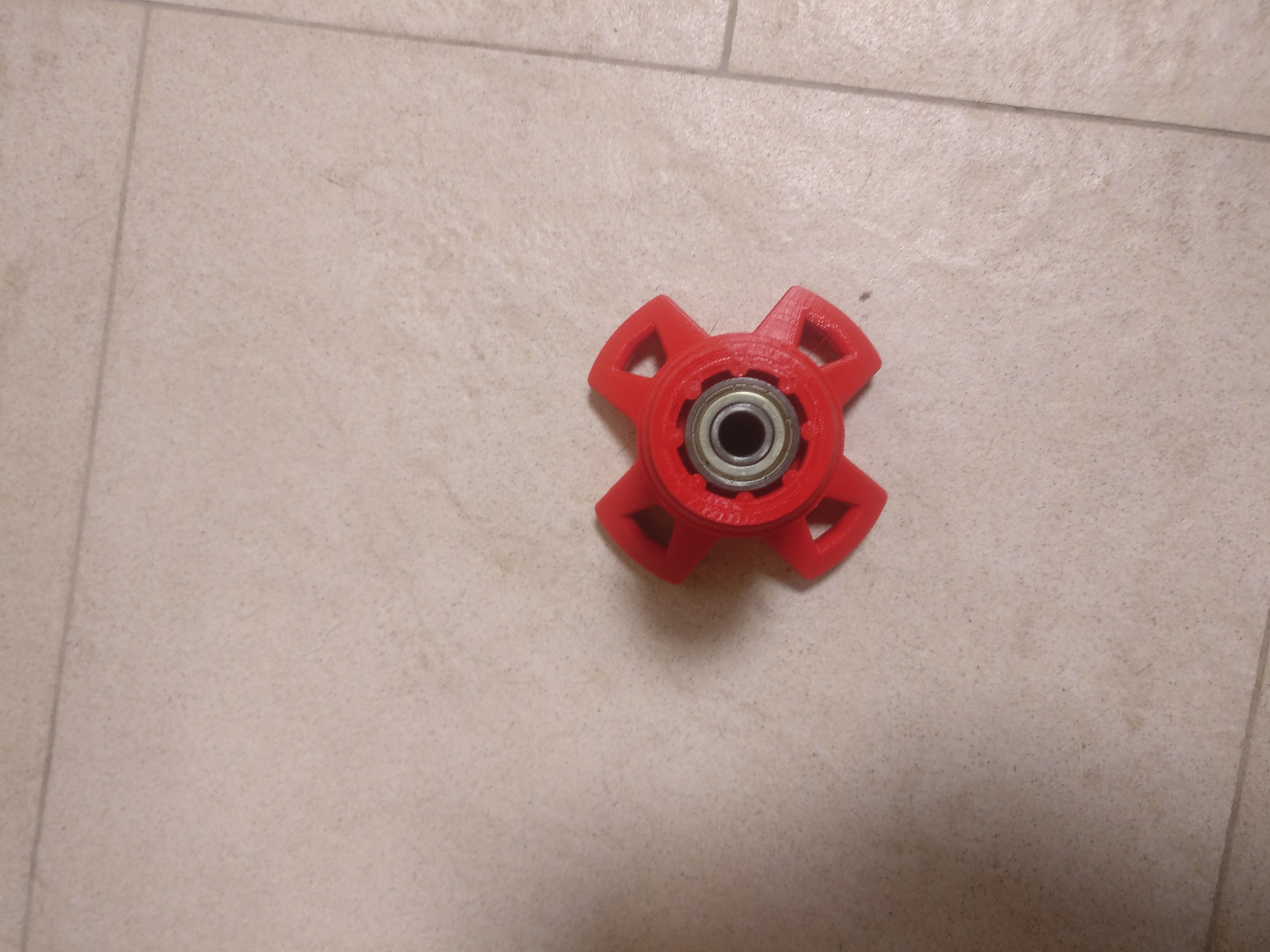

Spool Holder for 10mm thread and 1000ZZ Bearings made in OpenSCAD

i found this beautiful spoolholder https://www.thingiverse.com/thing:2070272 but since my available material
are 1000ZZ bearings and 10mm rods, and also purely, for learning purposes, i reproduced it in
openSCAD

i did it to be printed on a 3Dmodular Sclar XL premium, but failed miserably, had to let it print on a CR20 from a friend.... there it went without a glitch.
There are 2 holes in the Openscad genereated STL, that can be easily fixed on any web repair site, since i don't know where they are, i couldn't fix this in the source...

I know there are allready heaps of spoolholders out there, but i like that design, unfortunately the original inspiration was too small for my spools, and i had no 608 bearings, only 1000ZZ, i tryed to modify the stl in Blender, but failed miserably, so i redesigned the thing from scratch in OpenSCAD, with a lot of help from the community there, a big thanks to them! Especially to Dan Kirshner for his threads library!

feel free to make it better: https://github.com/nohkumado/spulenhalter

Paramètres d’impression 3D

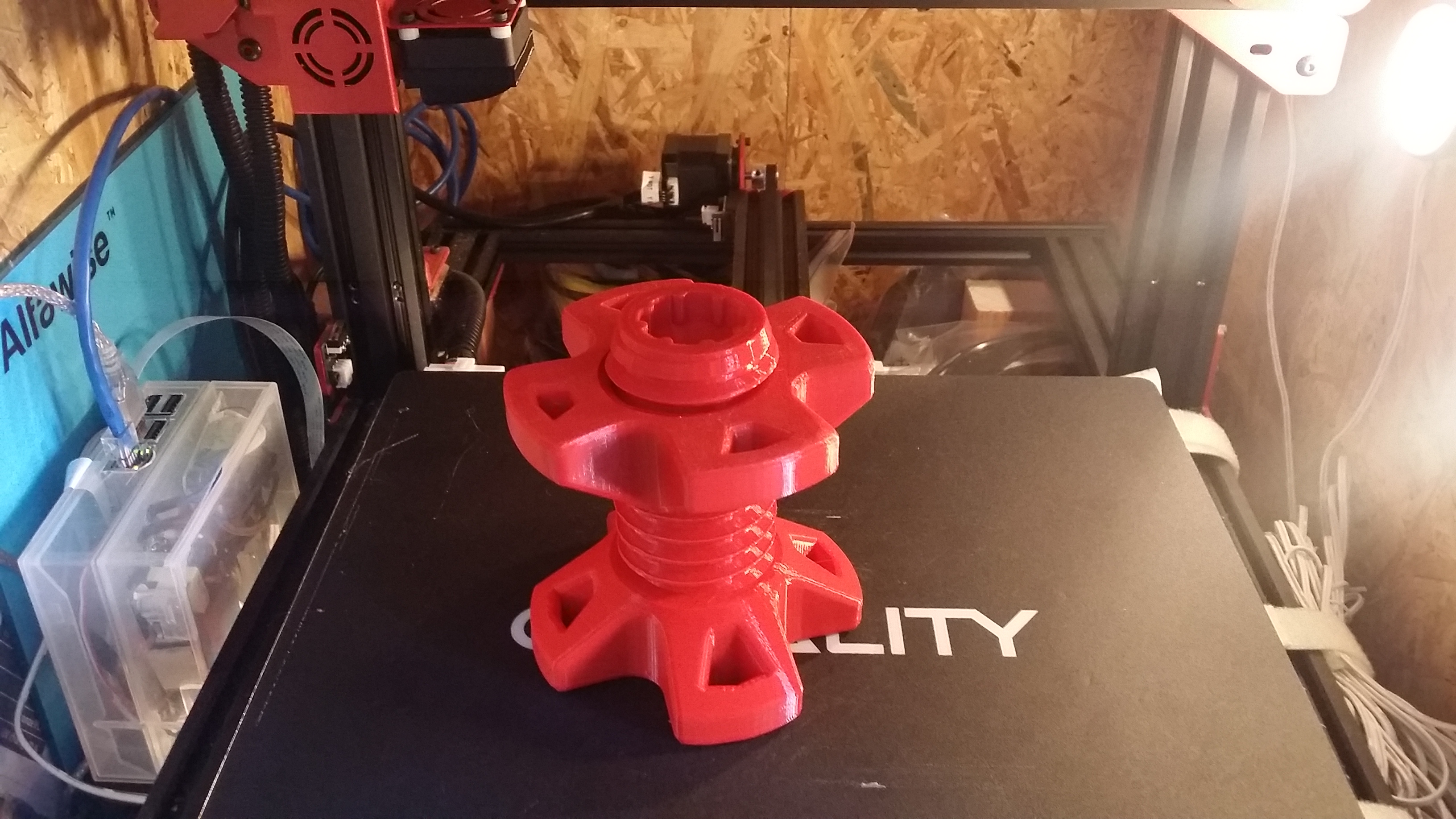

the final version was printed in .1 layer height and 20% infill, took 16h to print on a CR20 sliced with cura, didn't manage to get it printed on my printer (a Scalar XLP)
