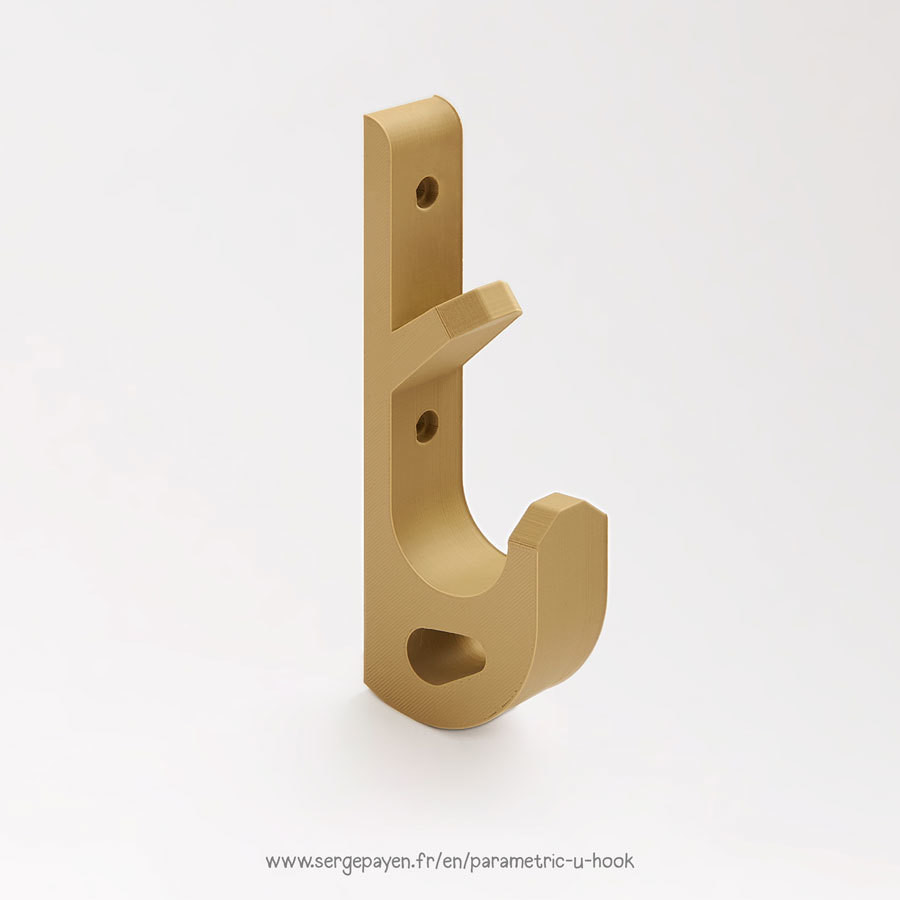

Customizable U-Hook

Parametric hook, universal and very strong.

I’ve been looking a while for a parametric hook modeling, but I didn’t found any available model that ideally combines strength and customizing possibilities. So I tried to create the model I wanted. This is an attempt for a universal and very strong parametric hook, easily 3D printable as a "finished product".

I did a "stress test" with my parametric U-Hook in its default configuration. The hook had been printed in PLA, with 2 perimeters, 0.2 mm layer height, and 20% infill.
It supported a weight of 47,4 Kg.

SCAD file, full PDF documentation (in English and French), and 4 STL samples are inside the zip package (in "Files" section).
More information on my website :
http://www.sergepayen.fr/en/parametric-u-hook

I also wrote a little tutorial about "how to use a parametric file" with OpenScad software, that could help you if you're not familiar with this type of file :
http://www.sergepayen.fr/en/how-to-use-a-parametric-file

Balsas : No importa

Apoya: No

Altura de la capa: 0.2

Relleno: 20%
