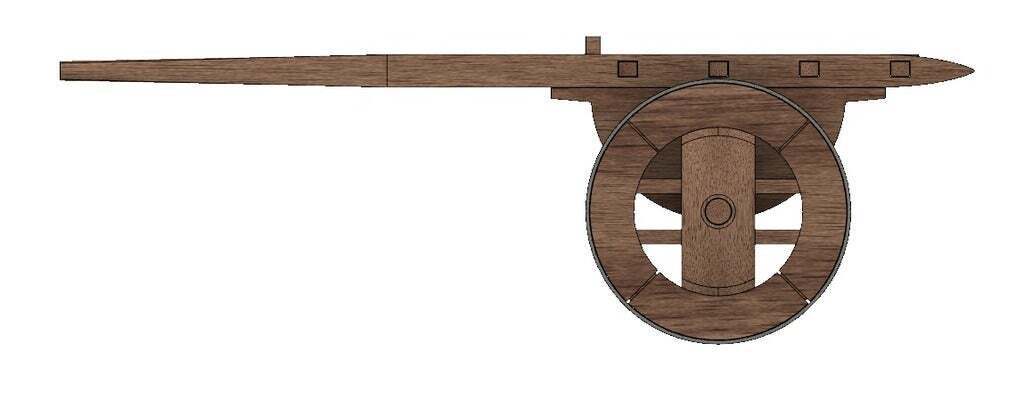

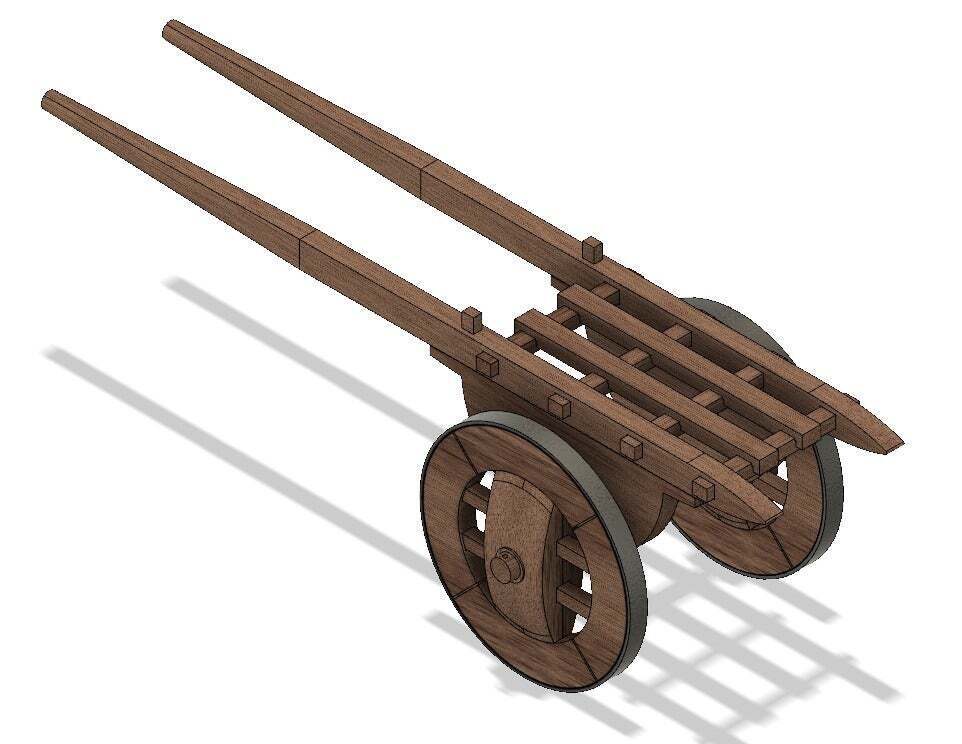

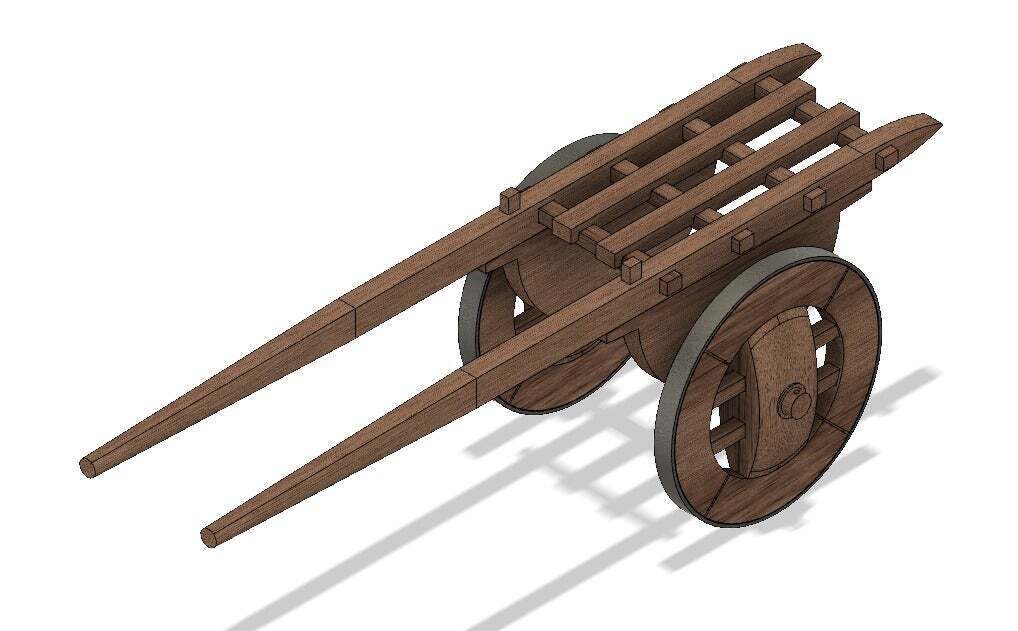

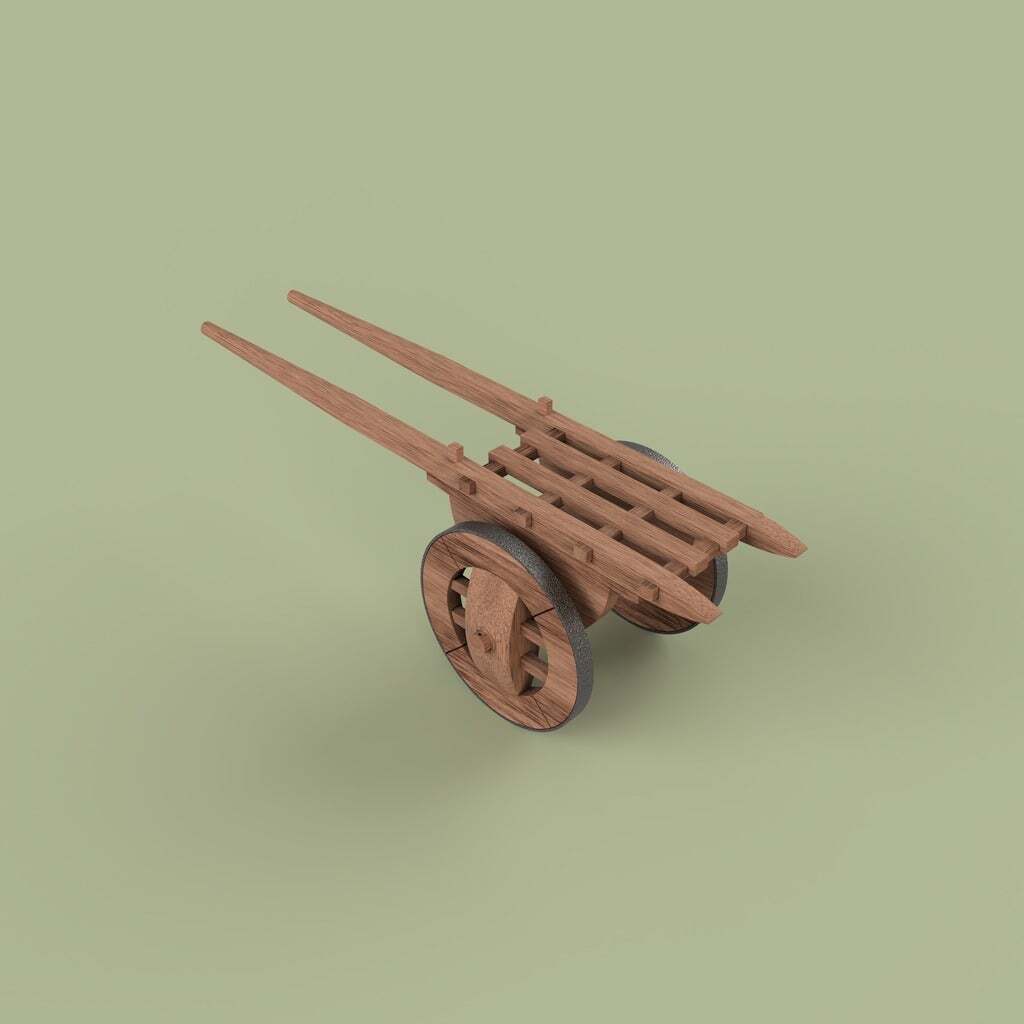

유형거(遊衡車, yuhyeonggeo) - Korean traditional wagon

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.4k views
  • 3 likes
  • 48 downloads

3D model description

[parts list]

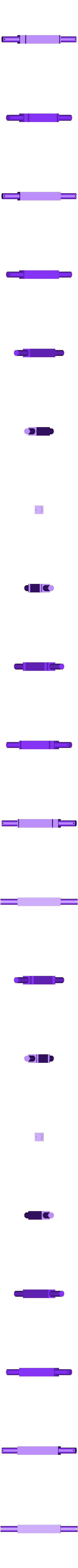

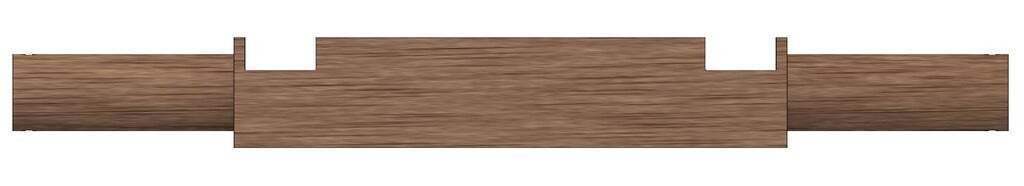

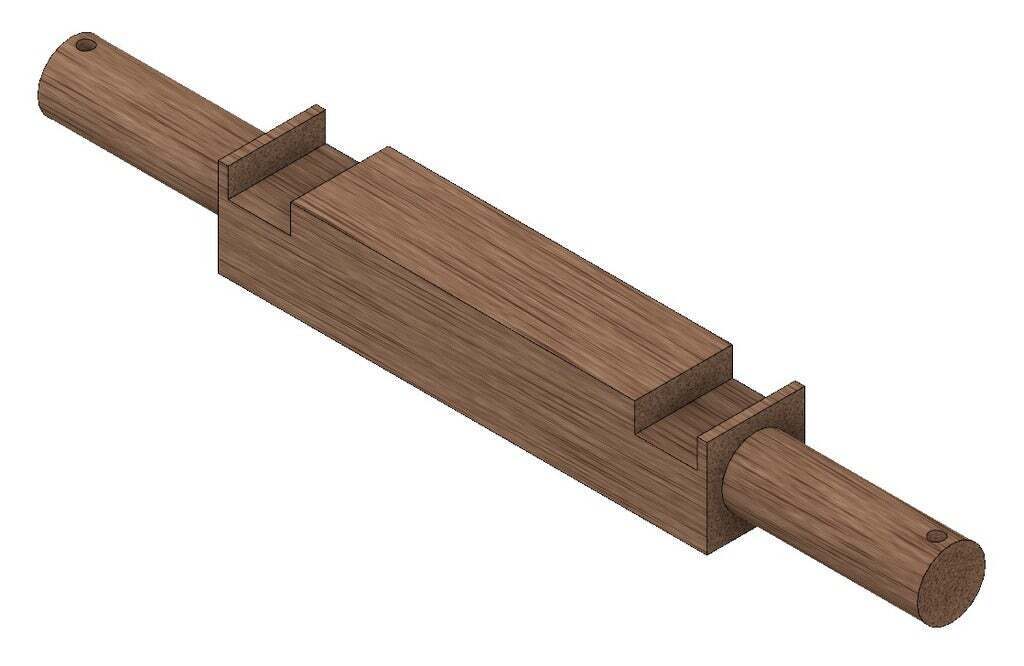

1. axis.stl x 1

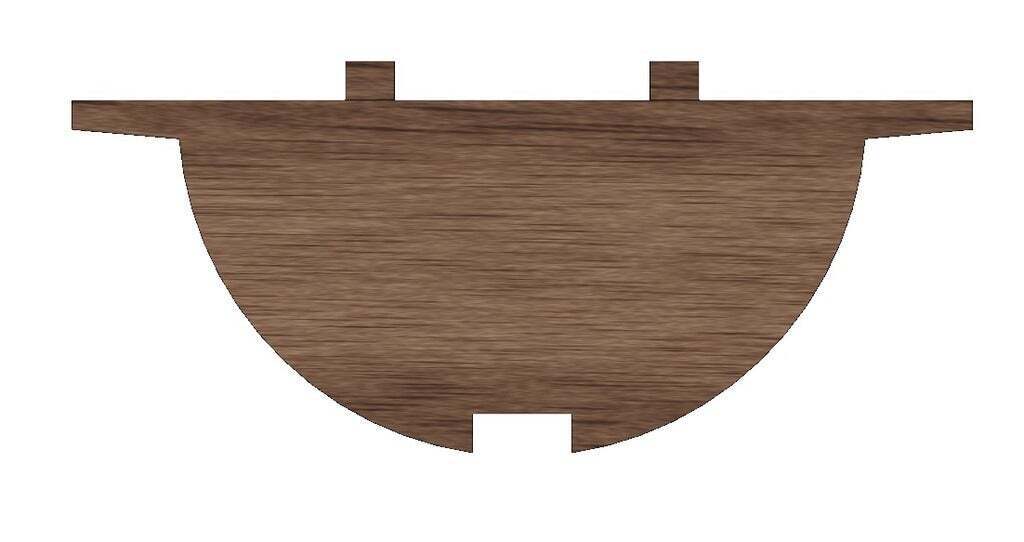

2. bokto.stl x 2
3. wheel_flesh1.stl x 2
4. wheel_flesh2.stl x 2

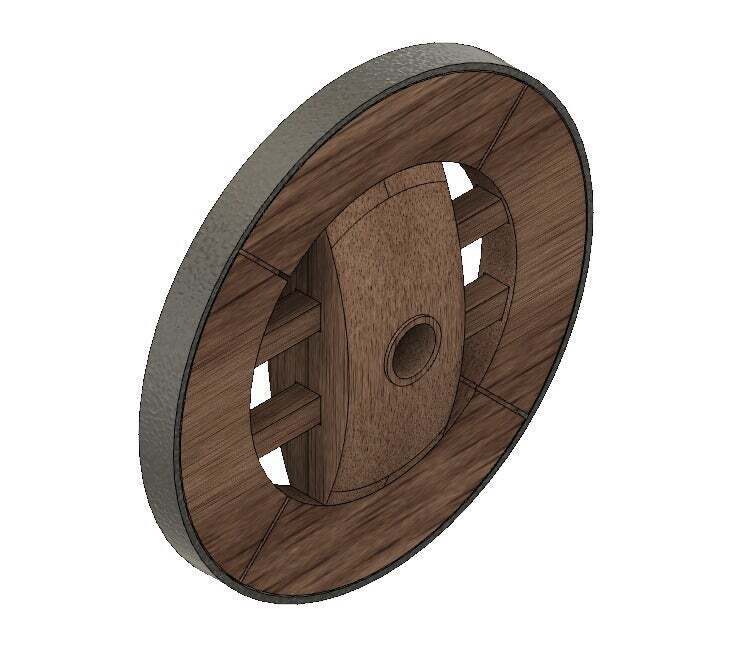

5. wheel_frame.stl x 1
6. wheel_iron x 1

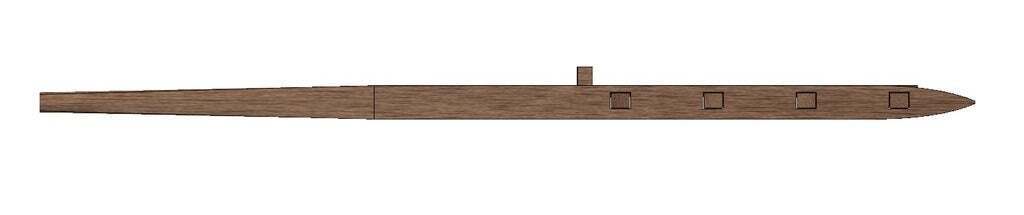

7. go.stl x 2
8. vertical_sal.stl x 4
9. horizontal_sal.stl x 2

[Assembly guide]
https://a360.co/2YAexth
password: yuhyeonggeo

[description]
This cart was designed and used to build the Suwon Hwaseong Fortress. The wagon was newly made by Jeong Yak-yong, who made up for the weakness of the wheel that is too big and brittle and the difficulty of the sled. Using the principle of the scale, the bokto maintains a balance in the center of gravity of the cart, allowing the cart to move quickly and lightly on the slope. One can guess the performance of Mars because there is a record that 100 ordinary carts carried 70 types of luggage in 154 days.

수원 화성을 축조할 때 고안해 사용한 수레이다. 수레 바퀴가 너무 크고 잘 부러지는 약점과 썰매가 힘이 많이 드는 단점을 보완해 정약용이 새롭게 만든 수레이다. 특히 저울의 원리를 이용한 bokto는 수레의 무게중심을 평형을 유지시켜 수레가 비탈길에서도 빠르고 가볍게 움직이게 하는 역할을 한다. 화성 축성에는 일반 수레 100대가 324일에 거쳐 운반하는 짐을 유형거 70대로 154일 만에 운반했다는 기록이 남아있어 성능을 짐작할 수 있다.

  • 3D file format: STL
  • Publication date: 2019/08/09 at 18:13

License

CC BY

Tags

Creator

Hi, I'm Korean 3d modeler! I am constantly researching for a formal release!
