Water Jet pump

3D model description

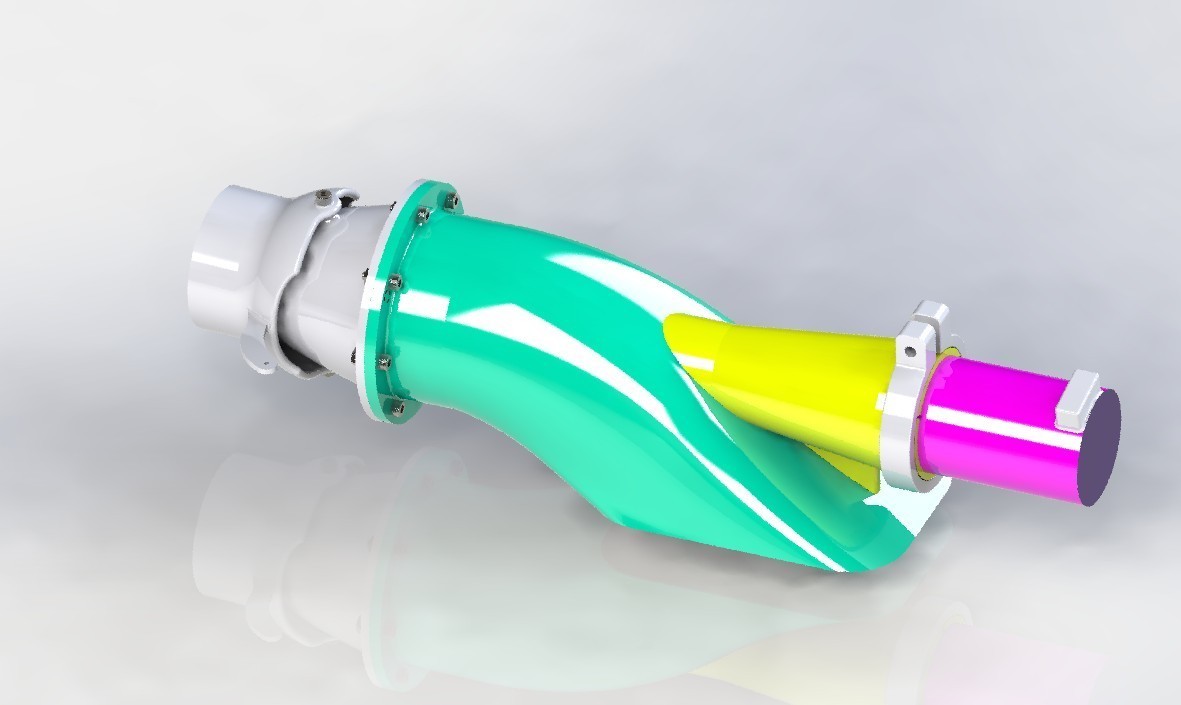

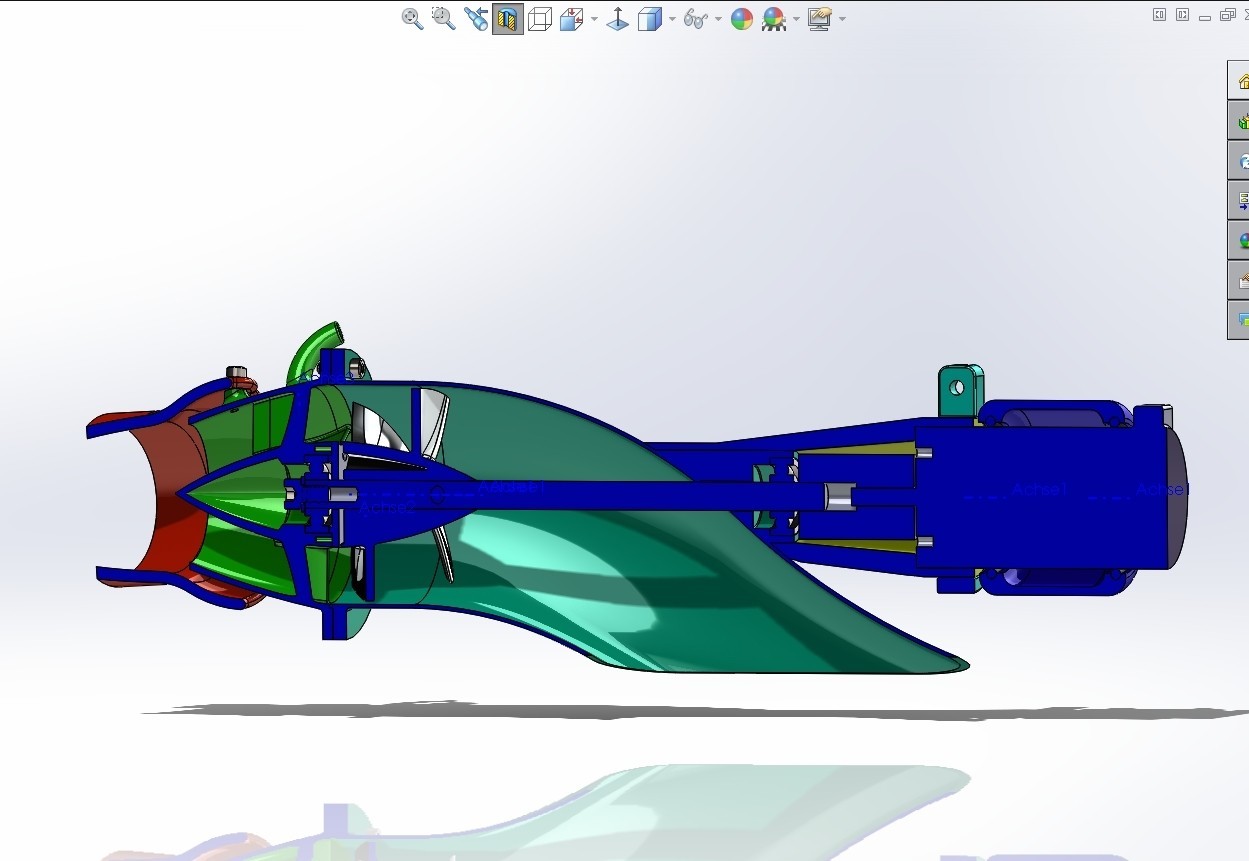

This is a 60mm water jet pump. New Version availible now, with better diffusor, impeller and steering. Called Jet 3.stl Housing is 1 part now.
I deleted all old parts.

I use a 4074 Motor which fits for the motorhalter (motorholder) and cooling sleeve. For the cooling sleeve you need 2 rubberrings 40x3mm. The main shaft is 10mm. I use stainless steel for the shaft and the bearings.

  • 3D model format: STL

Tags

Creator

Followers 27 Following 0
Downloaded 129
Sales $651

Copyright

©

Similar 3D files


Add a comment

15 comments

What is a good 3d printer to use for this project

Will this handle a26 cc zenoah gas motor

Hi, could you contact me, I manufacture Jet Boards and I want to use a 7 kw, 18s ,180kv. shaft diameter 12mm, motor size 83110
medved969@gmail.com

Bearings are 22x8x7mm, and the shaft is 8mm. The impeller is fixed with a 4mm steelpin through the shaft.

how do you attach the impeller to shaft?

Good day.
I was very interested in your water jet project.
But I plan to use a slightly different electric motor.
Could you help me in designing the 3d model.
Regards, Mikhail.

Can you point me in the right direction to find the correct shaft and bearings? Thanks!

Hi Sir,
Can you please get in touch with me, we can discuss some different size drives that I need. I manufacture Jet Boards, petrol and electric. deanjarrett@torquejetboards.com

Hello , yes I can do that. I need to know what exact size you need.

Can you make a larger size model of this to be printed? I can pay you for it. about 85mm to 90mm outtake. Do you have the impeller designed as well?

I purchased this, love the parts, but need to customize for our setup, can you provide STEP files please?

Just bought your jet files, awesome stuff.
Can you tell me what bearing you put in the diffuser 8x22x7?
Also, how do you attached the impeller to 8mm shaft? just a small through nut and bolt?
Anything else you use to assemble diffuser and impeller? those are the only parts im needing for my home project :)

Which files are included in the download? Is there a prop as well, or info about the adequate size of the prop?
Is it the 2 piece, or the one piece version of the main part?

How does one print individual parts for the "new Version"? I purchased this plan because of the steering capability show in the first photo.
