protective visor

?
Creation's quality: 3.7/5 (11 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 38.6k views
  • 45 likes
  • 3.1k downloads

3D model description

https://www.youtube.com/watch?v=OHVD-Ib8AiY&list=UUjfp16AUvBHRCCZkfoOzOvg&index=1

Help in any way you can!

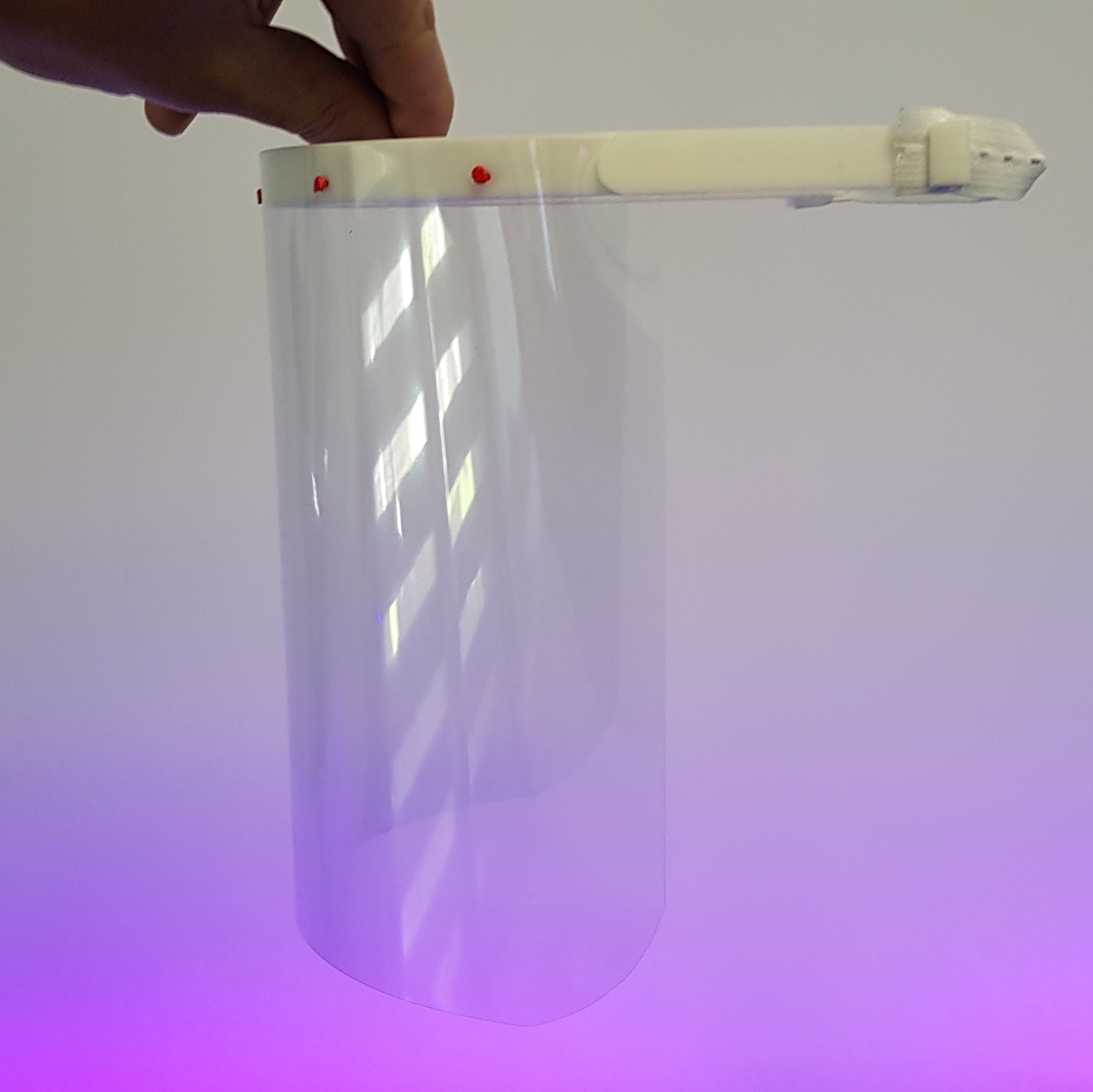

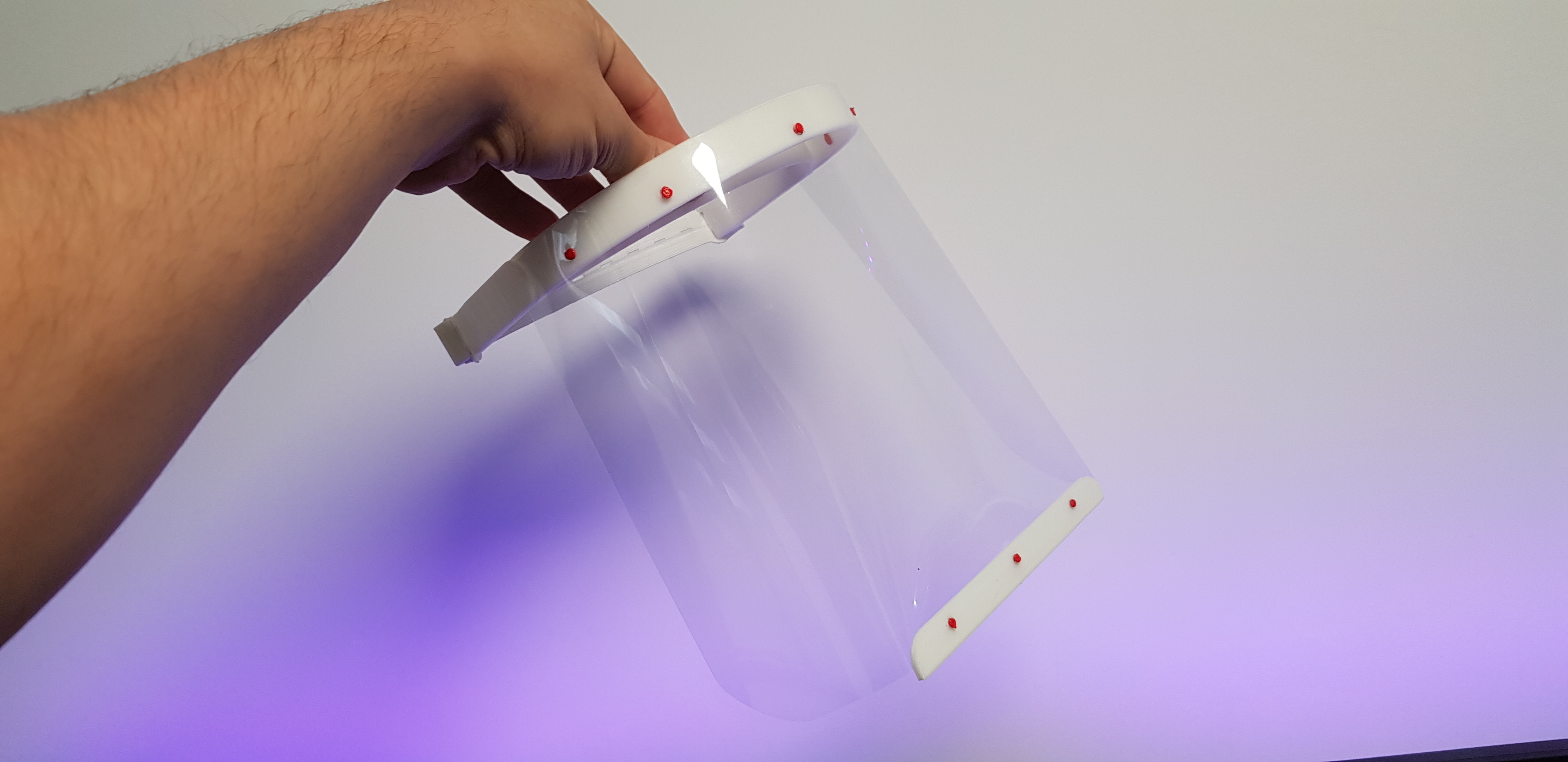

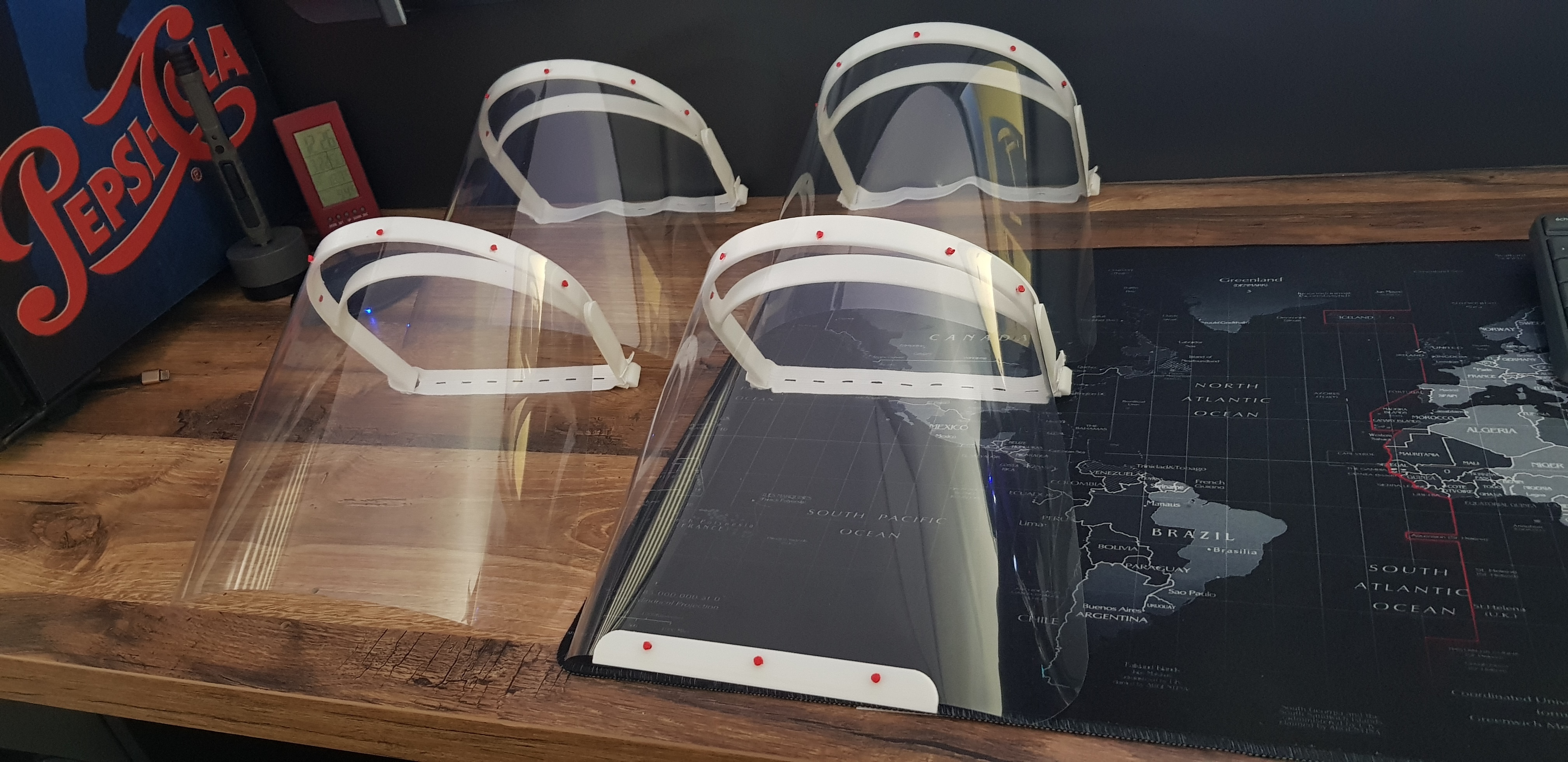

Visor for nursing staff, shop cashiers, police and other people who may come into contact with the public, is worn over a medical mask, protects the face and eyes from possible projections.

Optimised format to reduce printing time: 1h20 in 0.3 + 20mn for the optional bottom section

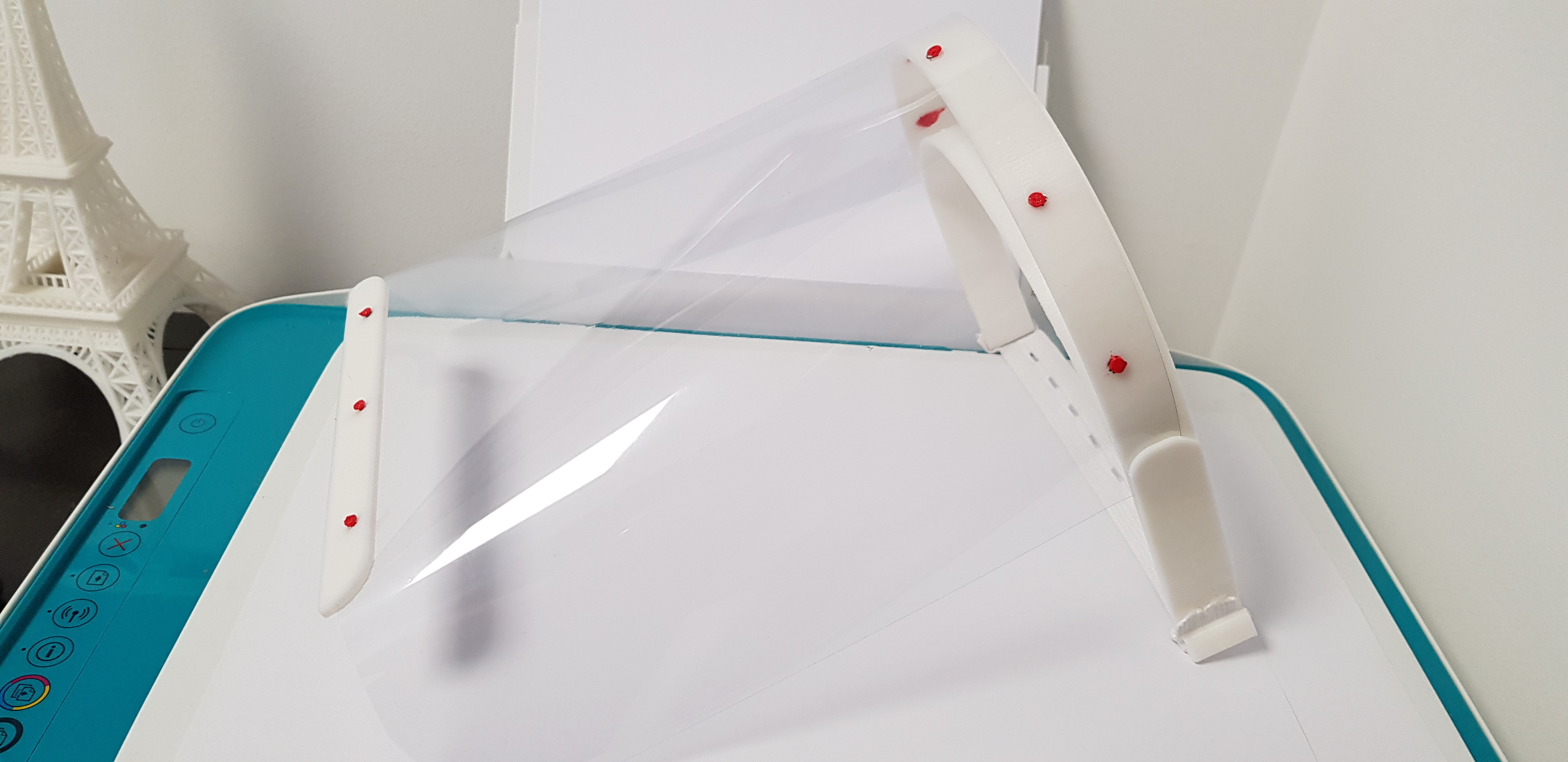

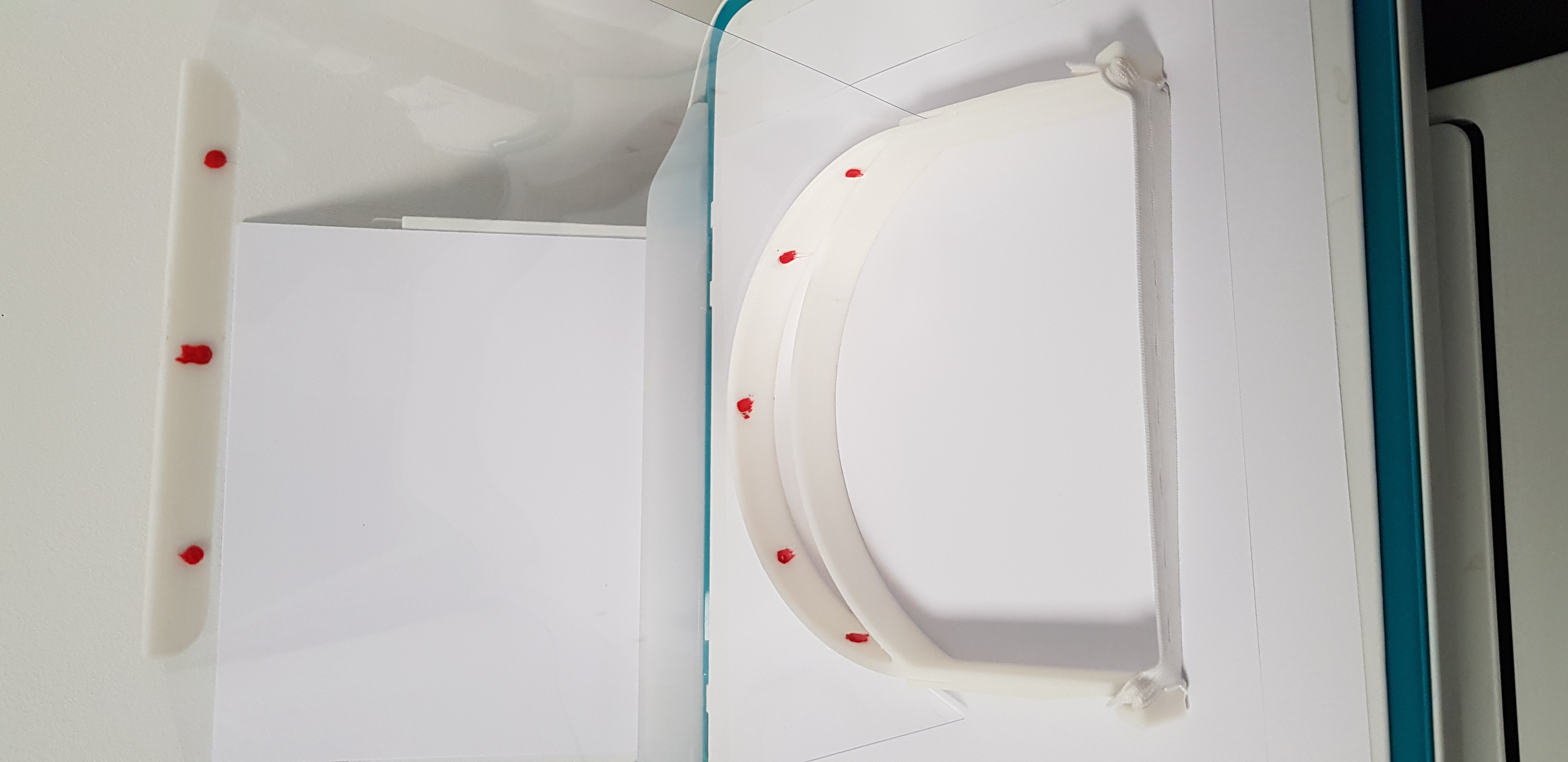

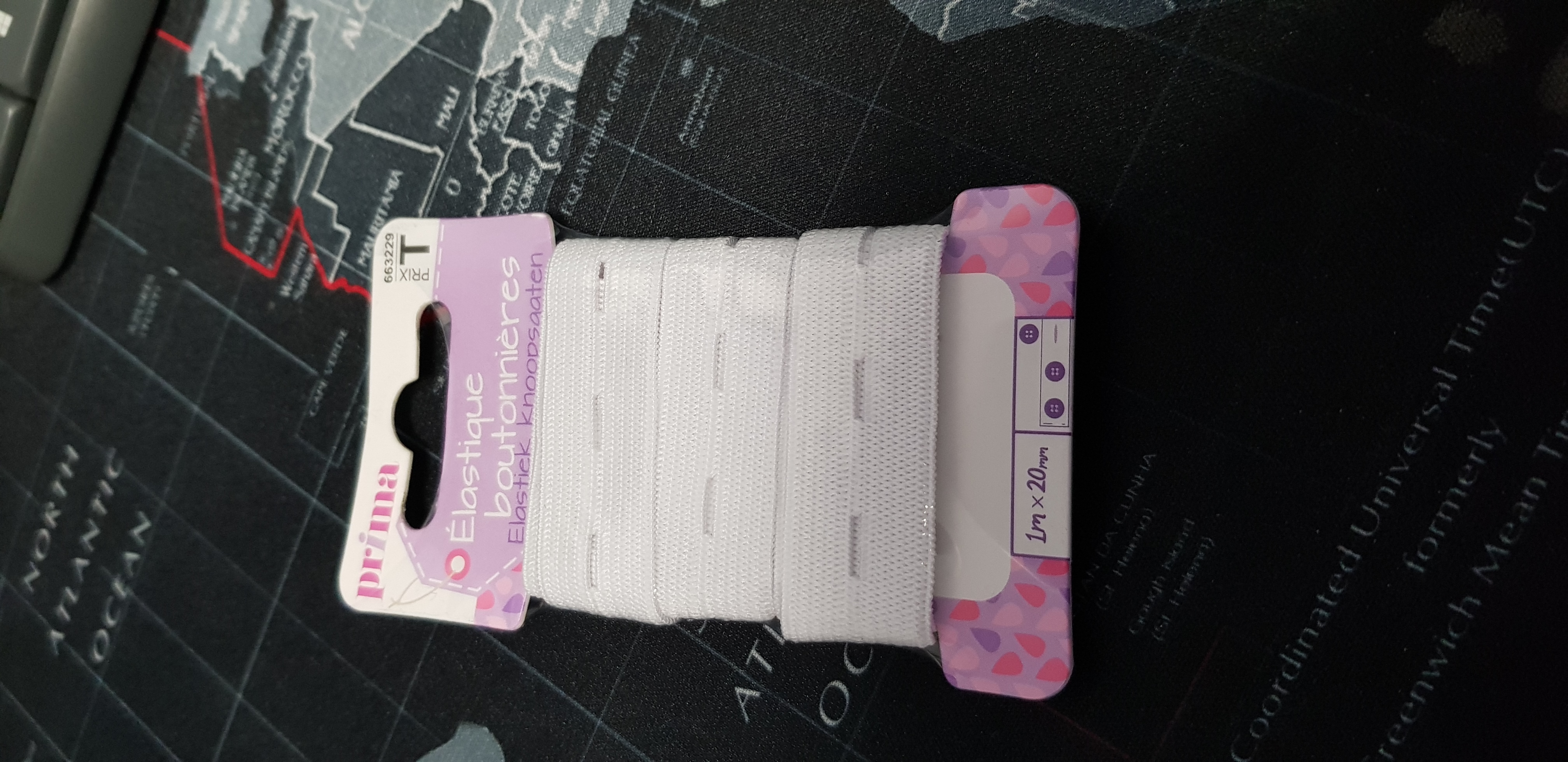

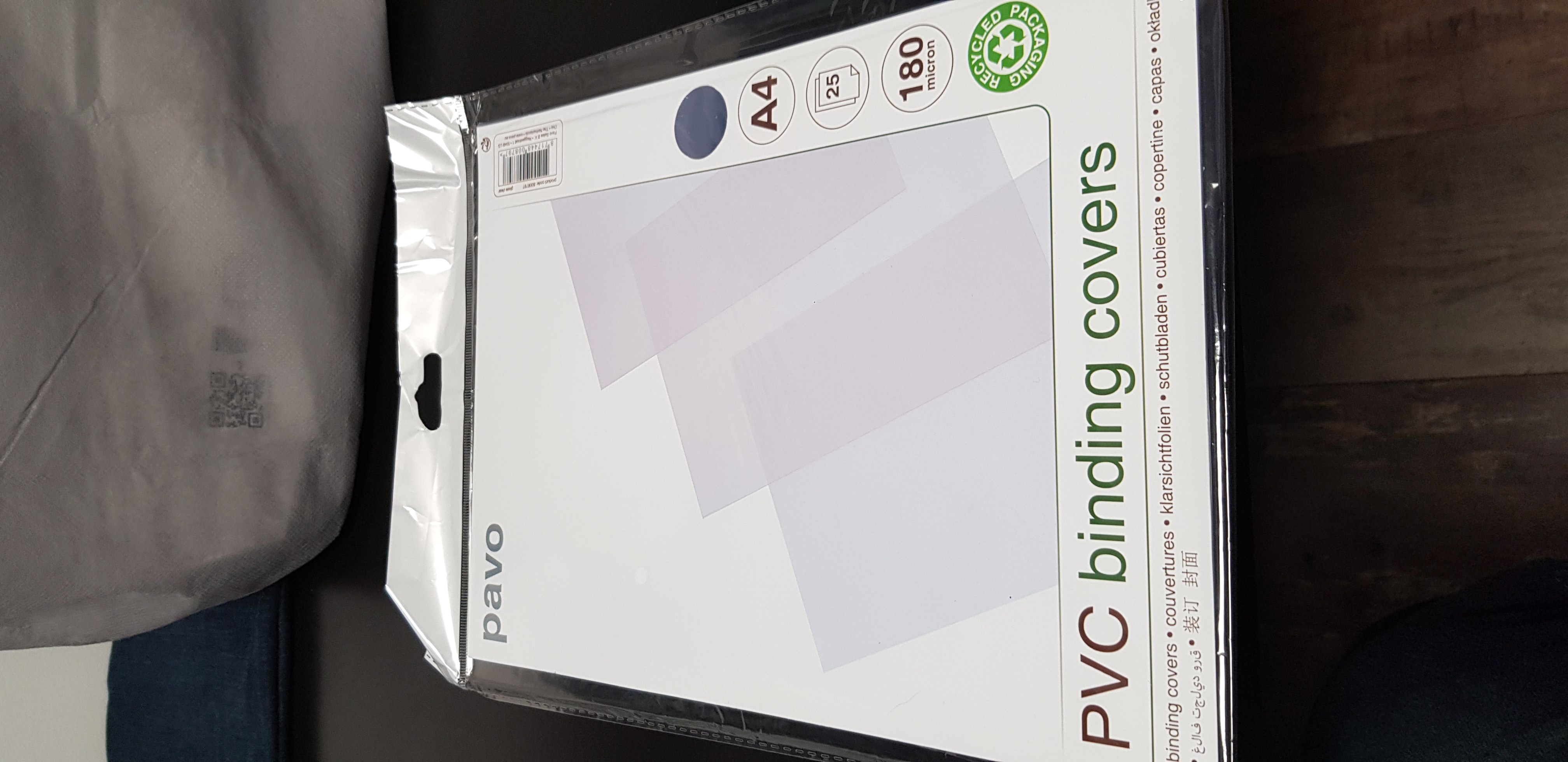

the visor is made with a transparent cover which is located in a large area, elastic is also located in a large area.

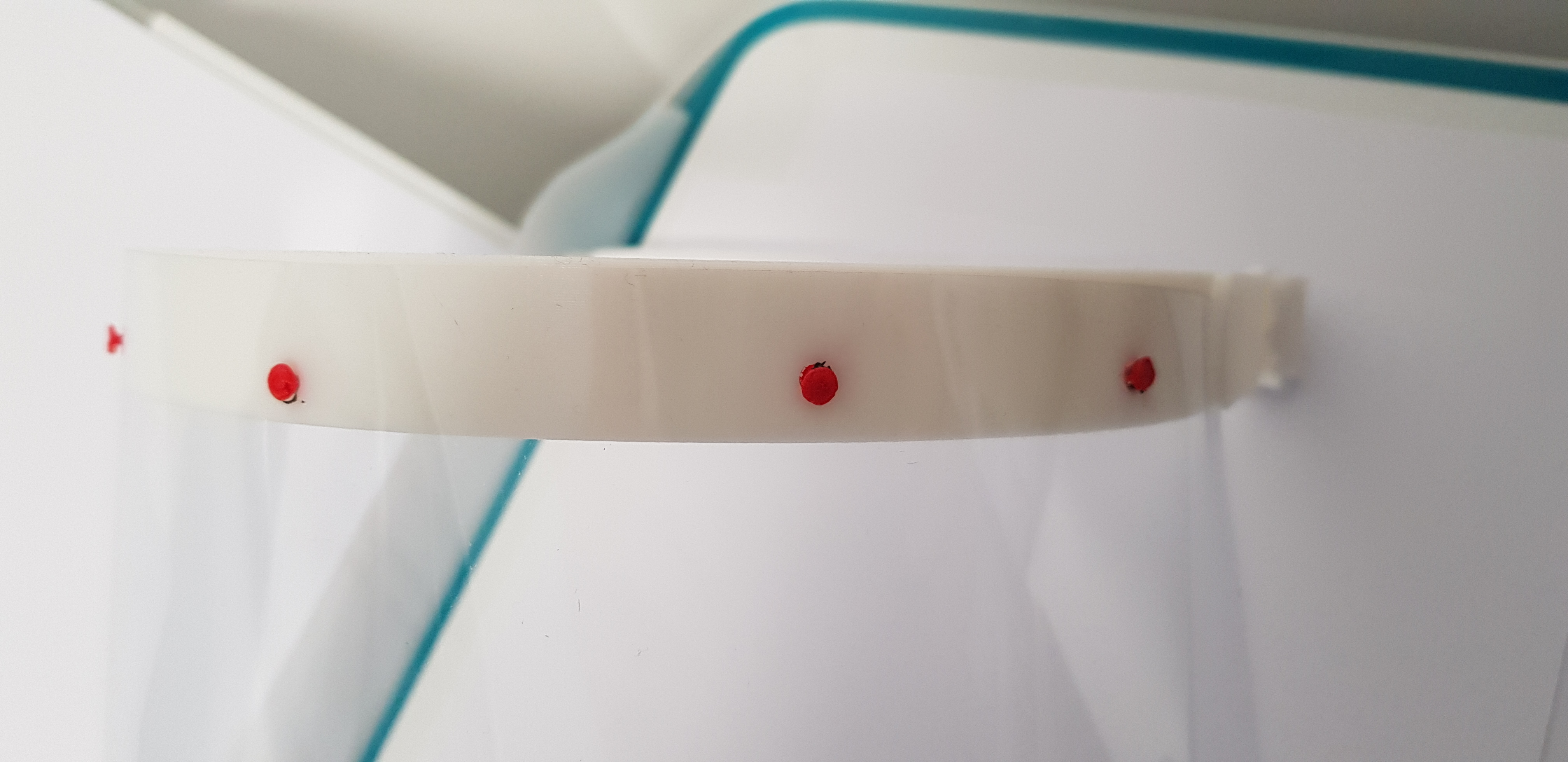

The rivets are made with PLA coil ends, about 1cm that we come to flatten with a heated knife tip or soldering iron on each end, to drill the holes, position the transparency and use a heated tip (mini screwdriver or other).

Check that there are no scratches (especially in the area that was in contact with the tray), sandpaper if necessary.

Some models already exist, I have not invented anything, I simply share a model of visor easy to access to the creation and quick to realize so that the greatest number can help.

At the time of the donation, please make sure to disinfect it before use or to leave it aside for a few days so that no virus is present when you wear it.

EDIT: I invite you to get closer to my new model which allows to save a very important time of printing

https://cults3d.com/en/3d-model/various/visiere-extra-light

3D printing settings

print in 0.3 without support

3 contours, upper and lower layer 3

filling 15%.

  • 3D file format: STL
  • Last update: 2020/03/31 at 13:09
  • Publication date: 2020/03/21 at 15:14
