USB Xylophone

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.2k views
  • 4 likes
  • 12 downloads

3D model description

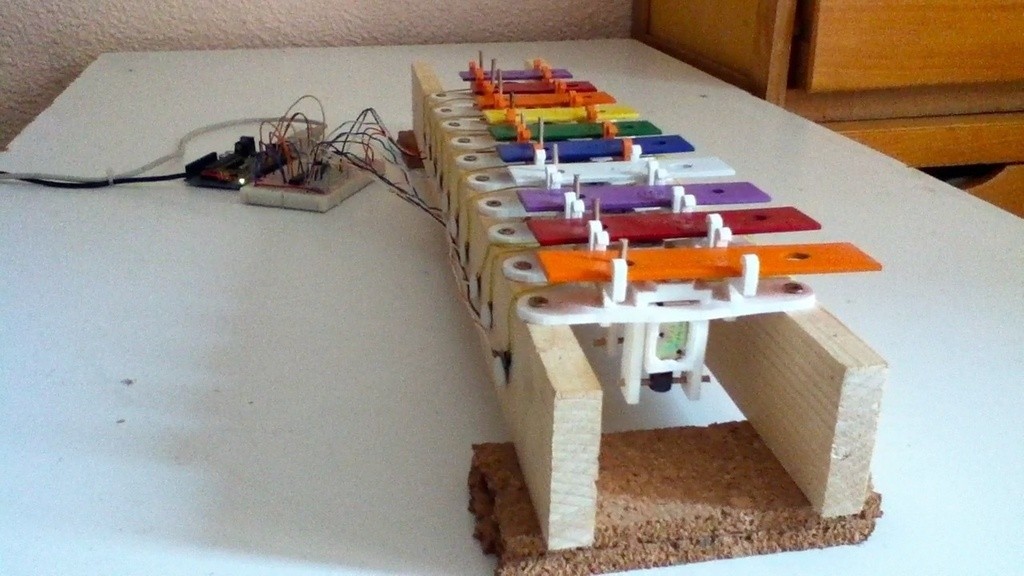

Old metallophone (toy) rejuvenated by Arduino, some electromagnets and printed parts :

https://vimeo.com/46571145

Detail :

https://vimeo.com/47593529



Can be played with mouse, keyboard and midi files,

samples included in software pack:

Georges Brassens - Ballade des dames du temps jadis

Agnes Obel - Riverside

Yann Tiersen - Comptine d'un autre été

Julian Nott - Wallace and Gromit

Michael Giacchino - Married Life (Pixar Up soundtrack)


3D printing settings

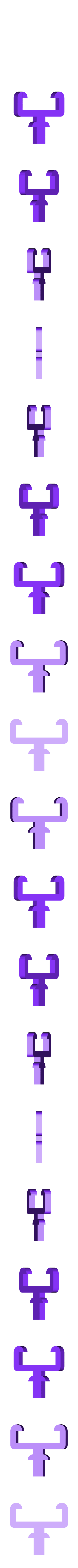

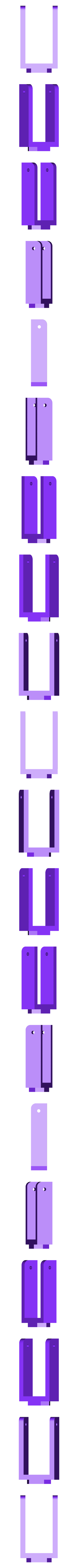

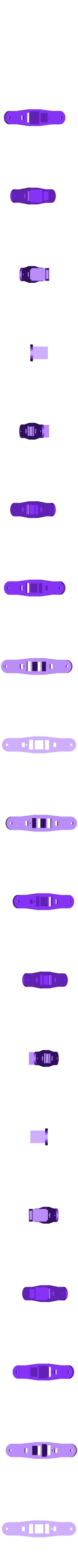

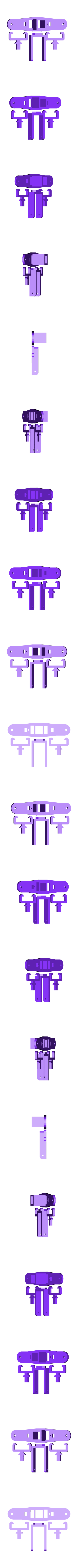

Print as many holders as you have bars.

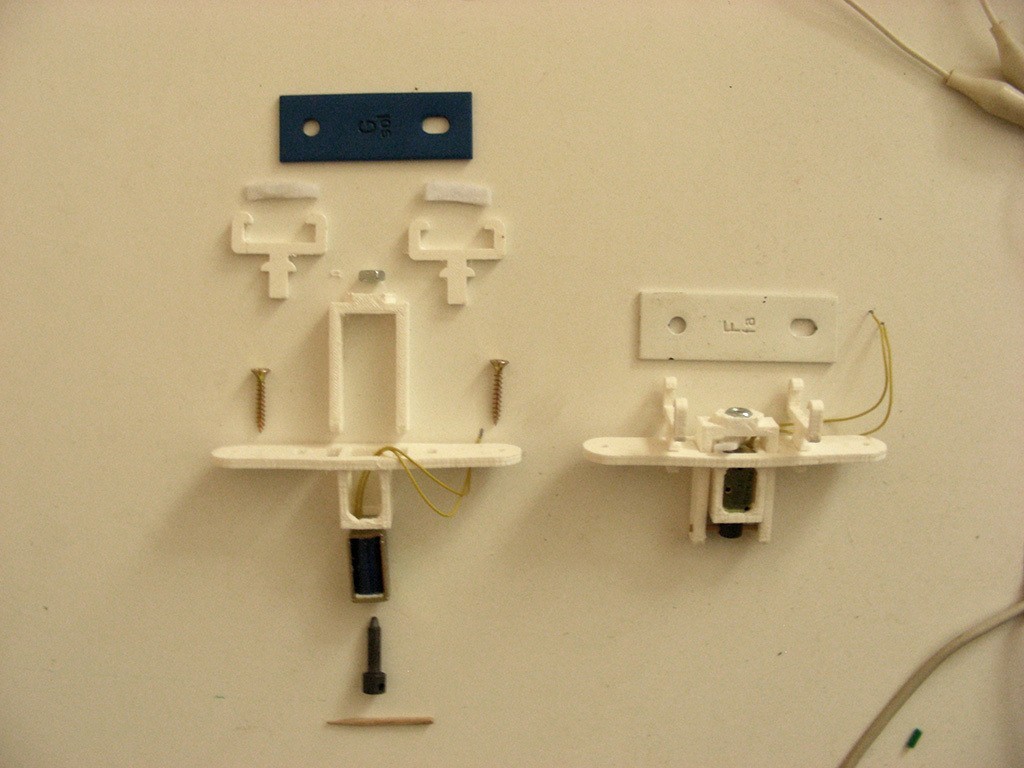

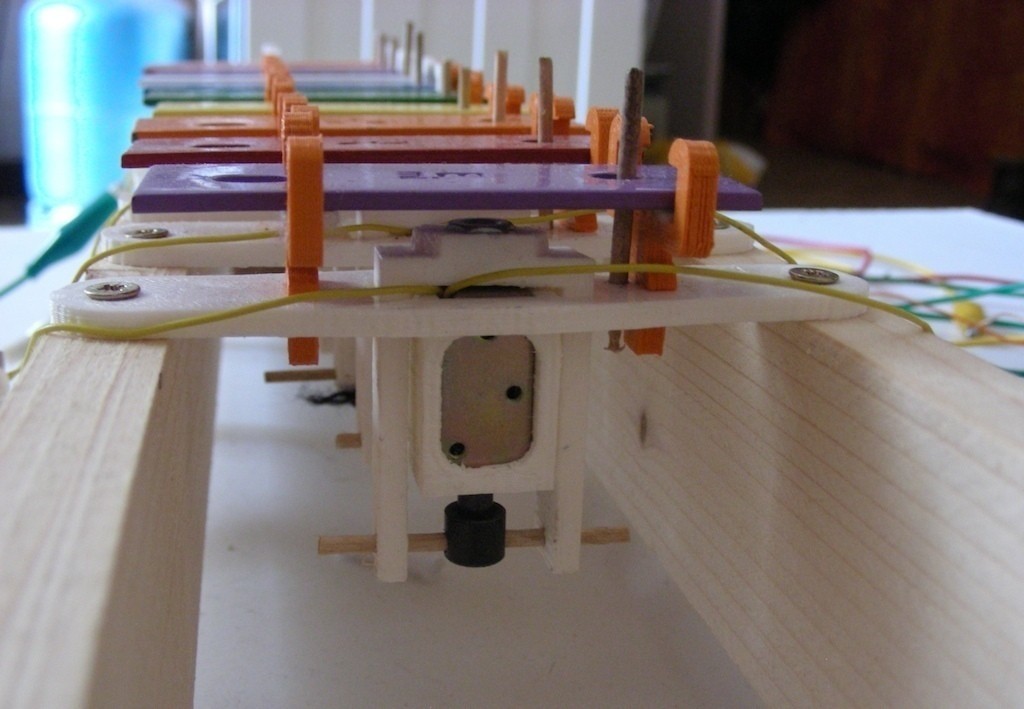

See pictures for assembly.

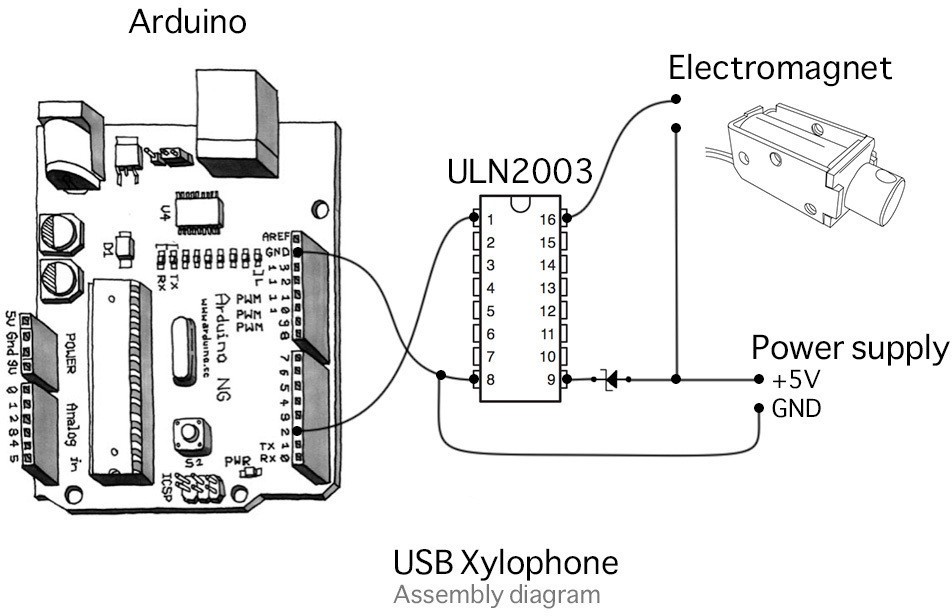

ULN2003 on the breadboard (see assembly diagram)

Upload .pde file to your Arduino board.

Install and configure a server proxy (for communication between Arduino and Flash)

Serproxy and Tinkerproxy included in software pack for OS 10.5 and 10.6. Equivalent available for all platform on http://arduino.cc

In your proxy server config file find the line containing "serial_device1" and give the identifier of your board

Launch server proxy.

Open index.html with your browser, or Arduino_xylobot.swf with standalone Flash Player (add trusted location when prompted).

Can be used as:

- ringtone

- doorbell

- alarm clock

- memory game

- educational toy

- ...

A last one, Riverside (Agnes Obel) :

https://vimeo.com/47593782

  • 3D file format: STL and ZIP
