3D model description
Here is a model of jig for squid fishing. This model launches far, doesn't get tangled in the line and its ballast is adjustable.

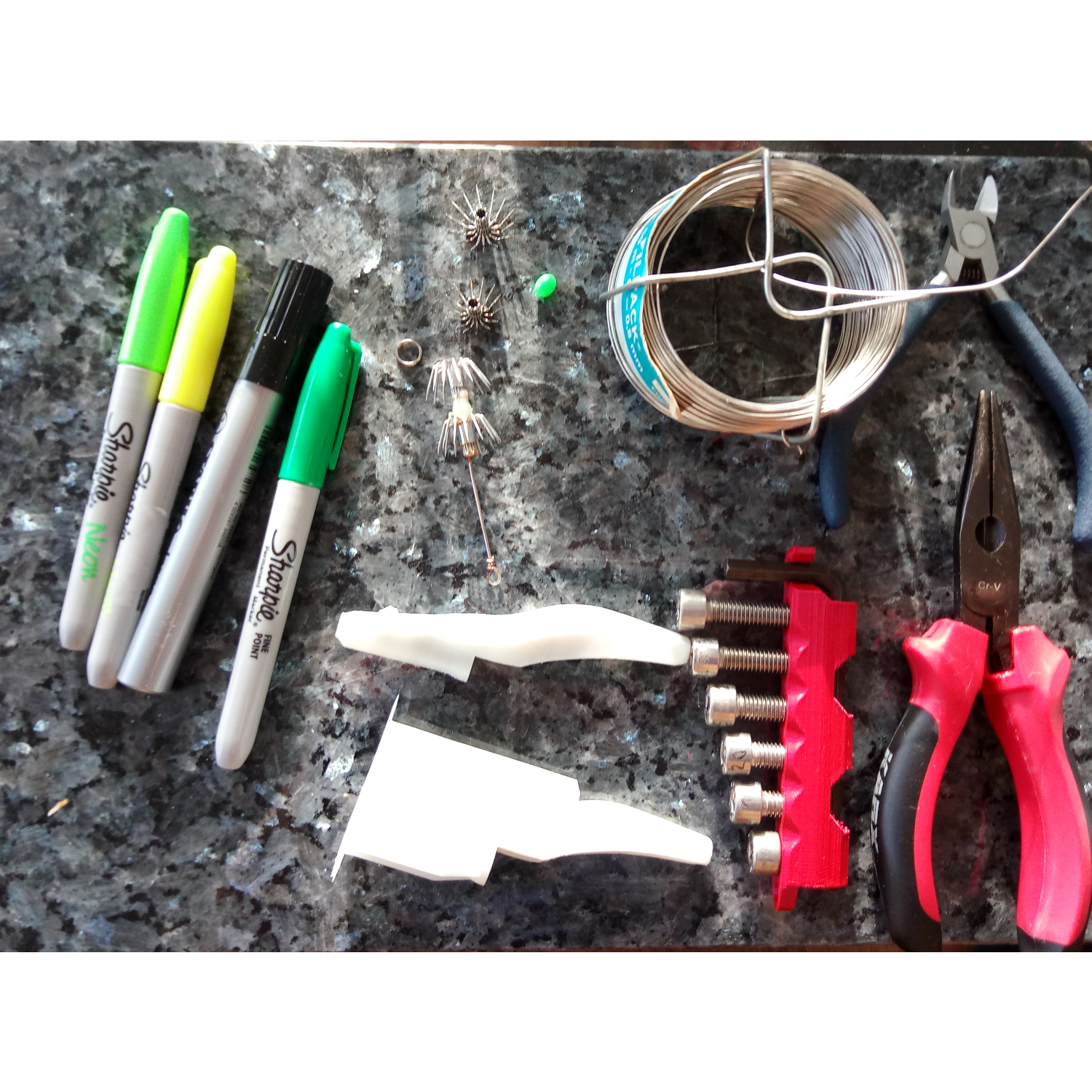

You will need to connect the baskets to the broken front ring with a stainless steel wire (0.8 mm) passing through the center hole.
For listing I use "Flashmer" baskets all mounted but if you can't find any you have to use Egi 4 sizes.
The ballast consists of a CHC M8 screw, the length of which must be between 10 mm and 35 mm. The ballast can therefore be changed according to metrological conditions. I also created a support for the ballast screws and the hexagonal key.
The decoration is made with permanent coloured felts (especially fluorescent and metallic).
3D printing settings
0.15 mm layer
0.4 mm nozzle 3 wall thicknesses
put a border ( 8 mm)
filling 25 % min.
If necessary, finish the tapping by passing an M8 screw over it and making one or two grooves along the length of the thread.
3D printer file information
- Design number: 103985
3D design format: STL Folder details Close
- porte vis M8 v3.STL
- turlute M8 - V14-2.STL
- Publication date: 2020-02-02 at 01:33
CC BY-NC-SA - Attribution - Non commercial - Share alike
