Triple Tail Grubs Soft Plastic Fishing Mold

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 1.4k views
  • 2 likes
  • 6 downloads

3D model description

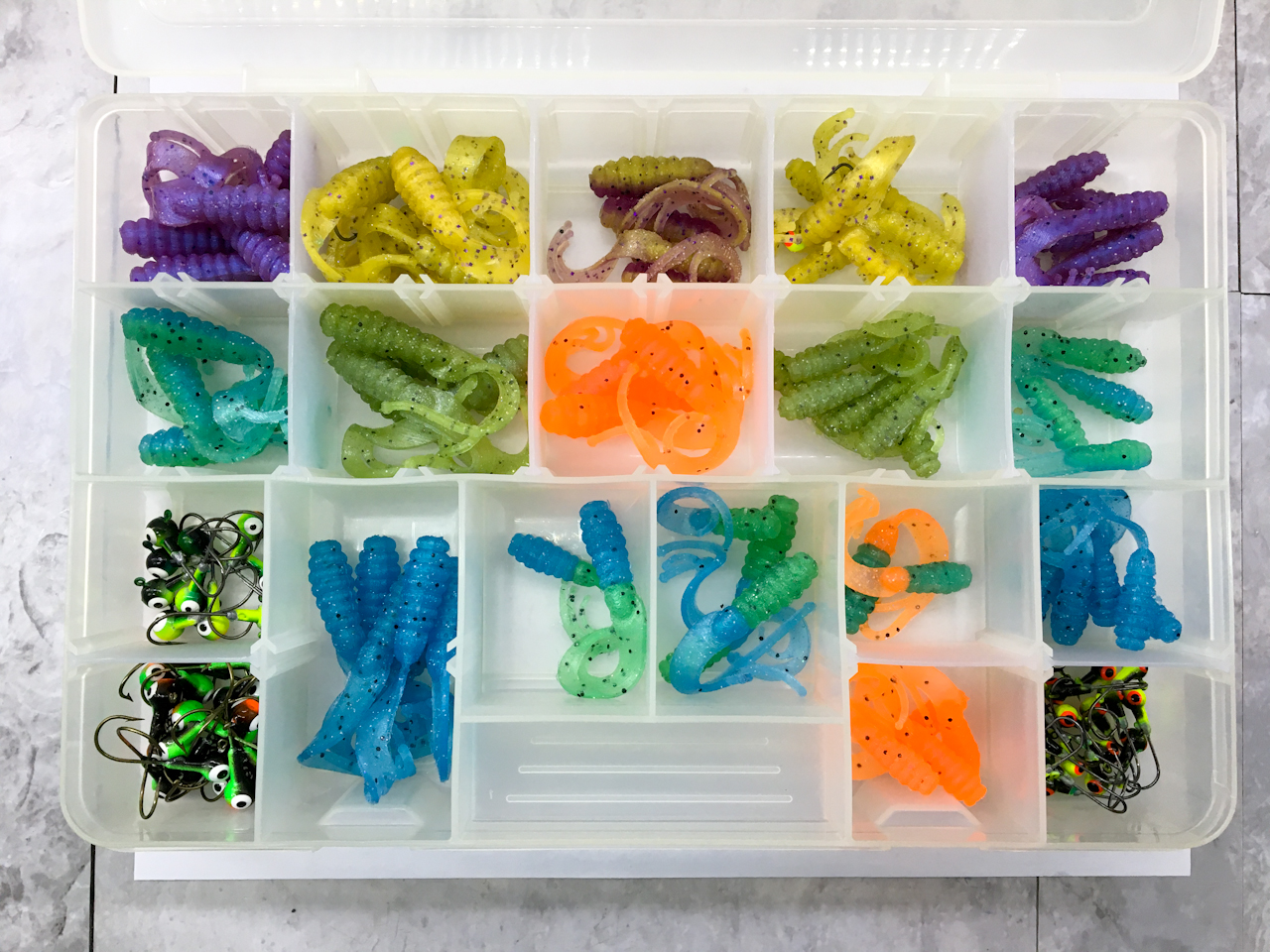

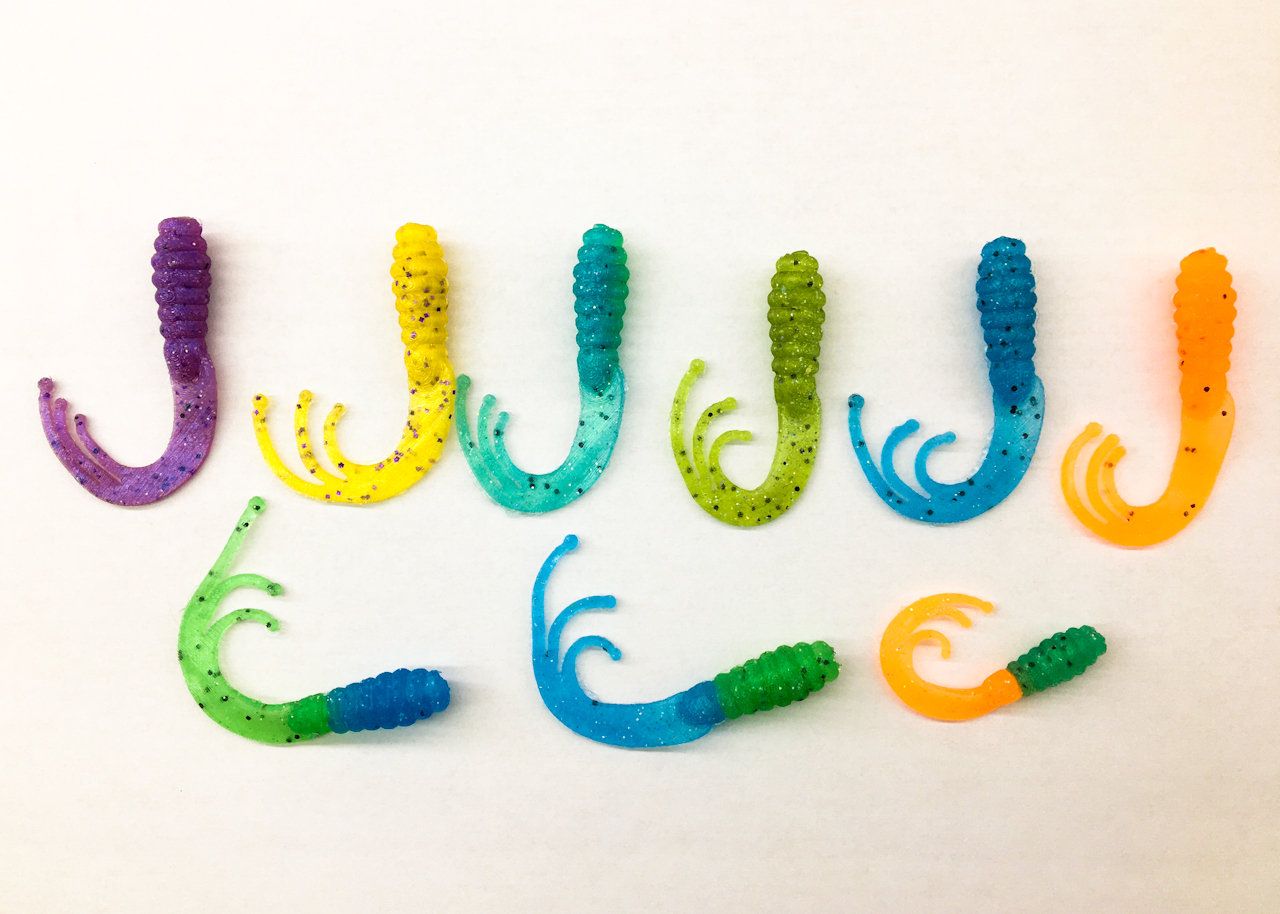

This is a mold to make two different sized triple tail grubs for fishing. The lures are designed to match 1/16 and 1/8oz jig heads and the finished baits if stretched out are about 3 and 3.5 inches long respectively.

There are two different version of the mold included.
The 4 Cavity mold requires 6.5" x 2.5" print area for each half.

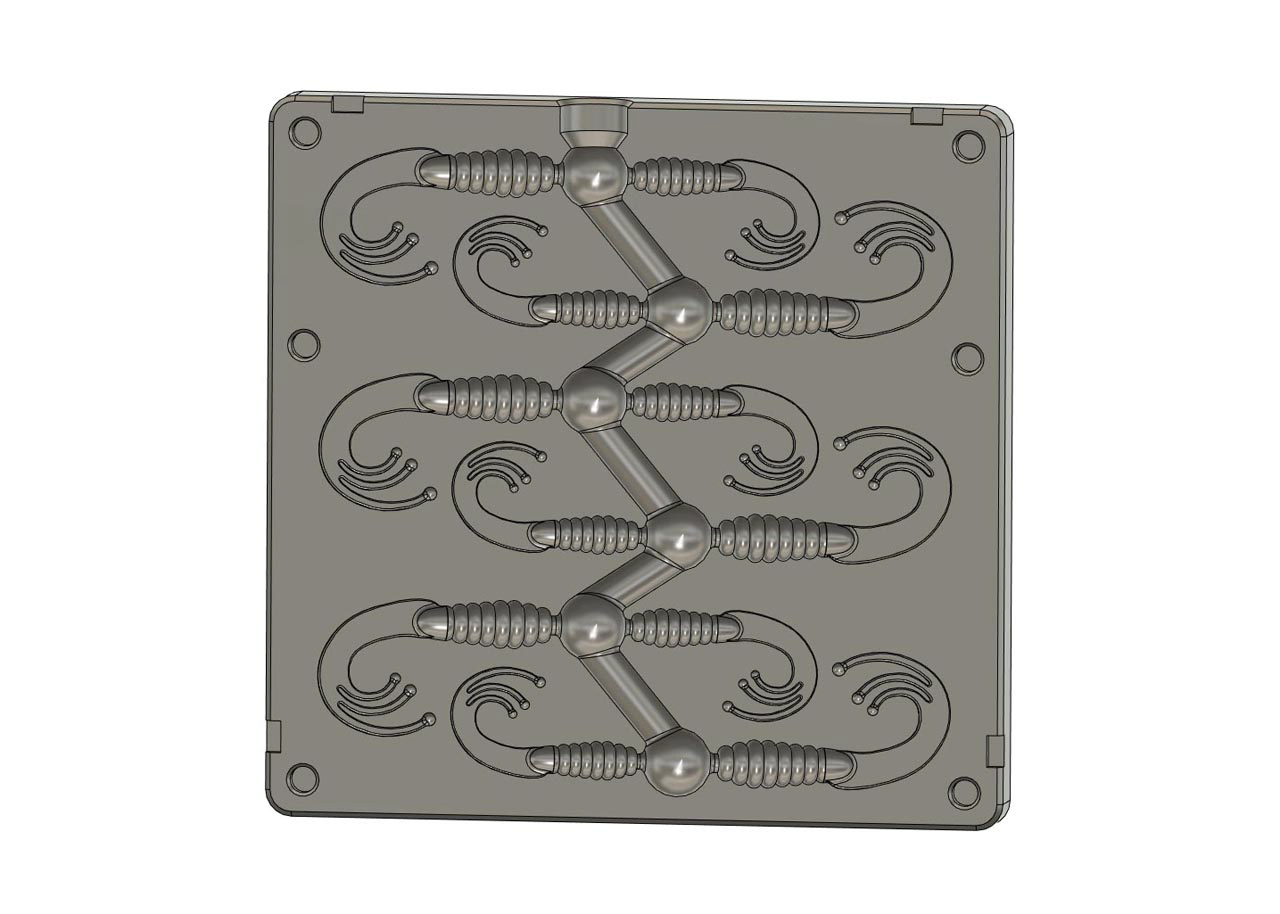

The 12 Cavity mold requires 7.0" x 6.75" print area for each half.

More info and pictures can be found at https://www.theneverendingprojectslist.com/fishingprojects/triple-tip-grubs/

These are 3D printed plastic molds so you have to be careful with your temps and injection pressure. I printed this mold in PLA+ and try to inject my Plastisol at or around 300°. (I use Dead On Plastix's brand of Plastisol) You also need to use very little pressure on the injector when shooting these types of mold. If you use a lot of pressure when injecting a 3D printed Mold... you can/will blow through the mold. Start light and work up with the pressure if you do not get a full injection or you have bubbles. It's better to have a misformed bait or two than ruin the mold.

The Video link below shows How to Inject a 3D Printed Mold, I'd recommend watching before purchasing my molds.

https://www.youtube.com/watch?v=_FeUszxAK8s

NOTICE - My files and designs are all Copyrighted © and are exclusively for private and personal use. Even if you purchased these files that Copyright means you are NOT allowed to sell the model or any derivative of the model for economic or financial gain. For example, you cannot sell the digital model, a derivative or adaptation of that model, nor can you sell prints of the model. I do however grant permission for persons who purchase any soft bait molds to sell the rubber soft baits you make with one of my printed soft bait molds.... but again you CAN NOT sell the actual models of the baits.


3D printing settings

I print these molds in PLA+ with the following settings
(You'll have to experiment with what material and settings work best for you.)

Filament = eSUN PLA+ Temps = 215/60
Layer Height = .20
Top Solid Layers = 8
Bottom Solid Layers = 3
Outlines/Perimeter Shells = 5
Infill = %25

3D printer file information

  • 3D design format: STL Folder details Close
    • Dual Triple Tail Grubs 12 Cav Left.stl
    • Dual Triple Tail Grubs 12 Cav Right.stl
    • Dual Triple Tail Grubs 4 Cav Left.stl
    • Dual Triple Tail Grubs 4 Cav Right.stl

    Learn more about the formats

  • Publication date: 2021/07/02 at 19:51

Copyright

©

Tags

Creator

Hi... I'm Steve Thone and I make things.... these are some of those projects.

Visit my website to see more of my work. https://www.theneverendingprojectslist.com

Issue with this design? Report a problem

Best sellers of the category Various


Add a comment

One comment

Hello, what is the approximate amount needed in milliliters to fill the 12-cavity mold or what is the capacity of the injector that you recommend? Thank you

I did the calculation in Fusion 360 and the amount need to fill the mold looks to be under 2oz so a 4-6 oz injector should work fine. I'll double check this and try shooting it with my 4oz Injector and make sure it's enough and get back to you later.
