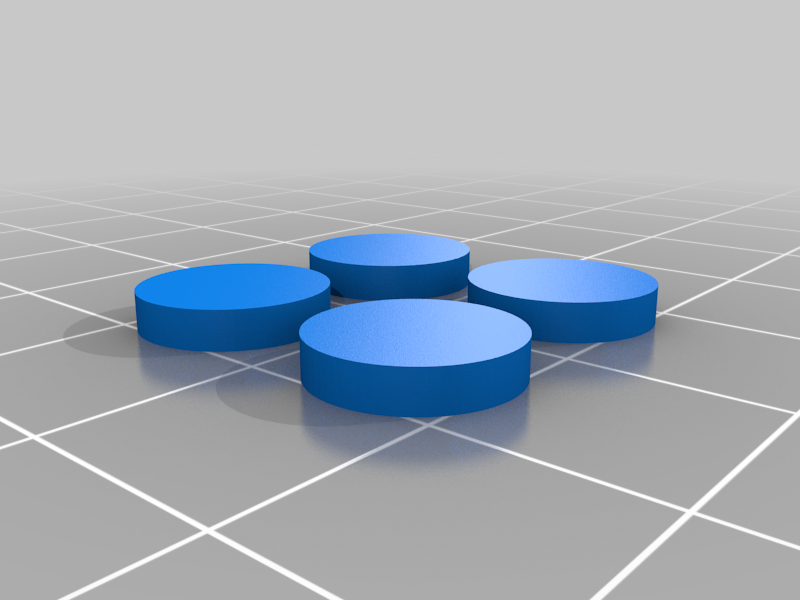

  • fretboard_socket.stl
  • neck.stl
  • pickguard.stl
  • pulleys.stl
  • saddle.stl
  • spacers.stl

Learn more about the formats
henriquenatalino

henriquenatalino

3D printer file info

3D model description

An attempt to create a travel ukulele
I tried to make it as simple as possible using glue and only 1 screw.

The tuners I bought on Aliexpress link below:
https://pt.aliexpress.com/item/1005001570809164.html

The screw I used was an M5x80mm with a nut to hold the pulleys.

My printer is 225x225mm and I was able to print on the edge of the bed. So I believe that any printer of that size will also be able to print.

Important!
Due to the high tension of the strings it is important to print the neck and body with a high infill and at least 6 walls (if you can put 8), otherwise the pressure will warp the ukulele

In the region of the tuners I recommend doing a 100% filling using a modifier in the slicer, I attached an image of PrusaSlicer as an example.

Please visit my profile to see my other models:
https://www.thingiverse.com/hmn3d/designs

Share my creations is the way I found to contribute and thank the help I've always had from the 3D printing community.

I'll try to keep the posts consistent, but if you'd like to help me out with a tip, please use the link below. Thanks!
