Coil spool valve

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1k views
  • 6 likes
  • 85 downloads

3D model description

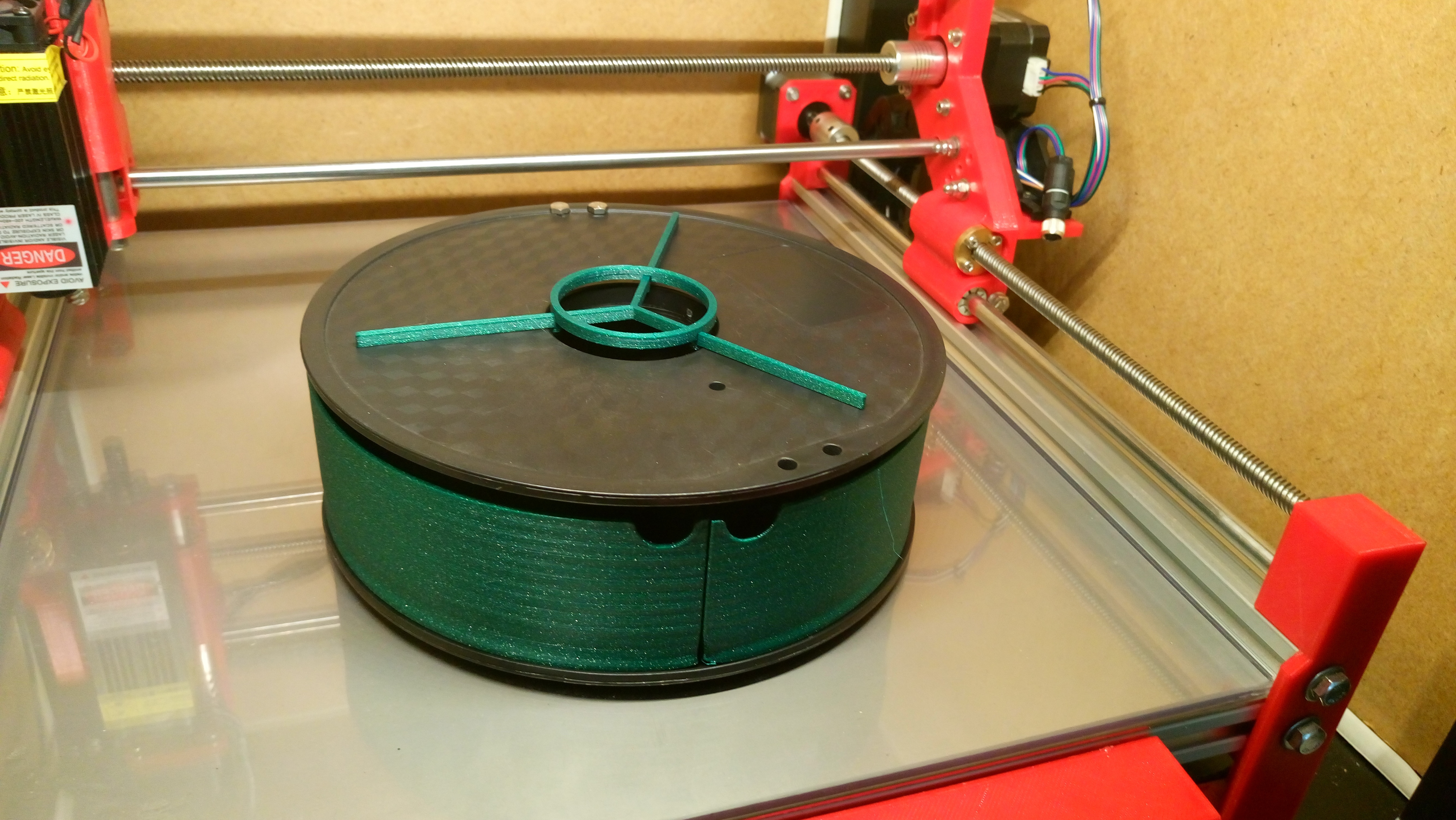

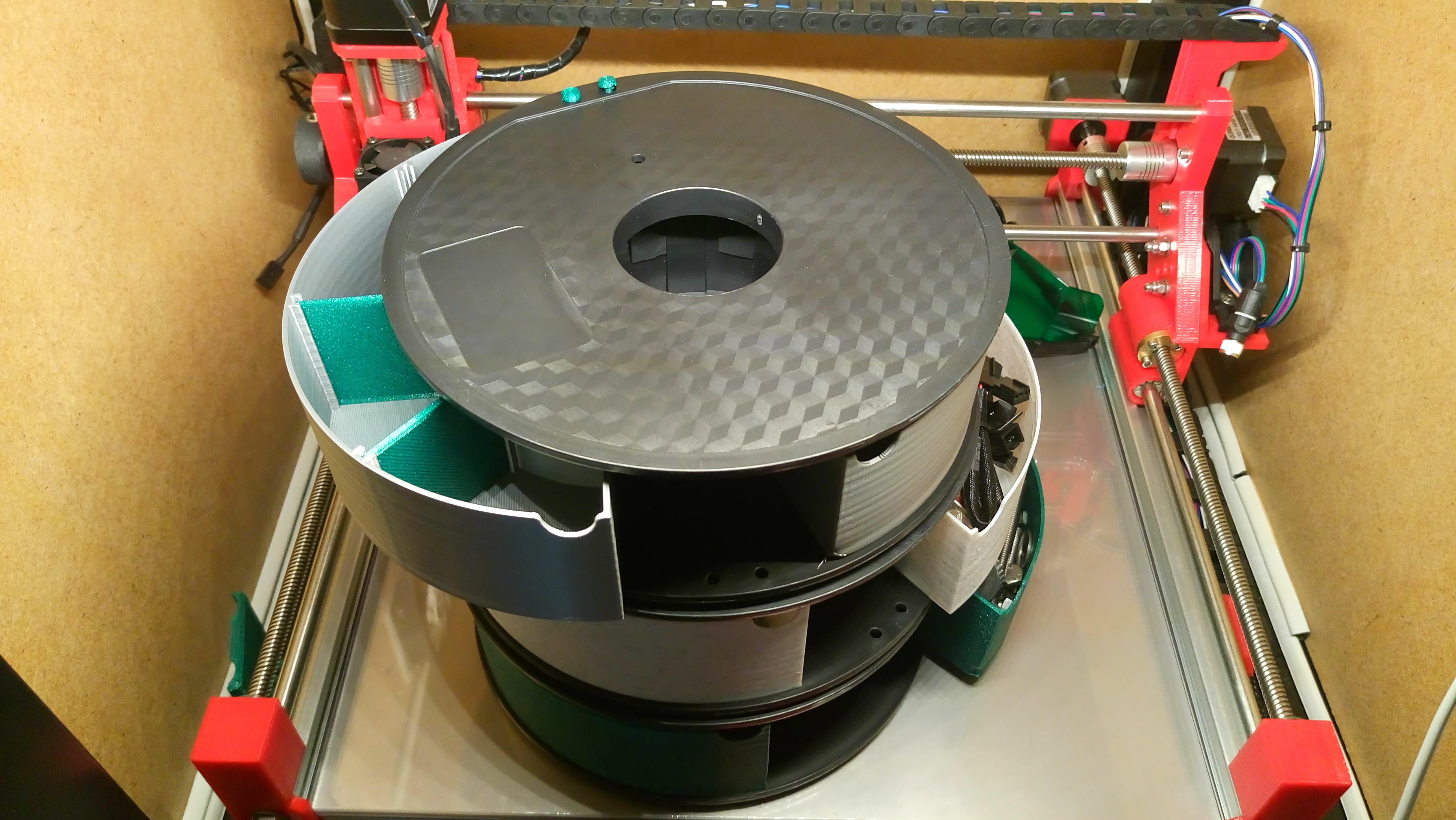

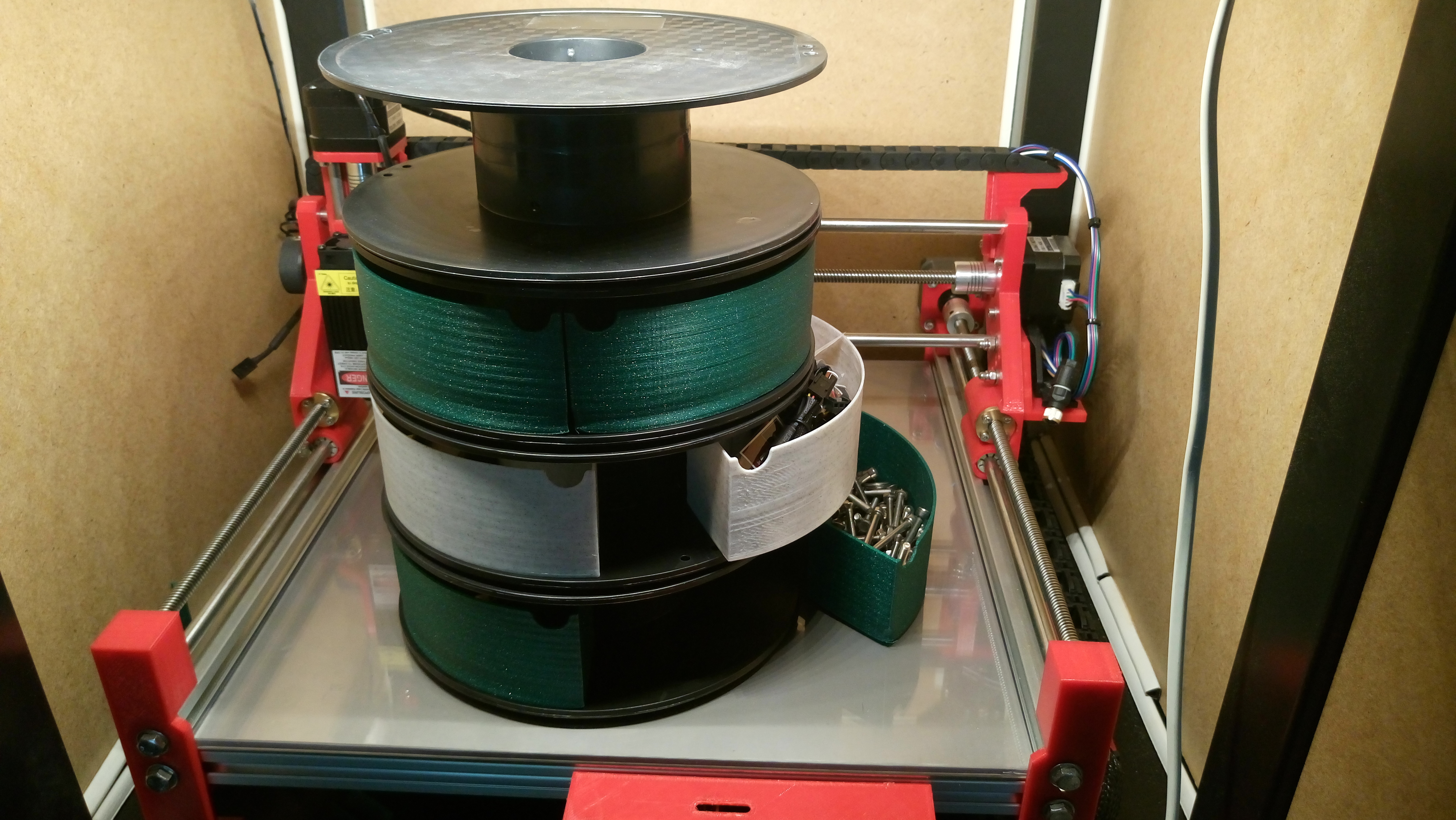

Not having found a drawer for wholesale3D reels, here they are. It seems to be a standard reel format and the ribs are a bit lower.

The design was made with the constraint of using as little filament as possible, so it can be a little flexible, for the little it's used, I find it more acceptable than using a coil to recycle its support.

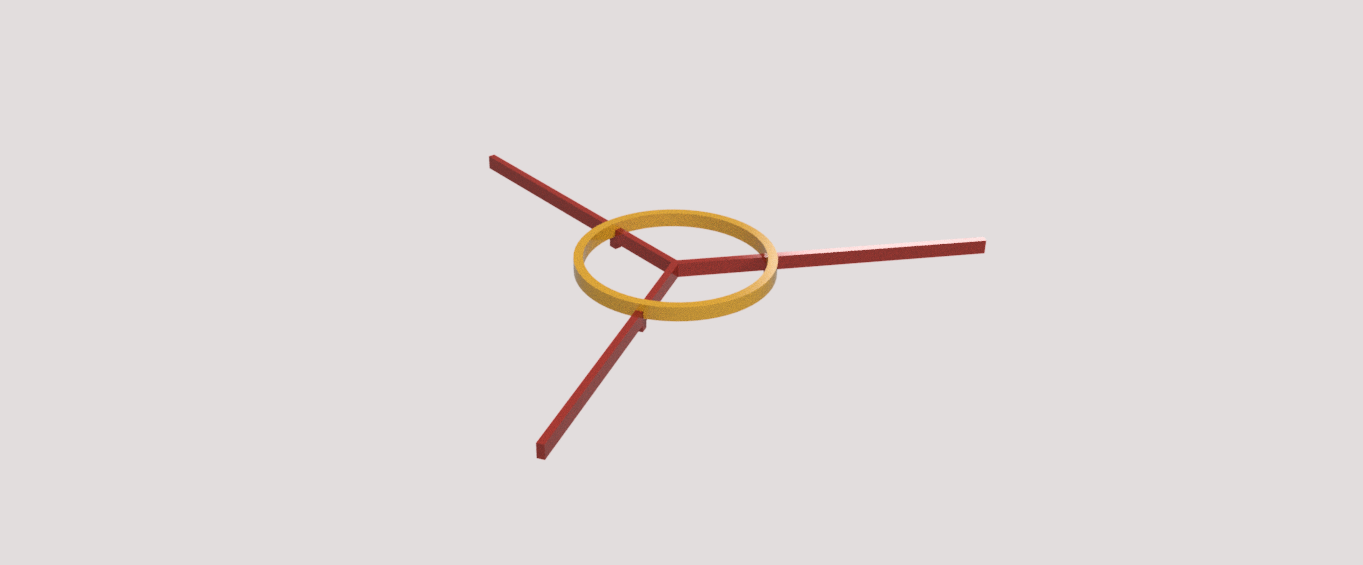

I added a 2-part spacer system to compensate the height of the screw heads and center the coils in relation to each other.

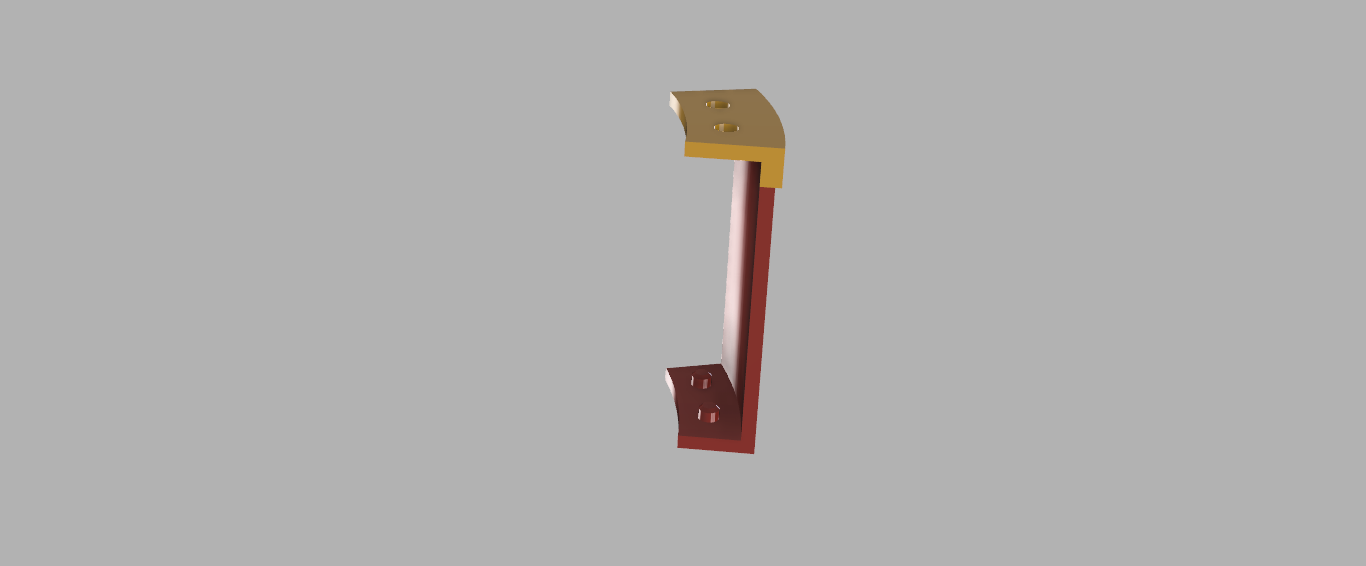

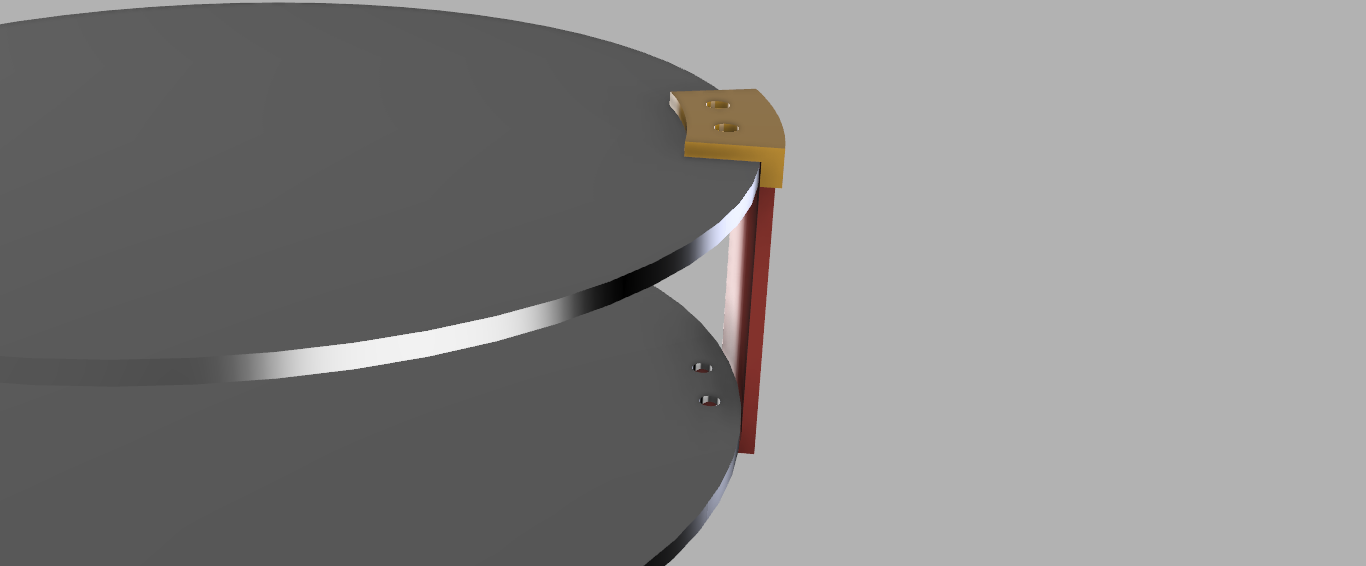

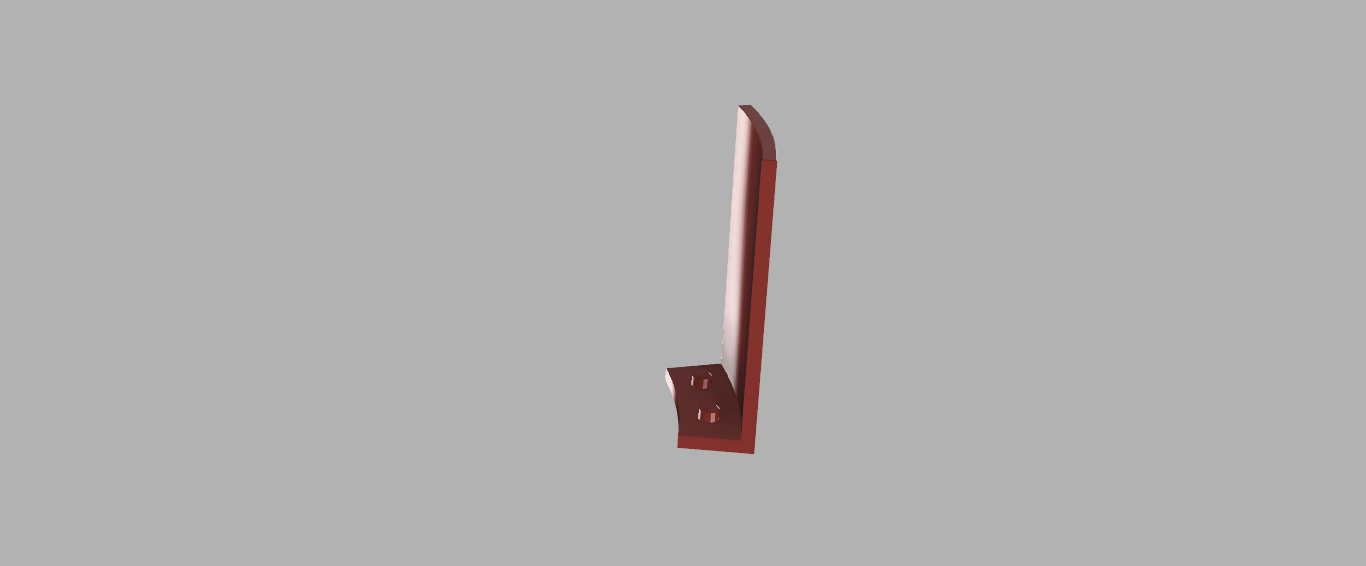

These coils must be counter drilled for a better hold, precision is not the most important and a template is also provided.

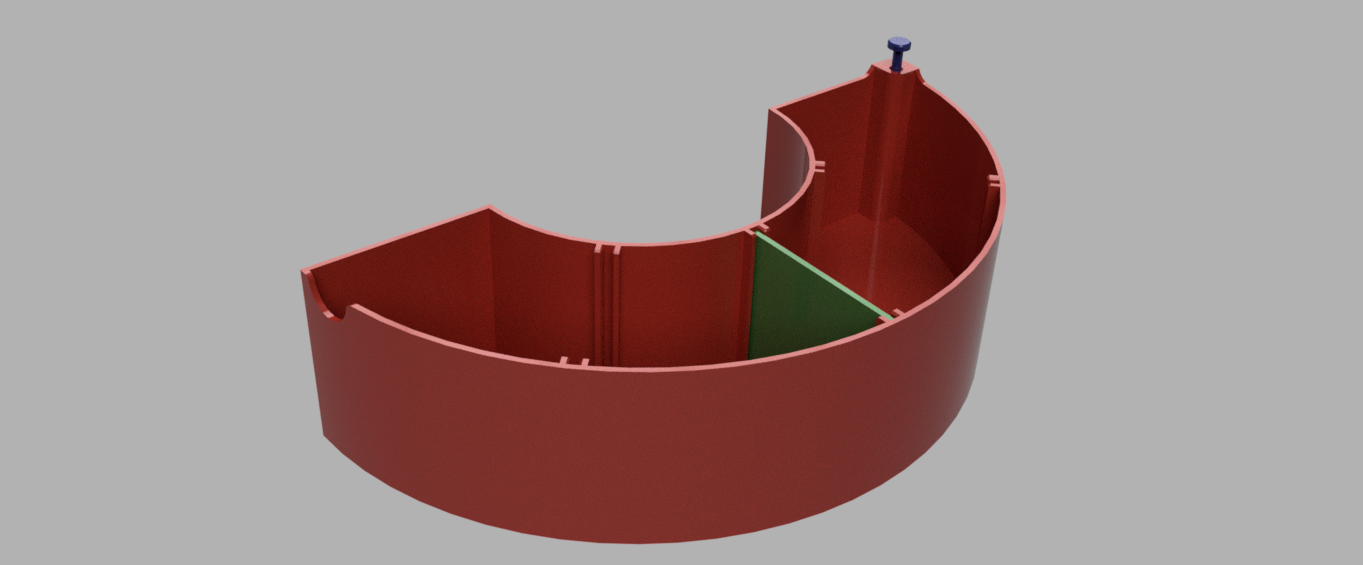

The drawers are therefore "theoretically" M4 tapped, the screws can enter by forcing but it is still better to tap the front drawer.

There are now counters to print (slowly) to replace these screws .

F3d provided if needed to change dimensions or other.

drawer side height 50 -> D. int. 94 - ext. 198 - ht. 50 (53 for the pivot part)

Coil side height 50 -> inner D. int . 94 - ext. 200 - ht. 63

drawer side height 33 -> D. int. 94 - ext. 198 - ht. 33

Coil side height 33 -> inner D. int . 94 - ext. 200 - ht. 43

edit 27/04/20 :

  • addition of a tracing template ( not yet tested )

  • addition of dividers in the drawers and counters to replace the screws

  • addition of the drawer ht. 33

3D printing settings

standard print settings

  • 3D file format: ZIP
  • Last update: 2021/02/18 at 18:40
  • Publication date: 2020/04/23 at 12:06
