Tiny-G Electronics Stand

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 643 views
  • 9 downloads

3D model description

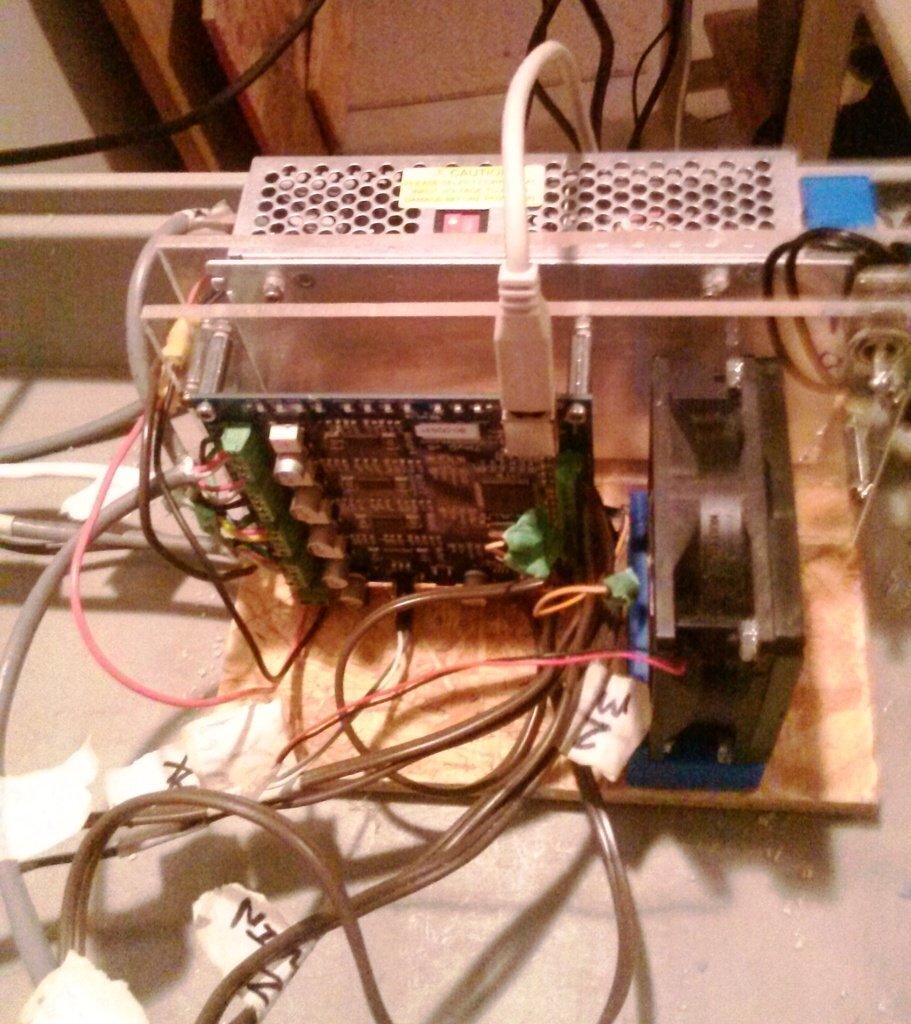

I created this stand for my TinyG electronics that's connected to my Shapeoko 2 CNC Mod I have built. It was designed in Solidworks. It's pretty straight forward. It's made of .25" Acrylic and a particle board used for house building. Ironically, a full sheet fell off a truck in front of my house and they never stopped to get it. So, it was free and now a part of my projects :+) What a Blessing !

I got everything from Ebay.

The toggle is on/off switch

On/Off Toggle Switch - Nickel Plated - 6A/120V - Steampunk Switch - 2-Wire.

The pushon-pushoff is on a cable and is my emergency STOP. J 188 Judco SWITCH SPST ON-OFF Pushbutton 6A 125VAC 5" Wire W/ Rubber Hat 511PB

I"m using a 80mmX80mm 12VDC Fan with a cover. Not bought on Ebay.

The Power Supply I'm using is

Delta PMT 24V 150W Panel Mount Power Supply Mean Well MW NES-150-24 TUV/UL/CB/CE

Screws, Nuts and came from McMaster Carr

91292A022-M3X30 SHCS,

90309A008-Spacers

90576A104-M3 Nylon Lined Locknuts

  • 3D file format: STL
  • Publication date: 2019/04/25 at 17:30
