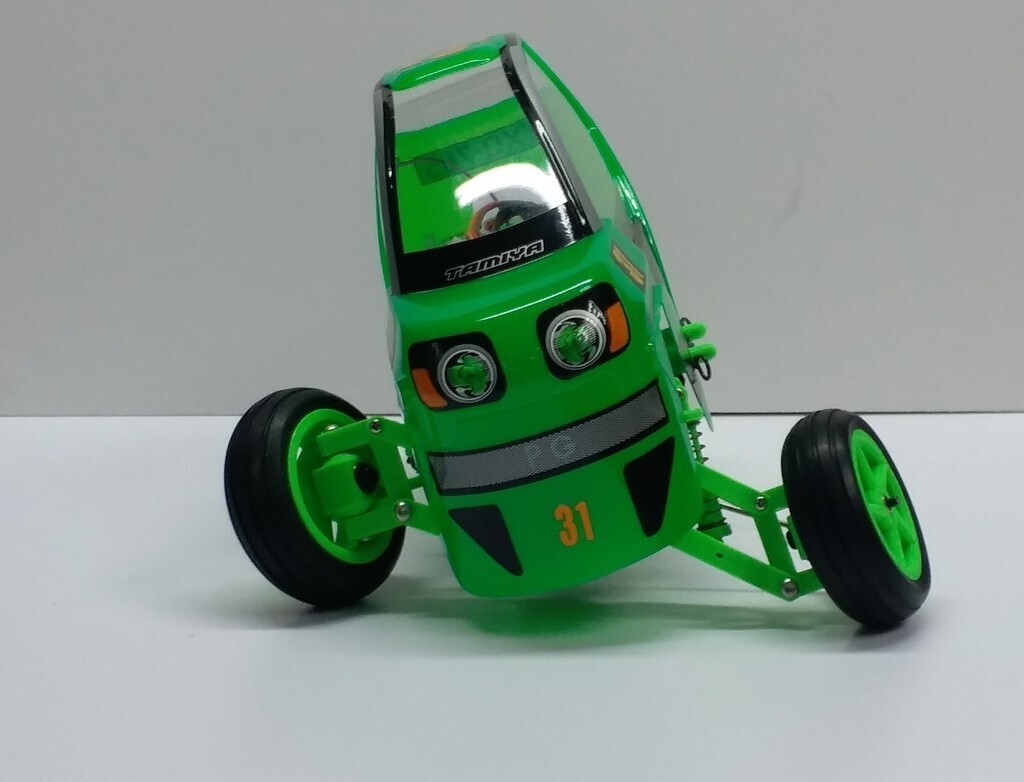

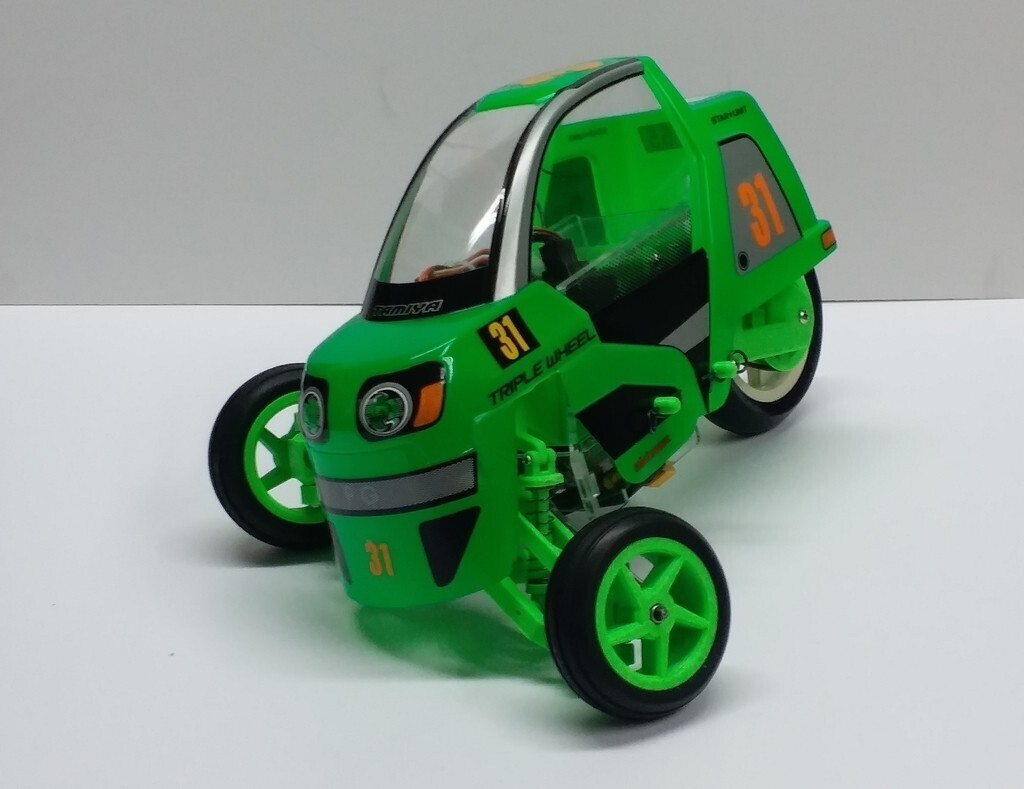

Tilting reverse trike (fully printable)

3D model description

All the parts are print with PLA.

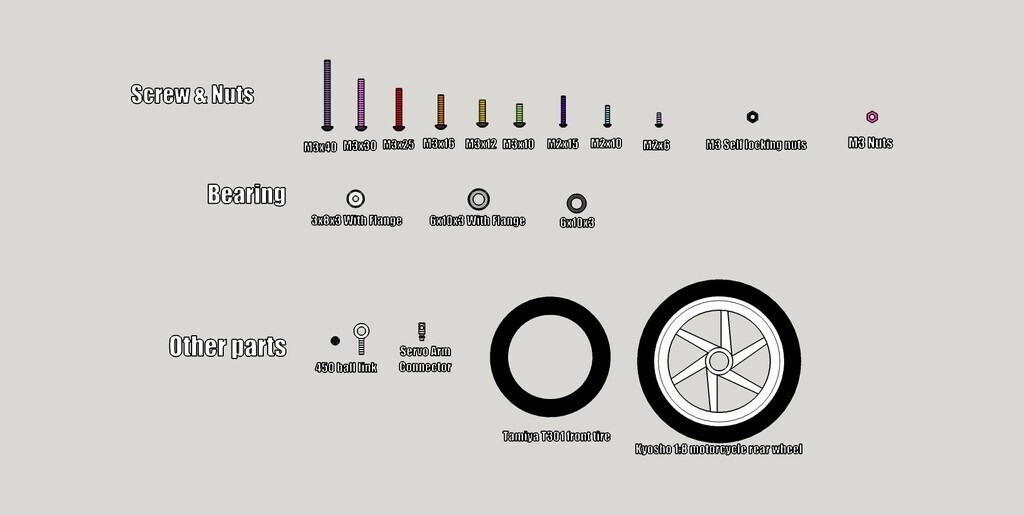

Other parts :

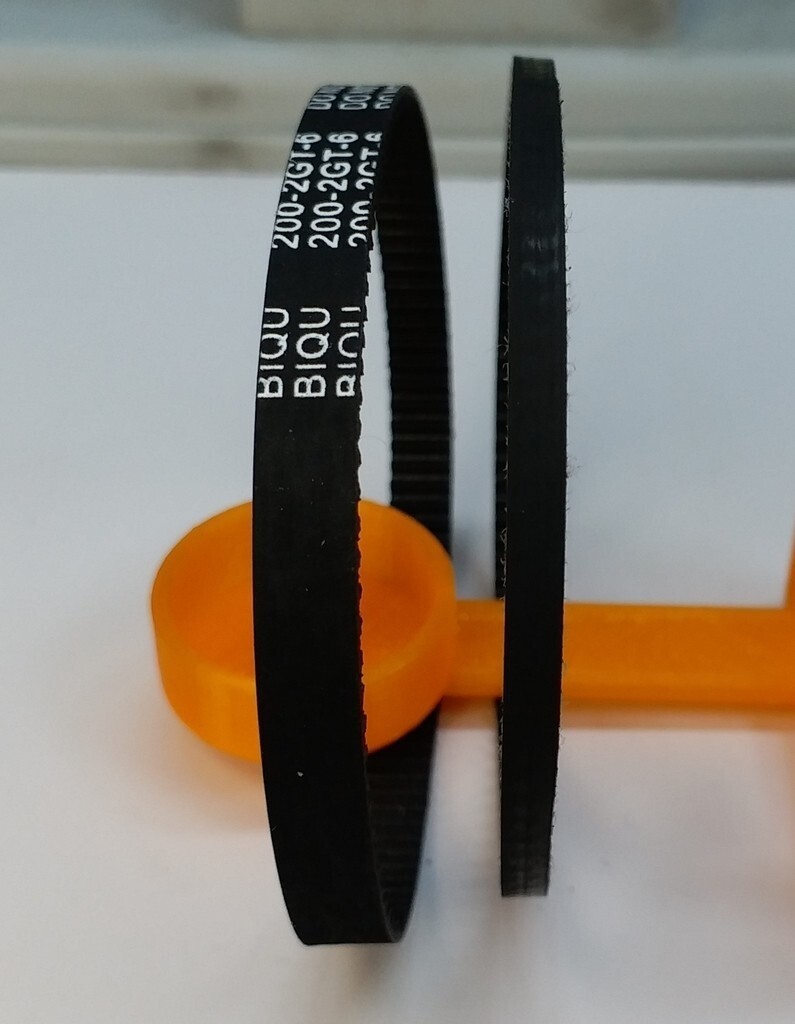

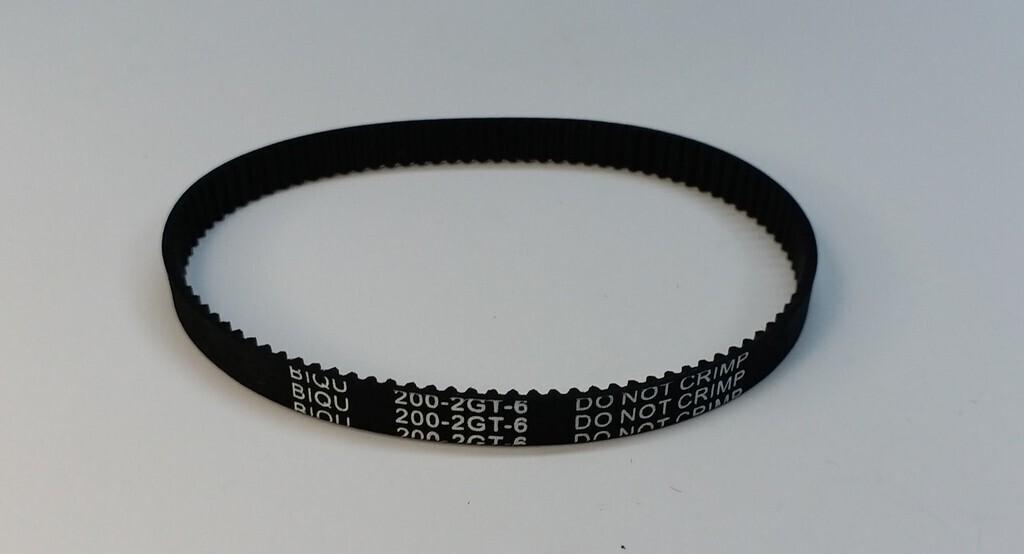

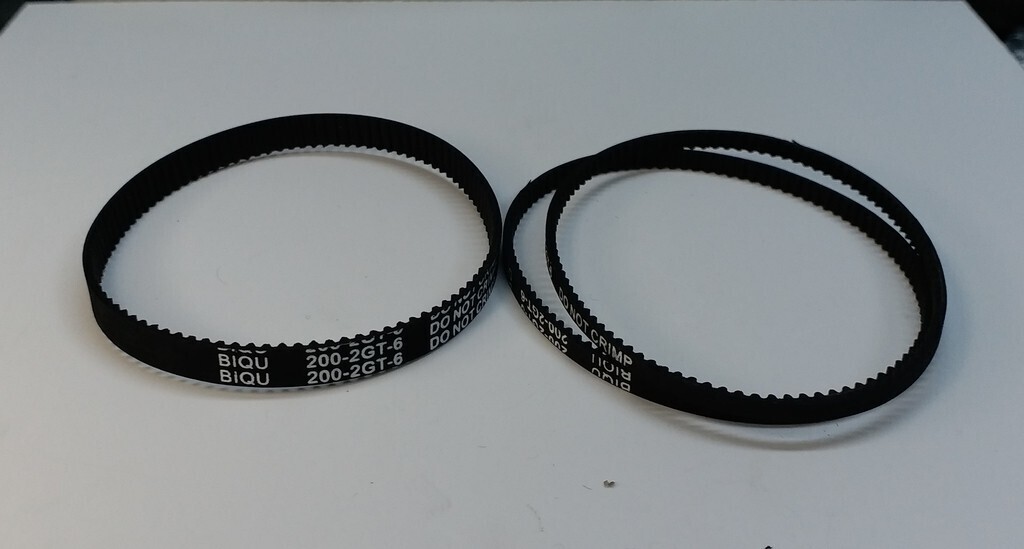

Drive belt (GT2 6mm Closed Belt 200mm, cut it to half.) x1

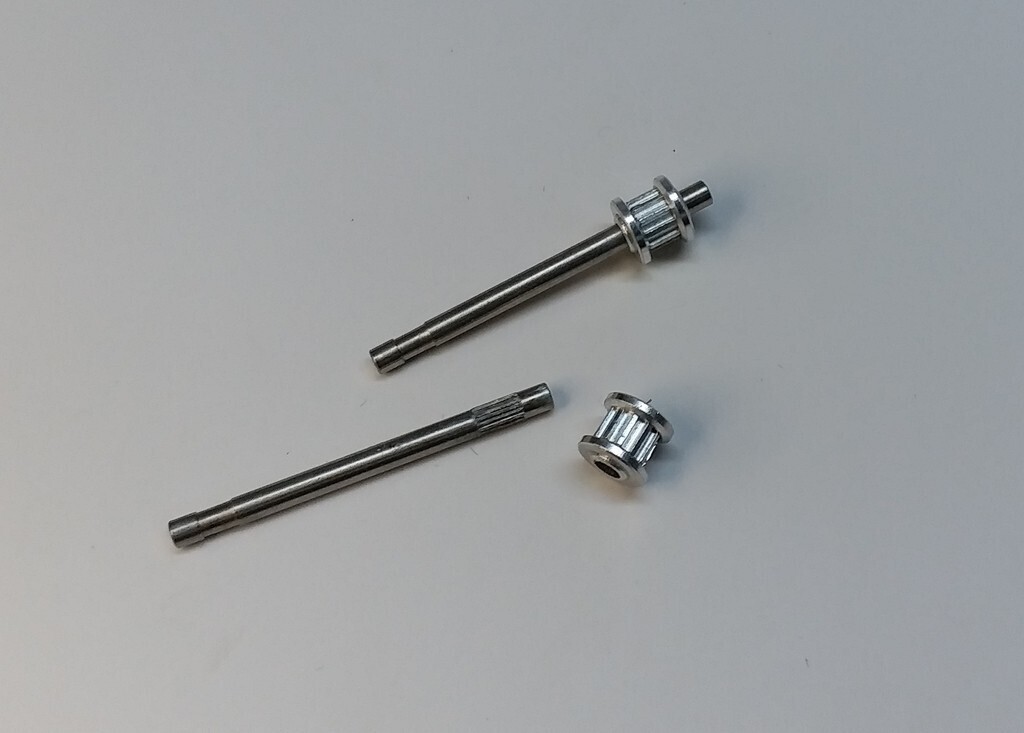

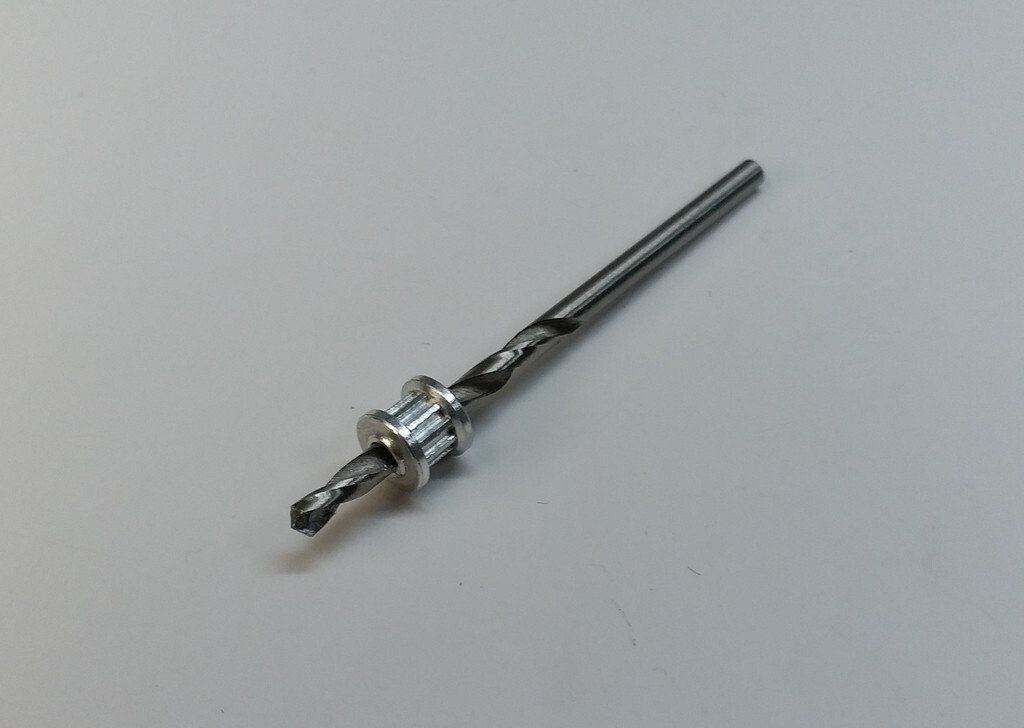

11 teeth GT2 Gear (modify with a 450 RC Heli tail drive gear shaft) x1

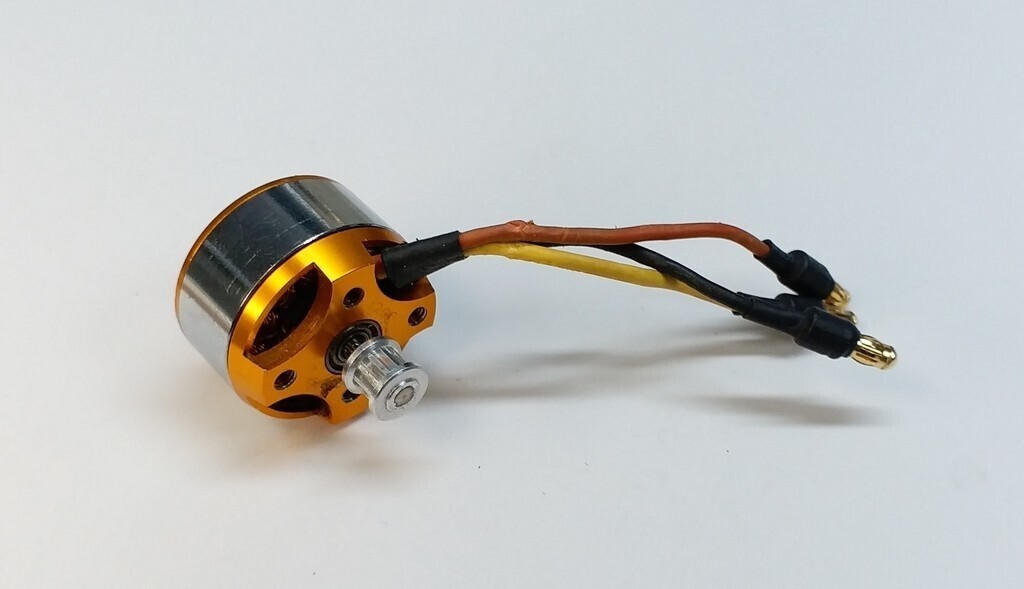

XXD 2208 1400KV or 1800KV Brushless motor x1
9g Metal gear servo x1
12g servo x1
Tamiya t3-01 front tyres x2
kyosho 1:8 motorcycle rear wheel x1
g17 slide spring (cut to half for front & rear suspension) x2
450 heli ball joint x4
450 heli ball link x4
Brushless motor ESC x1
RC control (three channel ) x1
Bearing 3x8x3 with flange x5
Bearing 6x10x3 with flange x2
Bearing 6x10x3 x1
3.5mm servo arm connector x1
3mm screw (40,30,25,16,12,10mm)
2mm screw (10,6mm )
M3 self locking nuts x2

Option :

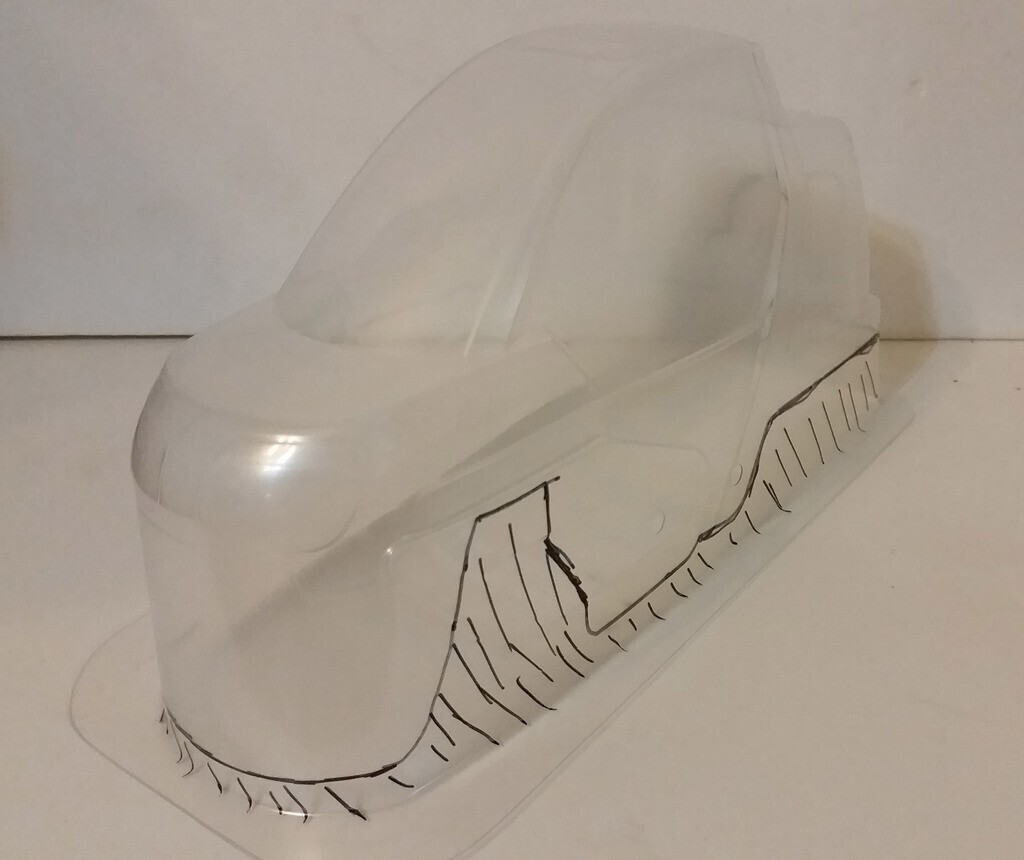

Tamiya T3-01 body shell x1

Test run video : https://youtu.be/n5-H3IVRitI

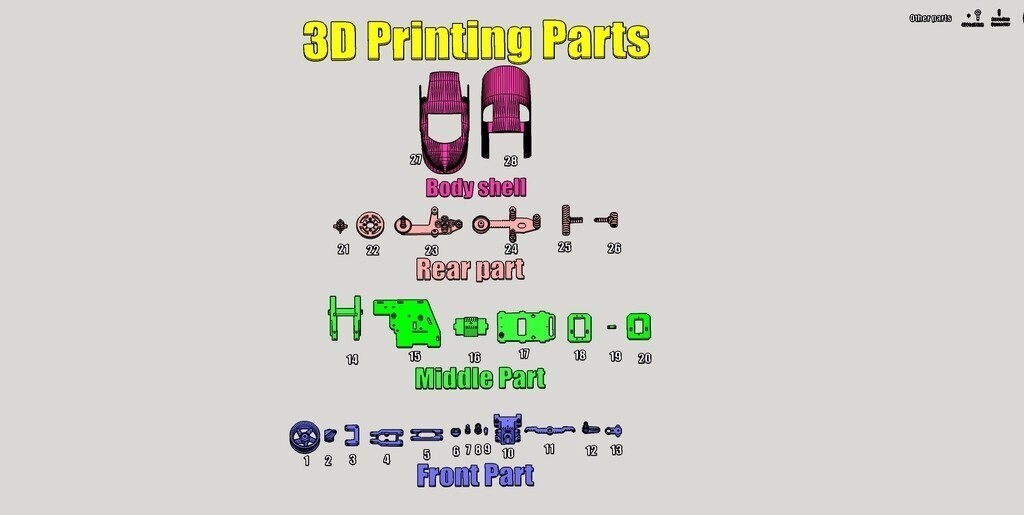

For parts (1,2,3,4,5,15) Flip to print the other side.

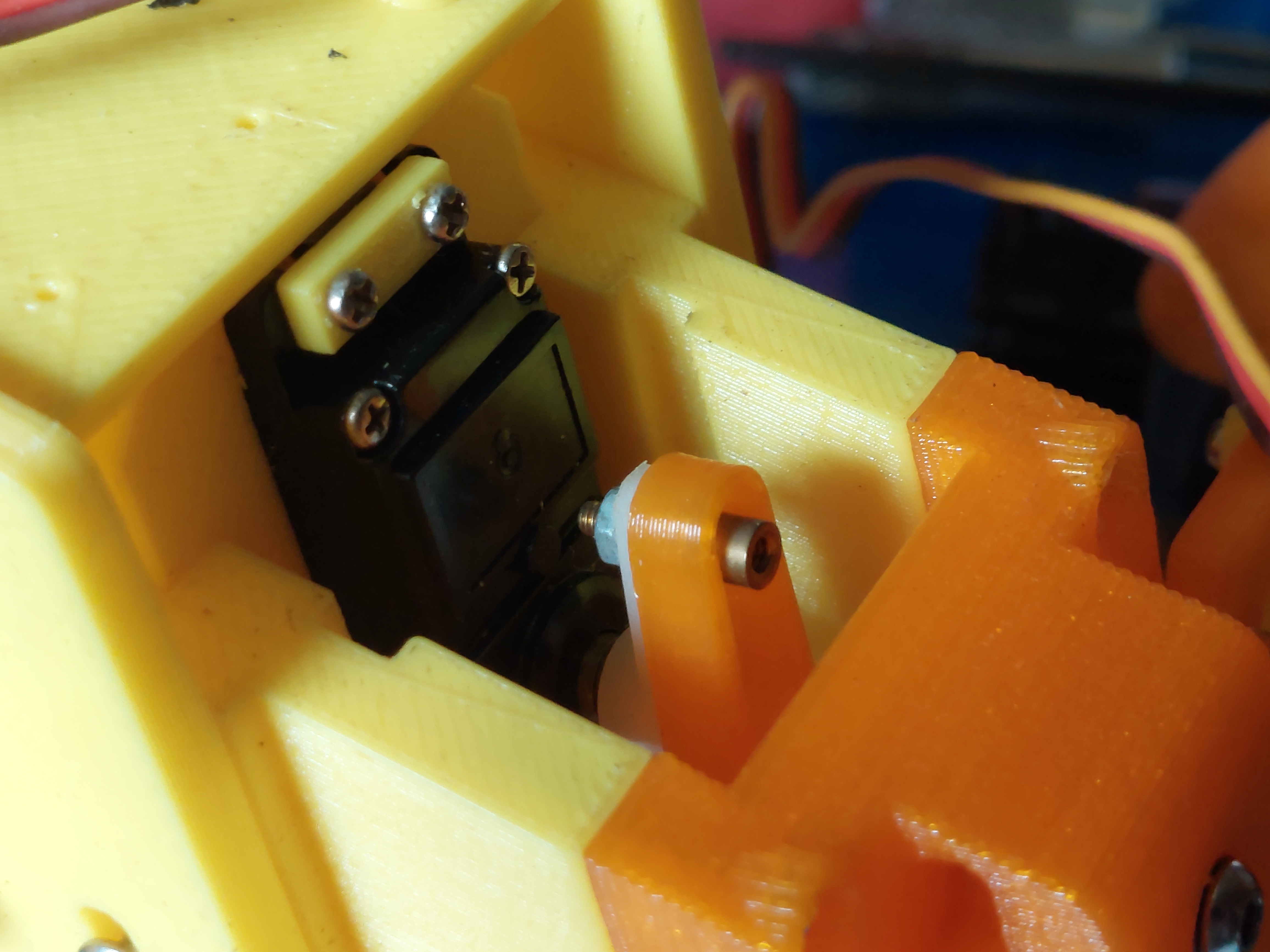

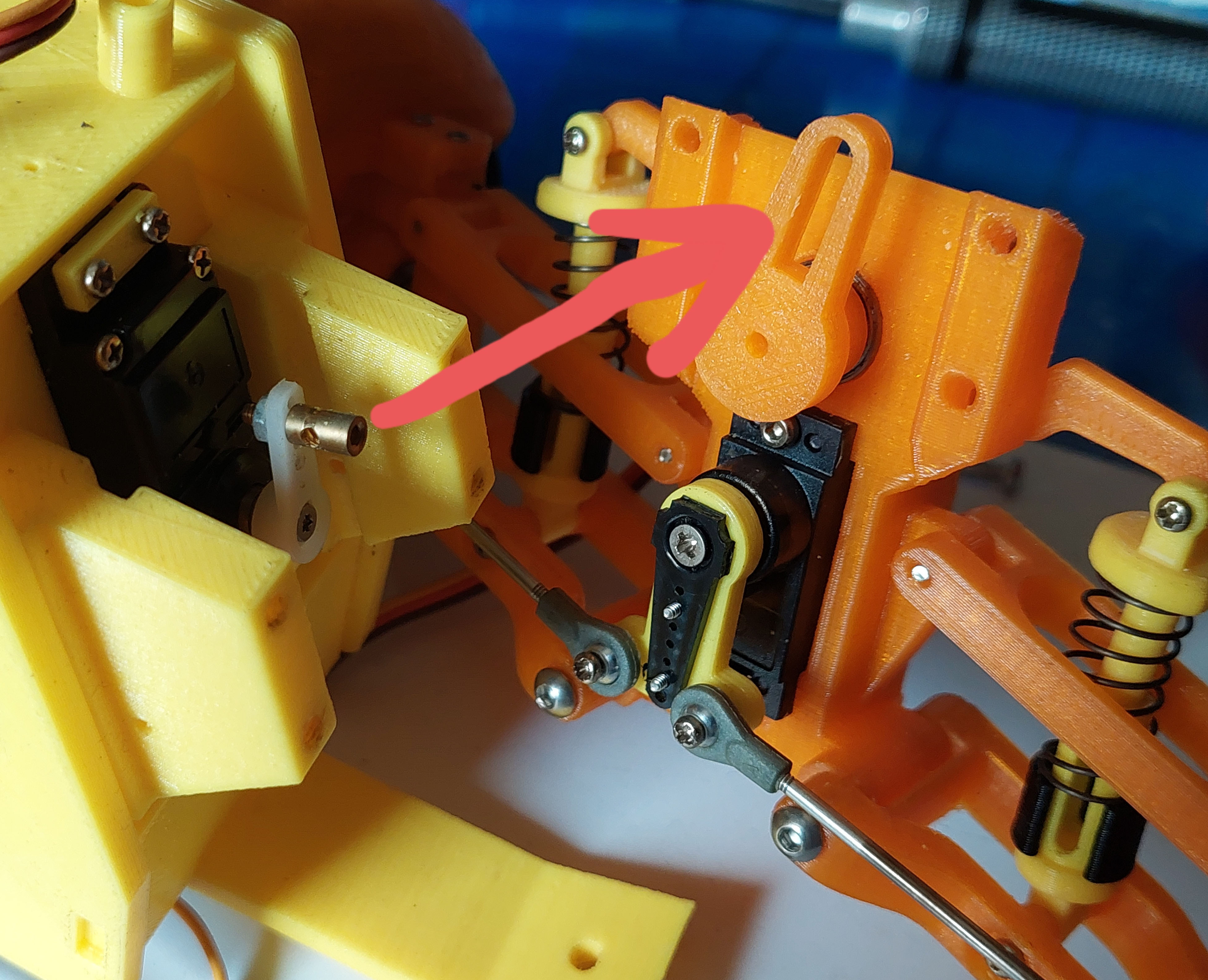

Remarks : I use a 3 ch RC control. Ch1 (12g servo) for tilting ,Ch3 (9g servo) for steering, mixing up the control with ch1. Tilting and turning at the same time.

https://youtu.be/IeRCqBQWV4U
