Thrustmaster T500RS Steering Wheel Adapters - Many different wheel standards.

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 11.4k views
  • 6 likes
  • 40 downloads

3D model description

Thrustmaster T500 Steering Wheel Adapters for aftermarket wheels with all the different mounting bolt circles I could find. They fit well onto the T500 hub with no play between the parts. They will only go on one way.

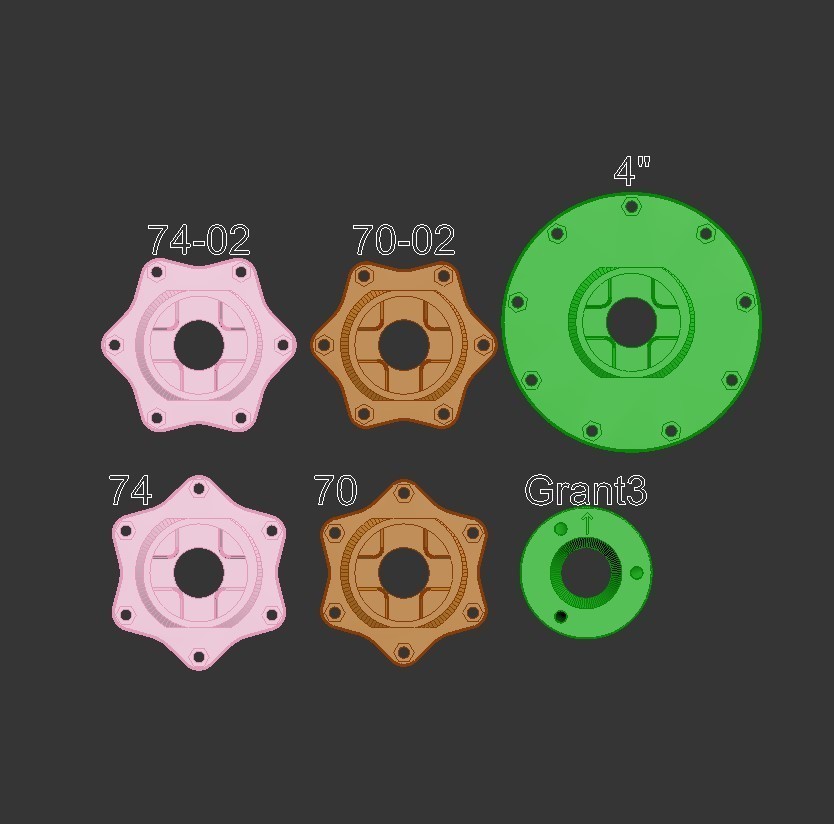

Not that the adapters ending with 02 are rotated 90° compared to the other ones, as shown in one picture. The Grant3 adater is shown upside down in the illustration to show off the bolt pattern. Check out the 3d drawing for detail views. Leave me a comment below if you need a specific bolt circle and/or bolt size.

-T500adapter-70mm will fit the common MOMO, OMP and Sparco wheels.
-T500adapter-70-02 will fit Grant 6-hole steering wheels.
-T500adapter-74mm is not used as far as I know, but here if you need it.

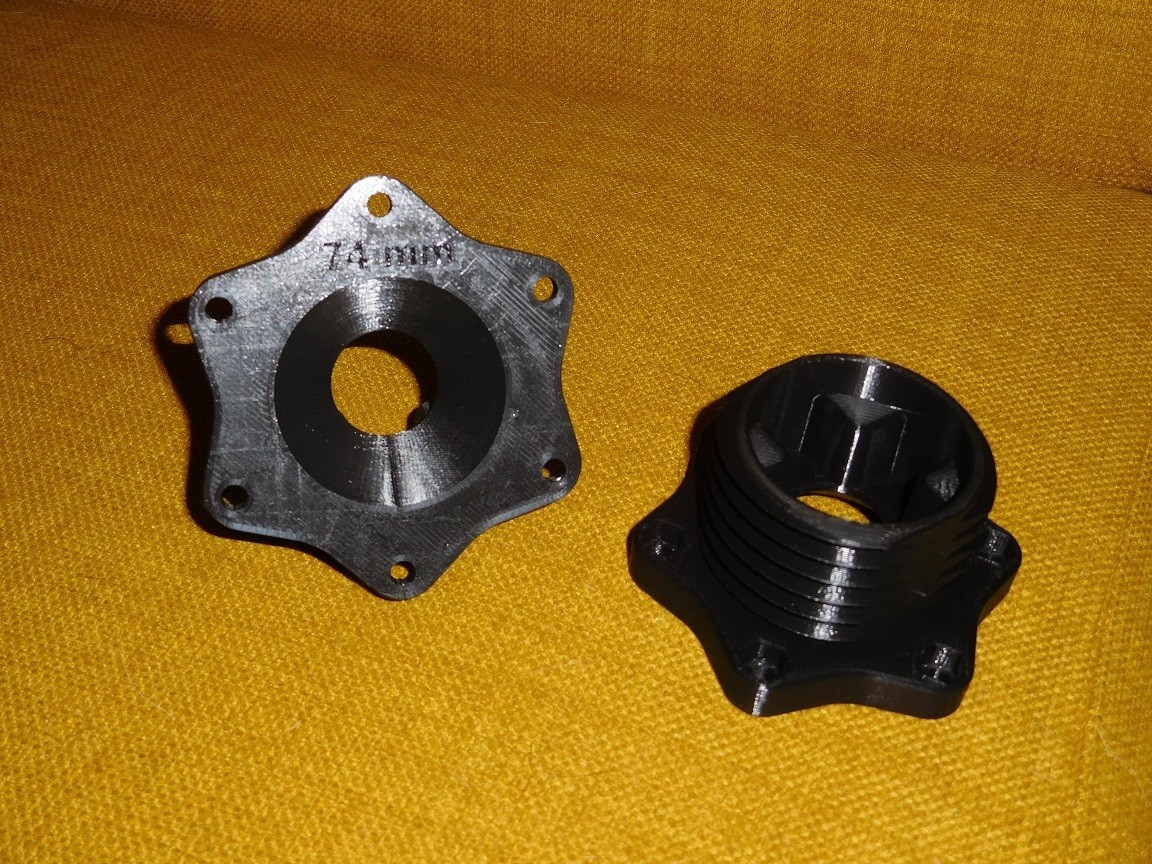

-T500adapter-74-02 will fit Nardi and Personal steering wheels.
-T500adapter-Grant3 will fit Grant three bolt steering wheels.
-T500adapter-4inch will fit Mountney, Lecarra, Moto-Lita and Springalex wheels.

The adapters may not be a direct fit if the back of the steering wheel isn't flat due to horn circuts and such. An adapter spacer may need to be used in that case. The bolt holes are made for 5 mm screws and recessed for M5 nuts on the back on all except the Grant3-adapter. The Grant3 adapter has holes and recesses for 10-32 bolts and nuts since users of that standard probably are more likely to use that size.

Nuts. It helps me out a lot if you using one of my affiliate links like this:
https://www.banggood.com/300Pcs-M3-M4-M5-M6-M8-M10-Stainless-Steel-Metric-Nut-Assortment-Kit-p-1112038.html?p=HD240528697332015103

3D printer file information

  • 3D design format: STL Folder details Close
    • T500adapter-4inch.STL
    • T500adapter-70-02mm.STL
    • T500adapter-70mm.STL
    • T500adapter-74-02mm.STL
    • T500adapter-74mm.STL
    • T500adapter-Grant3.STL

    Learn more about the formats

  • Last update: 2018/02/09 at 03:05
  • Publication date: 2018/01/27 at 20:21

Copyright

©

Tags

Creator

Norwegian inventor/designer/cat owner.

Please don't ask for original design files or parametric files.

If you ask a question about a design, ask under the design so that I can answer there.
