Throwie Magnet Coupled Build Platform

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 755 views
  • 2 likes
  • 5 downloads

3D model description

The small magnets used to couple the build platform to the y-axis are hard to find locally, so I created this build platform that uses the magnets that were readily available at the hacker space, throwie magnets!

3D printing settings

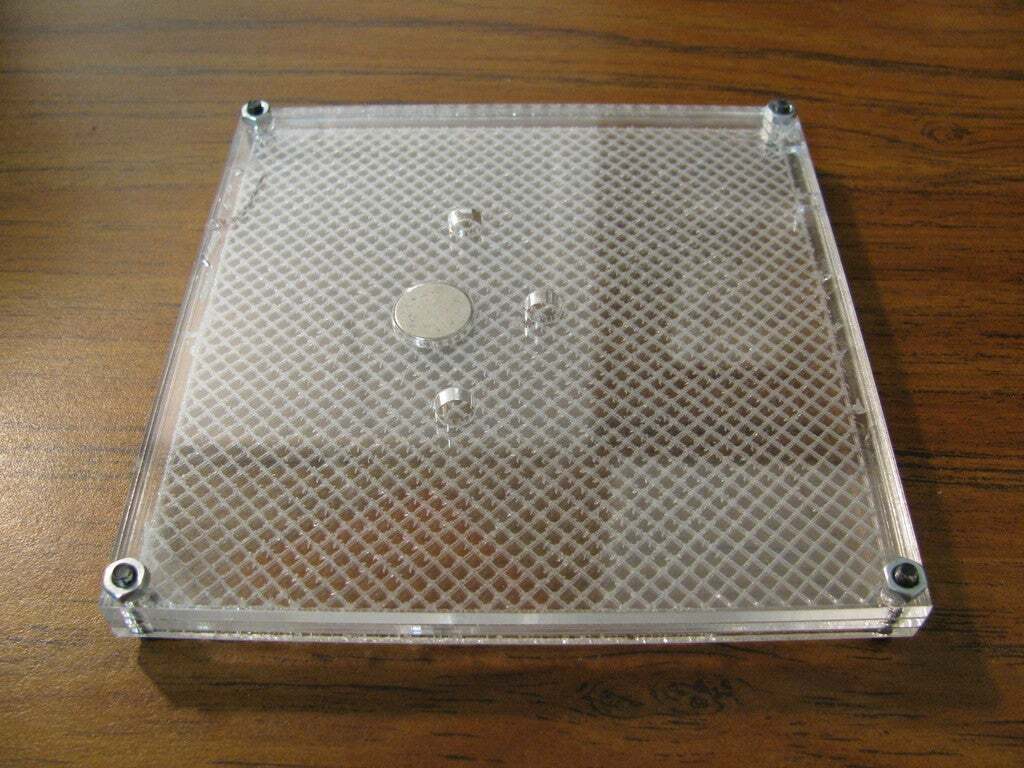

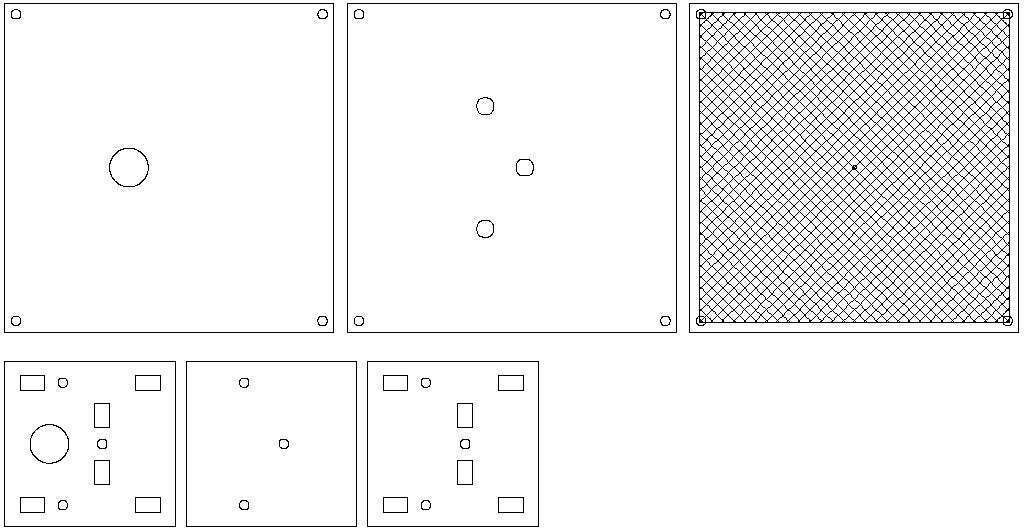

All pieces pictured are cut from 1/8" acrylic. The parts look sweet but I would probably recommend using 1/8" plywood for all the pieces except the build surface itself to reduce weight. The throwie magnets we use are 1/8" thick and 1/2" in diameter but this design can easily be modified to accommodate other magnets. I wouldn't suggest anything stronger, simply because stronger magnets may add some additional load on the y-axis bearings (the rods are steel, after all).

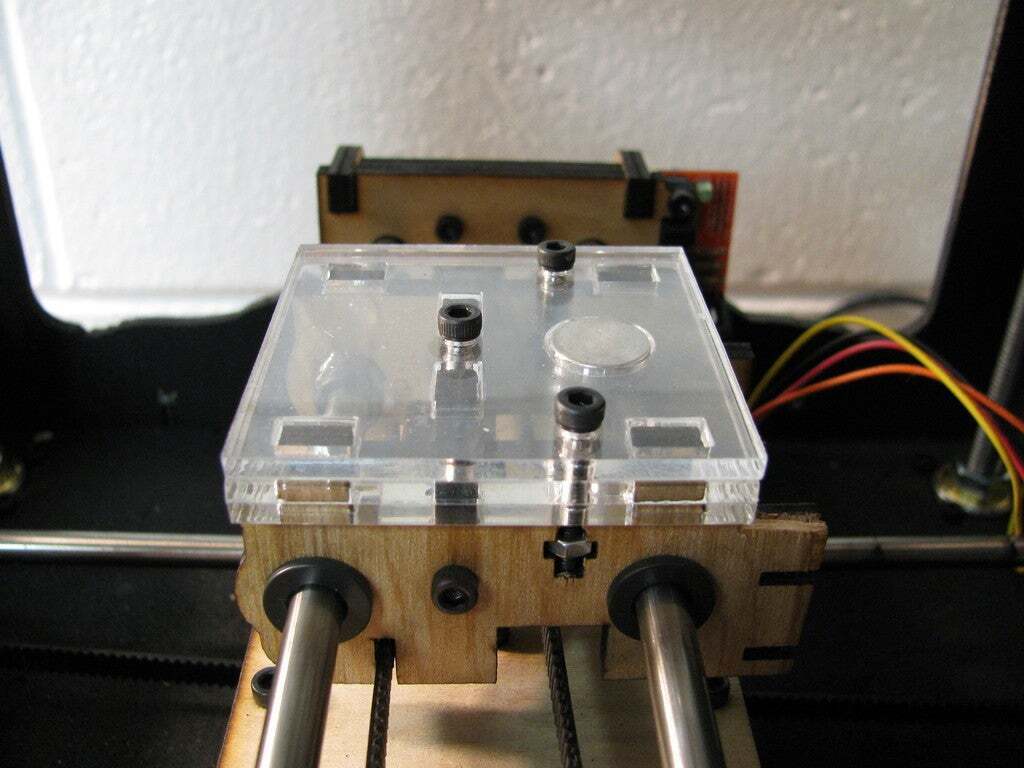

As you can see from the pictures, the 3 smaller layers replace the 1/4" thick wood piece that holds the magnets on the y-axis. If you've got an older MakerBot (batch 4 or older I think) this piece my be 1/8" thick and you'll need to make some modifications to the design to get it to work. The 16mm M3 bolts won't make it all the way to the t-slot nut in the two pieces that house the bearings either, so you'll need to replace these with 20mm long M3 bolts (though I operated my bot fine without replacing these bolts with longer ones for a bit while the bolts were on order with no issues).

  • 3D file format: EPS
  • Publication date: 2019/10/18 at 17:39

Tags

Creator

License

CC BY SA
