Thermometer holder for Mendel - Parametrized.

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 655 views
  • 7 downloads

3D model description

A simple holder for a simple thermometer from dealextreme. It's parametrized in OpenSCAD, so you can easily adapt it for other similar equipment.

I use mine to read the temperature of my manually controlled heated bed, and you can't have anything like that attached with strips when you have a 3d-printer.

The sensor itself is taped to the top of the bed glass plate, and provide adequate accurate readings. About 5-10 degrees off I reckon.

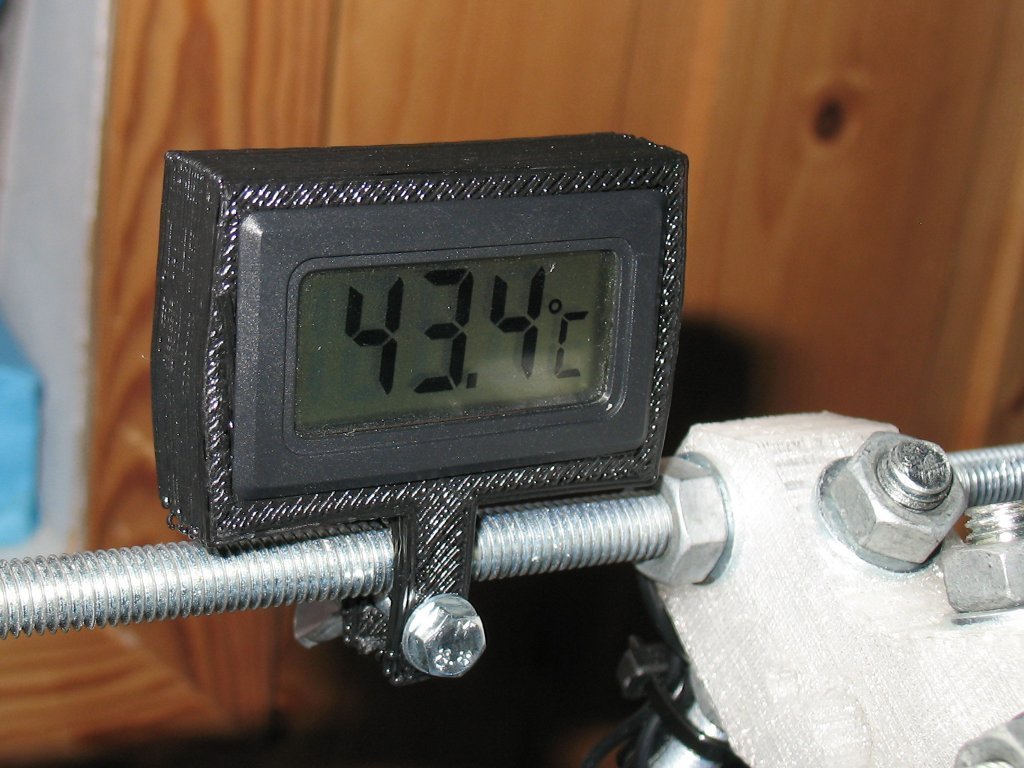

As you see in the picture I printed it a little on the small side, so it bulges a bit.

3D printing settings

If you don't have one, you can order one for ~3$ here: http://www.dealextreme.com/p/digital-compact-lcd-thermometer-with-outdoors-remote-sensor-15553?r=10492979

You can change the polling time of said thermometer to ~8 seconds by cracking it open and bridging the pads marked "SW3" with some solder. See this thread at dealextreme forums: http://www.dealextreme.com/forums/Default.dx/sku.15553~threadid.398905

Measure your thermometer and compensate for printer accuracy in the OpenSCAD file.

Set skeinforge to make "infill in direction of bridge". Print, then cut off the little bridge support on the end of the clamp.

Clip in the thermometer, and bolt it to your Mendel.

You will now smile every time you read your bed temperature.

  • 3D file format: STL
