T 4x4 TRIAL RC model

Download 3D model T 4x4 TRIAL RC model , martinaandreaDownload 3D model T 4x4 TRIAL RC model , martinaandreaDownload 3D model T 4x4 TRIAL RC model , martinaandreaDownload 3D model T 4x4 TRIAL RC model , martinaandreaDownload 3D model T 4x4 TRIAL RC model , martinaandreaDownload 3D model T 4x4 TRIAL RC model , martinaandreaDownload 3D model T 4x4 TRIAL RC model , martinaandreaDownload 3D model T 4x4 TRIAL RC model , martinaandreaDownload 3D model T 4x4 TRIAL RC model , martinaandreaDownload 3D model T 4x4 TRIAL RC model , martinaandreaDownload 3D model T 4x4 TRIAL RC model , martinaandrea

Did you 3D print this model?

3D model description

video : https://www.youtube.com/watch?v=AQjDX2YPQRY&feature=emb_logo

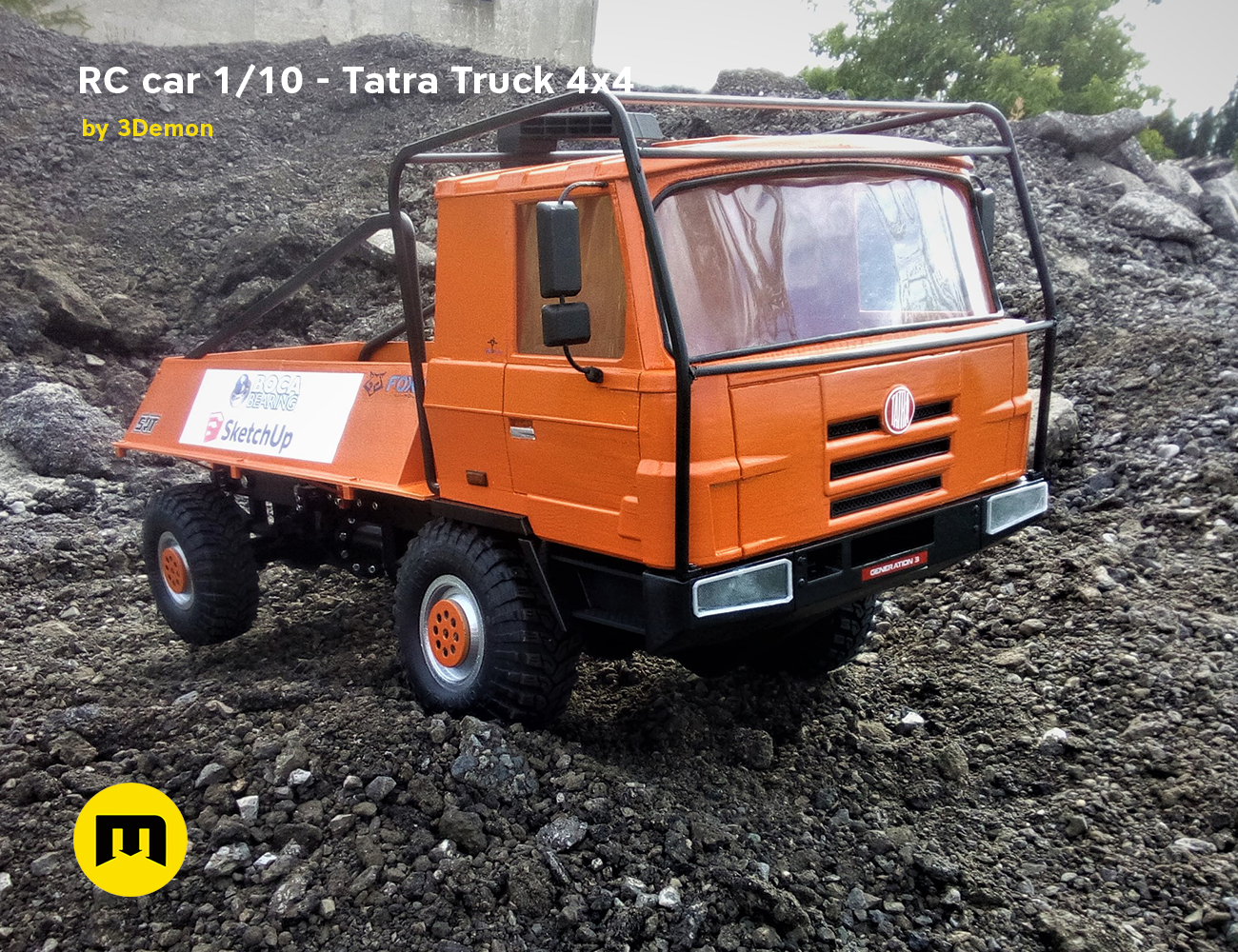

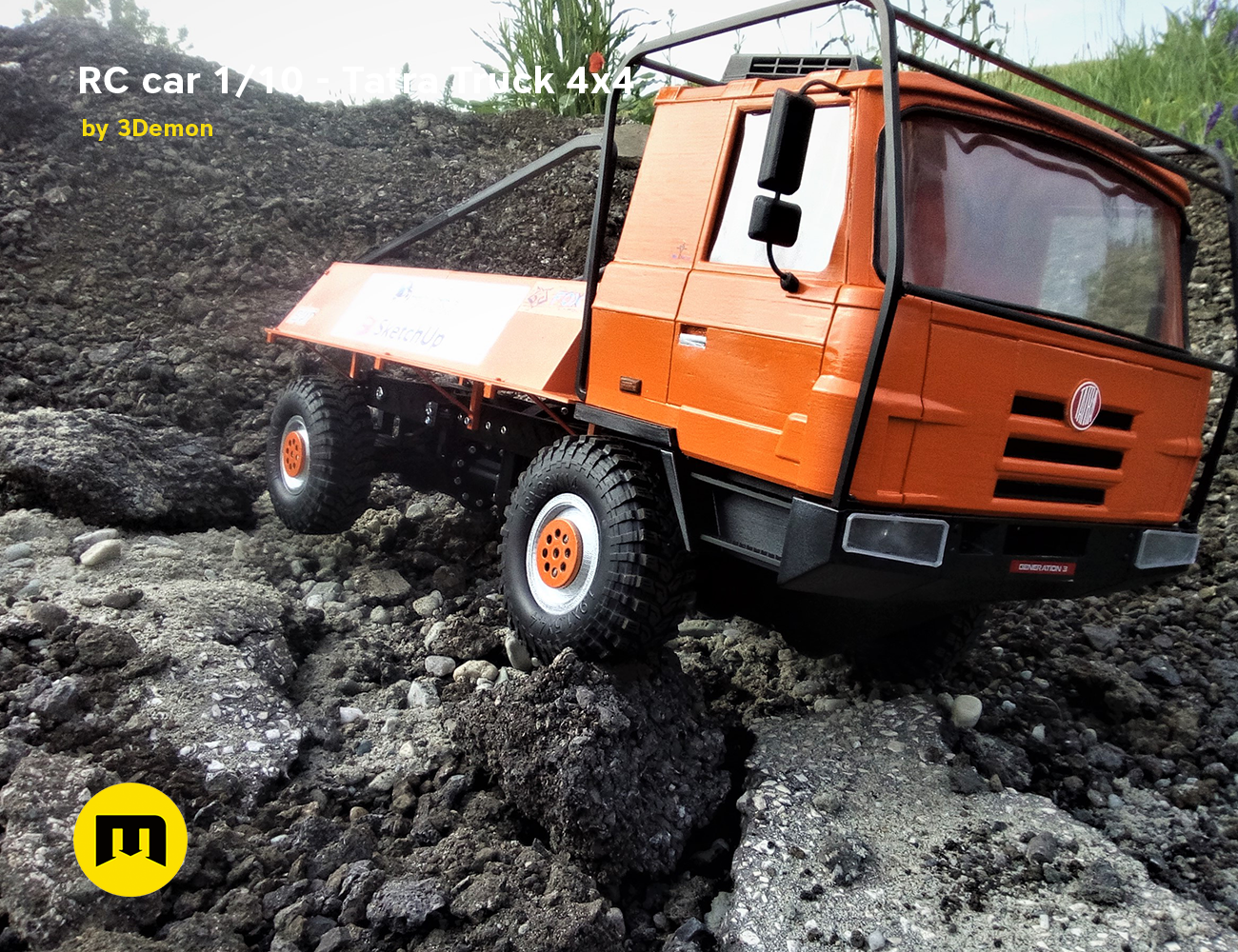

New model derived from our T6x6 chassis. It is an improved and reinforced chassis for trial.
The model also received new gearbox. There are two versions.

version with 1/18 ratio
version with 1/14 ratio

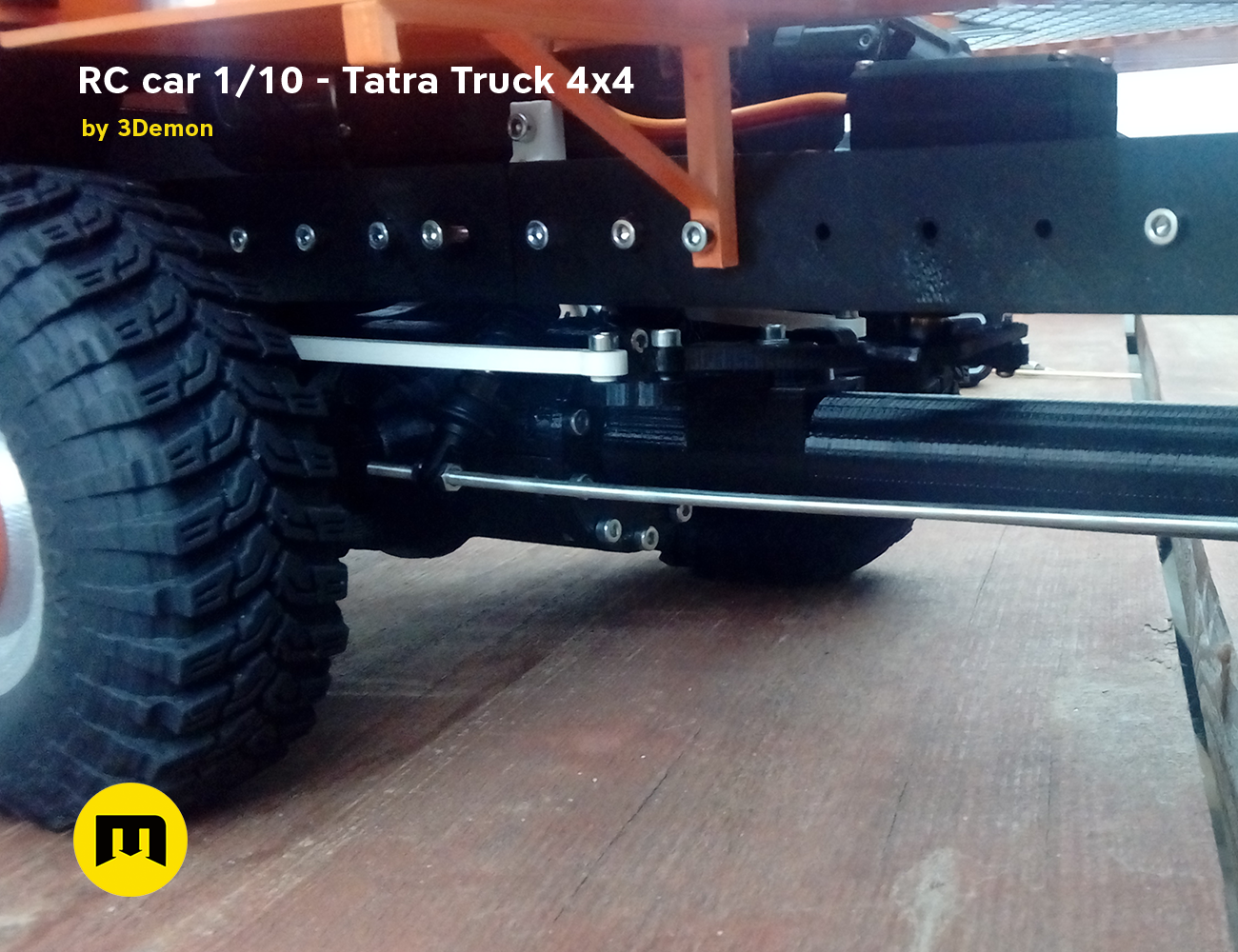

Each of the half-axles is independent and also protected by dust covers to prevent unwanted material from reaching the gears.

Technical info:

 contains 28 bearings 10x15x4
 screws M3 x 10 mm - 150 pcs
 screws M3 x 14 mm - 40pcs
 screws M3 x 16 mm - 20pcs
 locking screws M3 x 6 mm (coils) - 50pcs
 screws M6 x 50 mm (ideally 55) - 2pcs
 screws M6 x 100 mm - 4 pcs
 screws M6 x 30 mm - 10pcs
 screws M6 x 20 mm - 10pcs
 nuts M6 - 20 pcs (glue required - or you can try lock nuts)

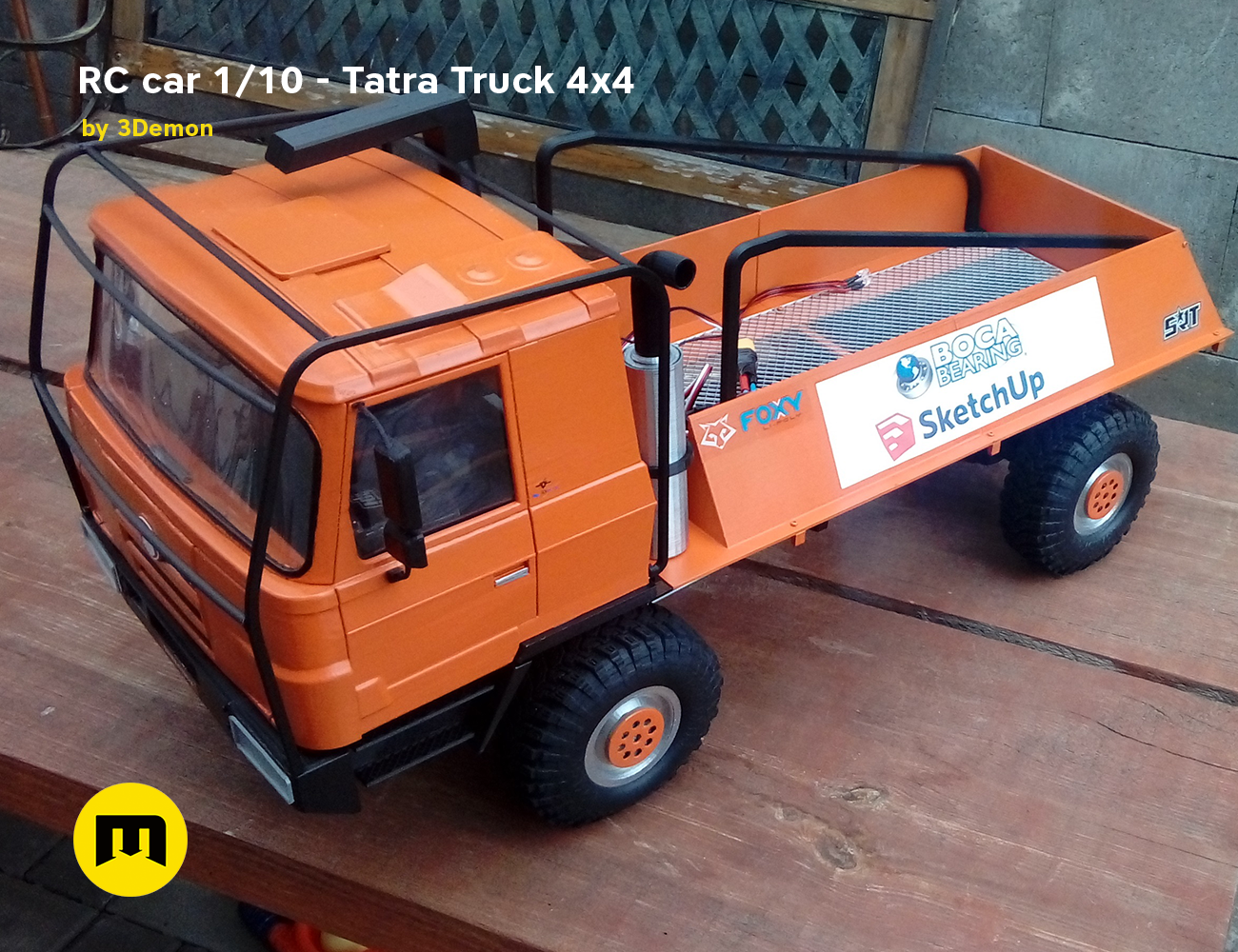

The model includes a trial structure for storing spare wheel electronics.

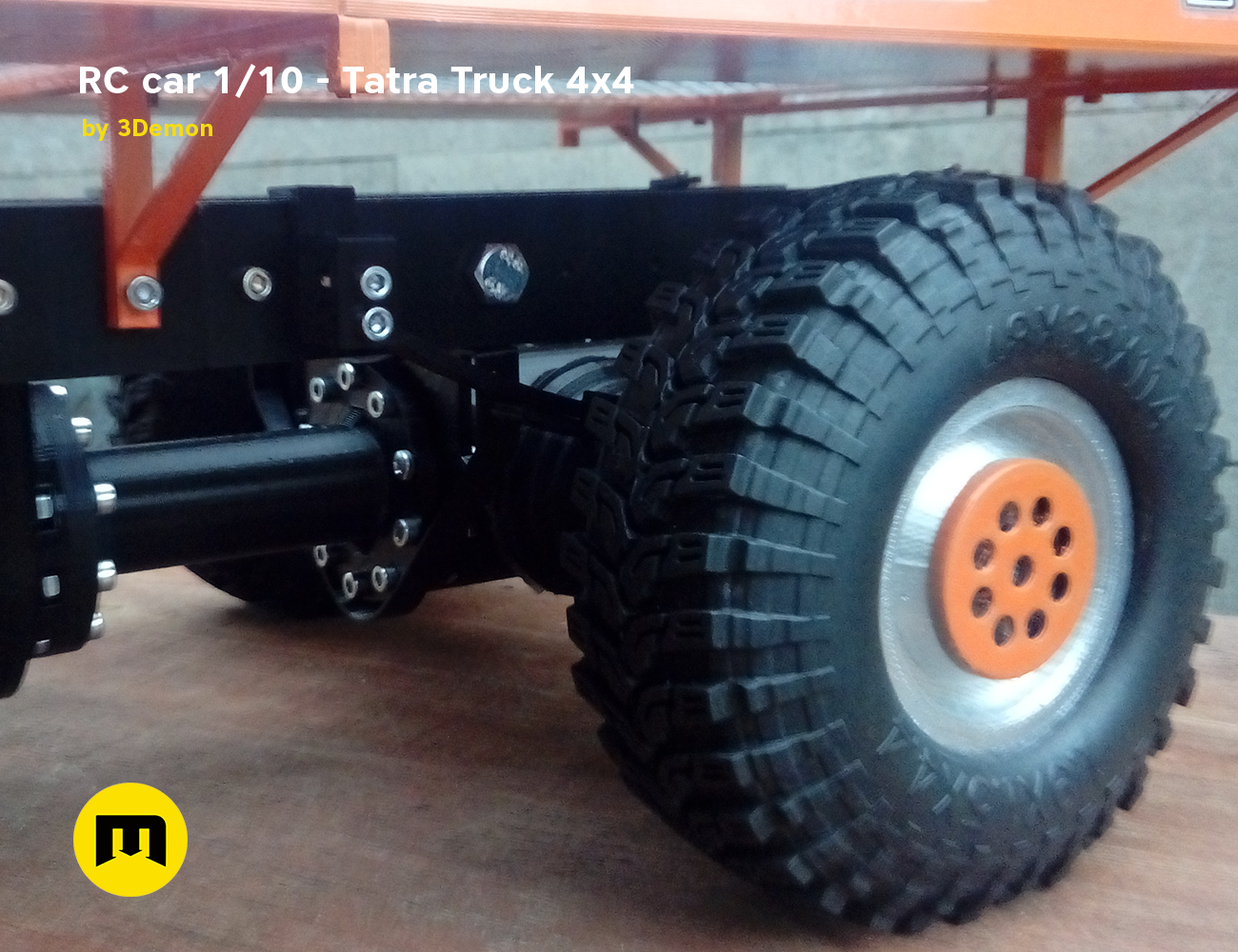

Tires with a diameter of 115 -120 mm

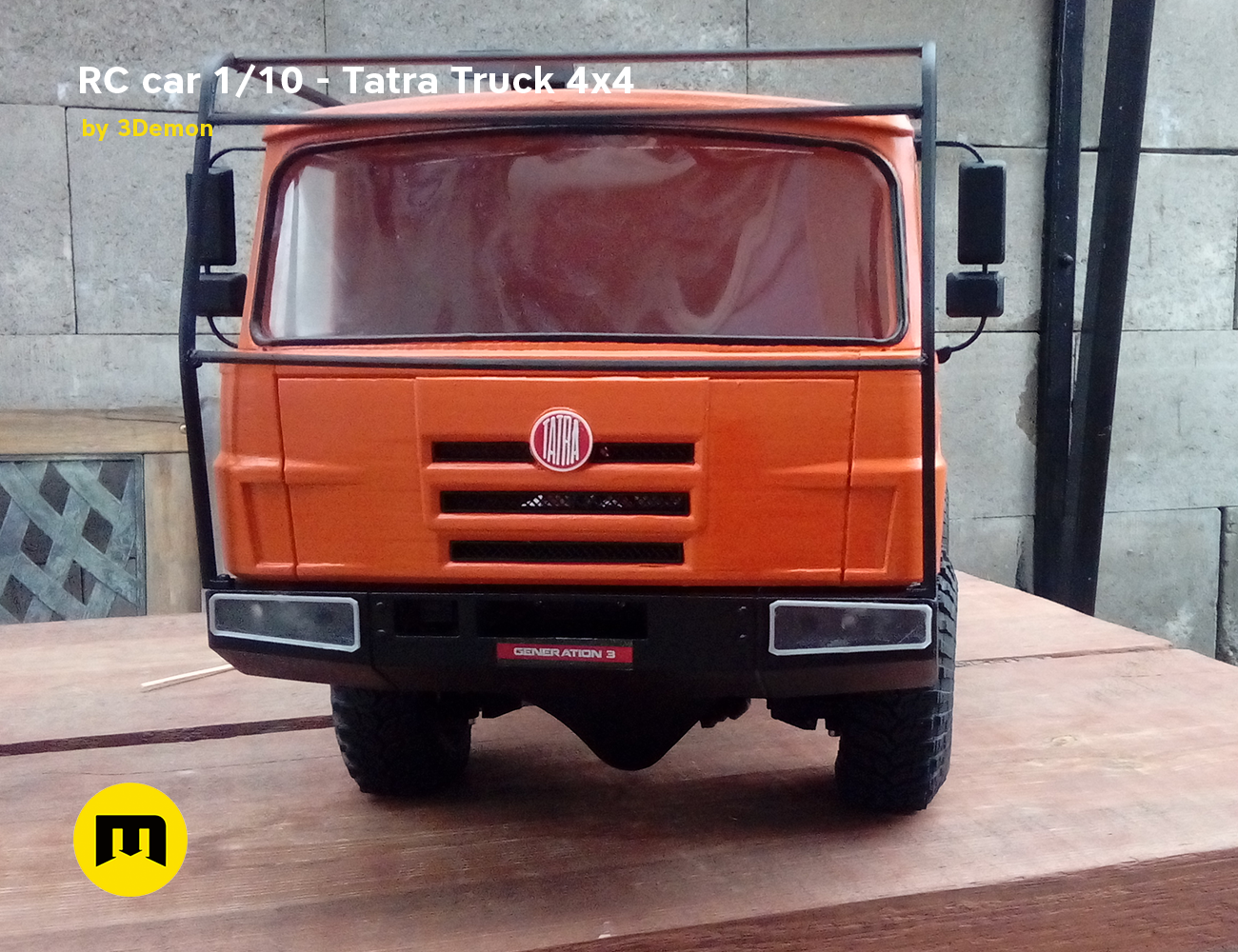

The model can be fitted with lights - the bumper is prepared for ledges with a diameter of 5.5 mm.
Data contains manual.

3D printing settings

0,2mm layer

for all chassis parts 5 perimeters , and 70% infill

  • 3D file format: ZIP
